Description

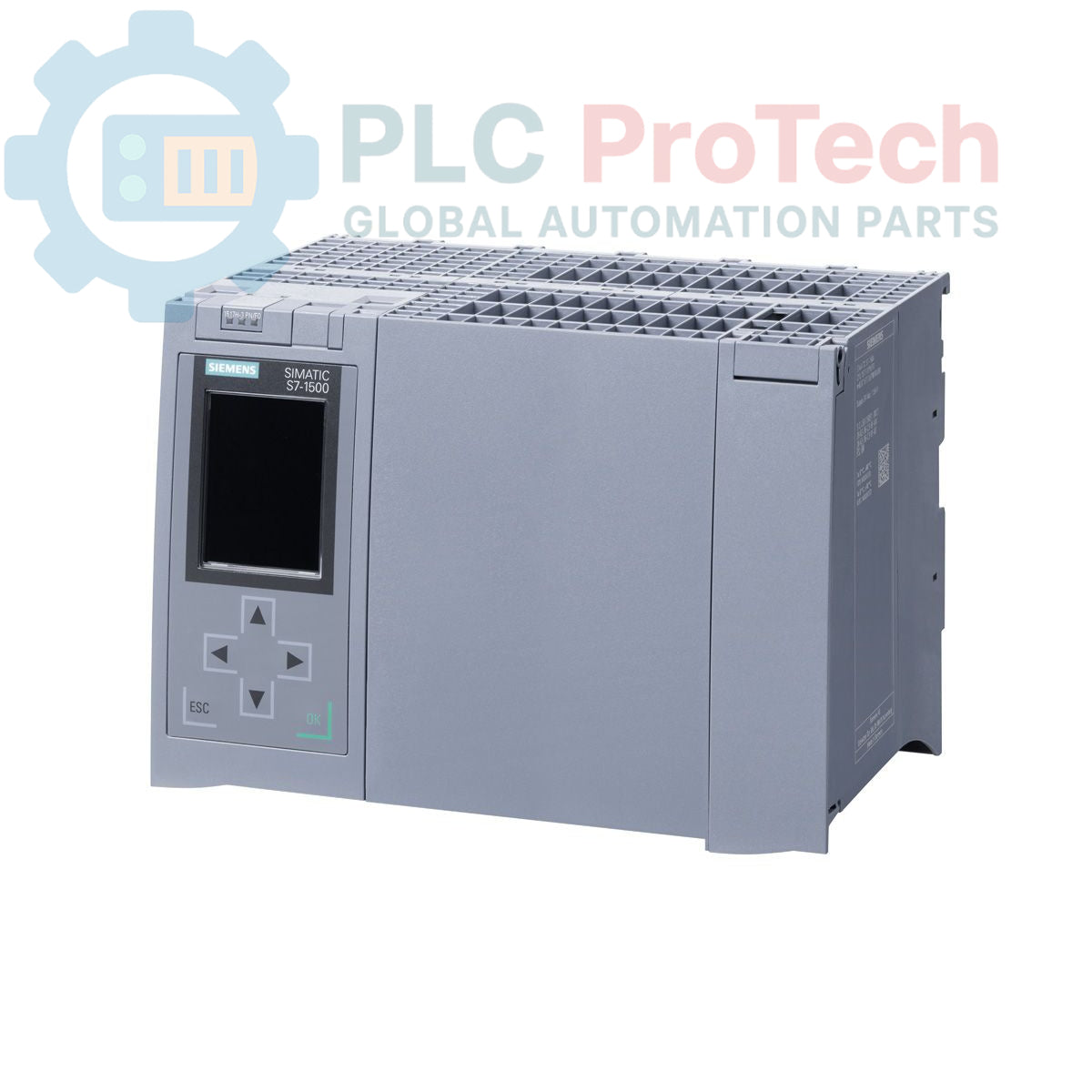

The Siemens 6ES7517-3HP00-0AB0 is a SIMATIC S7-1500H CPU 1517H-3 PN central processing unit designed for the SIMATIC S7-1500 range. This Standard CPU is engineered for high-availability applications, featuring 2 MB of work memory dedicated to program execution and an additional 8 MB for data storage. It integrates multiple communication interfaces for robust industrial networking, including a primary PROFINET RT interface with a 2-port switch, a second dedicated PROFINET interface, and two H-SYNC interfaces crucial for high-availability synchronization. Operation of this CPU requires a SIMATIC Memory Card.

Features

• CPU 1517H-3 PN for SIMATIC S7-1500H systems
• 2 MB work memory for program
• 8 MB work memory for data
• First interface: PROFINET RT with 2-port switch
• Second interface: PROFINET
• Third and fourth interfaces: H-SYNC for high availability
• Requires SIMATIC Memory Card for operation

Applications

The Siemens 6ES7517-3HP00-0AB0 CPU is suitable for a wide range of industrial automation tasks, particularly those requiring high availability and robust processing power. Typical applications include:

• High-availability process control systems
• Distributed automation architectures
• Complex machine control
• Factory automation and manufacturing lines
• Critical infrastructure monitoring and control

Technical Specifications

Installation Guidelines

1. De-energize System: Before installation, ensure all power to the automation system and associated equipment is completely disconnected and locked out according to safety procedures.
2. Mounting: Install the CPU module onto the designated SIMATIC S7-1500 rack or mounting rail. Ensure it is securely latched into place to prevent vibration-induced disconnections.
3. Memory Card Insertion: Insert the required SIMATIC Memory Card into the designated slot on the CPU. Ensure it is correctly oriented and fully seated.
4. Power Connection: Connect the CPU to the system power supply according to the system wiring diagram. Verify correct polarity and secure all power connections.
5. PROFINET Connections: Connect the PROFINET cables to the integrated PROFINET interfaces. For the 2-port switch, ensure proper network topology (e.g., line or ring) as required by the application.
6. H-SYNC Connections: For high-availability configurations, connect the H-SYNC cables between the redundant CPUs as per the SIMATIC S7-1500H system manual.
7. Grounding: Ensure the CPU and the entire rack system are properly grounded to the central grounding point of the control cabinet to minimize electrical noise and ensure safety.
8. Cable Routing: Route all communication and power cables to minimize electromagnetic interference (EMI). Separate signal cables from power cables where possible.
9. Power Up: After all connections are verified, re-energize the system. Observe the CPU status LEDs for proper operation and boot sequence.
