6ES7614-1AH02-0AB3-Z

Siemens

Siemens 6ES7614-1AH02-0AB3-Z SIMATIC S7-300 Special CPU

SKU 6ES7614-1AH02-0AB3-Z

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6ES7614-1AH02-0AB3-Z
  • Origin Germany
  • Product Type: Special CPU
  • Barcode: 85389091
  • Payment: T/T, Western Union
  • Weight: 0.2 kg
  • Dimensions: 7.60 x 12.70 x 12.70 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

S7-300 Special CPU
Quantità
Call sales Contact

Product Description

Description

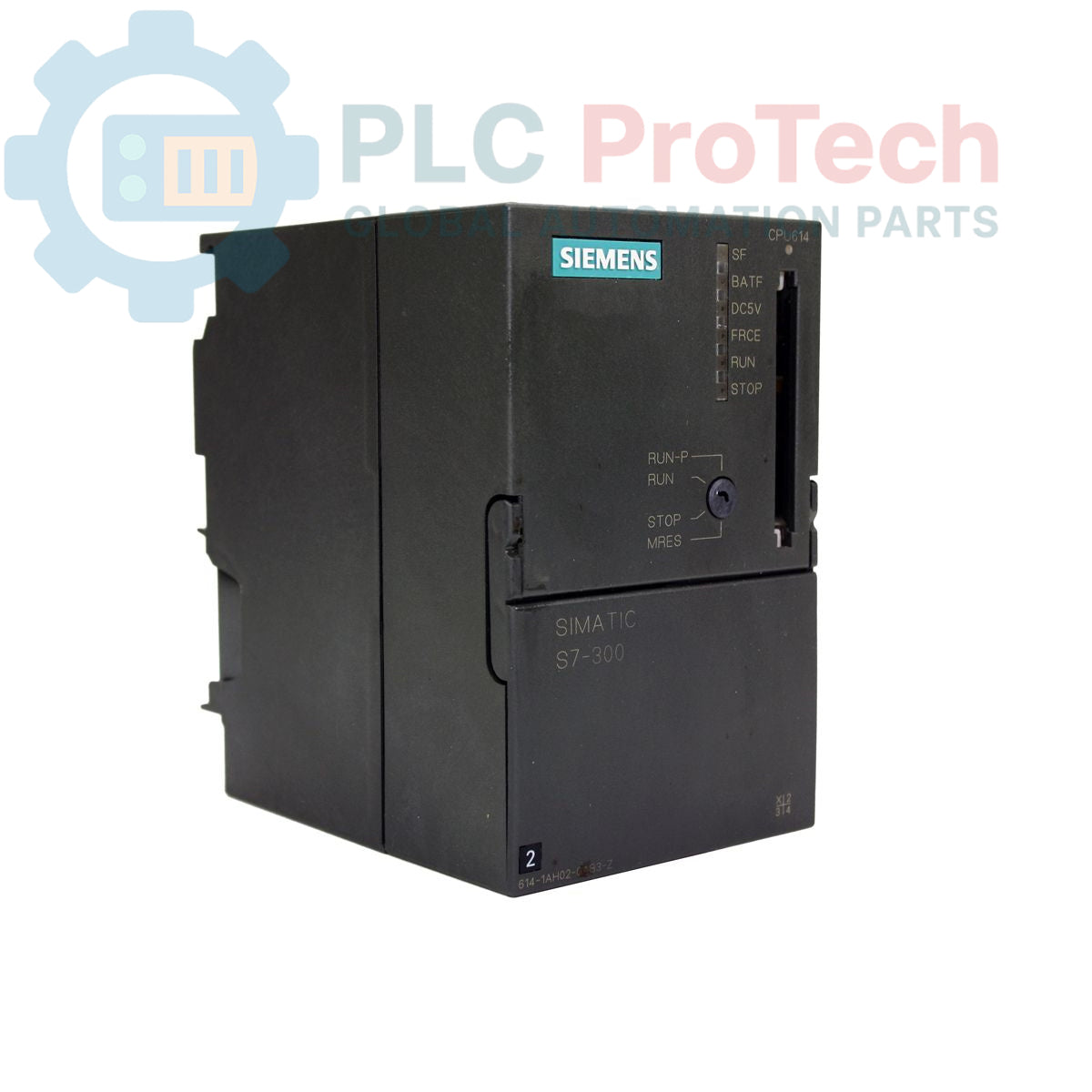

The Siemens 6ES7614-1AH02-0AB3-Z is a specialized CPU module designed for integration into the SIMATIC S7-300 automation system. This CPU 614 unit features 128 KB of onboard memory, enabling it to support demanding industrial automation tasks. It provides reliable control and high-speed processing for modern production environments, ensuring stable and scalable solutions for continuous use in production lines. Its compact form factor facilitates seamless installation within existing SIMATIC S7-300 racks, supporting fast data processing, real-time control, and efficient memory management for uninterrupted operation of automation processes.

Features

  • 128 KB onboard memory
  • Specialized CPU 614 unit
  • Designed for SIMATIC S7-300 system integration
  • Supports fast data processing and real-time control
  • Efficient memory management capabilities
  • Compact form factor for seamless installation

Applications

  • General industrial automation tasks
  • Modern production environments requiring reliable control
  • Production lines needing high-speed processing
  • Systems requiring stable and scalable automation solutions

Technical Specifications

Manufacturer Siemens
Brand Siemens
Range Simatic S7
Subrange S7-300
Product Type Special CPU
Memory 128 KB
Alternate Item Code 6ES7614-1AH02-0AB3
PLM Product Phase Obsolete
Package Dimensions (Calculated) 7.60 x 12.70 x 12.70 cm
Shipping Weight 0.20 kg
Commodity Code 85389091
Export Control Regulations (ECCN) N

Installation Guidelines

  1. De-energize System: Before installation, ensure that the SIMATIC S7-300 rack and associated power supplies are completely de-energized to prevent electrical hazards.
  2. Select Slot: Identify an available and appropriate slot within the SIMATIC S7-300 rack for the CPU module.
  3. Mount Module: Carefully insert the 6ES7614-1AH02-0AB3-Z CPU module into the selected slot. Ensure it is fully seated and secured by engaging any locking mechanisms or screws provided by the rack system.
  4. Connect Power: Connect the necessary power supply to the rack, ensuring correct polarity and secure termination.
  5. Connect Communication: If applicable, connect any required communication cables (e.g., MPI, PROFIBUS) to the CPU module's interfaces. Ensure cables are properly routed and shielded to minimize interference.
  6. Grounding: Verify that the SIMATIC S7-300 rack system is properly grounded according to industrial standards to ensure stable operation and safety.
  7. Re-energize and Test: After all connections are secure, re-energize the system and perform functional tests to confirm proper operation of the CPU and connected I/O.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the memory capacity of the 6ES7614-1AH02-0AB3-Z CPU?
The CPU module is equipped with 128 KB of onboard memory.
Which automation system is this CPU compatible with?
This CPU is specifically designed for integration into the Siemens SIMATIC S7-300 automation system.
What is the primary function of this CPU module?
Its primary function is to provide reliable control and high-speed processing for demanding industrial automation tasks within production environments.
Is the 6ES7614-1AH02-0AB3-Z still actively produced?
According to its PLM Product Phase, this module is classified as Obsolete.
What are the physical dimensions of the module?
The package dimensions are 7.60 x 12.70 x 12.70 cm.
