Description

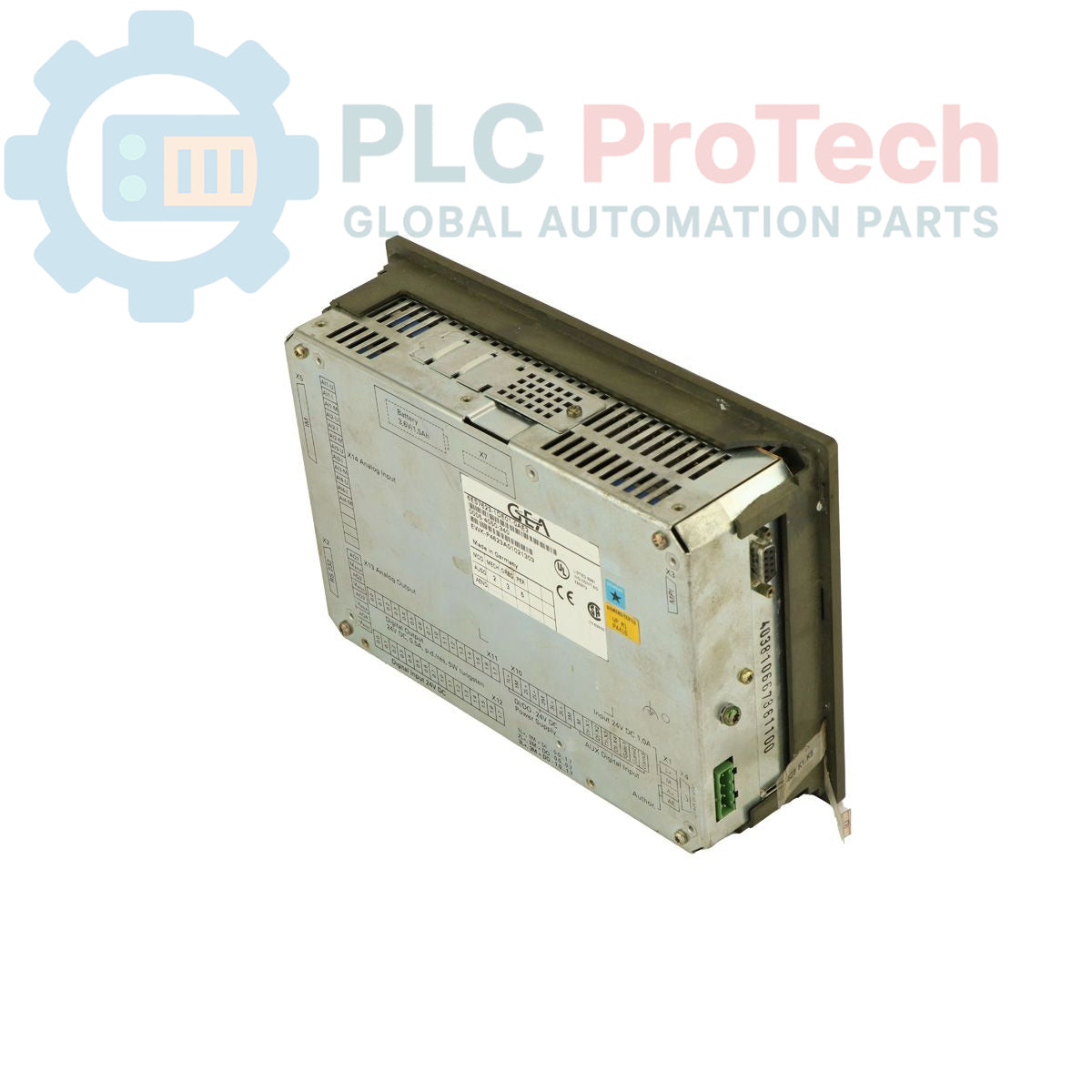

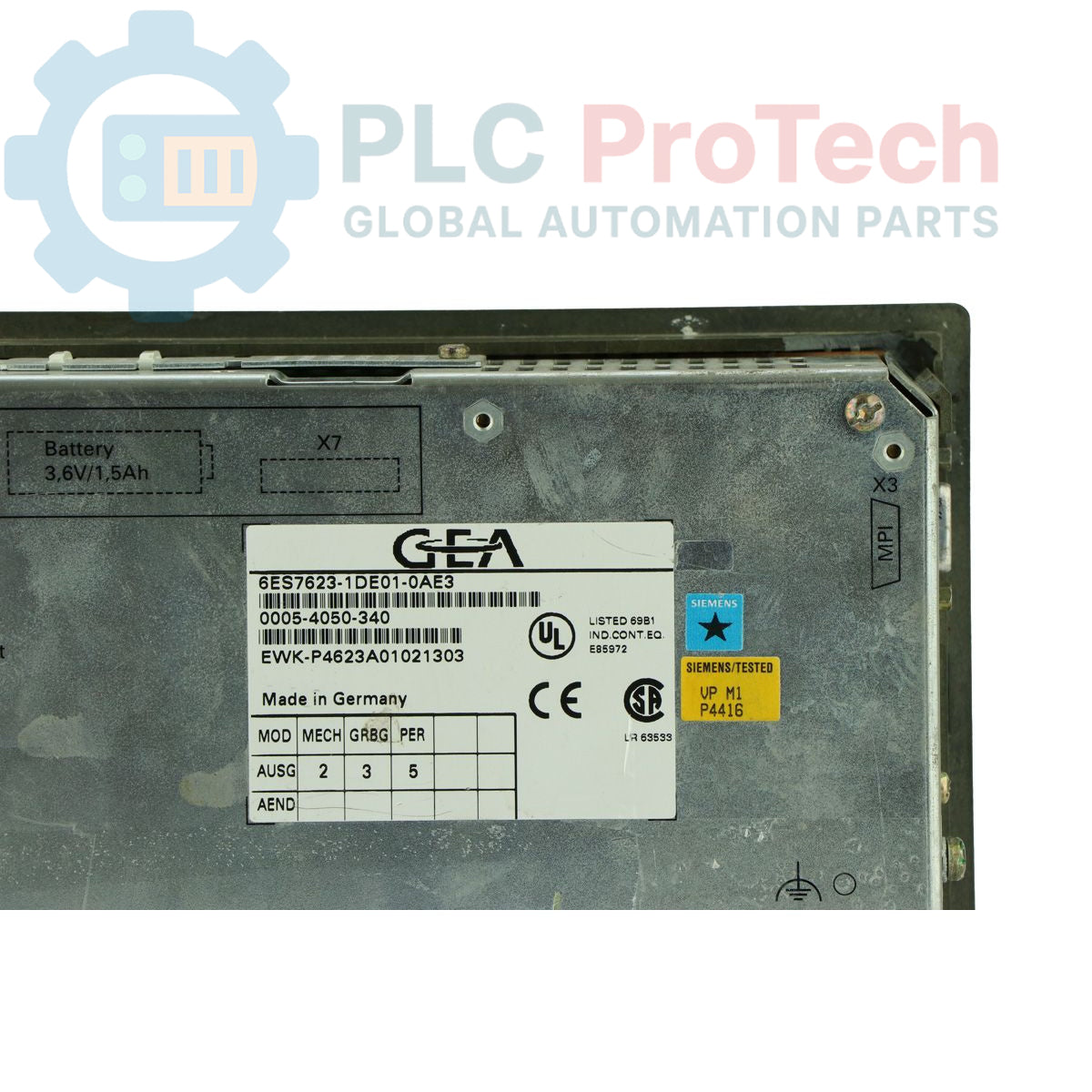

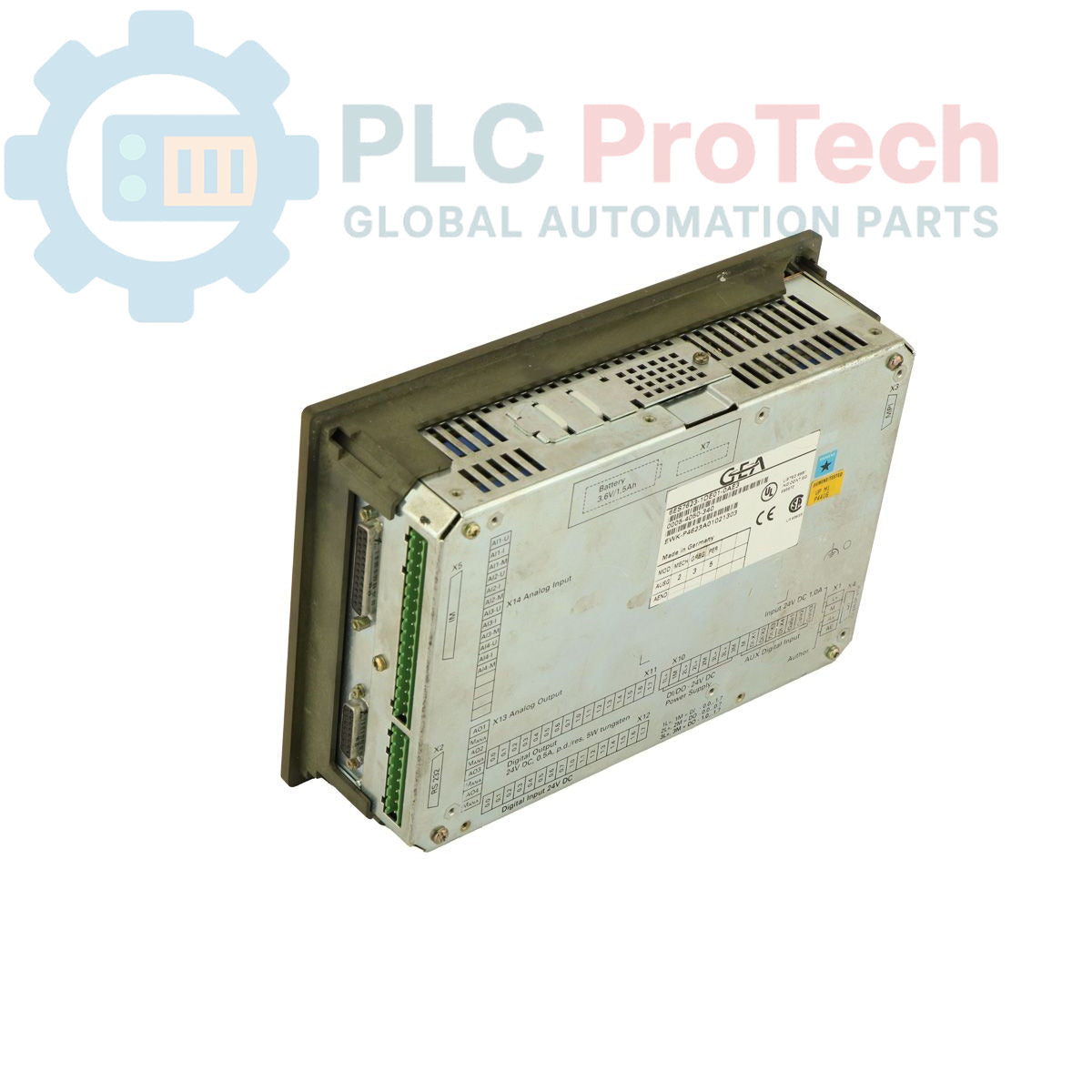

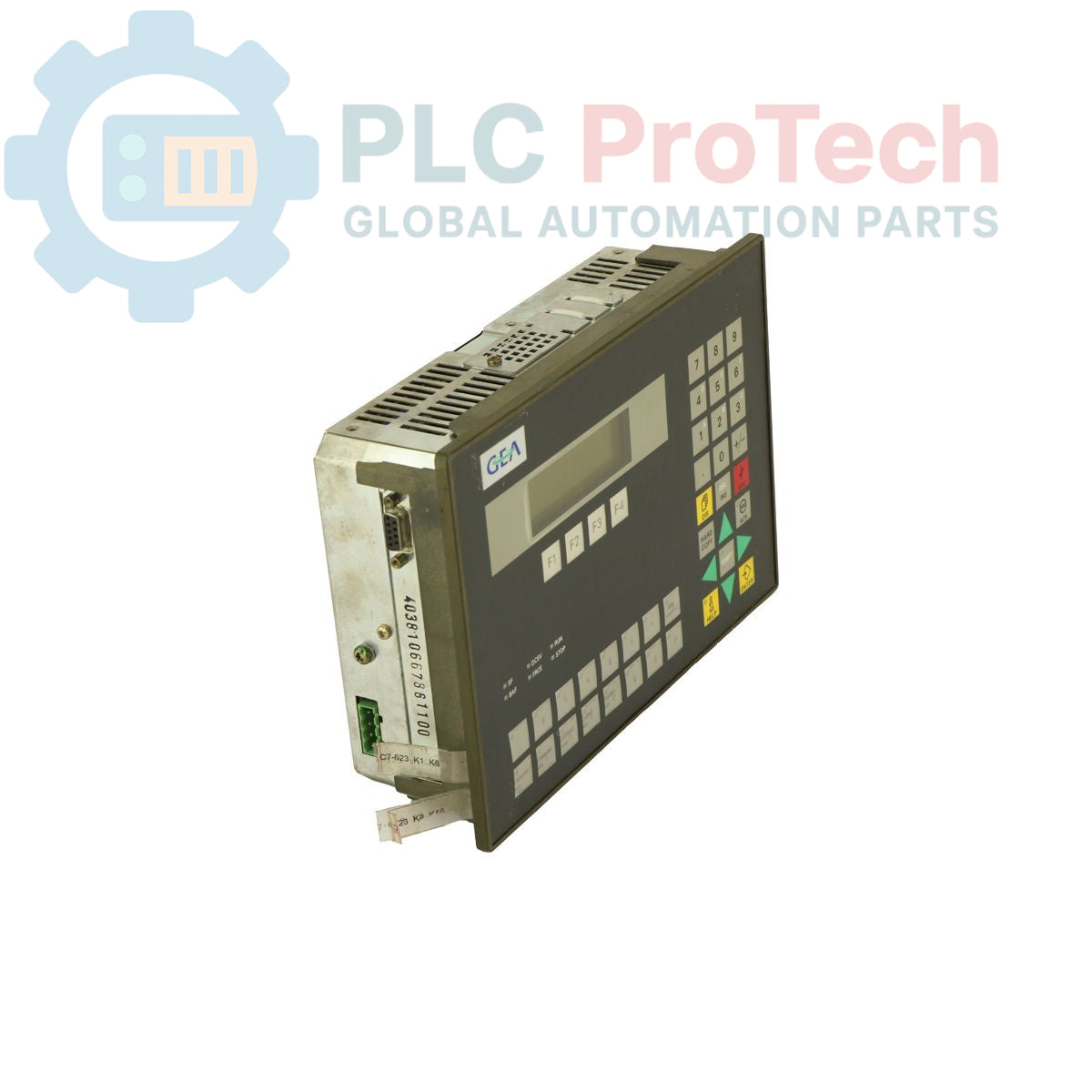

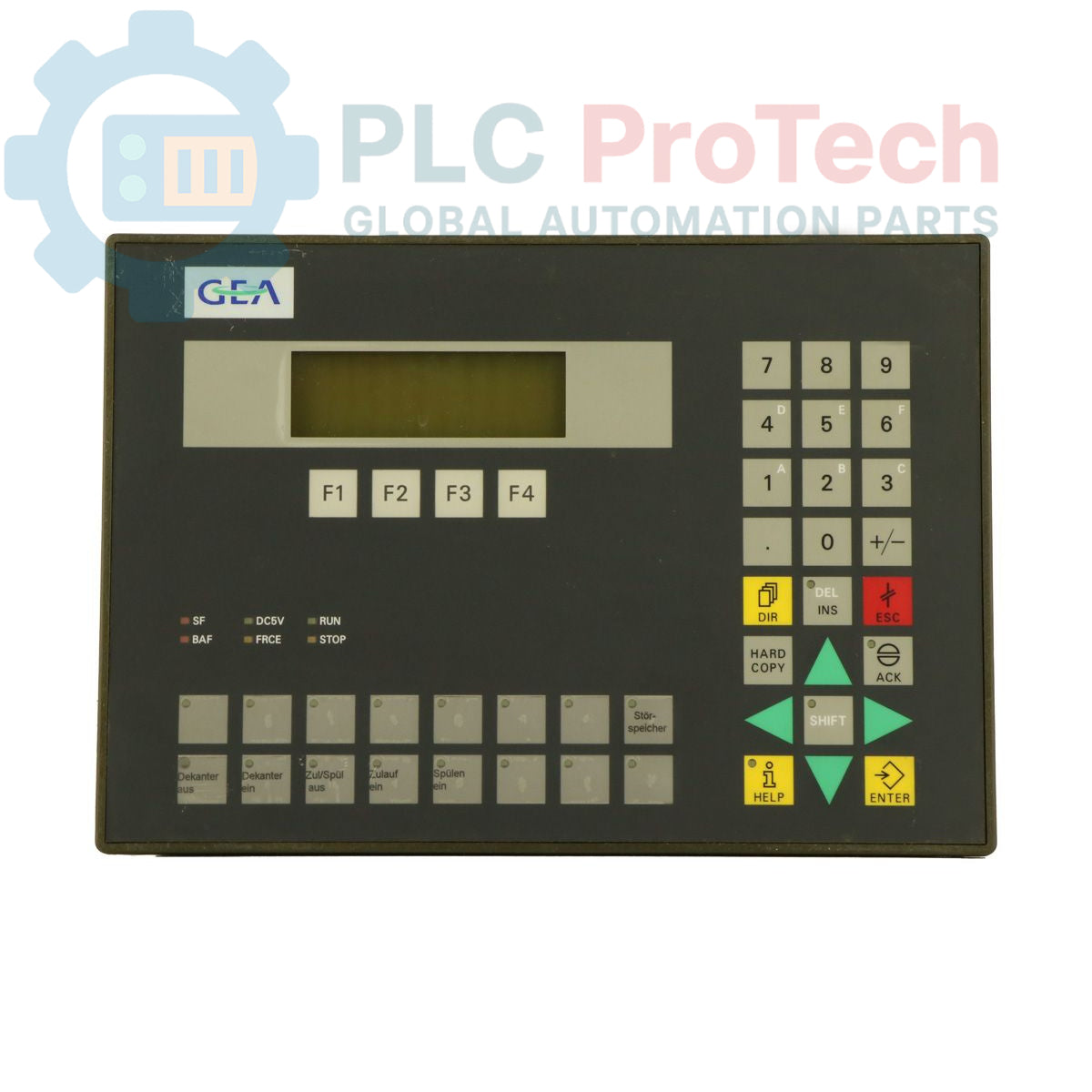

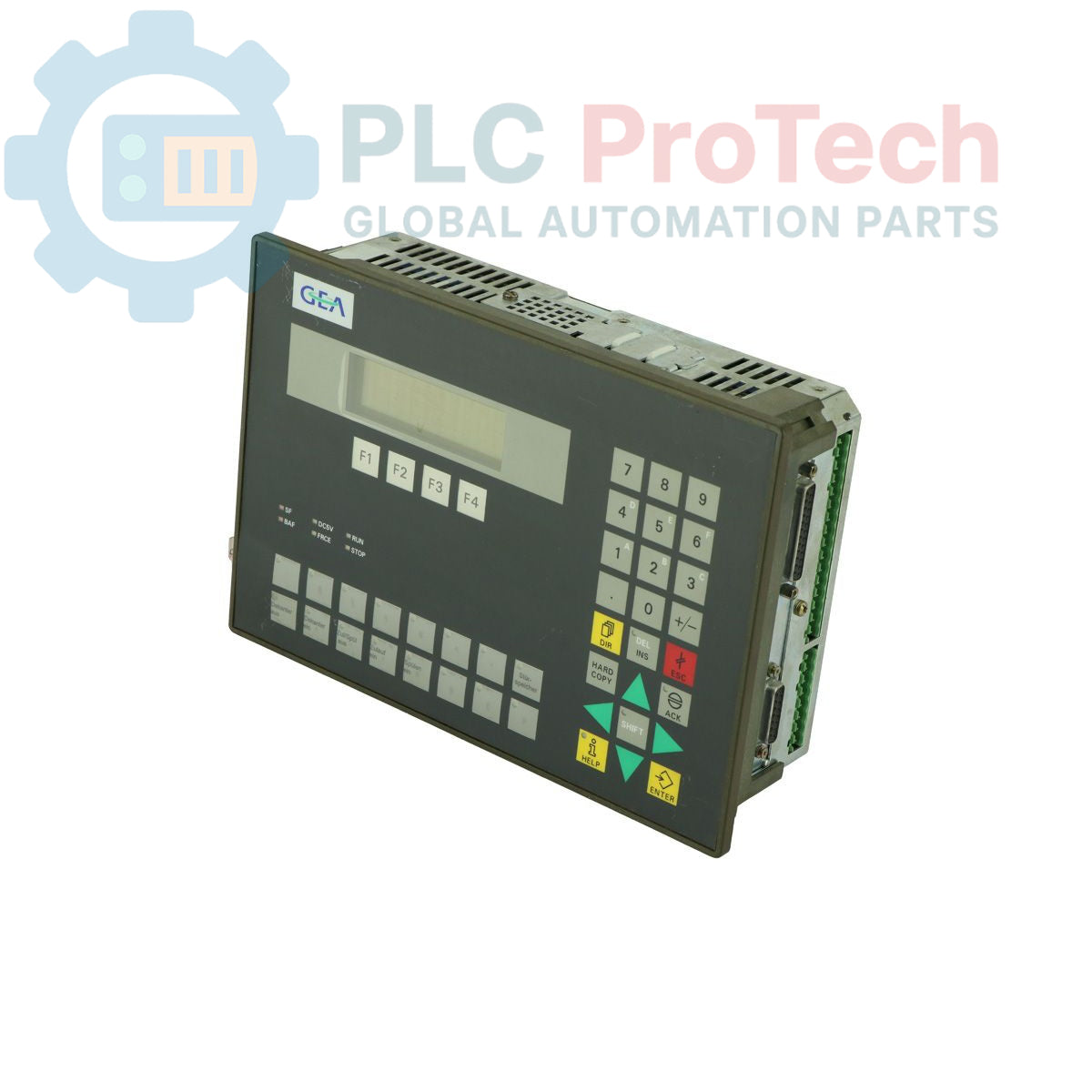

The Siemens 6ES7623-1DE01-0AE3 is a SIMATIC C7-623/P Compact Unit, an integrated industrial automation device designed for efficient control and monitoring of production processes. This unit combines an S7-300 CPU314, a SIMATIC OP5 operator panel, and an IM360 interface module, along with various integrated I/O capabilities. It features 16 digital inputs (DI), 16 digital outputs (DO), 4 analog inputs (AI), 4 analog outputs (AO), and 4 universal inputs (UI). The 6ES7623-1DE01-0AE3 provides reliable operation in demanding environments, characterized by its robust construction and modular design, facilitating quick integration into existing production lines. Engineered for straightforward installation and ongoing maintenance, this compact unit enhances operational flexibility and is a dependable choice for industrial automation systems requiring durability and performance.

Features

• Integrated S7-300 CPU314 Processor
• Integrated SIMATIC OP5 Operator Panel
• Integrated IM360 Interface Module
• 16 Digital Inputs (DI)
• 16 Digital Outputs (DO)
• 4 Analog Inputs (AI)
• 4 Analog Outputs (AO)
• 4 Universal Inputs (UI)
• Compact and integrated design
• Robust construction for industrial environments
• Modular design for flexible integration
• Designed for straightforward installation and maintenance

Applications

• Efficient control and monitoring of production processes
• Industrial automation systems requiring compact, integrated solutions
• Deployment in demanding environments where stability and performance are critical
• Integration into existing production lines requiring rapid deployment and minimal downtime
• Optimization of automation systems through ease of installation and maintenance

Technical Specifications

Installation Guidelines

1. De-energize System: Before beginning any installation, ensure all power to the control cabinet and associated equipment is completely disconnected and locked out according to safety protocols.
2. Mounting: Securely mount the compact unit in the designated control cabinet or panel. Ensure adequate clearance for ventilation and cable routing.
3. Wiring Digital I/O: Connect digital input and output signals to the appropriate terminals. Verify correct polarity for DC signals and proper termination for all connections.
4. Wiring Analog I/O: Connect analog input and output signals, paying close attention to shielding requirements for signal integrity. Ensure proper grounding of shields.
5. Wiring Universal Inputs: Connect universal input signals as per the specific sensor or signal type being used, following the unit's wiring diagrams.
6. Power Supply Connection: Connect the unit to its specified power supply, ensuring correct voltage and current ratings are met. Verify proper grounding.
7. Communication Setup: If applicable, connect any communication cables (e.g., for programming or network integration) to the appropriate ports.
8. System Integration: Integrate the unit into the overall automation system, ensuring proper configuration and addressing within the PLC programming environment.
9. Power Up and Test: After all connections are verified, re-energize the system and perform functional tests to confirm correct operation of all integrated components and I/O.
