Description

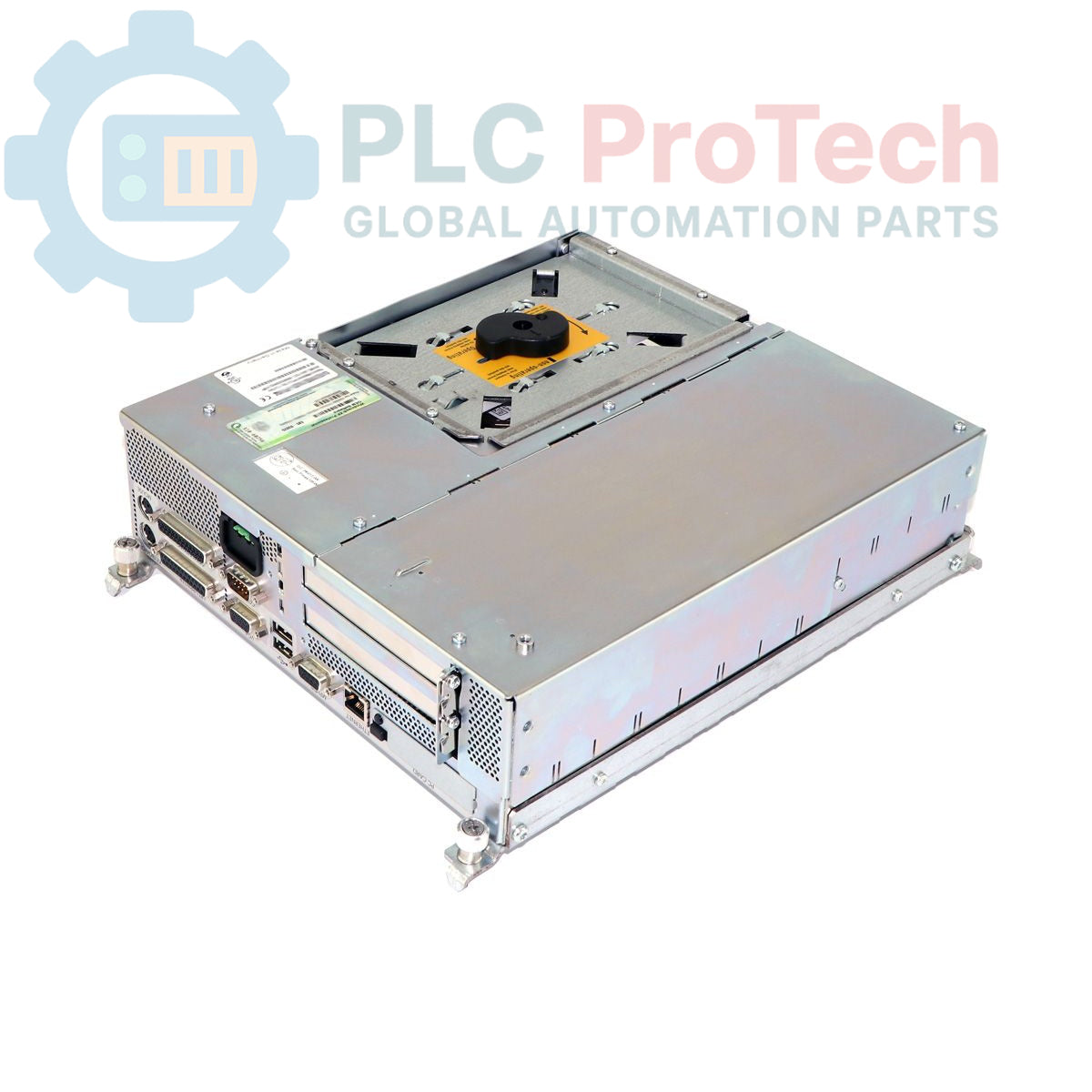

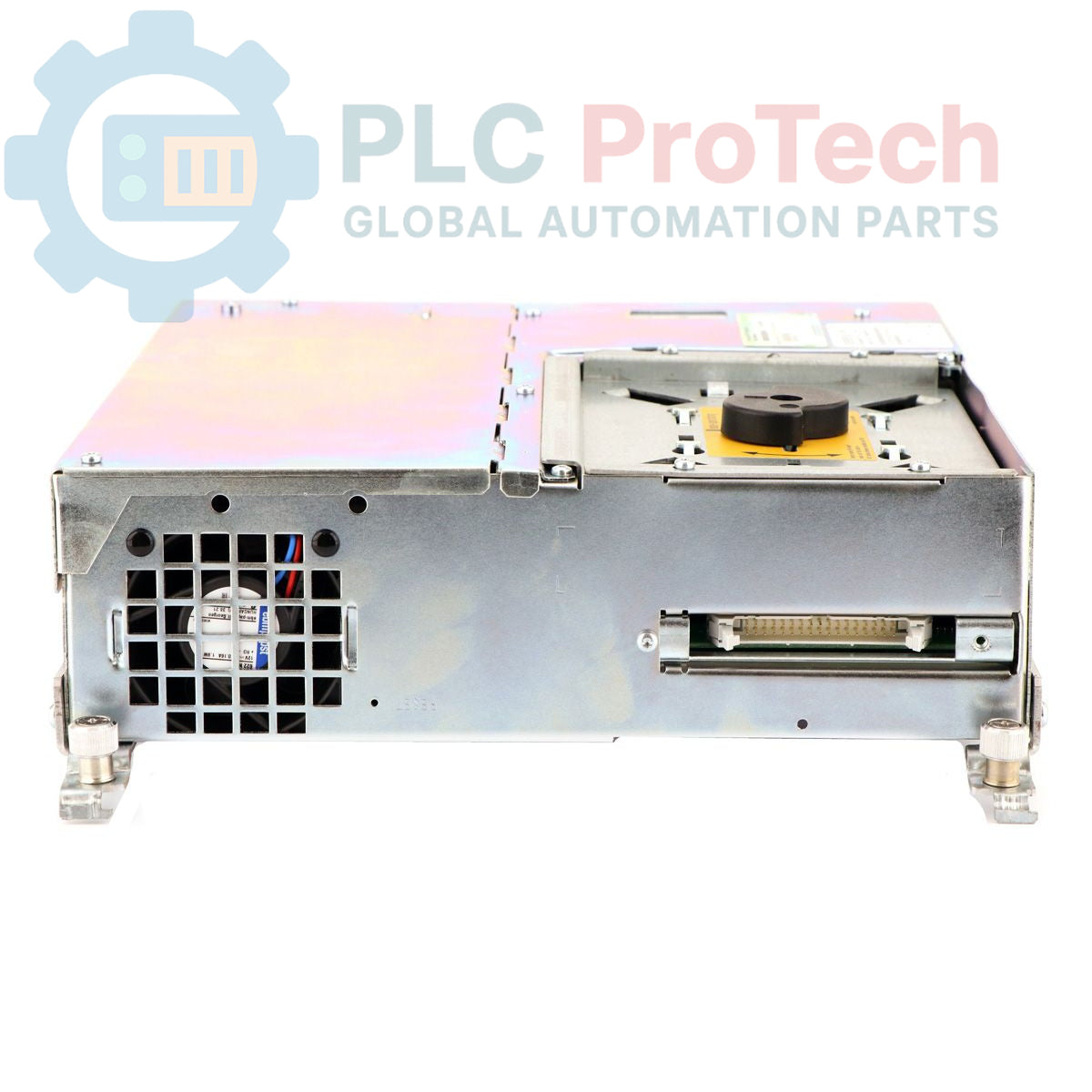

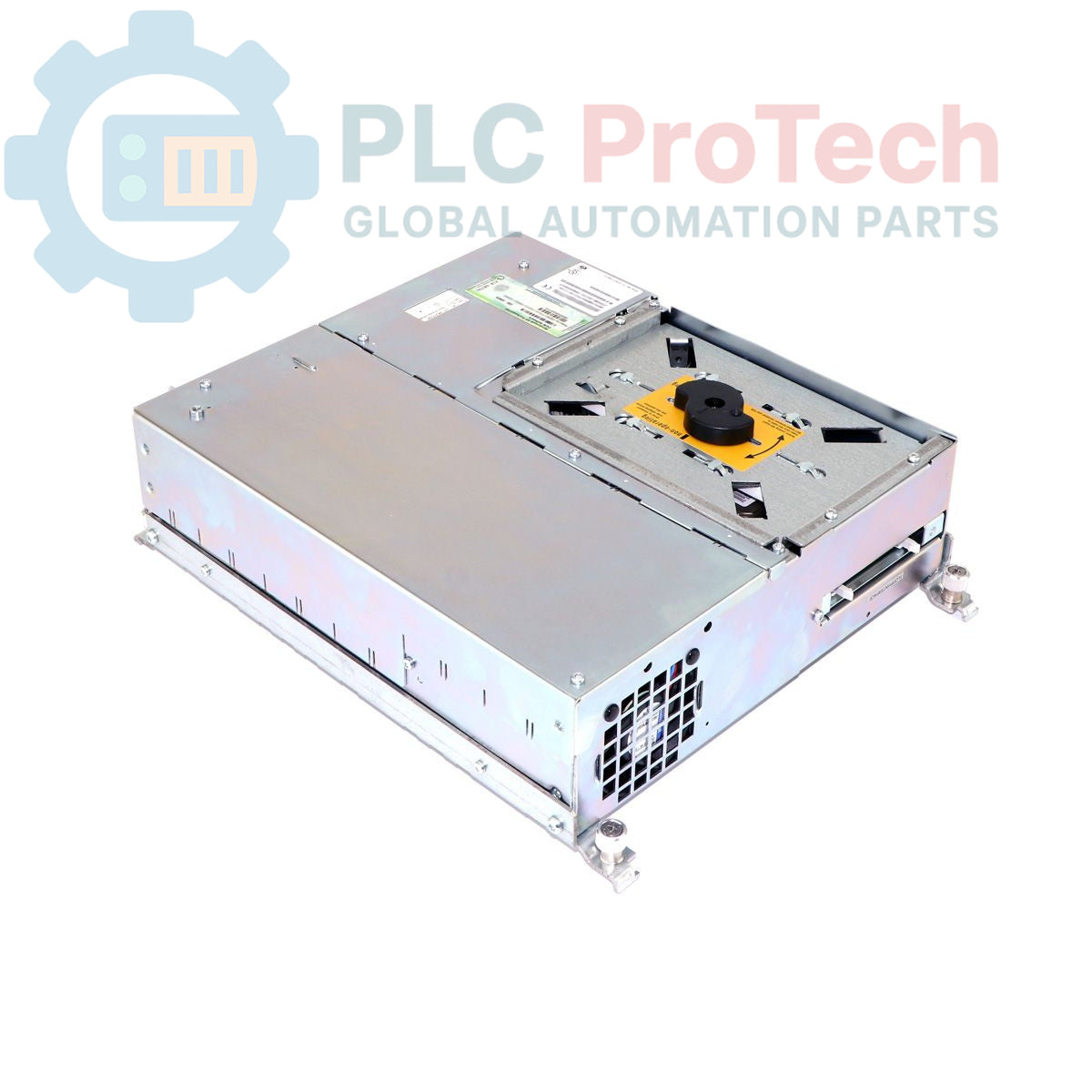

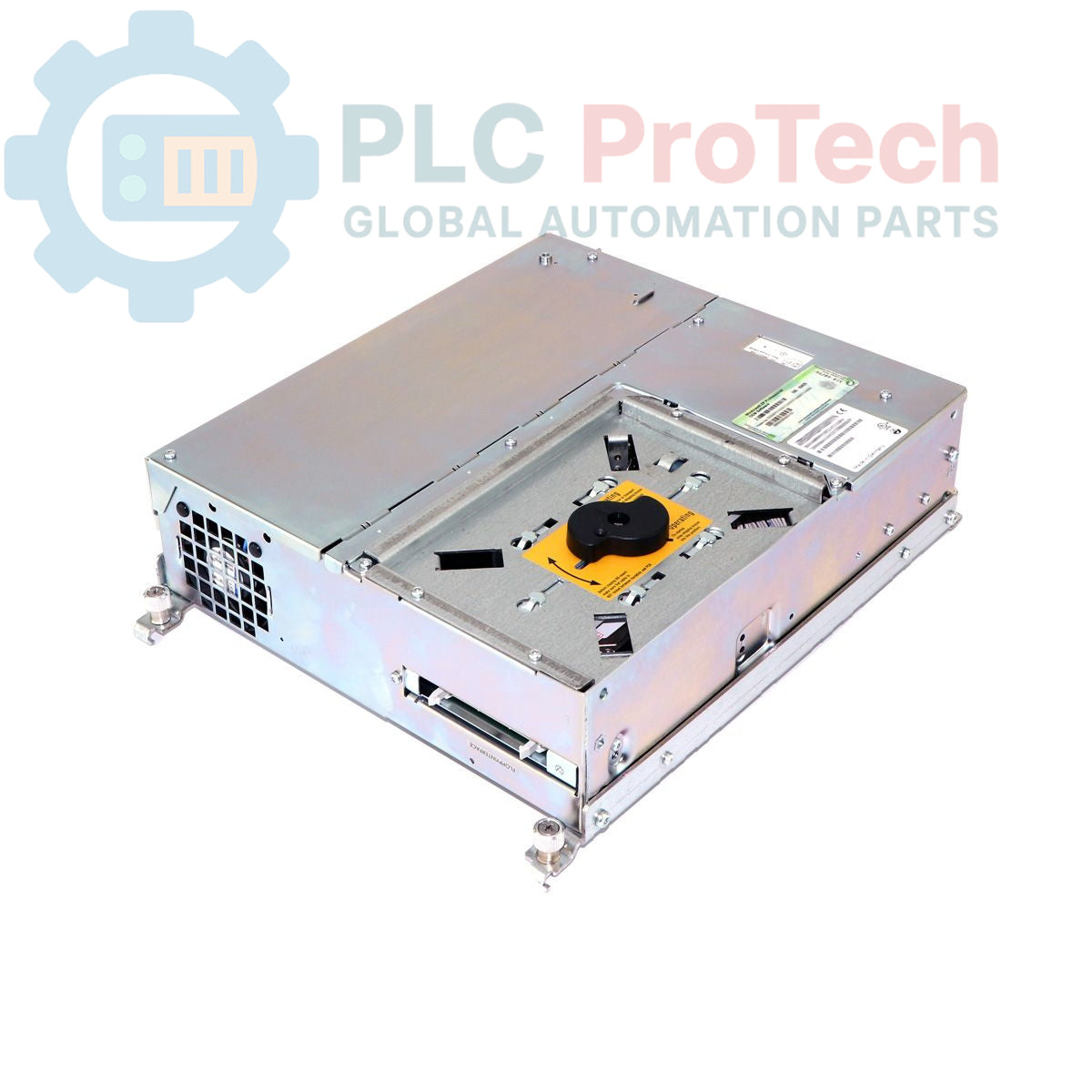

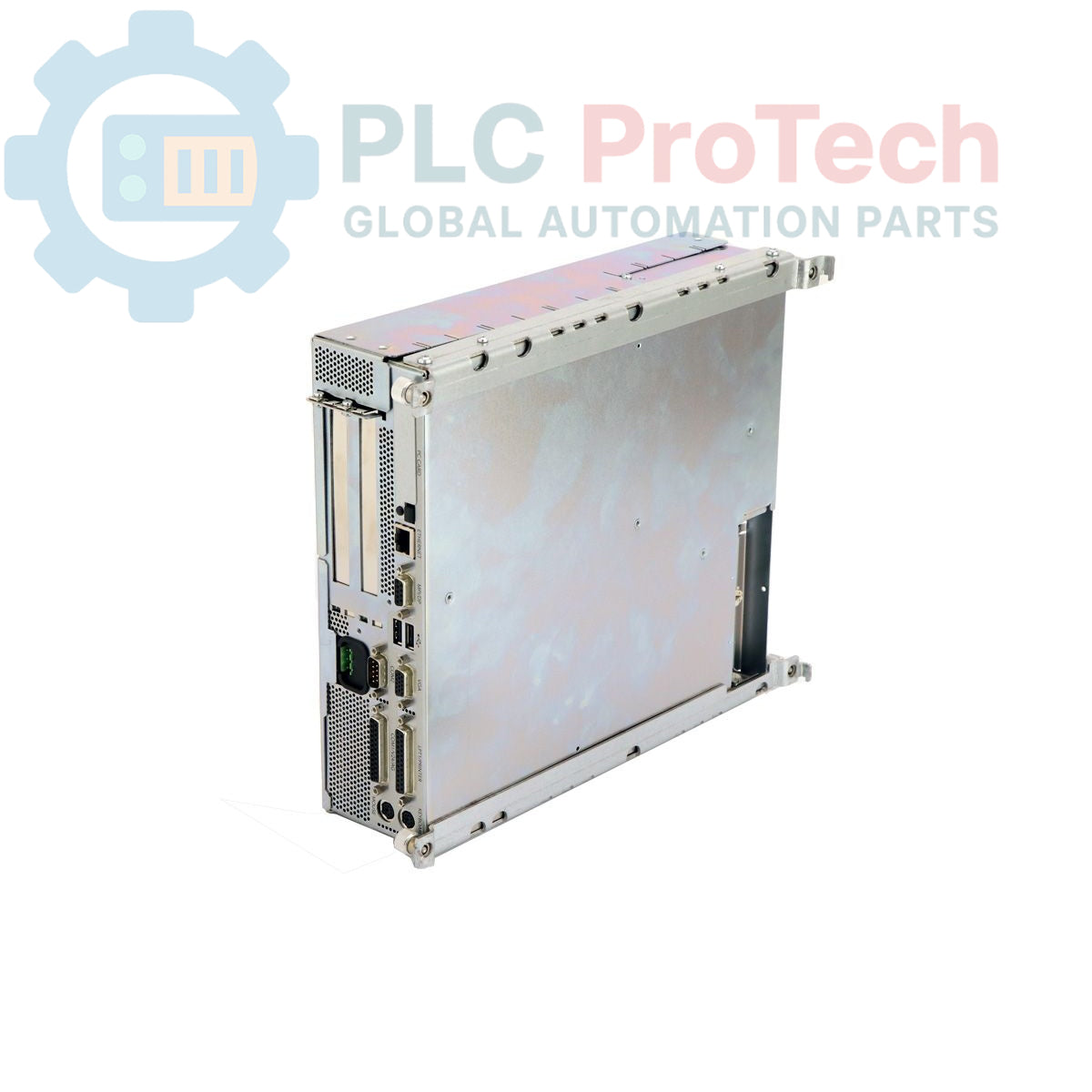

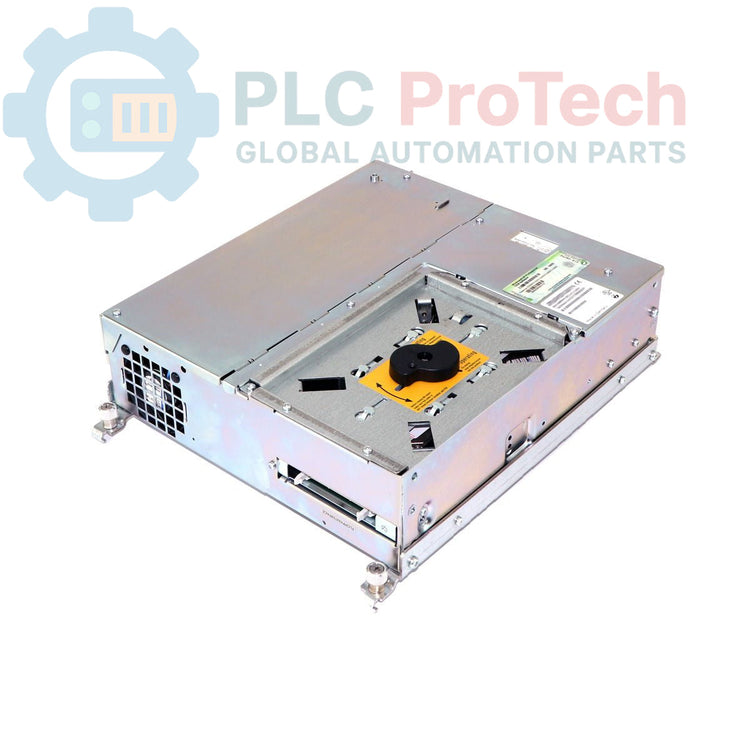

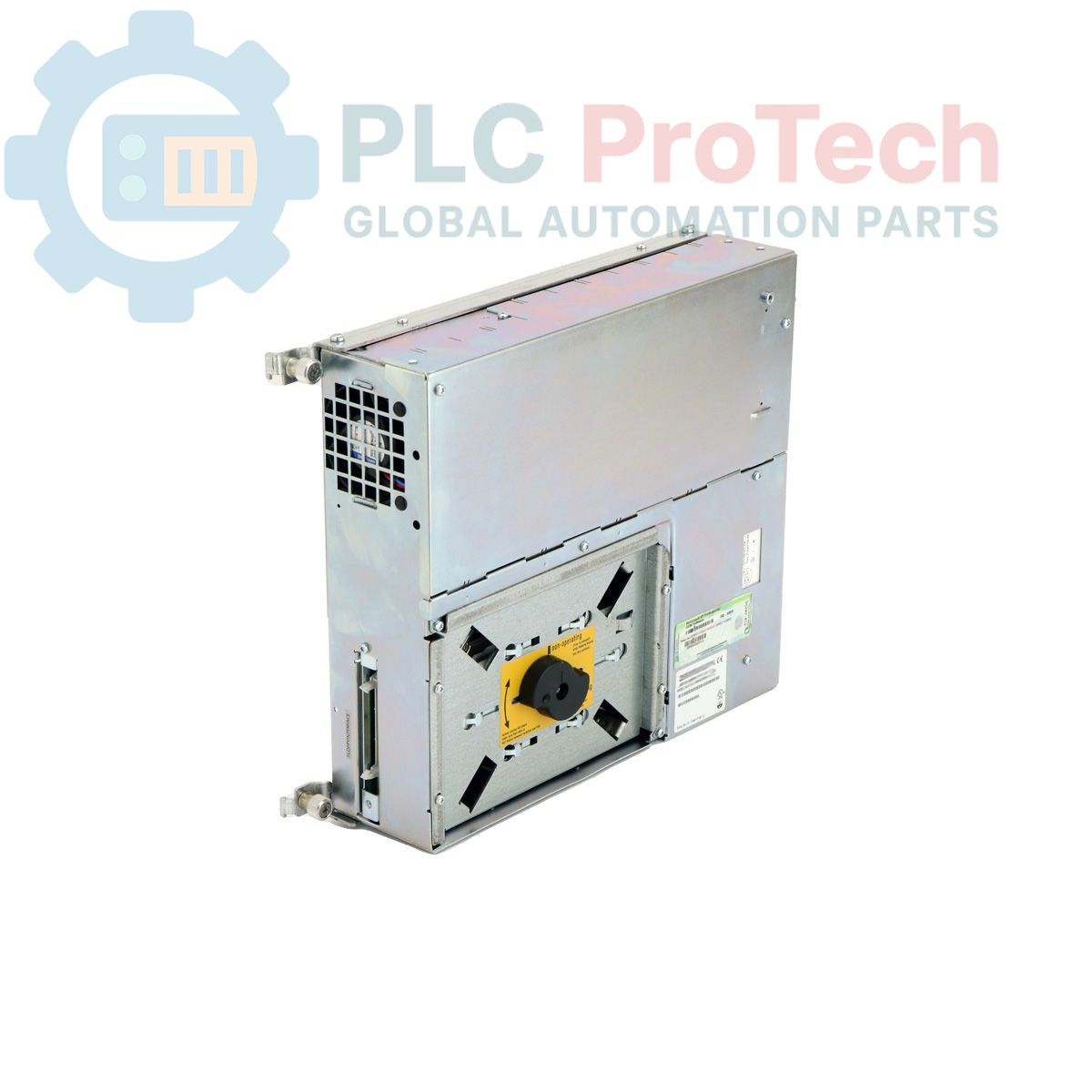

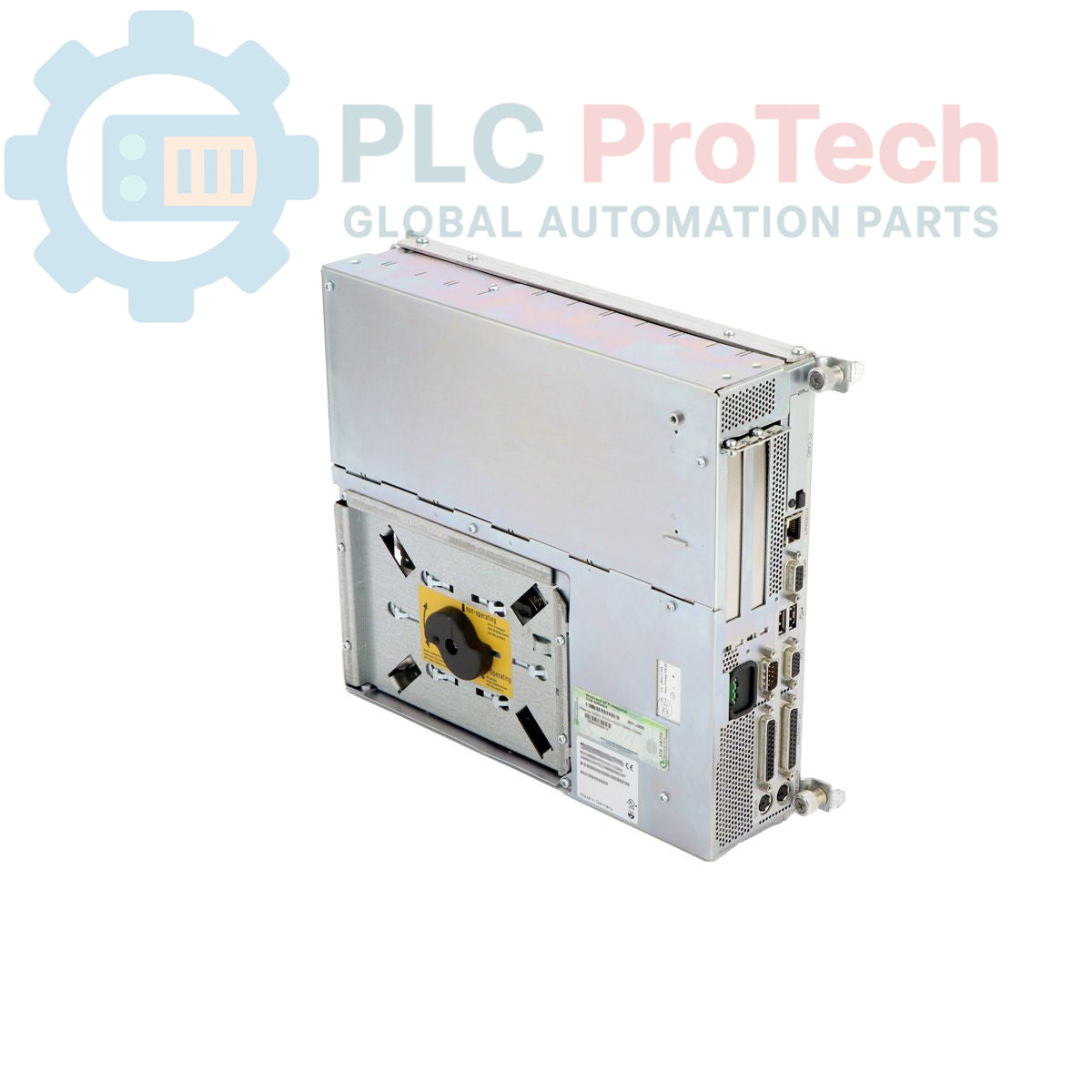

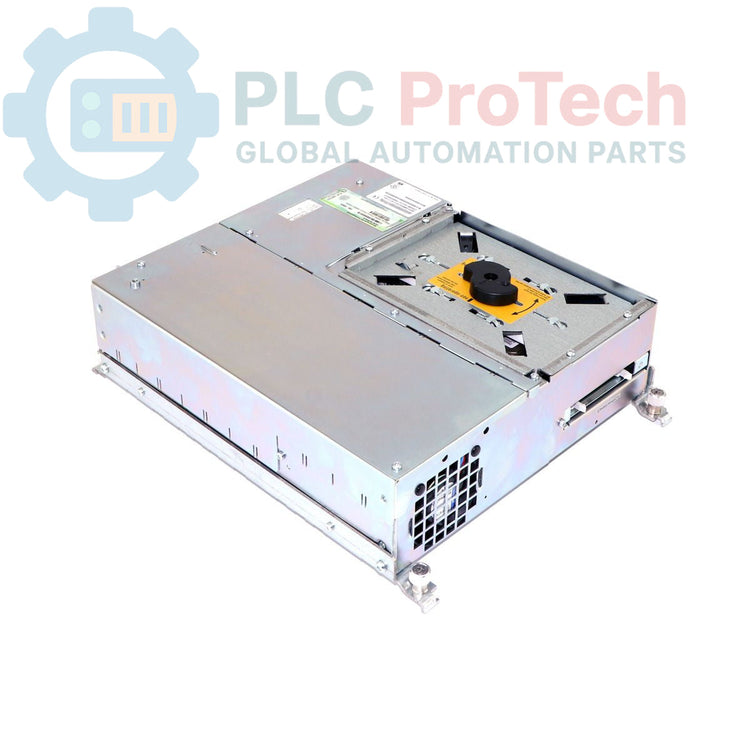

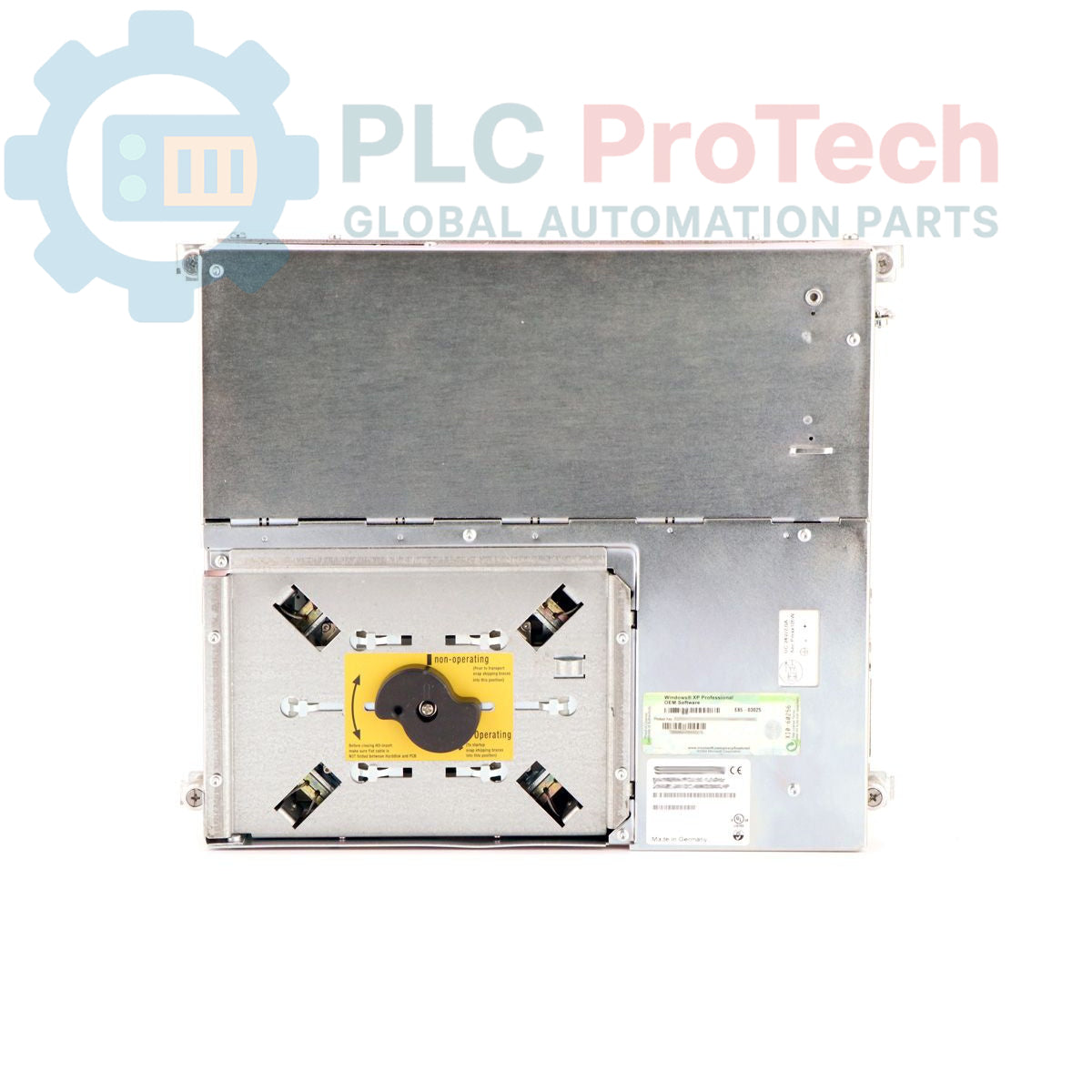

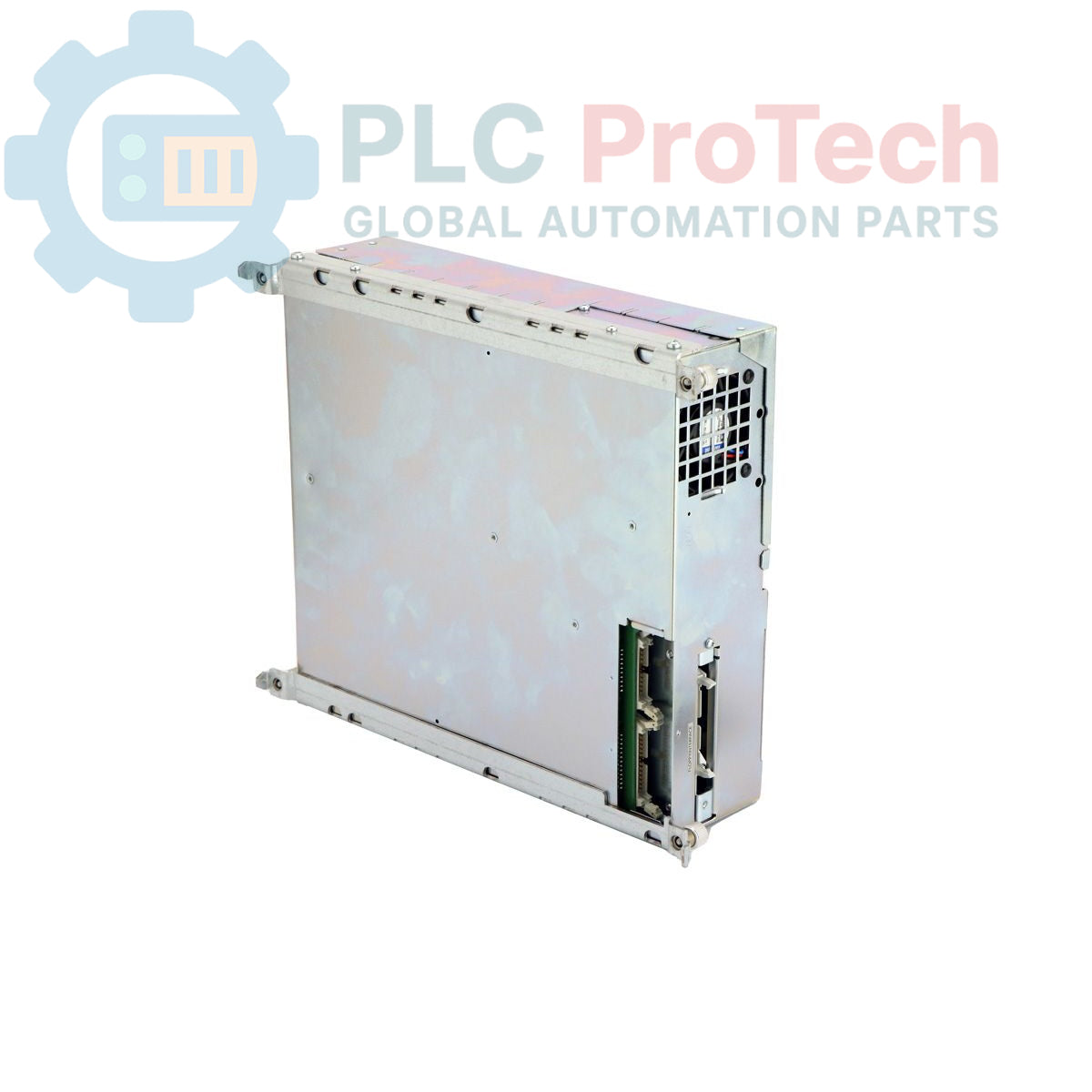

This is the Siemens 6ES7647-5EG10-2XX0, a SIMATIC BOX PC 620 designed for robust industrial automation and control tasks. It is configured with a Celeron 1.2 GHz processor, 128 MB SDRAM, and a 40 GB EIDE hard drive. Connectivity options include 10/100 Mbit/s Ethernet, PROFIBUS/MPI, and USB ports, providing flexible integration into existing control systems. The unit features onboard monitoring functions such as a watchdog timer and temperature monitoring and is powered by a 24 V DC industrial supply. This model is supplied without a pre-installed operating system, allowing for custom software configuration.

Features

• Processor: Celeron 1.2 GHz with 256 KB SLC
• Memory: 128 MB SDRAM-133
• Storage: 40 GB EIDE Hard Disk Drive
• Removable Media: 3.5-inch, 1.44 MB floppy drive
• Graphics: Onboard AGP graphics, configurable for 8, 16, or 32 MB
• Expansion: One free PCI slot and one free ISA/PCI combination slot
• Connectivity: 10/100 Mbit/s Ethernet, PROFIBUS/MPI, TTY, and 2x USB ports
• Card Reader: PC Card slot (PCMCIA Type 3)
• System Monitoring: Integrated watchdog timer and temperature monitoring
• Power Supply: Requires 24 V DC industrial power source

Applications

• Human-Machine Interface (HMI) visualization
• Data acquisition and logging
• PC-based process control and automation
• Gateway and communication server roles
• Industrial computing in manufacturing and logistics

Technical Specifications

Installation Guidelines

1. 1
   Mount Securely: Install the Box PC in a suitable industrial enclosure or control cabinet that provides protection from environmental factors. Ensure adequate ventilation space around the unit for heat dissipation.
2. 2
   Establish Ground Connection: Connect the chassis grounding terminal to the main protective earth (PE) busbar of the cabinet using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
3. 3
   Connect Power Supply: Connect a stable, correctly rated 24 V DC power source to the designated power input terminals. Verify correct polarity before applying power. Use appropriate wire gauges for the connection.
4. 4
   Connect Peripherals and Networks: Connect Ethernet, PROFIBUS/MPI, USB, and any other required peripheral cables. Ensure all communication cables are properly shielded and routed away from high-voltage power lines to prevent interference.
5. 5
   System Startup: Once all connections are secure, remove the LOTO device and apply power to the unit. Proceed with operating system installation and software configuration as required for the specific application.
