Description

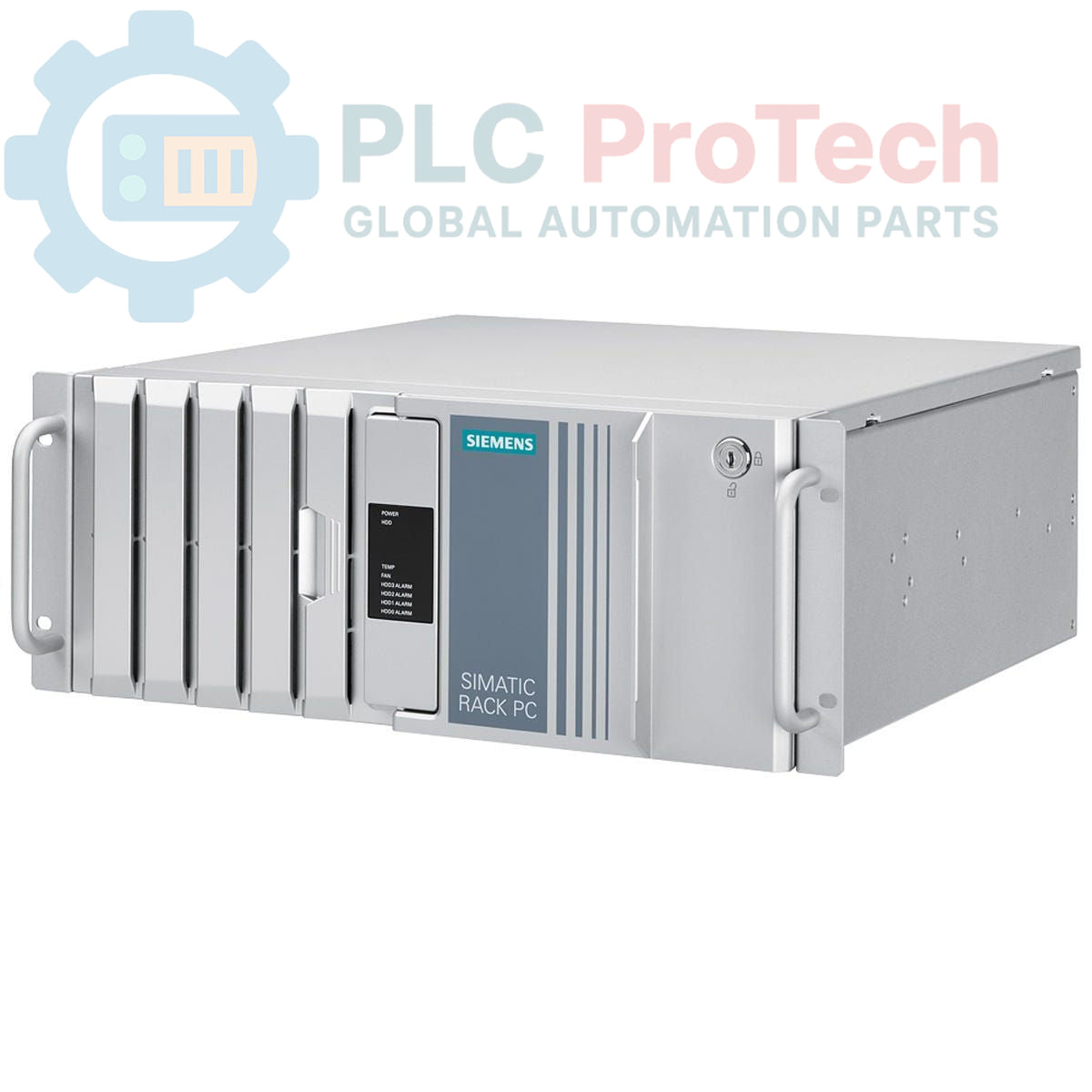

This Siemens 6ES7660-7DA08-2AD1 is a SIMATIC PCS 7 IPC547G Industrial Workstation designed for robust performance in demanding industrial environments. Configured as a 19-inch, 4U rack PC, it serves as a high-availability Engineering Station (ES) or Operator Station (OS) for process control systems. The unit is powered by an Intel Core i7-6700 processor and comes pre-installed with SIMATIC PCS 7 V8.2 SP1 and Windows 7 Ultimate (64-bit). It features extensive connectivity, including dual Gigabit Ethernet ports, multiple USB 3.0 and 2.0 interfaces, and support for up to four simultaneous displays, making it suitable for complex visualization and control tasks.

Features

• High-performance Intel Core i7-6700 quad-core processor.
• Pre-installed and configured with SIMATIC PCS 7 V8.2 SP1 software.
• Multi-monitor support for up to four screens via onboard and PCIe graphics.
• Integrated system monitoring for temperature, fans, and watchdog functions.
• Robust 4U rack-mount enclosure with card retainer for vibration resistance.
• Extensive I/O including dual GbE LAN, USB 3.0, and legacy COM/PS/2 ports.
• Includes a 1 TB internal hard disk drive and 4 GB DDR4 SDRAM.

Applications

• Process Control Operator Stations (OS)
• Engineering and Configuration Stations (ES)
• Supervisory Control and Data Acquisition (SCADA)
• Industrial Human-Machine Interface (HMI) visualization
• Data logging and archiving servers

Technical Specifications

Installation Guidelines

1. 1
   Prepare Rack Space: Verify that the 19-inch industrial cabinet has at least 4U of vertical space available. Ensure adequate depth for the chassis and cable management. Check for proper ventilation and airflow around the installation point.
2. 2
   Mount Chassis: With assistance, carefully slide the IPC chassis into the rack. Securely fasten the front panel to the rack rails using all provided mounting screws to ensure mechanical stability and proper grounding.
3. 3
   Connect Peripherals: Connect monitors to the appropriate DisplayPort or DVI interfaces. Connect keyboard and mouse to the USB or PS/2 ports. Connect any required serial devices to the COM port.
4. 4
   Connect Network Cables: Connect shielded Ethernet cables to the RJ45 LAN ports for plant and terminal bus communication as required by the PCS 7 system architecture.
5. 5
   Connect Power: Connect the provided AC power cord to the industrial power supply unit on the rear of the chassis. Plug the other end into a conditioned, uninterruptible power supply (UPS) rated for industrial use.
6. 6
   Power On and Verify: Remove LOTO devices and restore power. Press the power button on the front of the unit and verify that the system boots into the Windows operating system and that the PCS 7 software environment loads correctly.
