Description

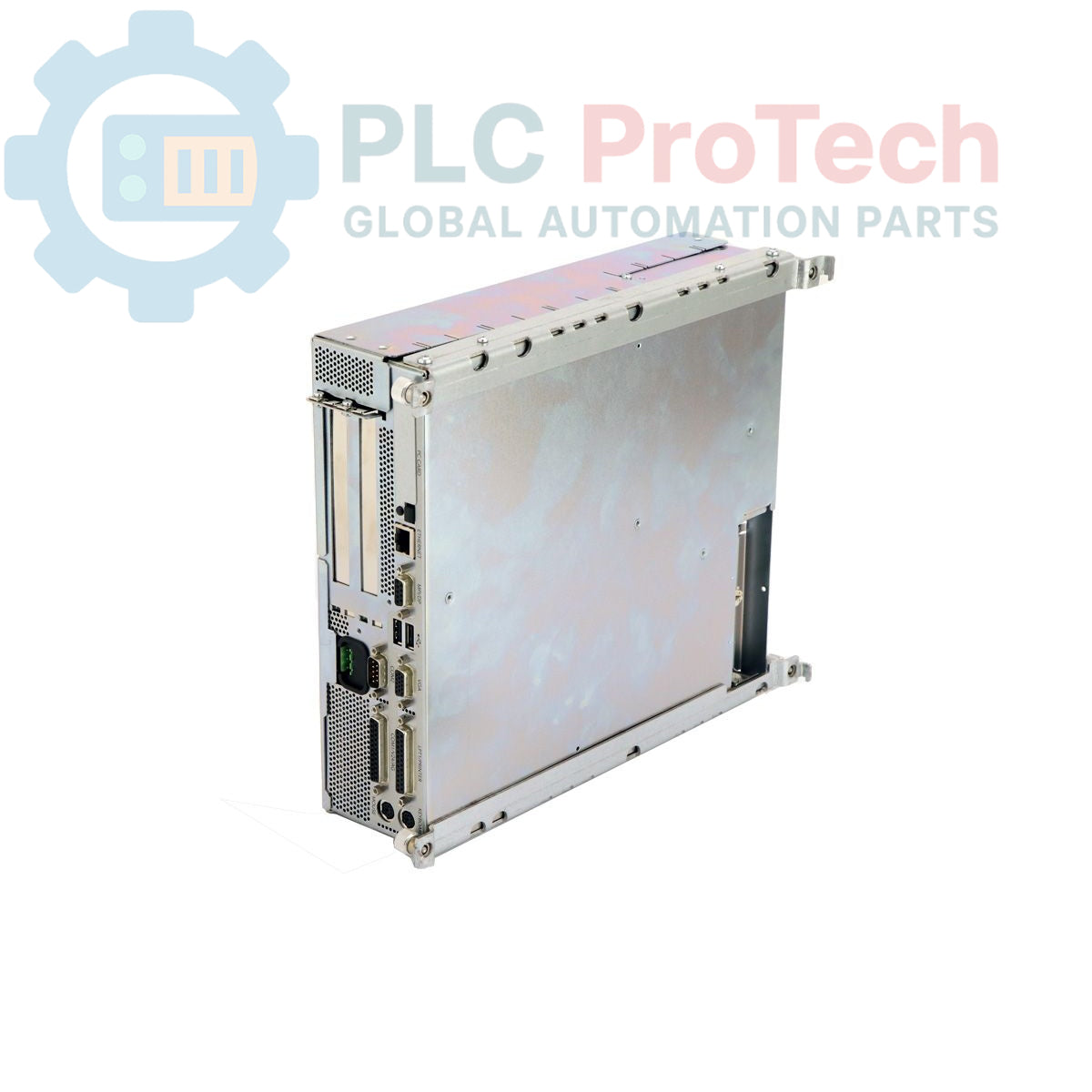

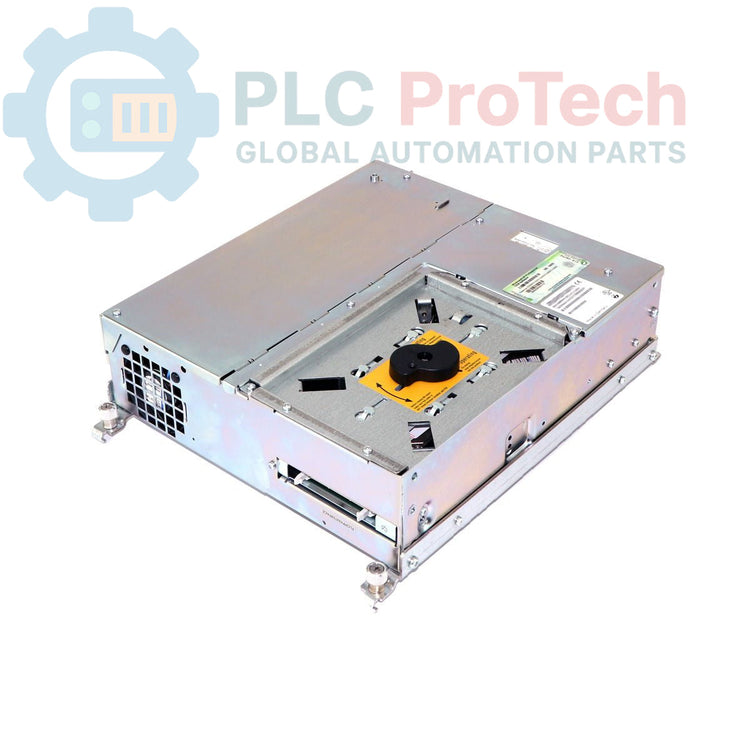

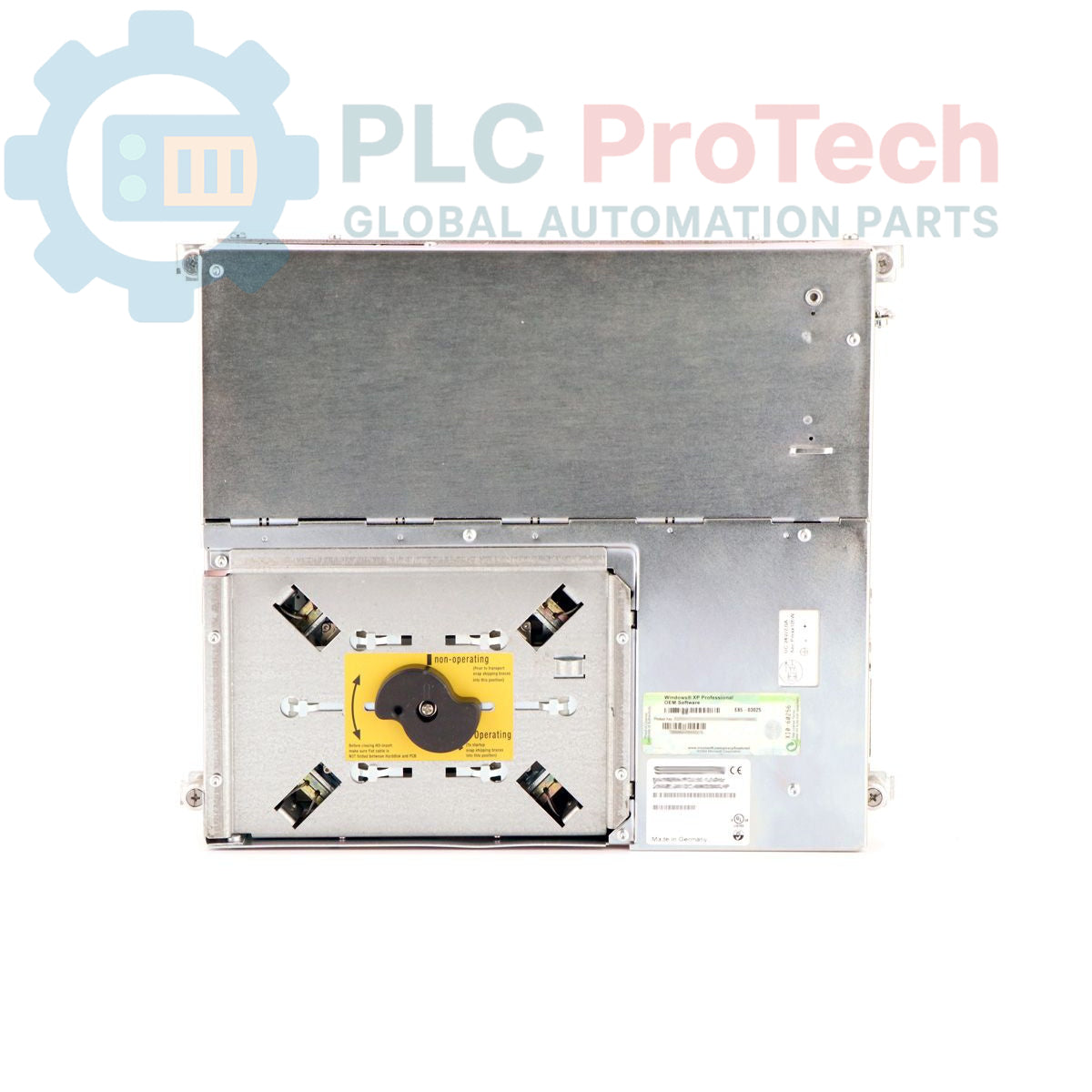

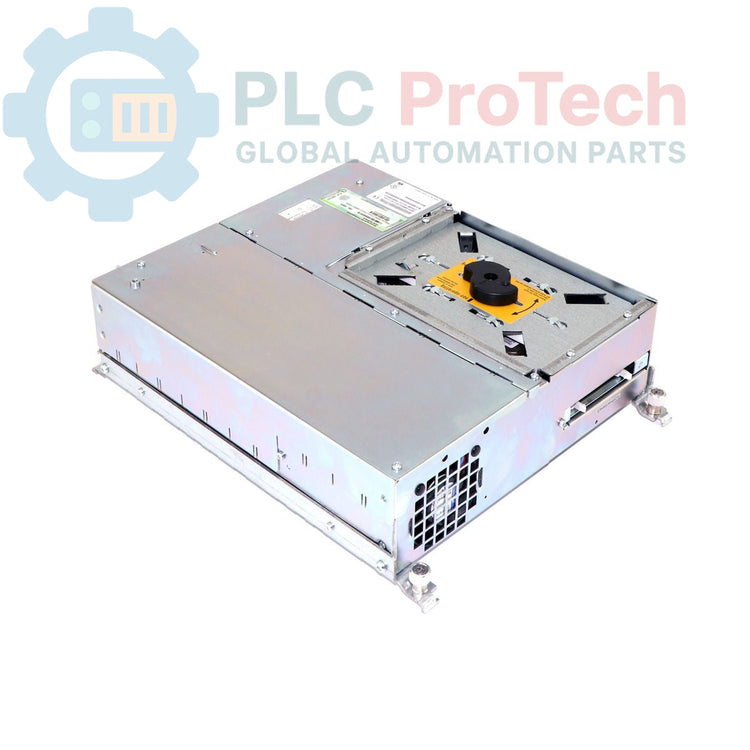

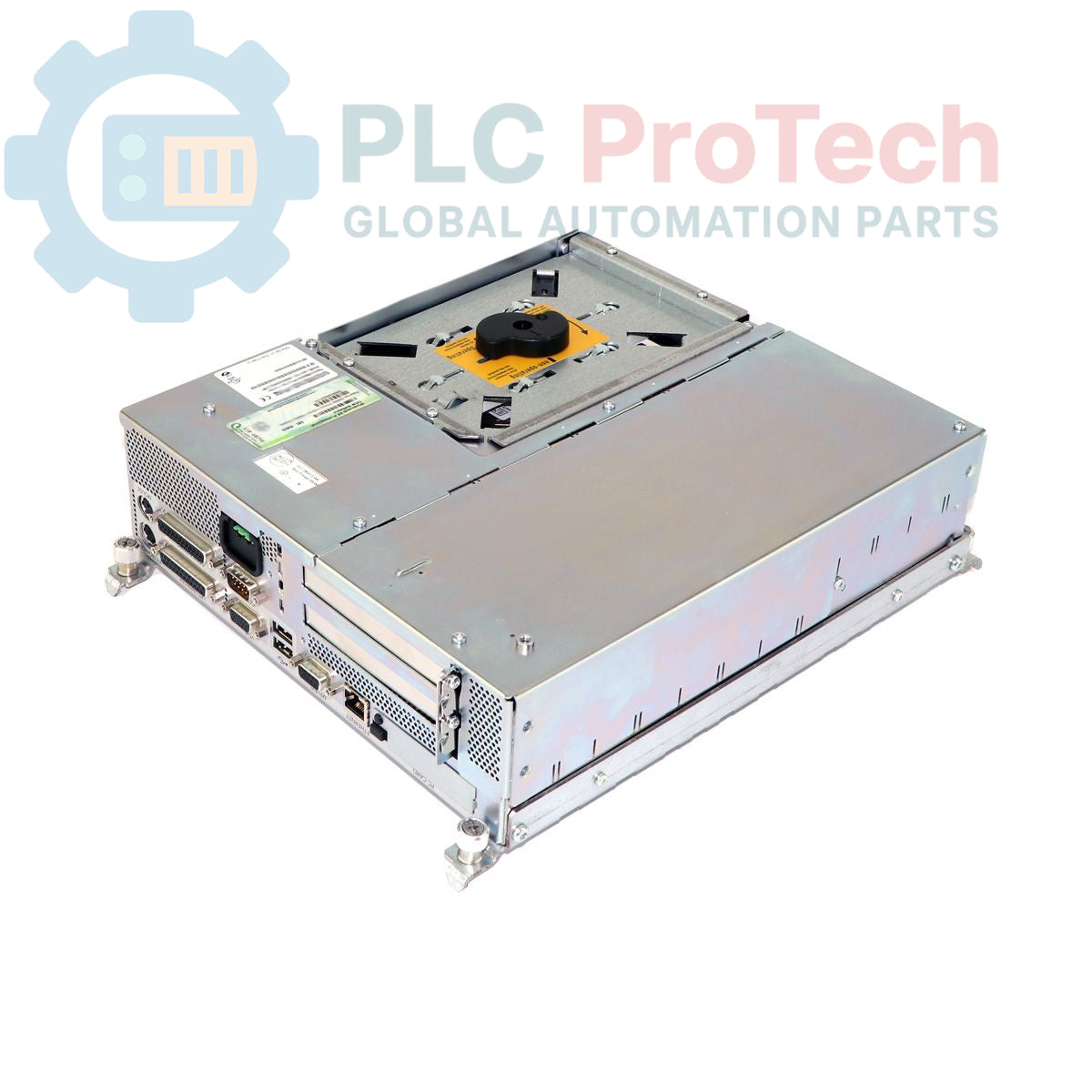

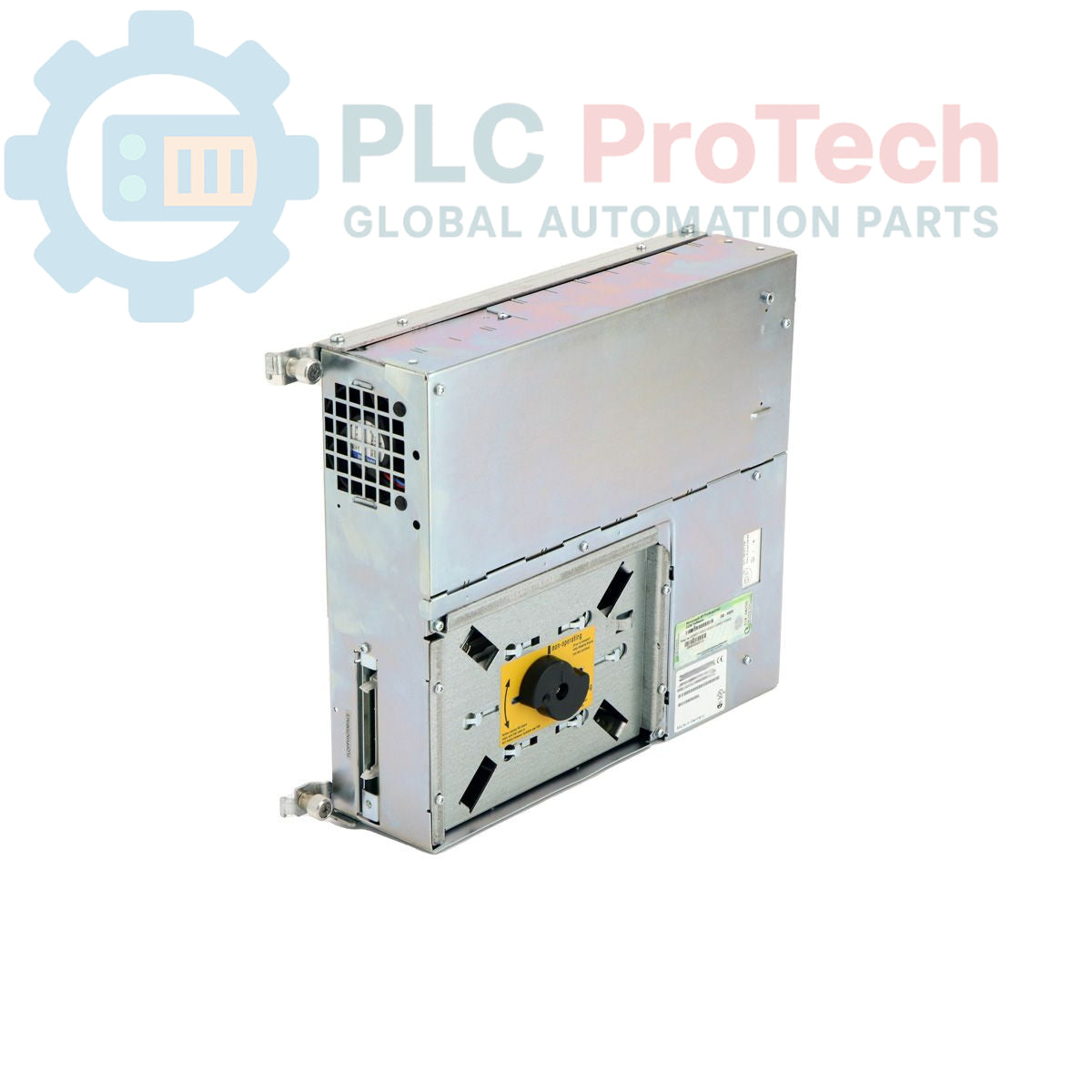

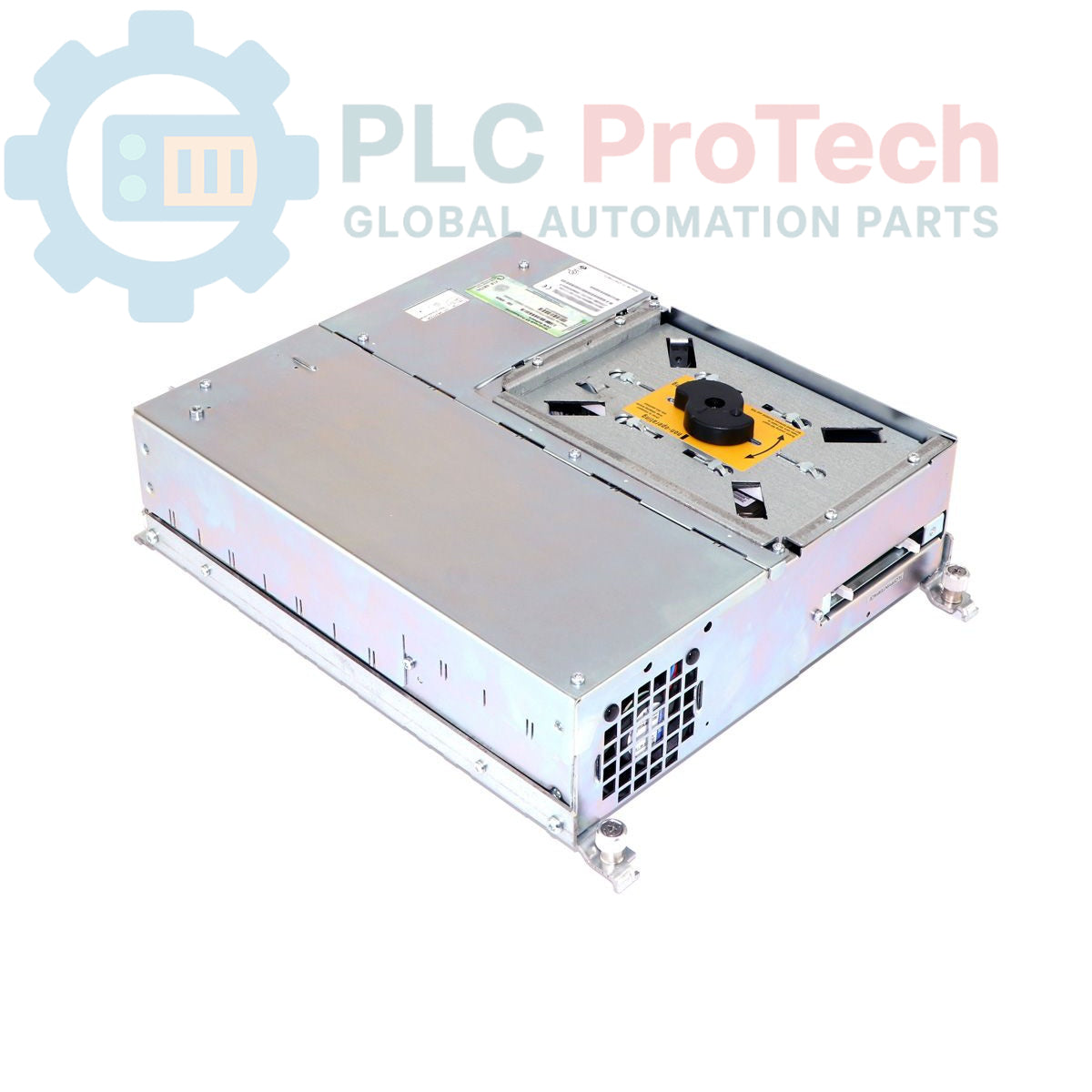

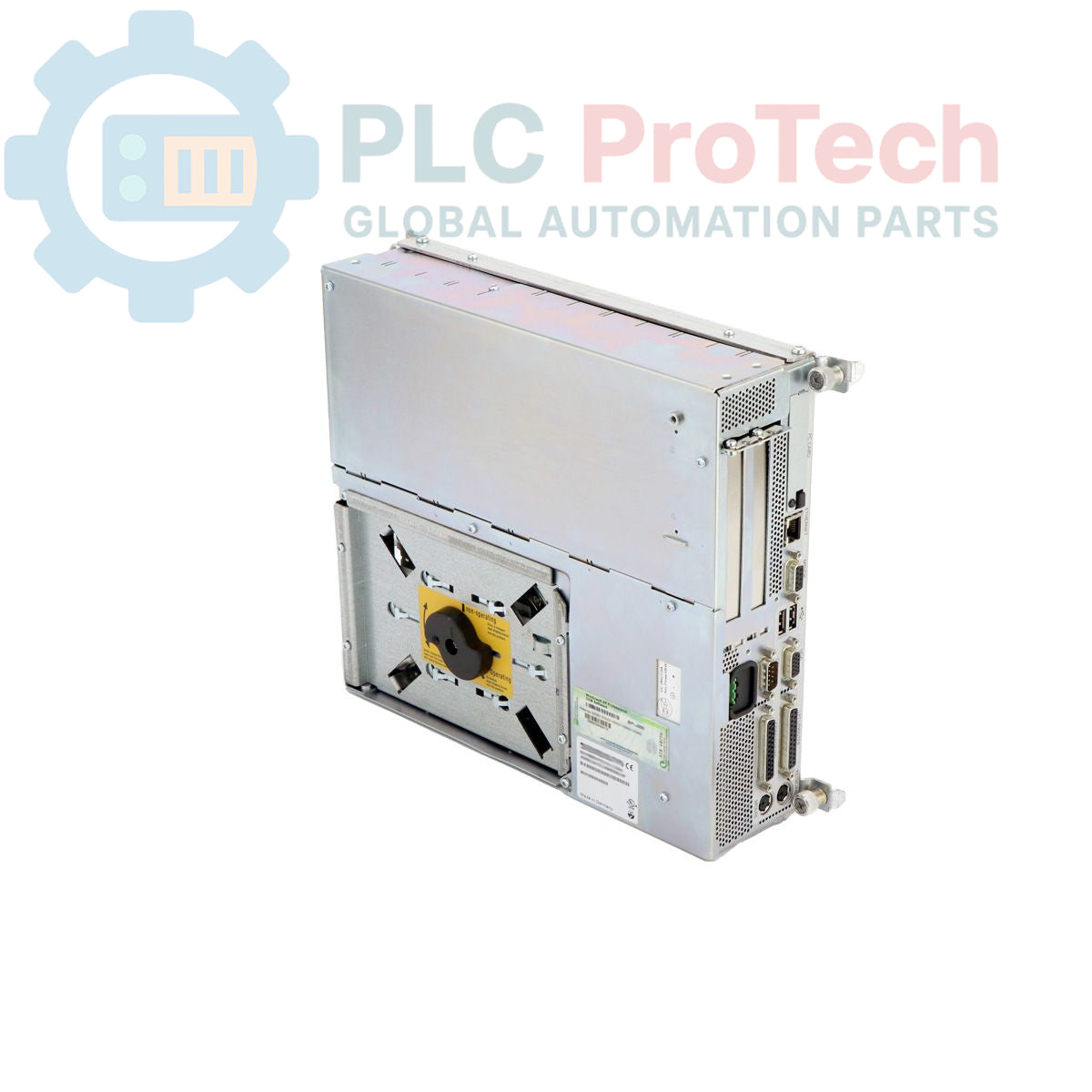

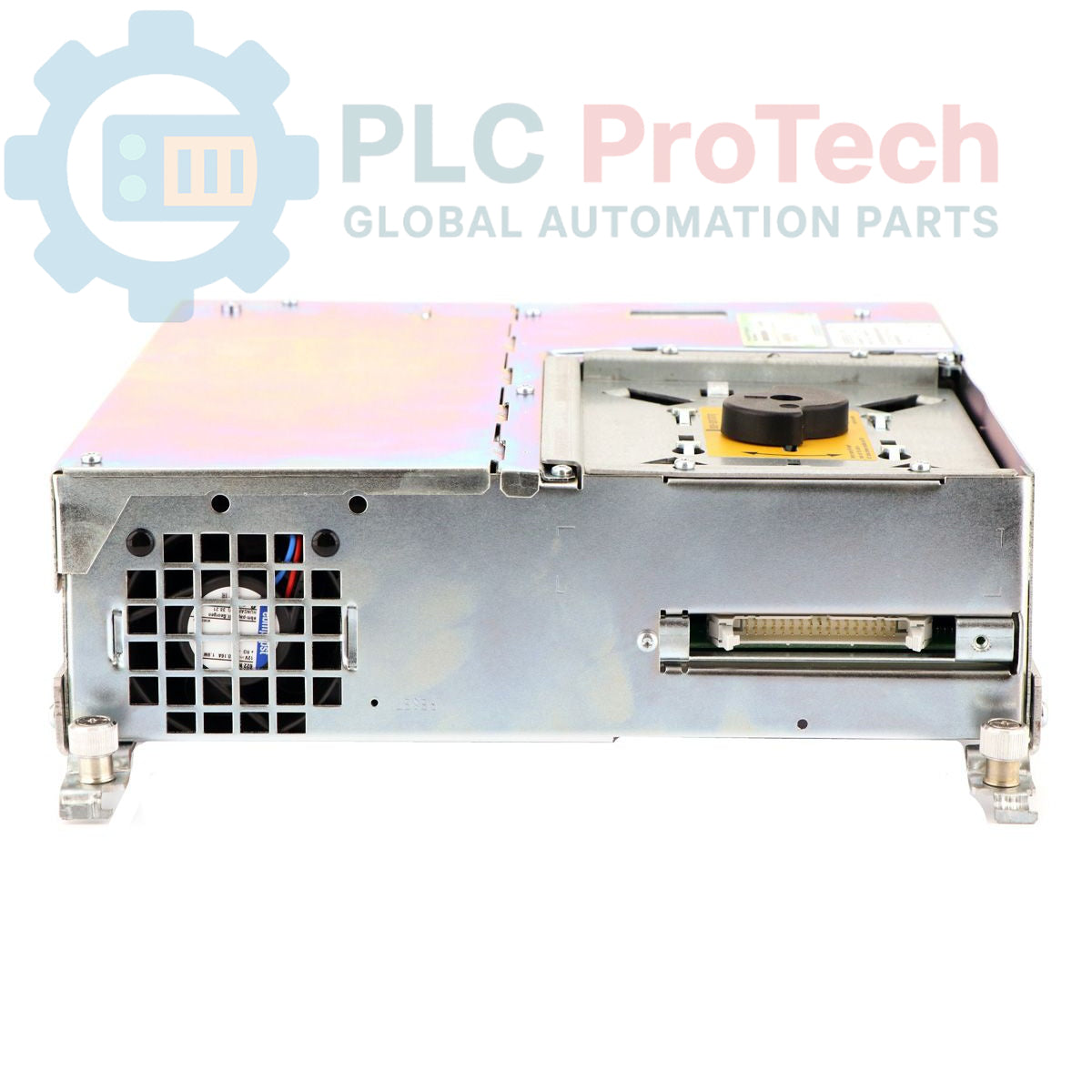

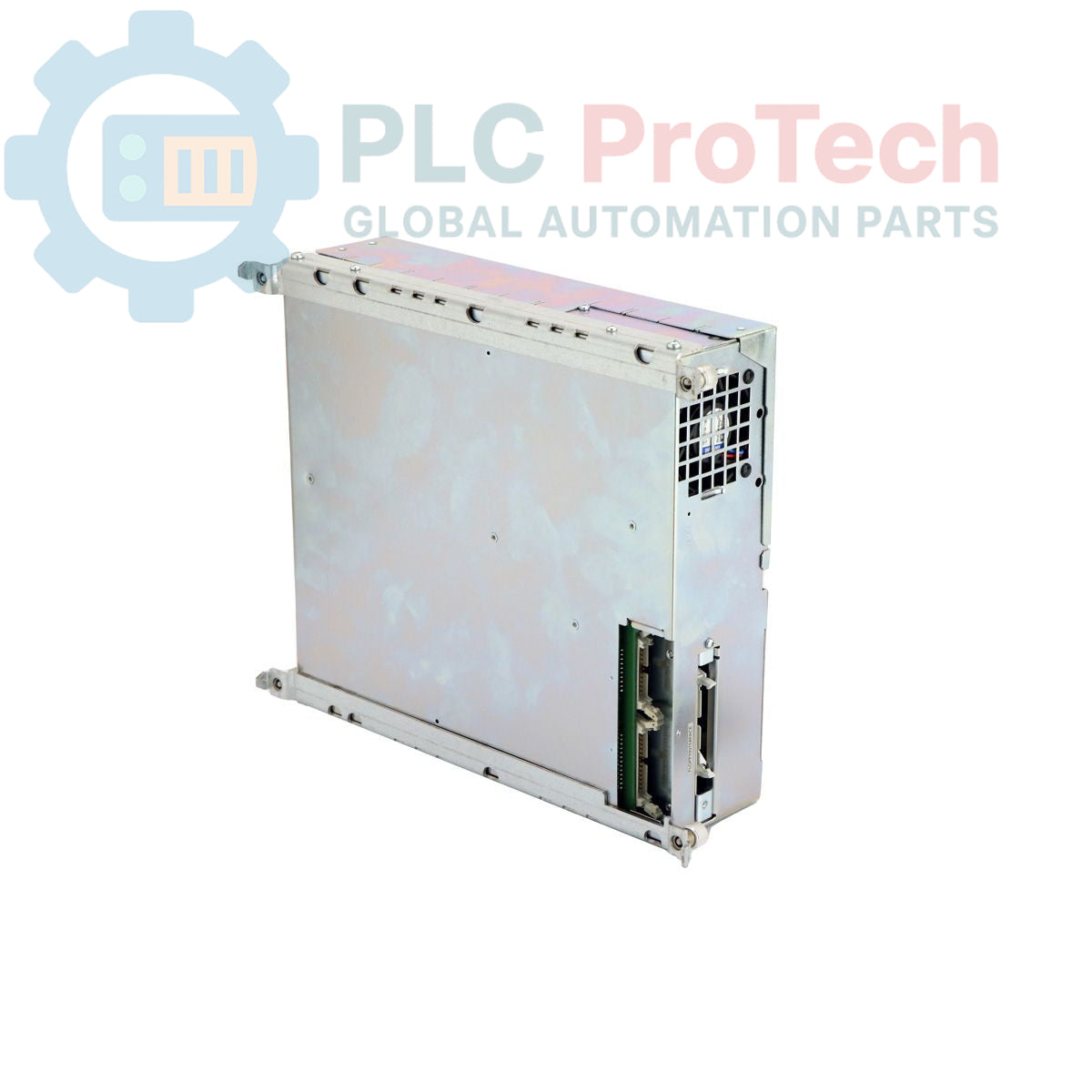

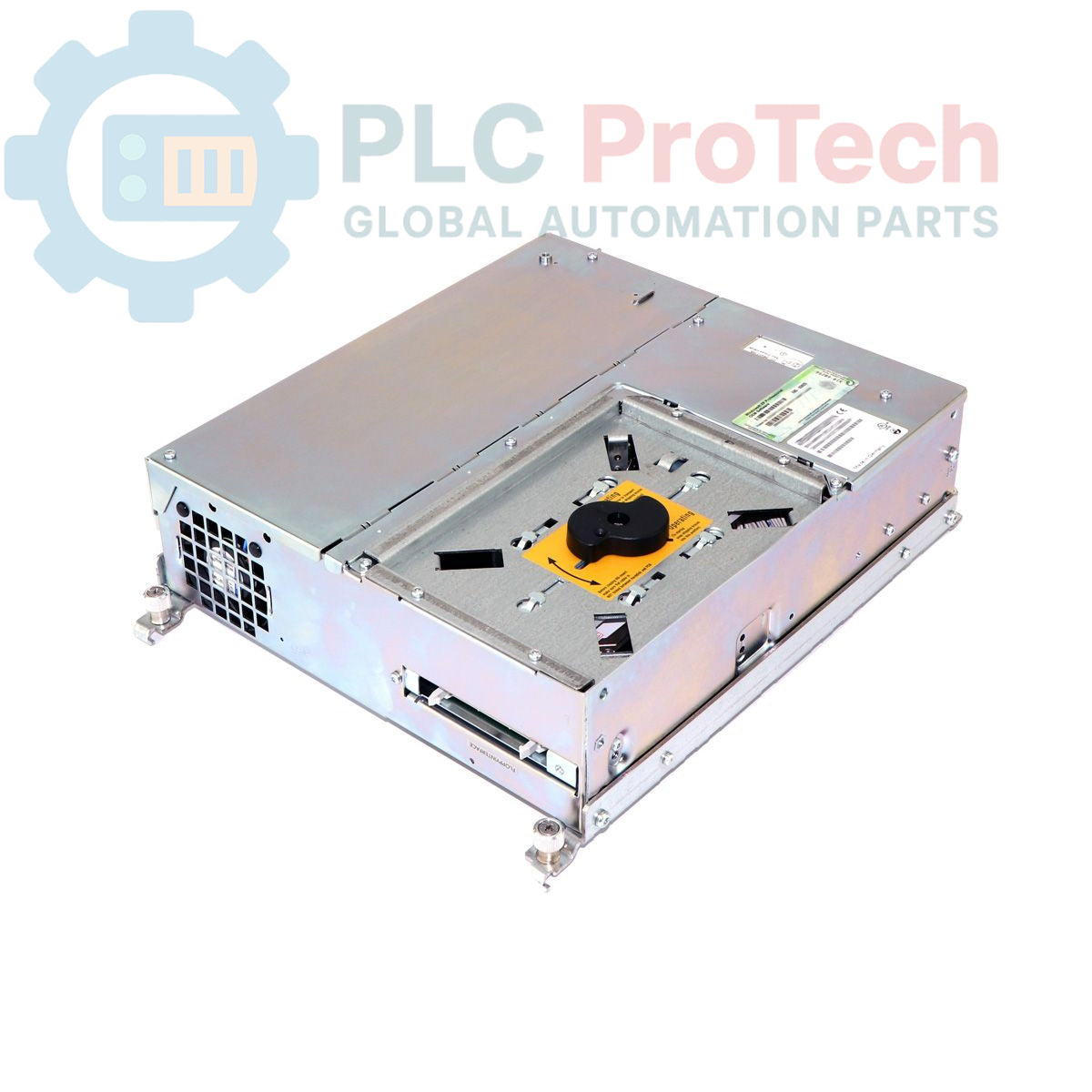

The Siemens 6ES7647-5GE20-0JX0 is a SIMATIC Box PC 620, an industrial personal computer designed for robust operation in automation environments. This unit features onboard AGP graphics with configurable memory (8/16/32 MB), a 10/100 MBit/s Ethernet RJ45 interface, and a PC Card (PCMCIA Type 3) slot. It includes a watchdog and temperature monitoring for enhanced reliability. Connectivity options comprise two USB ports, one PCI slot, and one free ISA/PCI slot. The system is powered by a Pentium III 1.26GHz processor with a 133MHz FSB and 512 KB SLC, and supports PROFIBUS/MPI and TTY communication. Storage is provided by a 40 GB HDD EIDE and a DVD-ROM drive, complemented by 256 MByte SDRAM-133 RAM and a 1.44 MB 3.5" floppy drive. It operates with a 110/230V industry power pack with NAMUR compliance and comes pre-installed with Windows 2000 Professional Multilanguage SP4 (English, German, French, Italian, Spanish).

Features

• Integrated AGP Graphics (8/16/32 MB configurable)
• 10/100 MBit/s Ethernet RJ45 Interface
• PC Card (PCMCIA Type 3) Slot
• Watchdog and Temperature Monitoring Functions
• Two USB Interfaces
• One PCI Expansion Slot
• One Free ISA/PCI Expansion Slot
• Pentium III 1.26GHz Processor (133MHz FSB, 512 KB SLC)
• PROFIBUS/MPI and TTY Communication Support
• 40 GB HDD EIDE and DVD-ROM Drive
• 256 MByte SDRAM-133 RAM
• 1.44 MB 3.5" Floppy Drive
• 110/230V Industry Power Pack with NAMUR
• Pre-installed Windows 2000 Professional Multilanguage SP4

Applications

The SIMATIC Box PC 620 is suitable for a range of industrial applications requiring a robust and reliable computing platform. Typical uses include:

• Human Machine Interface (HMI) systems
• Data acquisition and processing
• Process visualization and control
• Machine control and monitoring
• Industrial communication gateways
• Factory automation tasks

Technical Specifications

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work.
2. Mounting: Securely mount the Box PC in a suitable industrial enclosure or rack, ensuring adequate ventilation and clearance for cable routing and maintenance.
3. Power Connection: Connect the 110/230V industry power pack to a stable and protected power source. Verify correct voltage and grounding.
4. Grounding: Establish a proper earth ground connection for the Box PC chassis to minimize electrical noise and ensure safety.
5. Peripheral Connections: Connect necessary peripherals such as display monitors, keyboards, mice, and communication cables (Ethernet, PROFIBUS/MPI, TTY, USB) to their respective ports.
6. Expansion Cards: If utilizing the PCI or ISA/PCI slots, carefully install compatible expansion cards, ensuring they are properly seated and secured.
7. Cable Management: Route all cables neatly and securely, separating power cables from signal cables to prevent interference. Use strain relief where appropriate.
8. Environmental Considerations: Ensure the operating environment meets the specified temperature and humidity ranges for industrial PCs to ensure long-term reliability.
9. Power Up: After all connections are verified, re-energize the power supply and power on the Box PC.
