Description

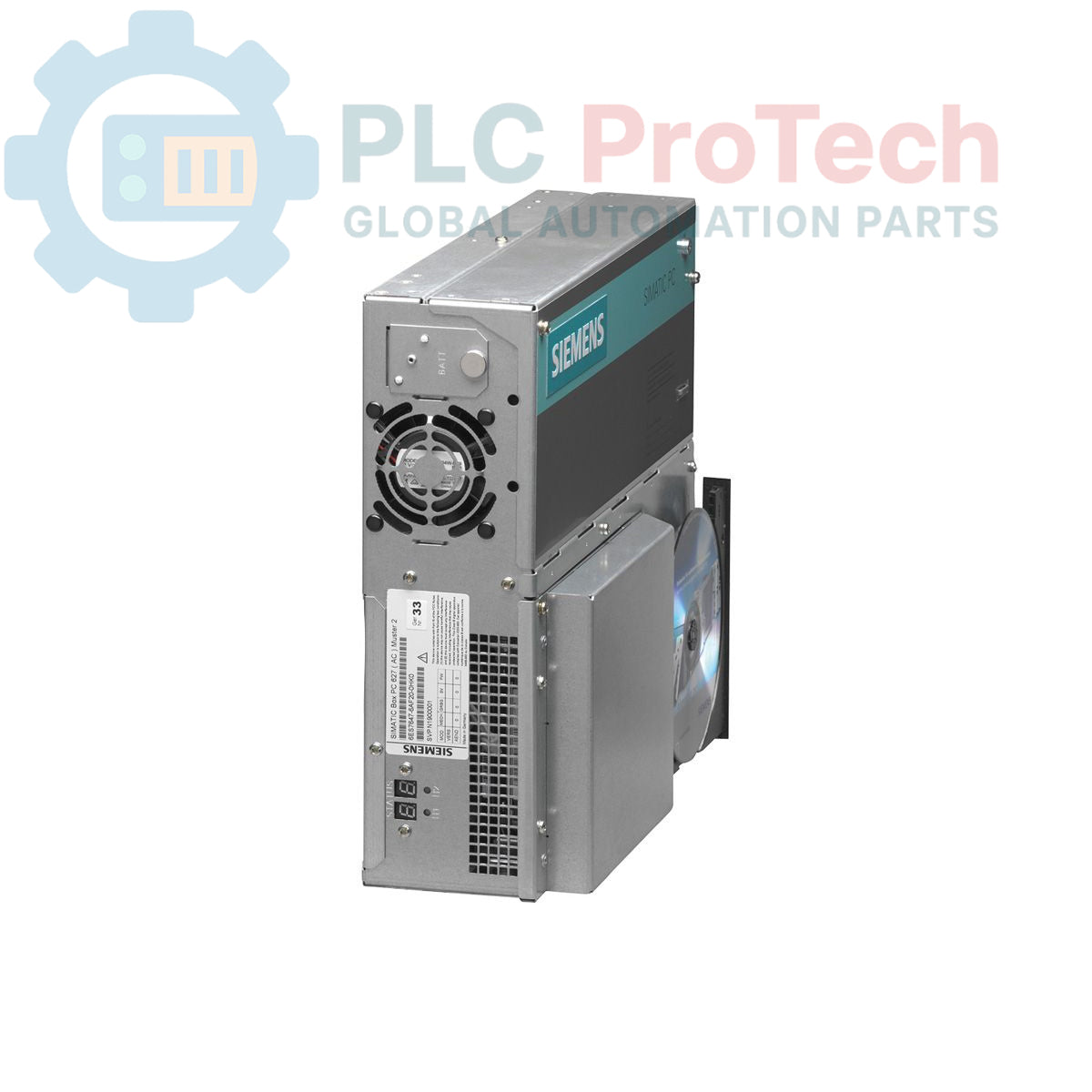

The Siemens 6ES7647-6AA30-0CK0 is a SIMATIC BOX PC 627 series industrial computer designed for robust performance in demanding automation environments. This unit features onboard AGP graphics with 8-128 MB of shared memory, an integrated RAID controller, and provides extensive connectivity through dual 10/100 Mbit/s Ethernet ports, four high-current USB 2.0 ports, and one serial (COM1) port. The system includes a slot for a CompactFlash drive and has built-in monitoring for watchdog, temperature, and fan status. For hardware expansion, two free PCI slots are available.

Features

• Onboard AGP graphics with 8-128 MB shared memory
• Dual 10/100 Mbit/s Ethernet RJ45 ports for network connectivity
• Four high-current USB 2.0 ports for peripheral devices
• One serial (COM1) interface for legacy device communication
• Integrated RAID controller for data redundancy
• Internal CompactFlash drive slot
• Built-in watchdog, temperature, and fan monitoring functions
• Two available PCI slots for system expansion

Applications

• Machine control and data acquisition systems
• Process visualization and HMI applications
• Industrial automation gateways
• Data logging and plant-floor computing

Technical Specifications

Installation Guidelines

1. 1 Ensure the target control cabinet or enclosure is de-energized and locked out. Verify the absence of voltage before proceeding.
2. 2 Securely mount the Box PC within the enclosure, ensuring adequate clearance for ventilation and cable routing. The mounting orientation must allow for proper airflow to prevent overheating.
3. 3 Connect a reliable chassis ground to the designated grounding point on the PC chassis. A low-impedance ground connection is essential for electrical safety and noise immunity.
4. 4 Connect all required interface cables (Ethernet, USB, Serial) and any installed PCI expansion cards. Ensure all connectors are fully seated and secured.
5. 5 Connect the main power supply cable. Verify the source voltage matches the requirements specified on the PC's nameplate.
6. 6 After closing the enclosure, remove the lockout/tagout device and re-energize the system. Power on the PC and verify correct boot-up and system operation.
