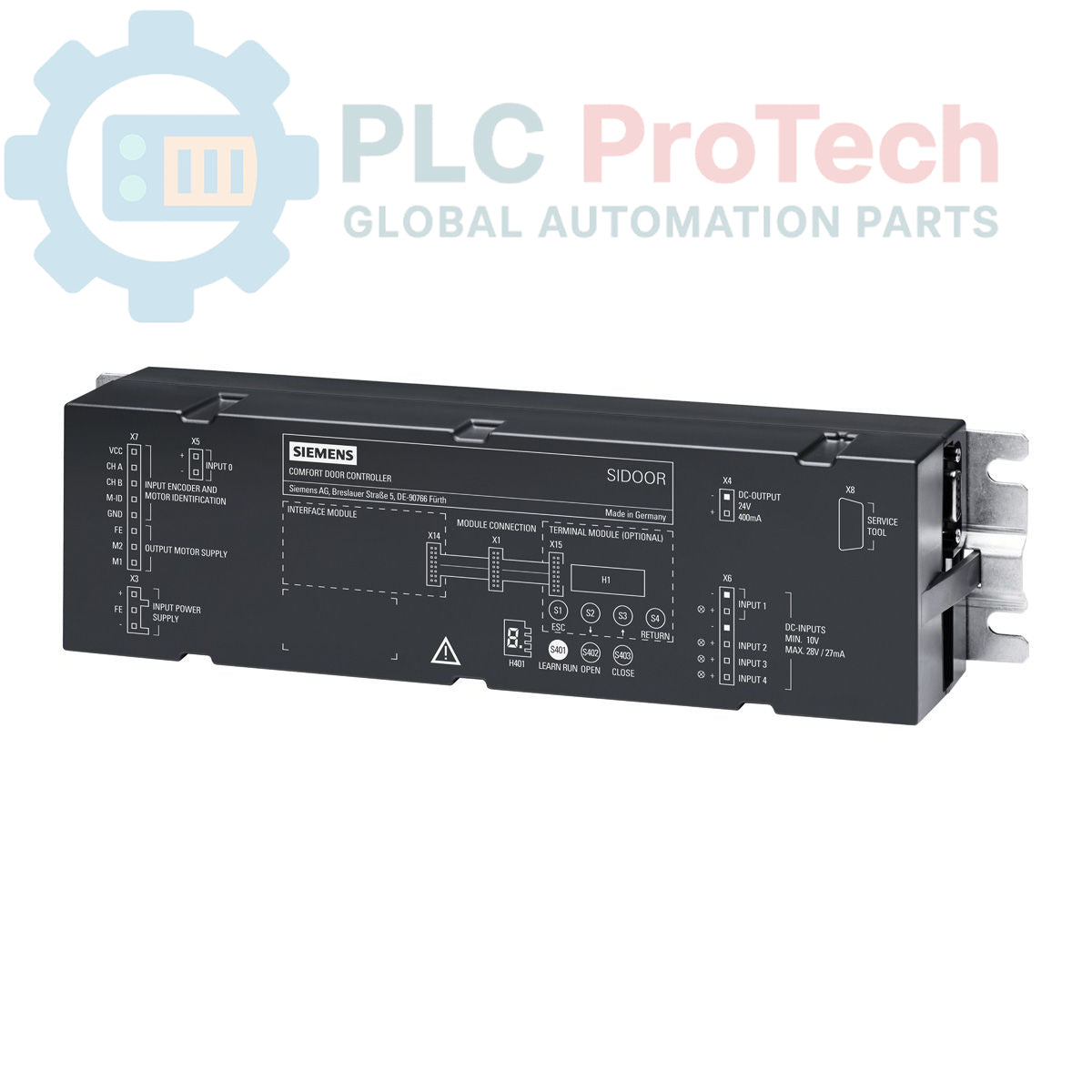

The 6FB1141-3AT10-3WE2 is a SIDOOR ATD430W control device designed for precision door automation in industrial environments. This controller is engineered to manage door systems with a weight capacity of up to 600 kg. It facilitates seamless network integration via PROFINET IO (Conformance Class C) using dual RJ45 sockets, ensuring high-speed data exchange and reliable communication within automated systems. The device is built to meet stringent safety requirements, complying with EN 13849-1 and EN 953 standards, making it a dependable solution for safety-critical door control applications.

Features

• High Capacity: Supports door systems weighing up to 600 kg.
• PROFINET Connectivity: Conformance Class C functionality with 2x RJ45 interfaces for robust industrial networking.
• Safety Compliance: Designed and certified in accordance with EN 13849-1 and EN 953.
• Operational Power: Operates on a 36V DC supply voltage.
• Optimized Performance: Specialized SIDOOR technology for smooth and controlled door movement.

Applications

• Industrial machine tool door automation.
• Safety door systems in production facilities.
• Automated access control for industrial enclosures.
• High-load door applications requiring network-integrated control.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the controller is mounted securely in an environment free from excessive vibration and within reach of power and network connections.
• Wiring: Utilize appropriately shielded cabling for PROFINET connections to maintain signal integrity. Use the correct wire gauge for the 36V DC input to ensure proper current delivery.
• Configuration: Configure the PROFINET settings within the automation network environment to establish communication with the host PLC.
• Safety Interlocks: Strictly adhere to the safety requirements outlined in EN 13849-1 and EN 953 during integration to ensure safe operational boundaries for the door system.
