Description

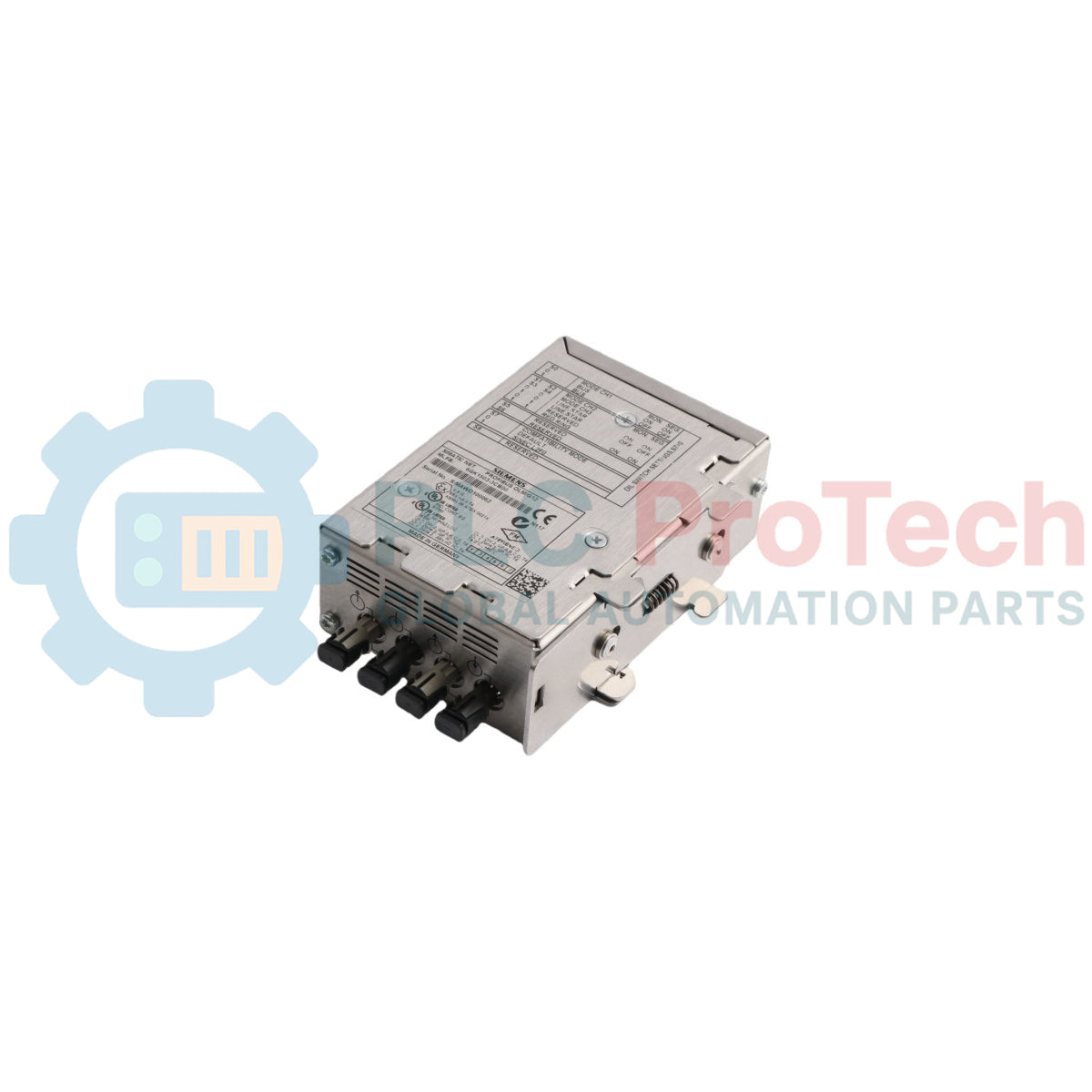

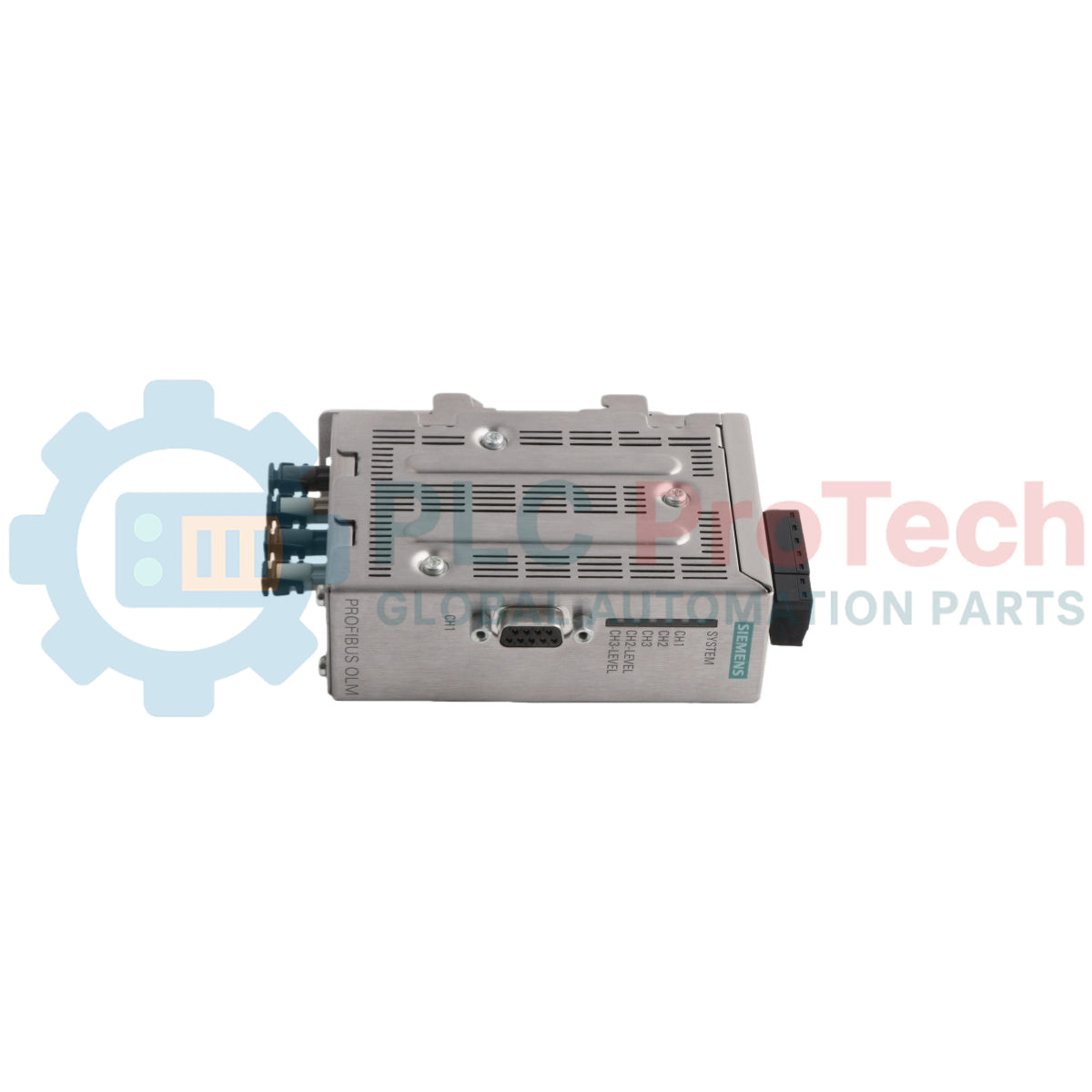

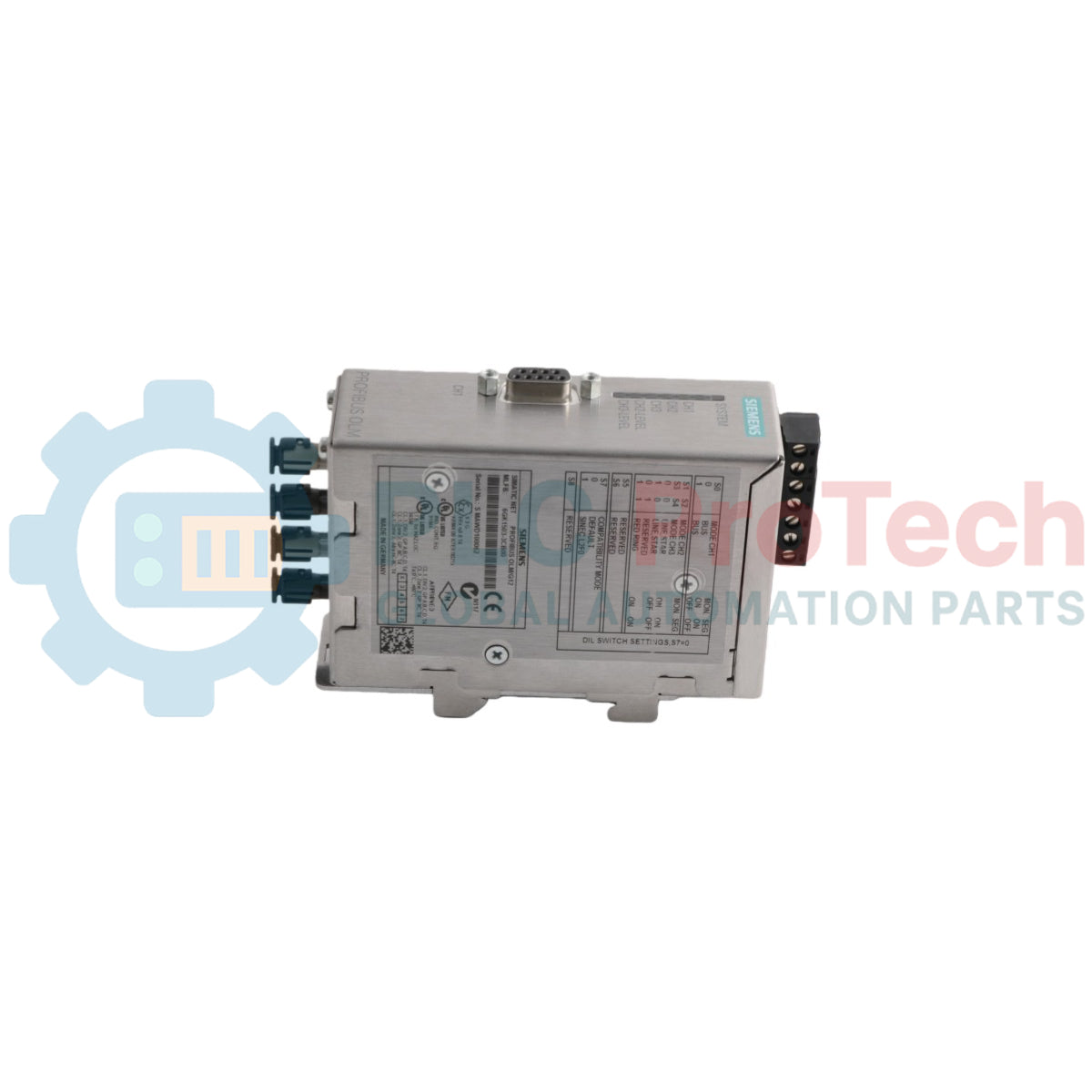

The Siemens 6GK1503-3CB00 is a PROFIBUS Optical Link Module (OLM) designed to extend and segment industrial network infrastructure using fiber optic connectivity. Designated as version G12 V4.0, this module integrates one electrical RS485 interface and two independent optical fiber channels, utilizing four BFOC sockets for bidirectional communication. It enables robust signal transmission over extended distances, up to 2,850 meters with standard glass fiber optic cables, providing complete electrical isolation between network segments and surpassing the limitations of conventional copper-based PROFIBUS networks.

Engineered for demanding industrial environments, the 6GK1503-3CB00 features comprehensive diagnostic capabilities, including a signaling contact for remote monitoring and a measuring output for precise signal quality assessment. Its rugged construction ensures reliable operation in harsh industrial settings prone to electromagnetic interference, ground potential differences, or extreme environmental conditions. The module facilitates the creation of redundant ring topologies and star configurations within PROFIBUS networks, enhancing system reliability and actively regenerating and amplifying PROFIBUS signals to maintain integrity across extensive facilities. It is particularly valuable in applications requiring isolation between different electrical areas or protection against lightning-induced surges.

Features

• PROFIBUS Optical Link Module (OLM) for network extension and segmentation
• One electrical RS485 interface
• Two independent optical fiber channels with four BFOC sockets
• Supports transmission distances up to 2,850 meters with standard glass fiber
• Provides complete electrical isolation between network segments
• Integrated diagnostic capabilities: signaling contact and measuring output
• Facilitates redundant ring and star PROFIBUS network topologies
• Active signal regeneration and amplification
• Rugged construction for reliable operation in harsh industrial environments

Applications

• Extending PROFIBUS network reach in large industrial facilities and process plants
• Segmenting PROFIBUS networks for improved performance and fault isolation
• Providing electrical isolation between network segments to mitigate ground potential differences and electromagnetic interference
• Implementing redundant PROFIBUS network topologies (ring and star) for enhanced system reliability
• Protecting PROFIBUS networks against lightning-induced surges in outdoor or exposed installations
• Deploying PROFIBUS communication in environments with high electrical noise or harsh conditions

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Ensure all power to the PROFIBUS network and associated equipment is disconnected before installation or maintenance.
2. Mounting: Securely mount the OLM in a suitable industrial enclosure, typically on a DIN rail, ensuring adequate ventilation and clearance for cable routing.
3. Fiber Optic Connection: Carefully connect the fiber optic cables to the BFOC sockets. Ensure all fiber ends are clean and free of dust or debris. Observe the minimum bend radius for the fiber optic cables to prevent damage and signal loss.
4. RS485 Connection: Connect the PROFIBUS RS485 segment to the electrical interface. Pay close attention to proper polarity (A and B lines) and ensure the shield is correctly terminated and grounded to minimize electromagnetic interference.
5. Power Supply: Connect the module to its specified power supply. Verify correct voltage and current ratings as per system requirements.
6. Grounding: Ensure the module and its associated equipment are properly grounded to provide electrical safety and reduce noise.
7. Cable Routing: Route all cables (power, RS485, fiber optic) neatly and separately where possible to avoid interference. Secure cables to prevent strain on connectors.
8. System Configuration: After physical installation, configure the PROFIBUS network and OLM parameters as required by the application, including addressing and diagnostic settings.
9. Diagnostic Monitoring: Utilize the integrated signaling contact and measuring output to monitor the health and signal quality of the fiber optic connections during commissioning and operation.
