Description

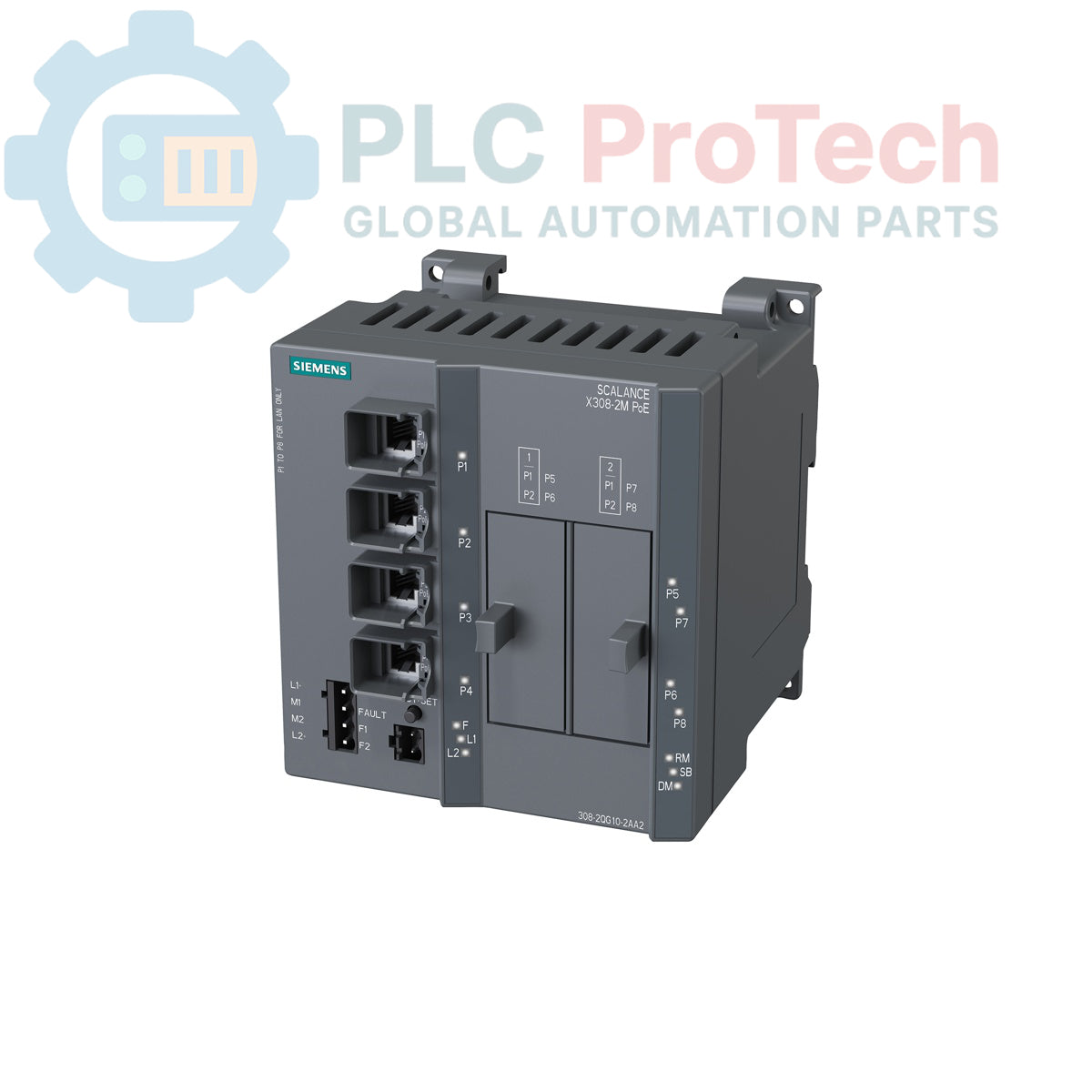

The Siemens 6GK5308-2QG10-2AA2 is a SCALANCE X308-2M PoE managed Industrial Ethernet switch, designed for compact industrial network applications. This module features 4x 10/100/1000 Mbit/s RJ45 electrical ports with Power over Ethernet (PoE) capability, alongside 2x 100/1000 Mbit/s slots for 2-port media modules, supporting both electrical and optical connections. It includes LED diagnostics and error signaling, a select/set button for configuration, and functions as a PROFINET IO device. The switch integrates network management capabilities, an embedded redundancy manager, and supports various office features such as RSTP, VLAN, and IGMP. A C-plug is included in the scope of delivery for convenient setup.

Features

• Managed Industrial Ethernet Switch
• 4x 10/100/1000 Mbit/s RJ45 electrical ports with Power over Ethernet (PoE)
• 2x 100/1000 Mbit/s slots for 2-port media modules (electrical or optical)
• LED diagnostics and error signaling contact
• Select/set button for local configuration
• PROFINET IO device functionality
• Integrated network management
• Built-in redundancy manager
• Supports office features including RSTP, VLAN, and IGMP
• C-plug included in delivery

Applications

• Industrial network infrastructure
• PROFINET-based automation systems
• Data communication with integrated Power over Ethernet (PoE) for connected devices
• Redundant network configurations in industrial environments
• Integration of diverse media types (electrical and optical) within a single network segment

Technical Specifications

Connections / Interfaces

• RJ45 Ports: 4x 10/100/1000 Mbit/s, electrical, with Power over Ethernet (PoE)
• Media Module Slots: 2x for 2-port media modules, supporting 100/1000 Mbit/s electrical or optical connections

Installation Guidelines

1. De-energize System: Ensure all power to the installation area and connected devices is completely de-energized before beginning installation.
2. Mounting: Securely mount the SCALANCE X308-2M PoE switch in a suitable industrial enclosure or on a DIN rail, ensuring adequate ventilation and clearance for cabling.
3. Power Connection: Connect the power supply according to the module's specifications, observing correct polarity and grounding.
4. Network Cabling: Connect Ethernet cables to the RJ45 ports for network communication and PoE-powered devices. Use appropriate industrial-grade cabling.
5. Media Module Installation: If optical or additional electrical connections are required, insert the compatible 2-port media modules into the designated slots.
6. Grounding: Establish a proper ground connection for the module to ensure electrical safety and minimize electromagnetic interference.
7. C-plug Configuration: Utilize the included C-plug for initial configuration or to restore settings as required.
8. System Verification: After installation, re-energize the system and verify proper operation through LED diagnostics and network connectivity tests.
