Description

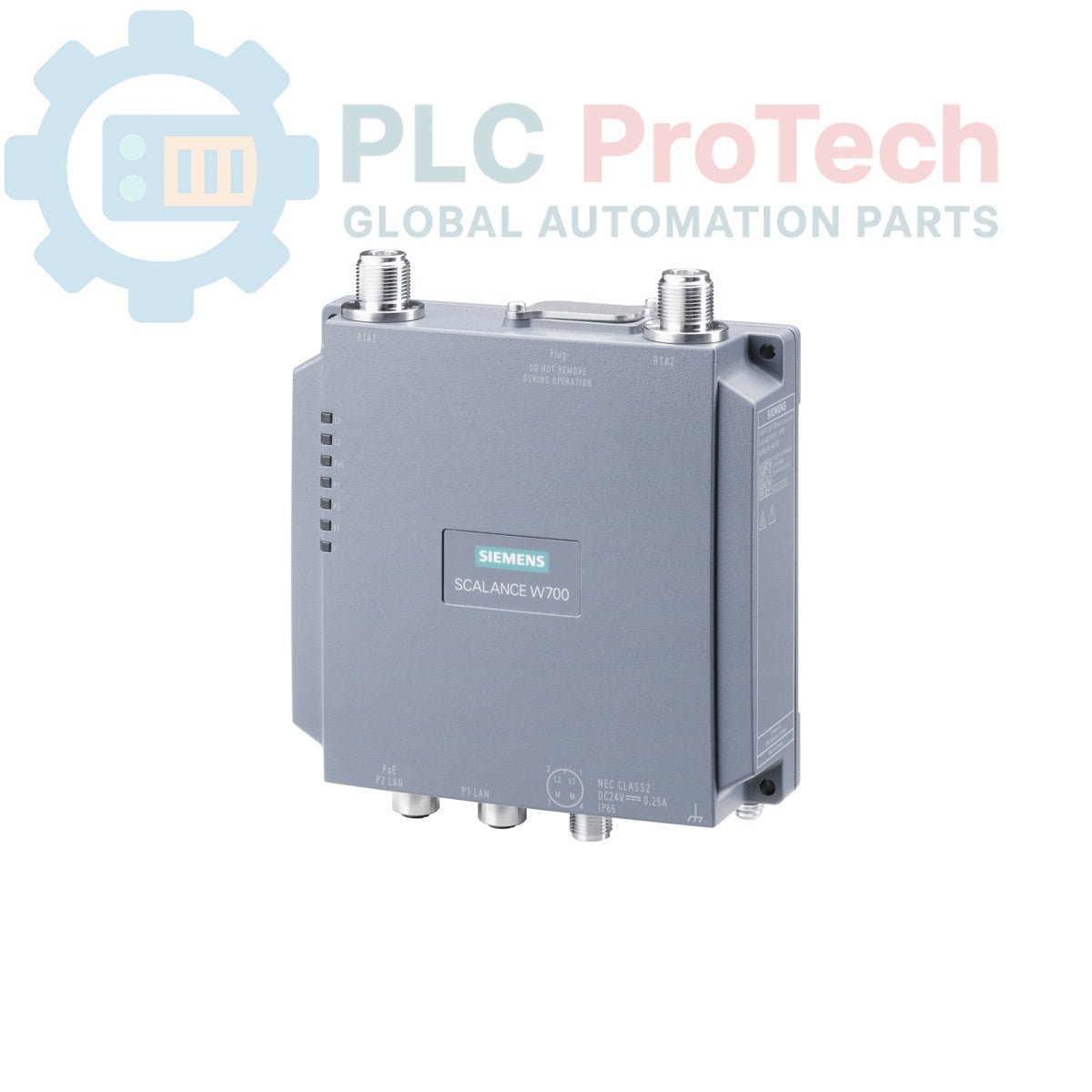

This is a Siemens 6GK5778-1GY00-0TA0 SCALANCE W778-1 M12 EEC, an industrial wireless LAN (IWLAN) access point designed for reliable communication in demanding environments. The device features a single radio interface supporting IEEE 802.11a/b/g/h/n standards for operation in both 2.4 GHz and 5 GHz frequency bands, achieving a gross data rate of up to 300 Mbit/s. It is equipped with an integrated 2-port switch with Power over Ethernet (PoE) capability, utilizing rugged M12 connectors for both network and power connections. The unit's robust IP65-rated enclosure, conformal coating, and wide operating temperature range from -30 to 70 degC ensure dependable performance in transportation, manufacturing, and process control applications. Advanced iFeatures can be enabled via an optional KEY-PLUG.

Features

• Single radio interface for flexible network deployment.
• Supports IEEE 802.11a/b/g/h/n wireless standards.
• Dual-band operation at 2.4 GHz and 5 GHz.
• Maximum gross data rate of 300 Mbit/s.
• Integrated 2-port switch with PoE functionality.
• Redundant 24 V DC power supply input.
• Rugged M12 A-coded connectors for network and power.
• IP65-rated enclosure for protection against dust and water ingress.
• Conformal coating for enhanced durability in harsh chemical or humid environments.
• Extended operating temperature range (-30 to 70 degC).
• iFeatures support enabled via an optional KEY-PLUG.

Applications

• Railway and transportation systems (EN 50155 compliant).
• Automated Guided Vehicles (AGVs) and mobile equipment.
• Machine-to-machine (M2M) communication networks.
• Process automation and control systems.
• Outdoor and washdown industrial environments.
• Automotive manufacturing and logistics.

Technical Specifications

Installation Guidelines

1. 1 Mount the device securely to a stable surface or panel, ensuring adequate clearance for M12 and N-CON connectors and allowing for proper heat dissipation.
2. 2 Connect the appropriate antennas to the two N-CON ports. Ensure connections are tightened to the specified torque to maintain the IP65 rating. Use the included M12 sealing caps on any unused ports.
3. 3 Terminate the M12 Ethernet cables for network connectivity. The device can be powered via PoE through these ports or by a separate DC power source.
4. 4 If not using PoE, connect the redundant 24 V DC power supply using the appropriate M12 power connector. Verify correct polarity before energizing.
5. 5 If using iFeatures, insert the correct Siemens KEY-PLUG into the designated slot before powering on the device.
6. 6 After all connections are secure and verified, re-energize the system and proceed with software configuration according to the product manual.
