Description

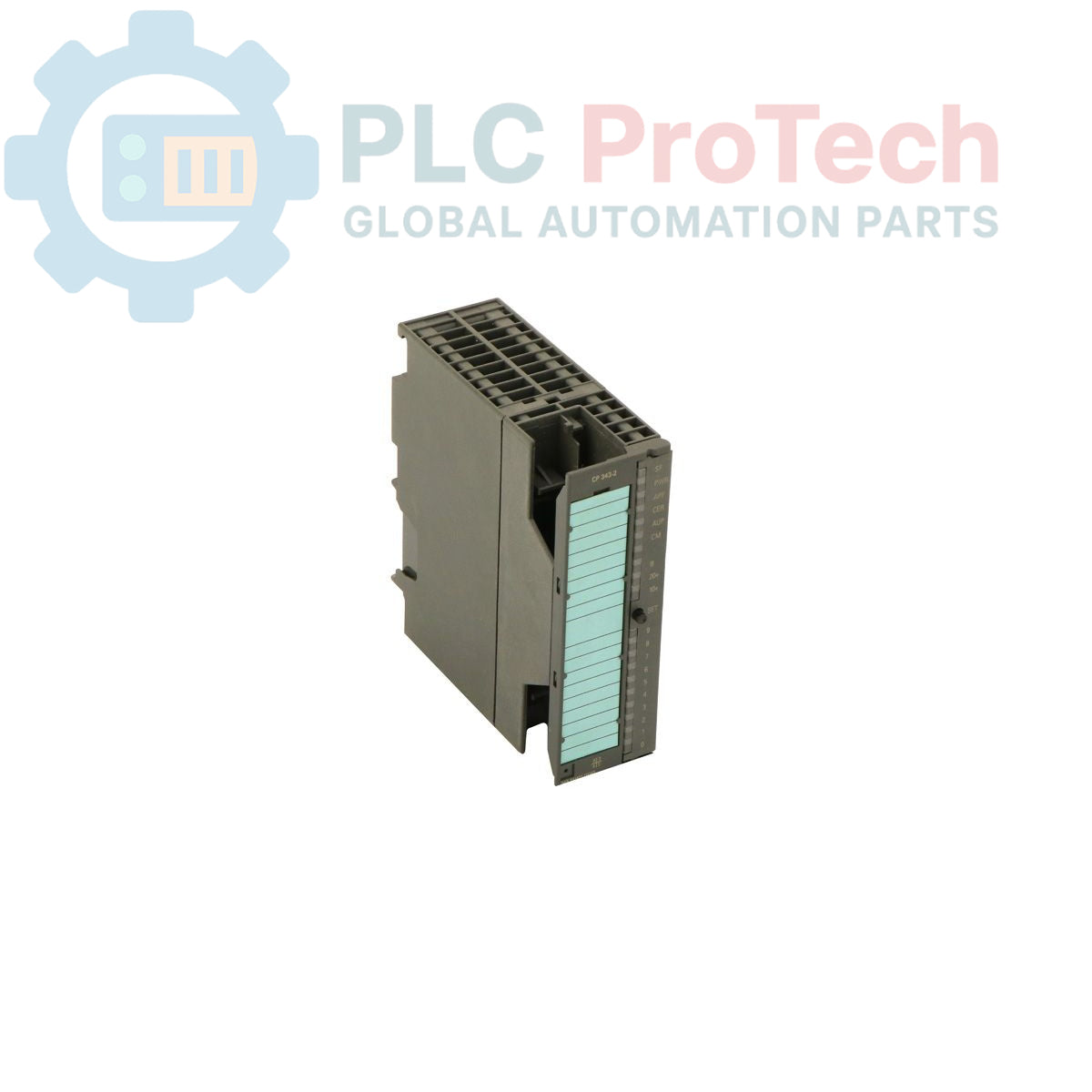

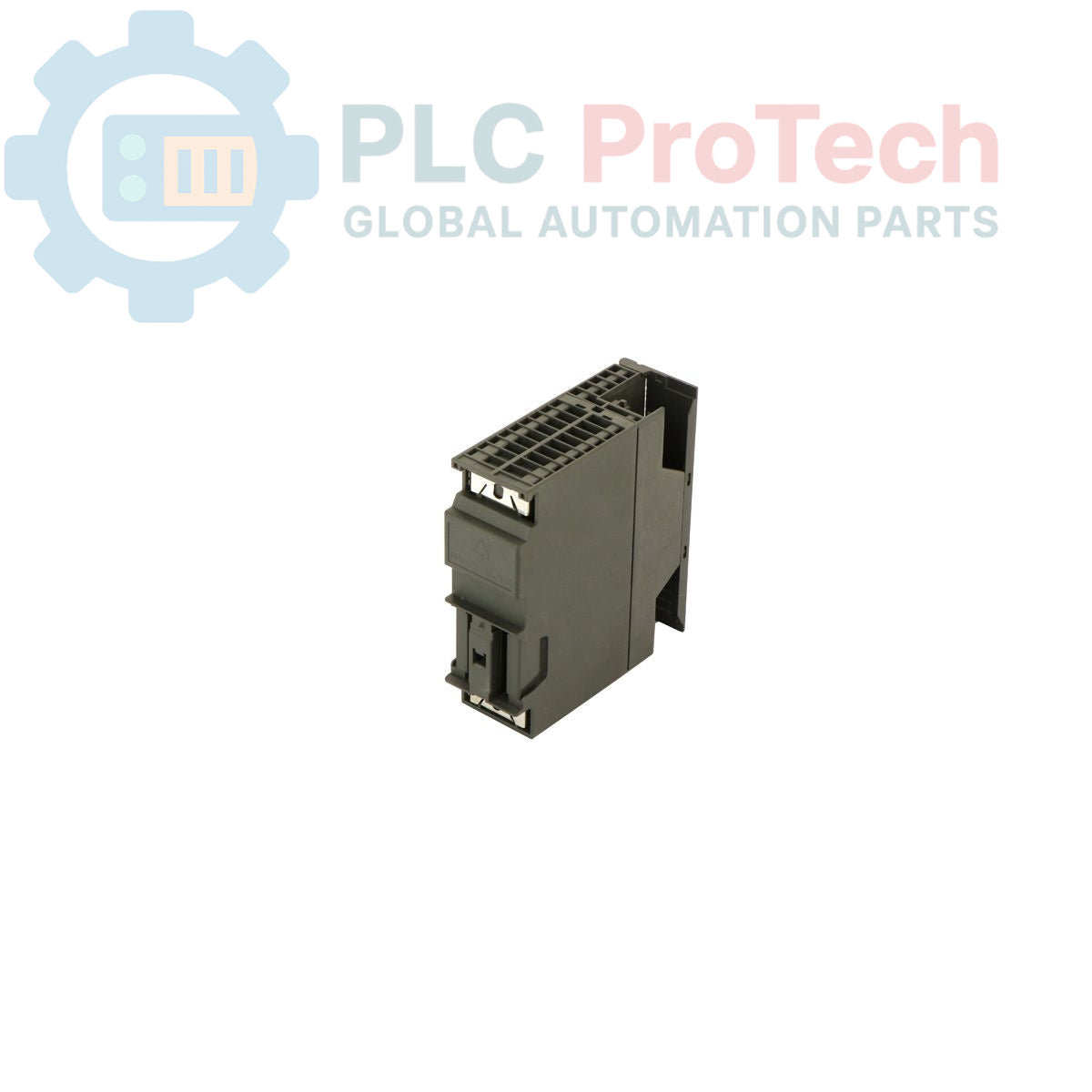

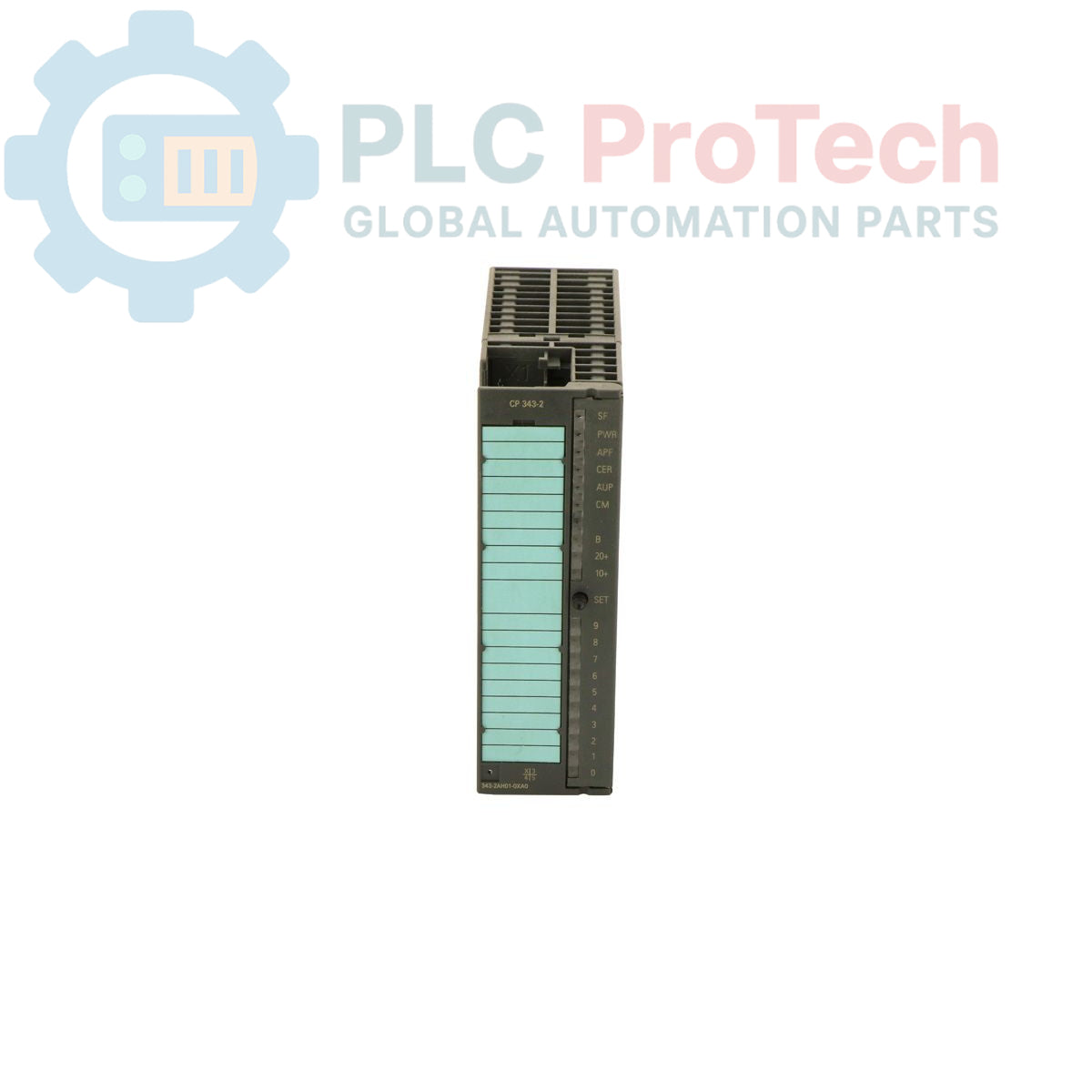

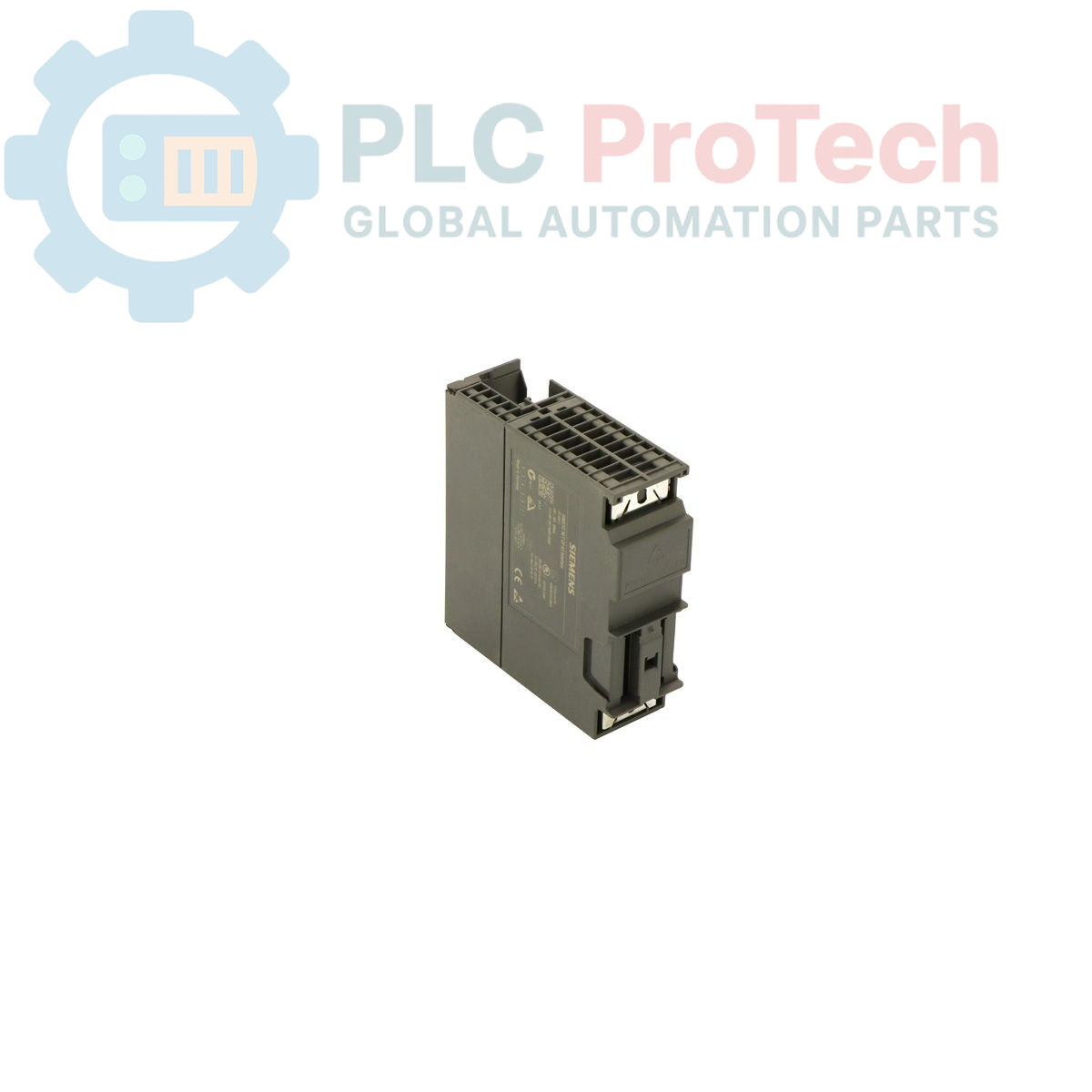

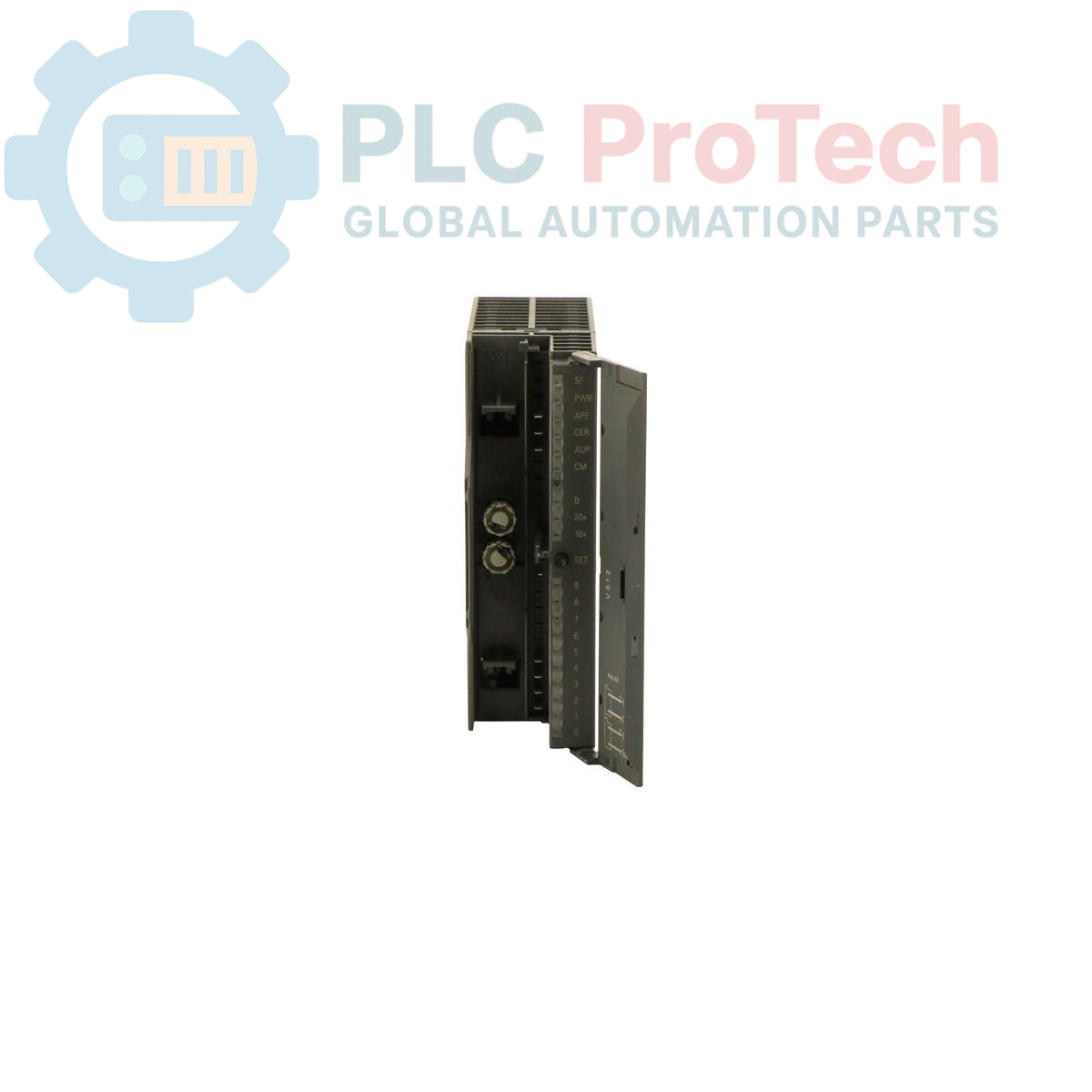

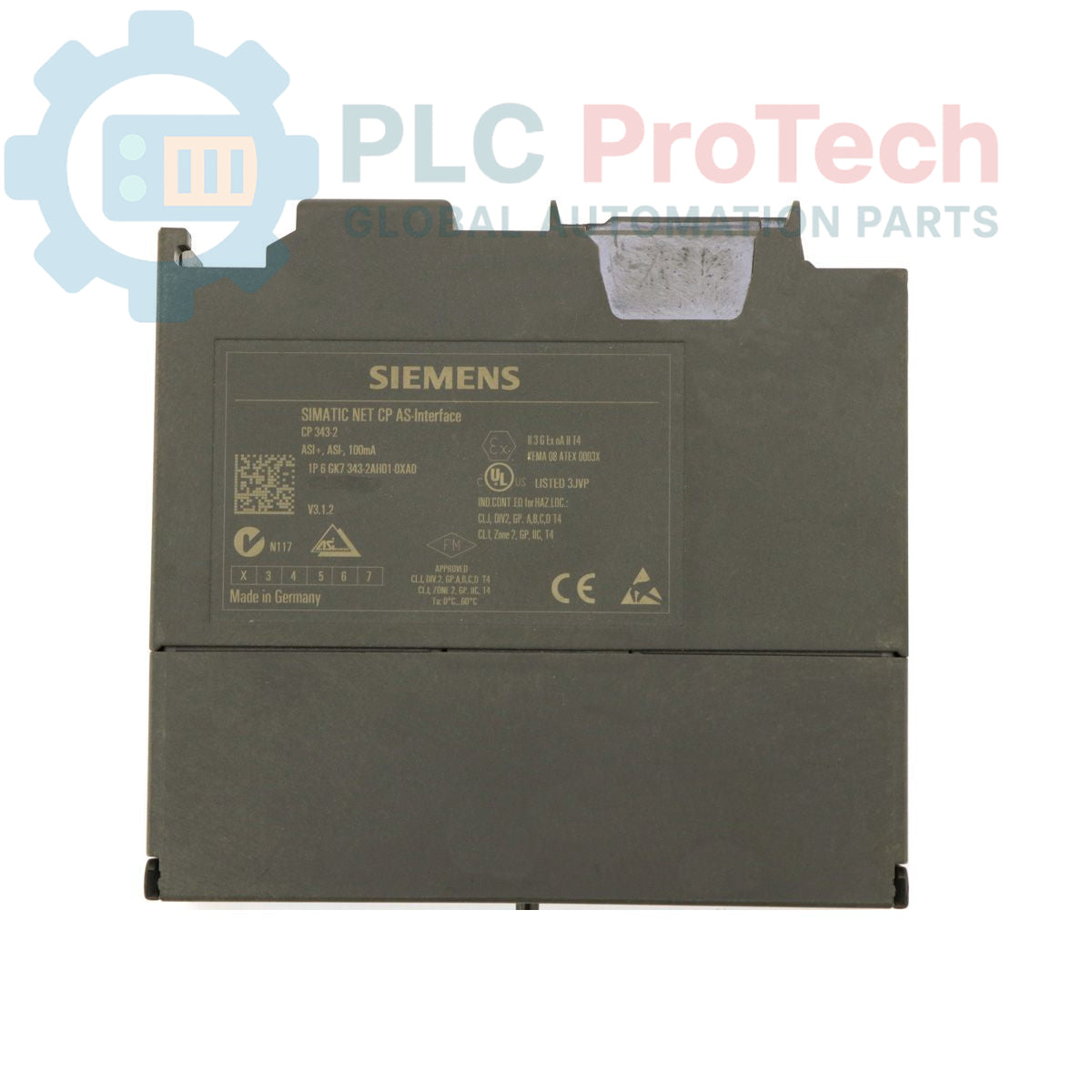

This module is the Siemens 6GK7343-2AH01-0XA0, a CP 343-2 communications processor from the SIMATIC NET family. It is engineered to connect SIMATIC S7-300 programmable controllers and ET 200M distributed I/O systems to an AS-Interface network. The processor ensures reliable data exchange and system integration by adhering to the AS-Interface Specification V3.0. Its compact design is suitable for straightforward installation within standard control cabinets, providing a robust link between control systems and field-level devices in demanding industrial automation environments.

Features

• Provides AS-Interface connectivity for SIMATIC S7-300 and ET 200M systems.
• Fully compliant with AS-Interface Specification V3.0.
• Designed for seamless integration into the SIMATIC S7-300 rack.
• Compact form factor for efficient use of cabinet space.

Applications

• Automated production lines
• Material handling and conveyor systems
• Process control and monitoring
• Building automation systems

Technical Specifications

Installation Guidelines

1. 1 Ensure all power to the SIMATIC S7-300 rack and associated equipment is disconnected at the source. Apply appropriate LOTO devices as per site safety policy.
2. 2 Verify the absence of voltage using a properly rated test instrument before proceeding.
3. 3 Identify an available slot on the S7-300 mounting rail. Align the module with the rail and hook its top edge before pivoting it downward to snap securely into place.
4. 4 Slide the module horizontally to engage with the adjacent module's bus connector. Ensure the bus connector is fully seated to establish a reliable backplane connection.
5. 5 Connect the AS-Interface network cable to the designated port on the front of the module. Ensure the connection is secure.
6. 6 After all connections are made and verified, remove LOTO devices and restore power to the system for commissioning.
