Siemens

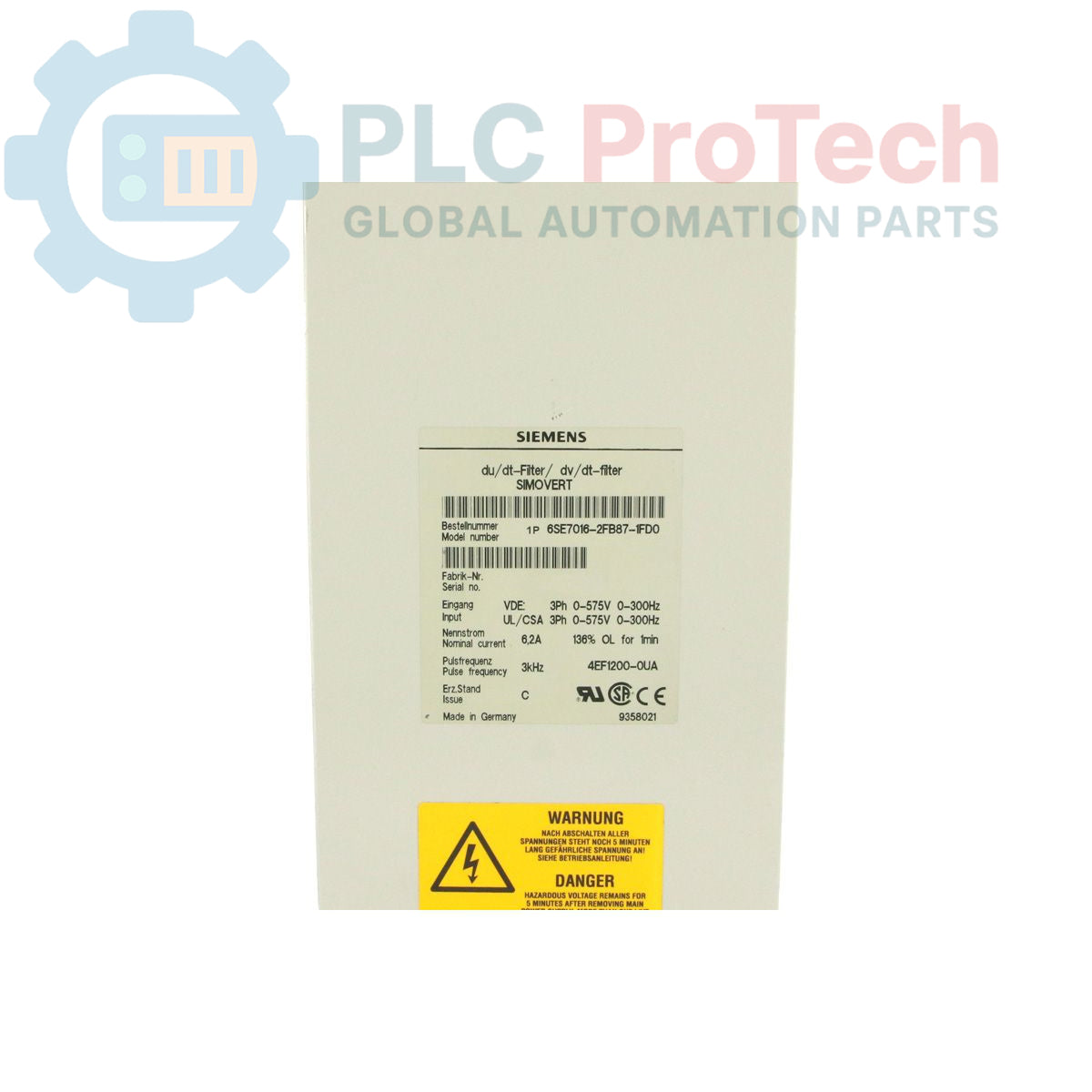

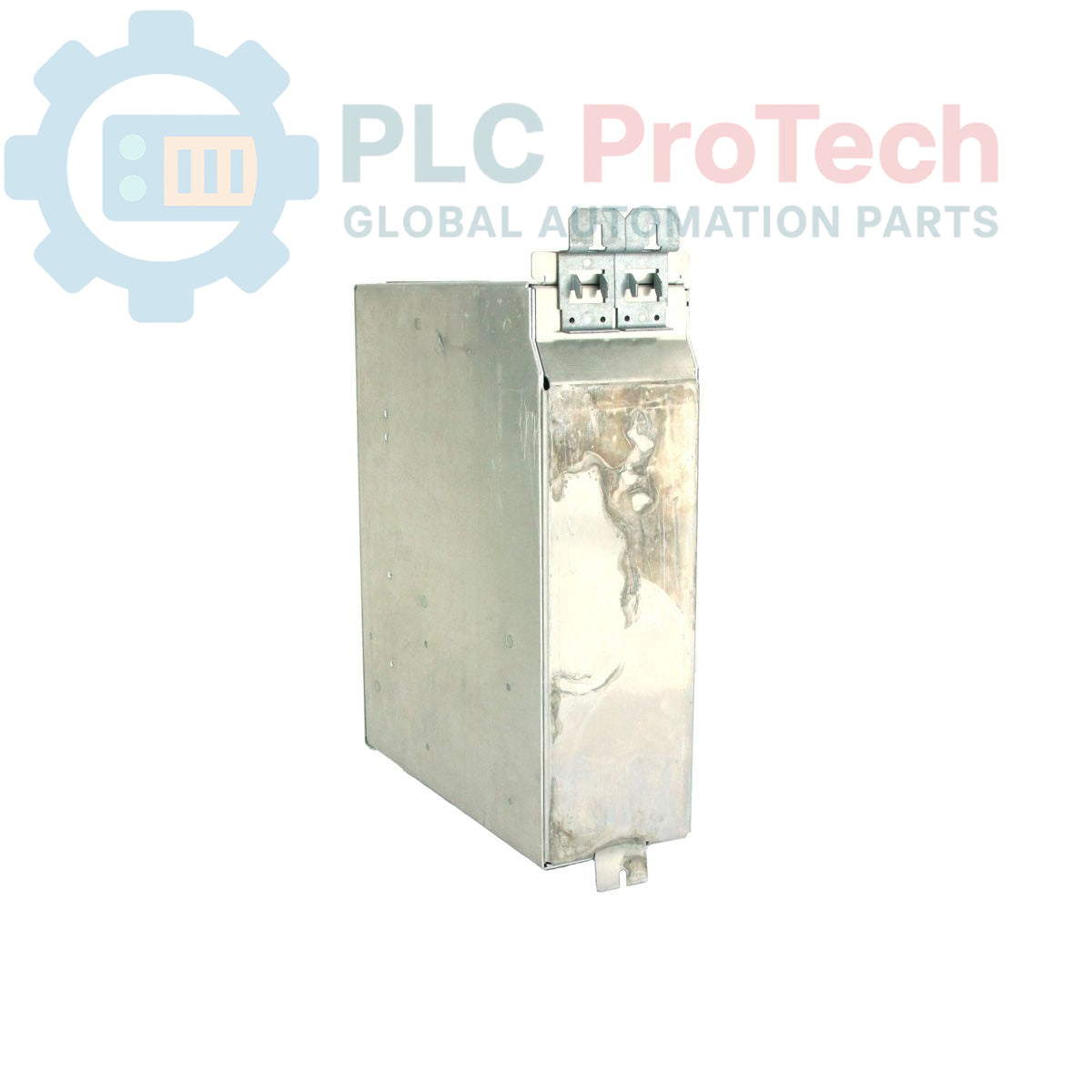

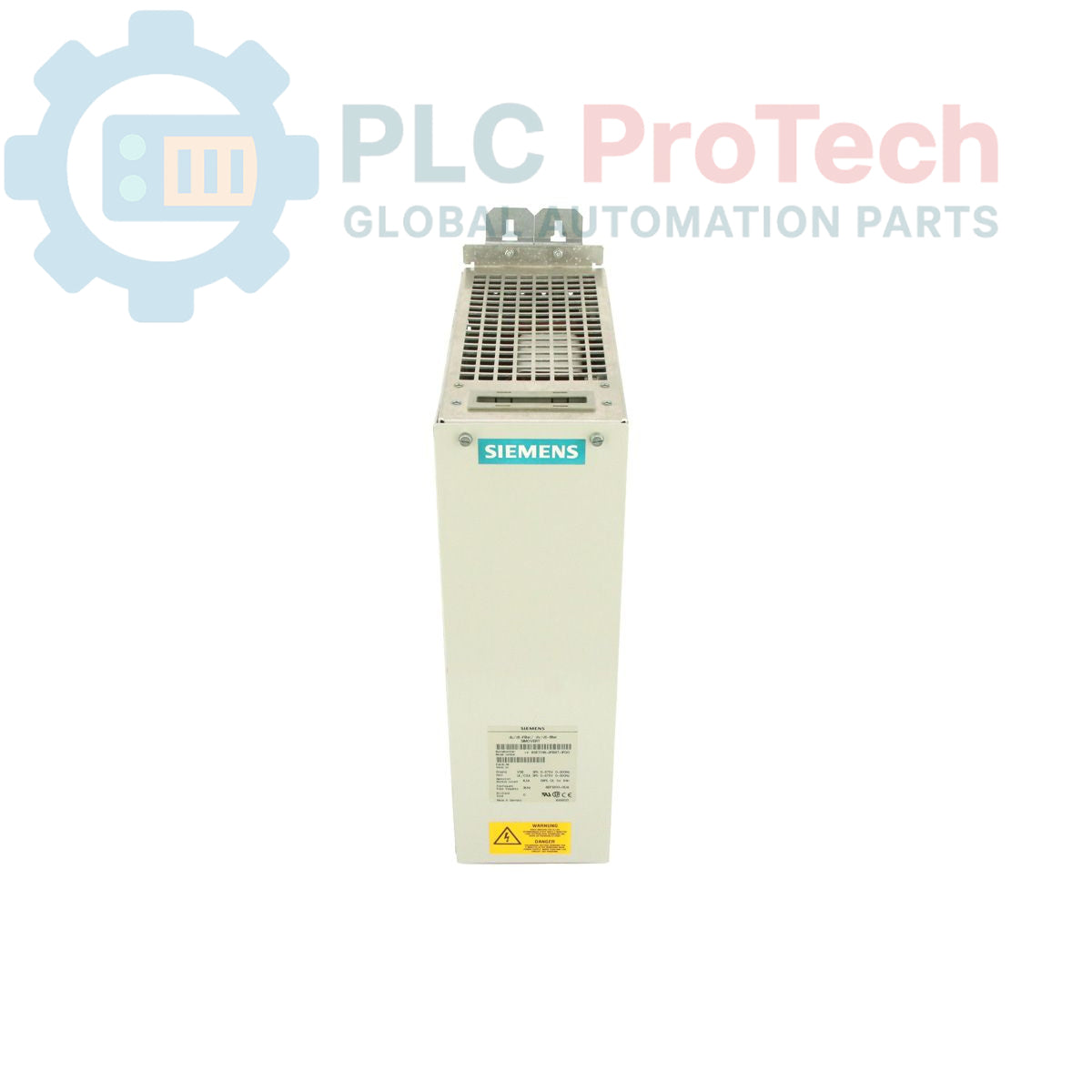

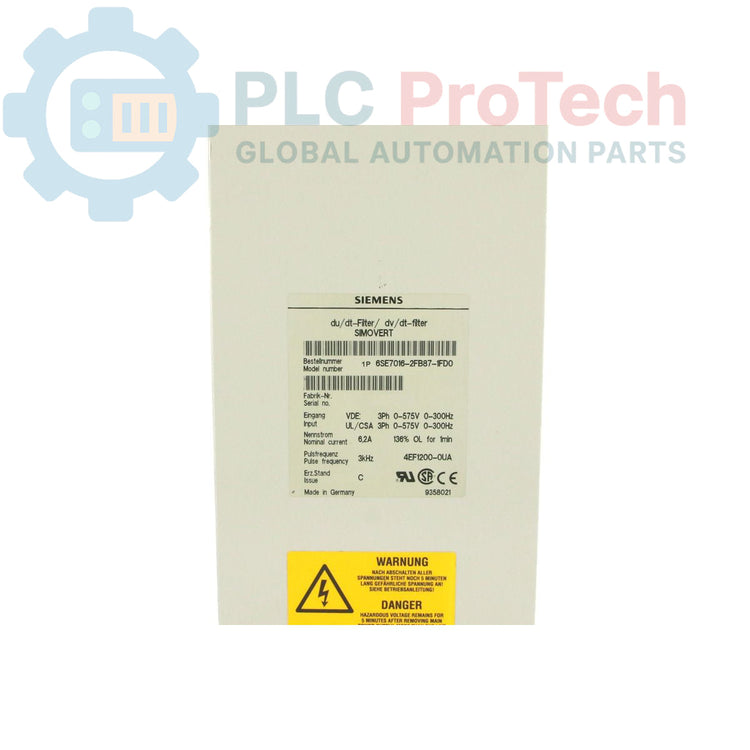

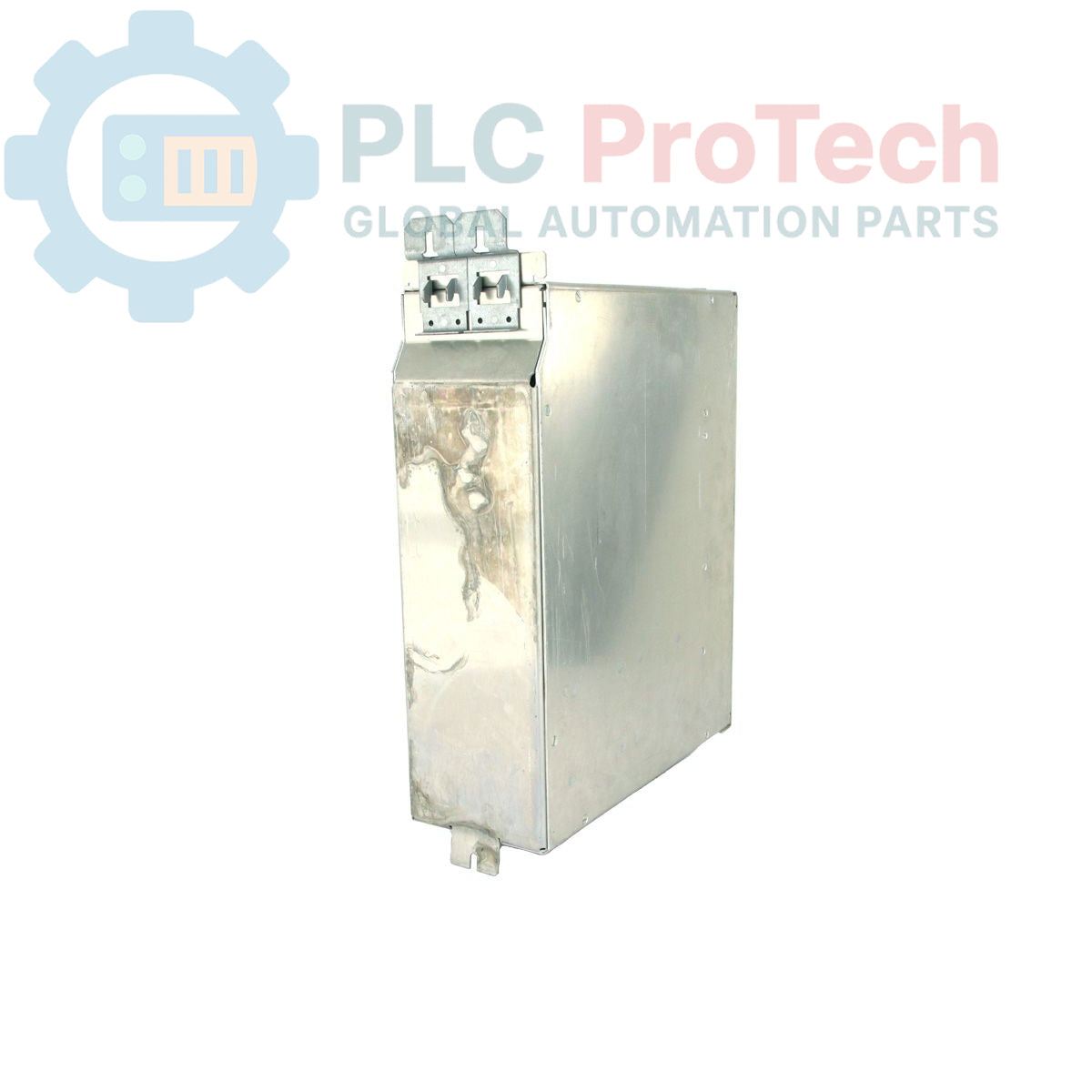

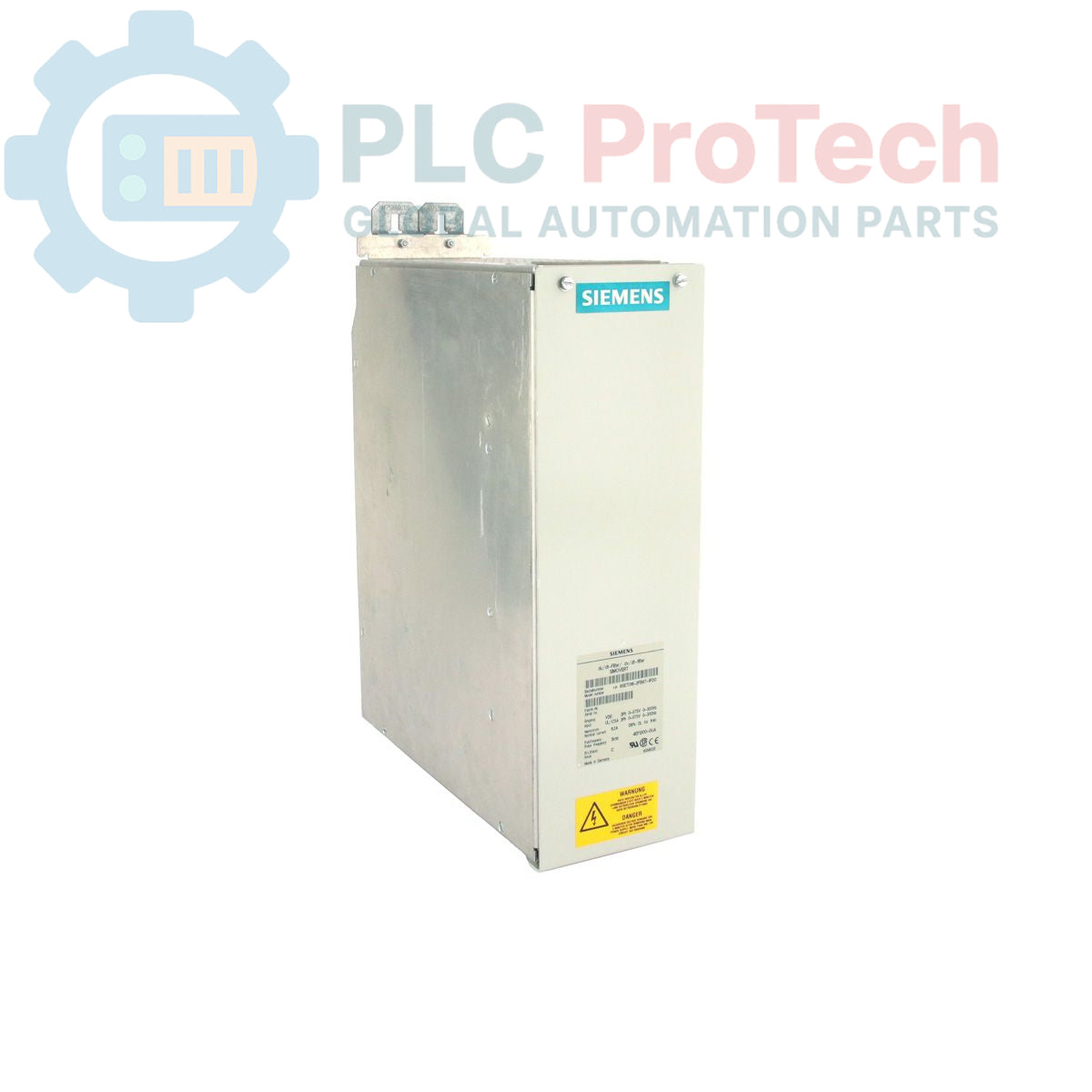

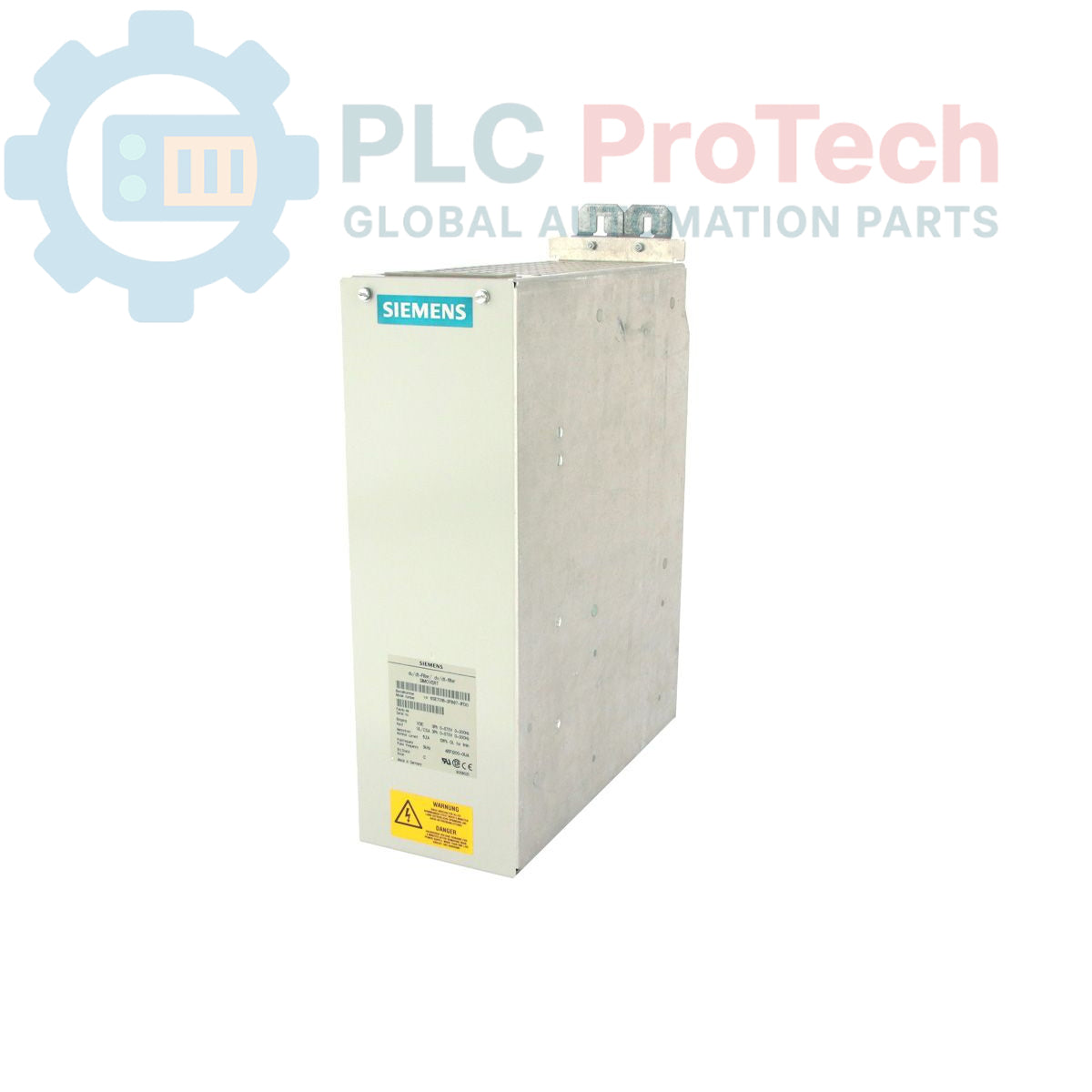

Siemens 6SE7016-2FB87-1FD0 SIMOVERT MASTERDRIVES du/dt Filter

SKU 6SE7016-2FB87-1FD0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SE7016-2FB87-1FD0
Origin Germany
Product Type: du/dt Filter
Barcode: 85049099
Payment: T/T, Western Union
Weight: 0.02 kg
Dimensions: 48.30cm x 40.60cm x 35.60cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

The 6SE7016-2FB87-1FD0 is a SIMOVERT MASTERDRIVES du/dt filter designed to protect motor insulation and extend the operational lifespan of drive systems. By reducing voltage rise times (du/dt) at the output of frequency inverters, this filter mitigates high-frequency voltage peaks that can lead to premature motor failure. It is compatible with three-phase supply configurations, supporting 380–460 V AC at 6.1 A or 500–575 V AC at 6.2 A, ensuring versatility across different industrial power architectures.

Features

Protection: Reduces steep voltage slopes (du/dt) to protect motor windings and insulation systems.
Compatibility: Designed for use with SIMOVERT MASTERDRIVES inverter configurations.
Current Ratings: Supports 6.1 A at 380–460 V AC and 6.2 A at 500–575 V AC.
Robust Design: Industrial-grade construction suitable for continuous operation in demanding production environments.
Flexibility: Acts as a base unit for drive systems, allowing for additional technical options.

Applications

Protection of AC motors in high-frequency switching drive environments.
Extension of cable lengths between inverters and motors.
Industrial production lines utilizing SIMOVERT MASTERDRIVES power sections.
Retrofitting and maintenance of legacy automation drive systems.

Technical Specifications

Attribute	Specification
Manufacturer	Siemens
Product Range	SIMOVERT
Subrange	MASTERDRIVES
Device Type	du/dt Filter
Input Voltage (1)	380-460 V AC
Rated Current (1)	6.1 A
Input Voltage (2)	500-575 V AC
Rated Current (2)	6.2 A
Dimensions (WxHxD)	48.30 x 40.60 x 35.60 cm
Weight	20.00 kg
Commodity Code	85049099

Installation Guidelines

Positioning: Install the filter as close to the inverter output as possible to minimize the length of unfiltered cable runs.
Cooling: Ensure adequate ventilation in the control cabinet; the filter generates heat during operation and requires unobstructed airflow.
Grounding: Maintain high-quality electrical grounding connections to ensure effective suppression of electromagnetic interference and safe operation.
Wiring: Use shielded cabling for connections between the filter and the motor to comply with electromagnetic compatibility (EMC) standards.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary purpose of the 6SE7016-2FB87-1FD0?

It is a du/dt filter that reduces high voltage peaks and steep voltage rises at the inverter output, protecting motor insulation.

Can this filter be used on different voltage systems?

Yes, it supports 380-460 V AC at 6.1 A and 500-575 V AC at 6.2 A.

Are there additional configurations available for this base drive?

Yes, the module serves as a base configuration, and additional technical options may be available depending on specific application needs.
