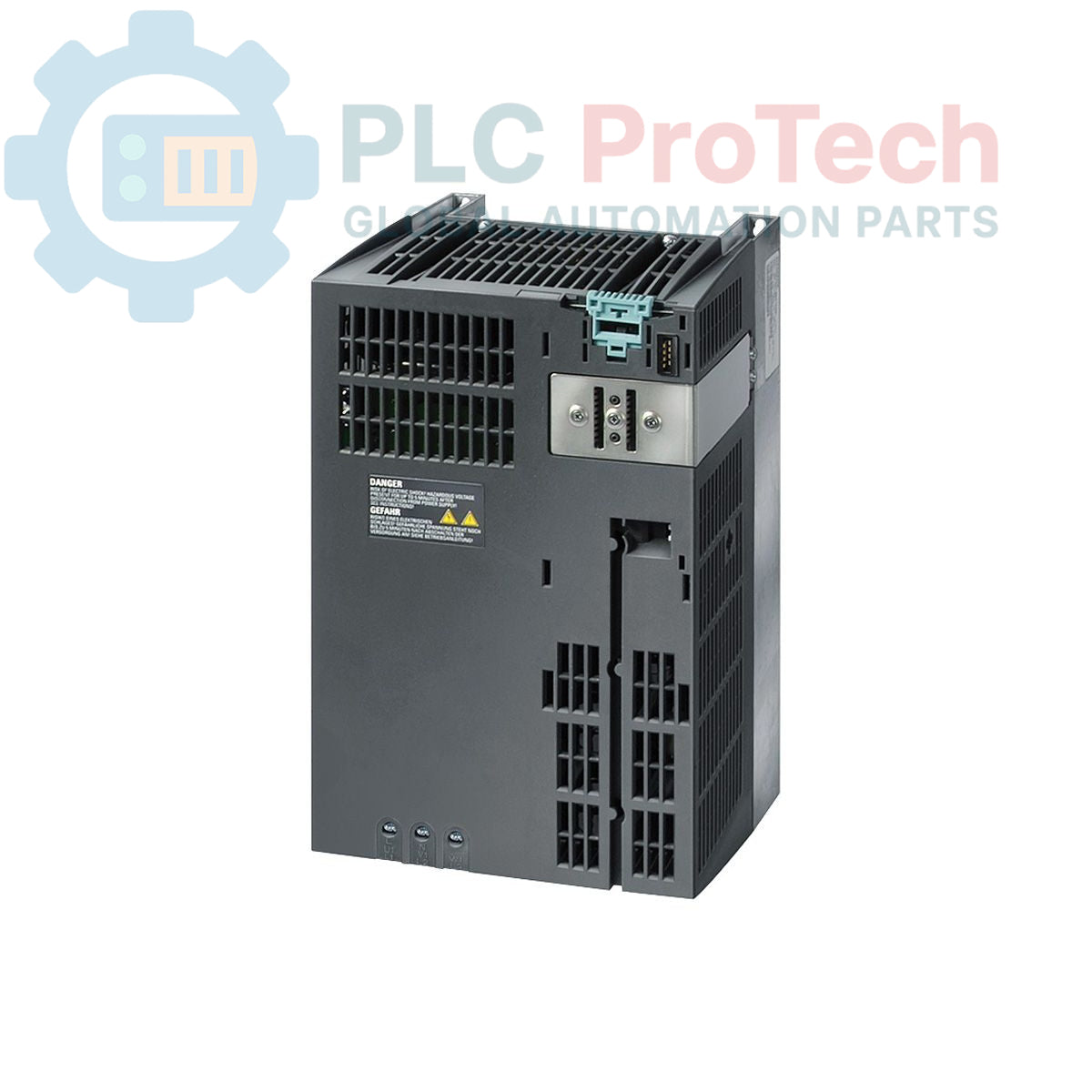

Siemens 6SL3225-0BE25-5AA0 SINAMICS G120 PM 250 Power Module

SKU 6SL3225-0BE25-5AA0

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SL3225-0BE25-5AA0
Origin Germany
Product Type: Power Modules
Barcode: 85044095
Payment: T/T, Western Union
Weight: 7.3 kg
Dimensions: 25.40cm x 20.30cm x 38.10cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 6SL3225-0BE25-5AA0 is a SINAMICS G120 PM 250 Power Module, designed for robust motor control with advanced energy recovery capabilities. This module features an integrated Class A filter to ensure compliance with electromagnetic compatibility standards. It operates on a 3-phase supply of 380-480 V (±10%) at 47-63 Hz. The unit offers flexible overload ratings: a high overload capacity of 5.5 kW (at 200% for 3 s) or a low overload capacity of 7.5 kW (at 150% for 3 s). Please note that this unit is supplied as a power module only and does not include a Control Unit (CU) or Basic Operator Panel (BOP), allowing for configuration customization to suit specific automation system requirements.

Features

Energy recovery-capable power module
Integrated Class A filter
High Overload: 5.5 kW (200% for 3 s, 150% for 57 s, 100% for 240 s)
Low Overload: 7.5 kW (150% for 3 s, 110% for 57 s, 100% for 240 s)
Ambient Temperature: -10 degC to +50 degC (High Overload) / +40 degC (Low Overload)
Protection: IP20
Frame Size: FSC

Applications

Regenerative industrial drive systems
Material handling and conveyor lines
Centrifugal pumps and fan applications
Production machinery requiring energy efficiency
General-purpose industrial automation

Technical Specifications

Feature	Specification
Manufacturer	Siemens
Brand	Sinamics
Subrange	G120
Product Type	Power modules
Input Voltage	3AC 380-480 V
Frequency	47-63 Hz
Protection Rating	IP20
Dimensions	25.40 cm x 20.30 cm x 38.10 cm
Weight	7.30 kg
Commodity Code	85044095
ECCN	N
Product Phase	Obsolete

Installation Guidelines

Mounting: Install the power module in a clean, ventilated control cabinet. Ensure the 33.4 cm (height) x 18.9 cm (width) x 18.5 cm (depth) clearance requirements are maintained for optimal airflow.
System Configuration: Since the Control Unit and BOP are not included, ensure the selected CU is compatible with the PM 250 series before final assembly.
Energy Recovery: Verify that the supply network supports regenerative energy feed-back if the energy recovery function is to be utilized.
Grounding: Connect the module to the cabinet PE (Protective Earth) busbar using appropriate cross-section conductors to ensure safe operation and EMC compliance.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Does this power module include a Control Unit?

No, the 6SL3225-0BE25-5AA0 is a power module only and does not include a Control Unit or a Basic Operator Panel.

What is the primary advantage of the PM 250 series?

The PM 250 series features regenerative feedback capability, which allows energy to be fed back into the supply network during motor braking.

What are the overload ratings for this unit?

It provides a high overload rating of 5.5 kW and a low overload rating of 7.5 kW, depending on the operational profile and ambient temperature.

Is an external filter required for this module?

No, this module comes with an integrated Class A filter, minimizing the need for additional external filtering components.
