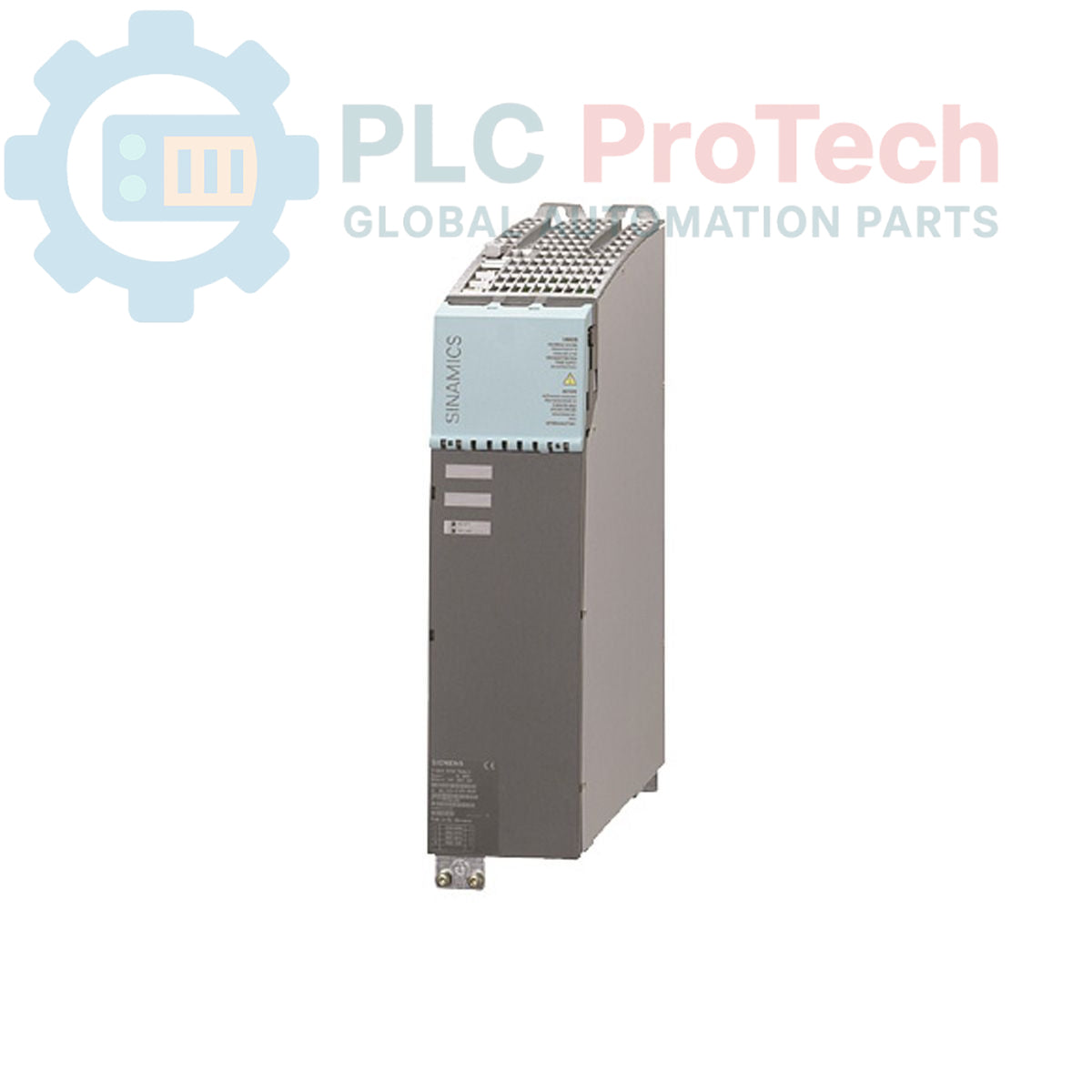

Siemens 6SL3121-2TE15-0AA3 SINAMICS S120 Double Motor Module

SKU 6SL3121-2TE15-0AA3

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6SL3121-2TE15-0AA3
Origin Germany
Product Type: Double Motor Modules
Barcode: 85044095
Payment: T/T, Western Union
Weight: 5.9 kg
Dimensions: 35.60cm x 5.10cm x 55.90cm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 6SL3121-2TE15-0AA3 is a SINAMICS S120 double motor module engineered for multi-axis motion control in industrial automation systems. This unit is designed to control two independent motors simultaneously, featuring a DC input of 600 V and providing a 3-phase AC output of 400 V with a rated capacity of 5 A per axis.

The module utilizes a space-saving booksize construction and relies on external air cooling, which helps maintain operational thermal limits in high-density cabinet configurations. It is equipped with advanced features including optimized pulse patterns and support for extended Safety Integrated functions, ensuring precise control and high levels of operational security. The inclusion of a DRIVE-CLiQ cable enables rapid, error-free communication and integration within the Siemens S120 drive ecosystem.

Features

SINAMICS S120 double motor module architecture
DC input: 600 V
3-phase AC output: 400 V (5 A per channel)
Compact booksize construction
Optimized pulse patterns for high-precision motion
Extended Safety Integrated functions
External air cooling design
Includes DRIVE-CLiQ cable

Applications

Multi-axis production machinery
Synchronized material handling systems
Precision robotics and motion platforms
Automated assembly lines requiring dual-motor coordination

Technical Specifications

Feature	Specification
Brand	Siemens
Range	SINAMICS
Subrange	S120
Product Type	Double Motor Module
Input Voltage	600 V DC
Output Voltage	400 V 3AC
Output Current	5 A / 5 A
Cooling Type	External Air Cooling
Frame Design	Booksize
Weight	5.90 kg
Dimensions	35.60 cm x 5.10 cm x 55.90 cm
Product Phase	Phase-Out
Commodity Code	85044095

Installation Guidelines

Mounting: Designed for mounting in a control cabinet; ensure that the external air cooling path is unobstructed and directed according to manual specifications.
Cooling: Ensure the external ventilation system provides adequate airflow to the heat sink, as the unit relies on active external thermal management.
DRIVE-CLiQ: Utilize the supplied DRIVE-CLiQ cable for connection to the Control Unit; avoid bending the cable beyond its minimum radius to prevent signal integrity issues.
Grounding: Ensure a robust electrical connection to the cabinet’s common ground plane to support the high-speed pulse operation of the module.
Safety Integrated: Configure the extended safety functions via the drive software to ensure full compliance with machinery safety protocols.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Does this module support dual motor control?

Yes, it is a double motor module capable of controlling two independent motors with 5 A output per channel.

What cooling method does the 6SL3121-2TE15-0AA3 use?

This module uses external air cooling, which requires an external ventilation system to manage heat dissipation.

Is the DRIVE-CLiQ cable included?

Yes, the module is supplied with the necessary DRIVE-CLiQ cable for system integration.

What is the status of this product's lifecycle?

The 6SL3121-2TE15-0AA3 is currently in the Phase-Out stage.
