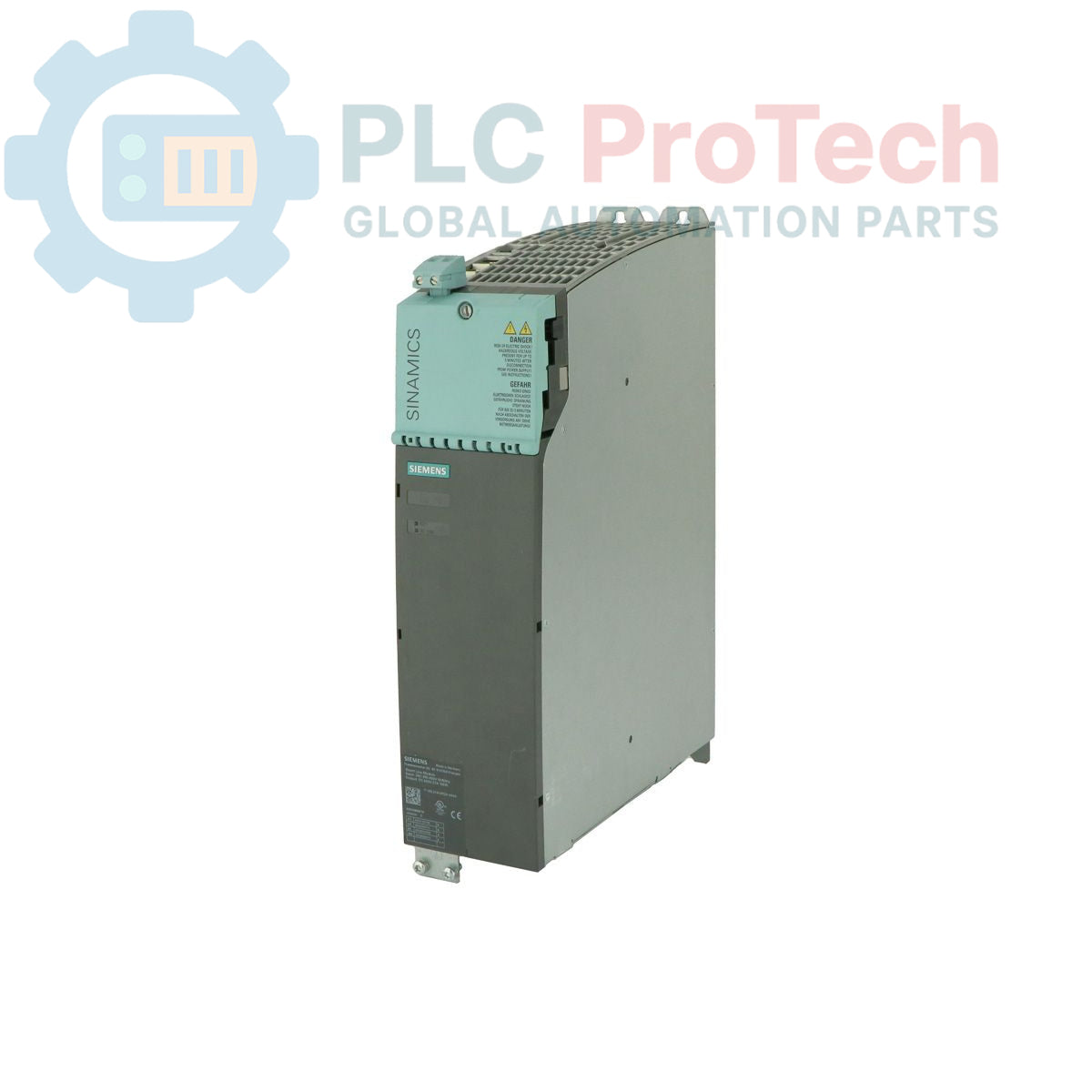

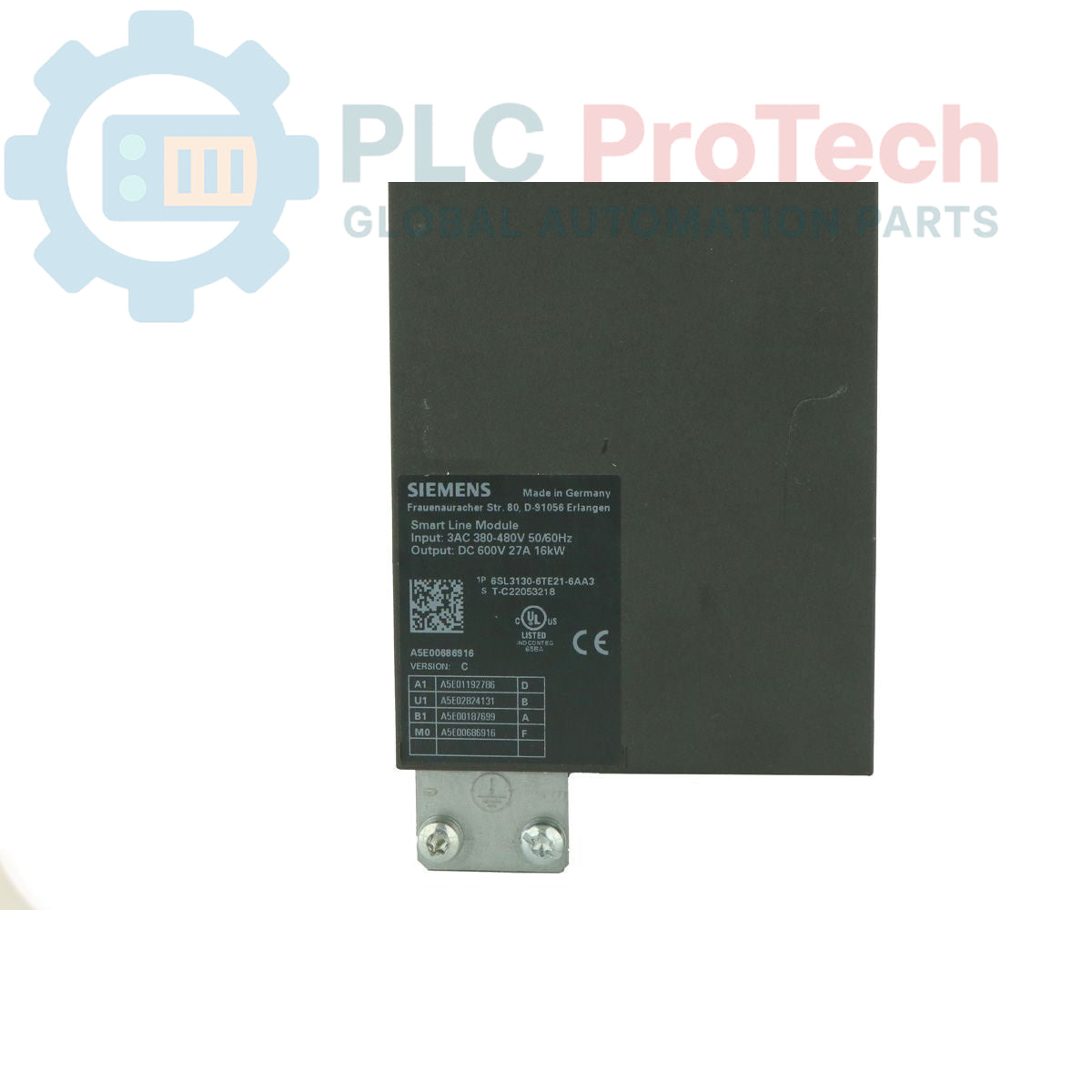

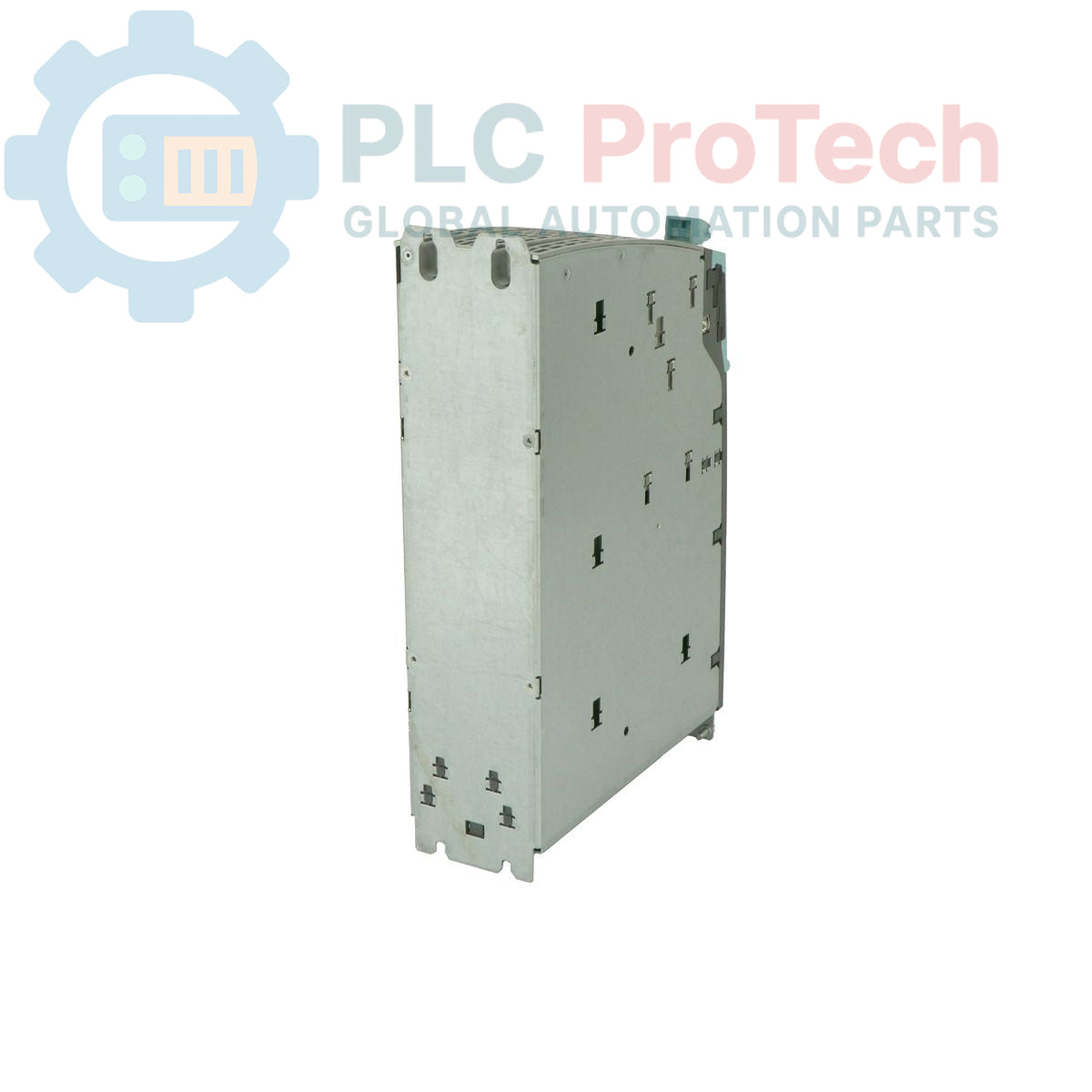

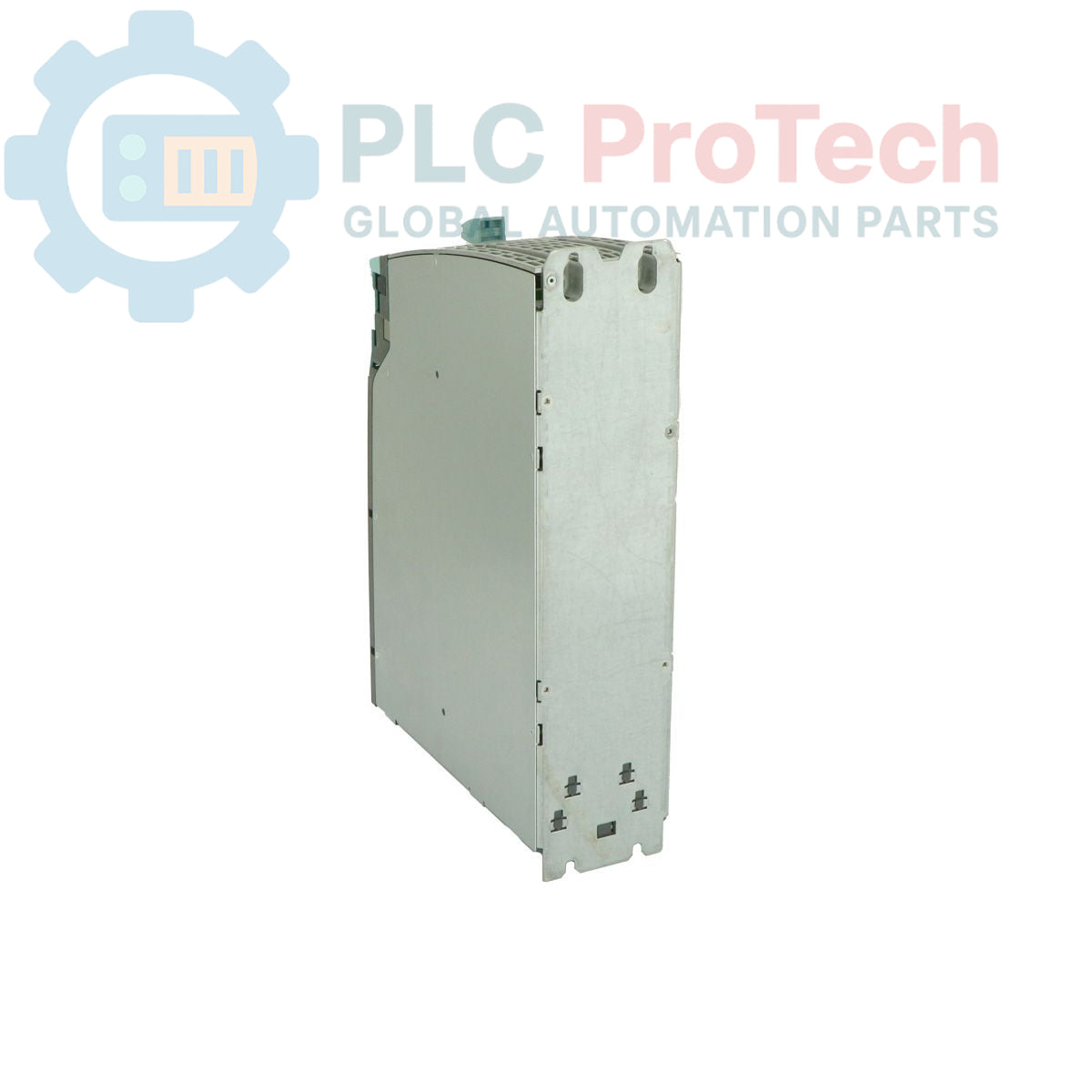

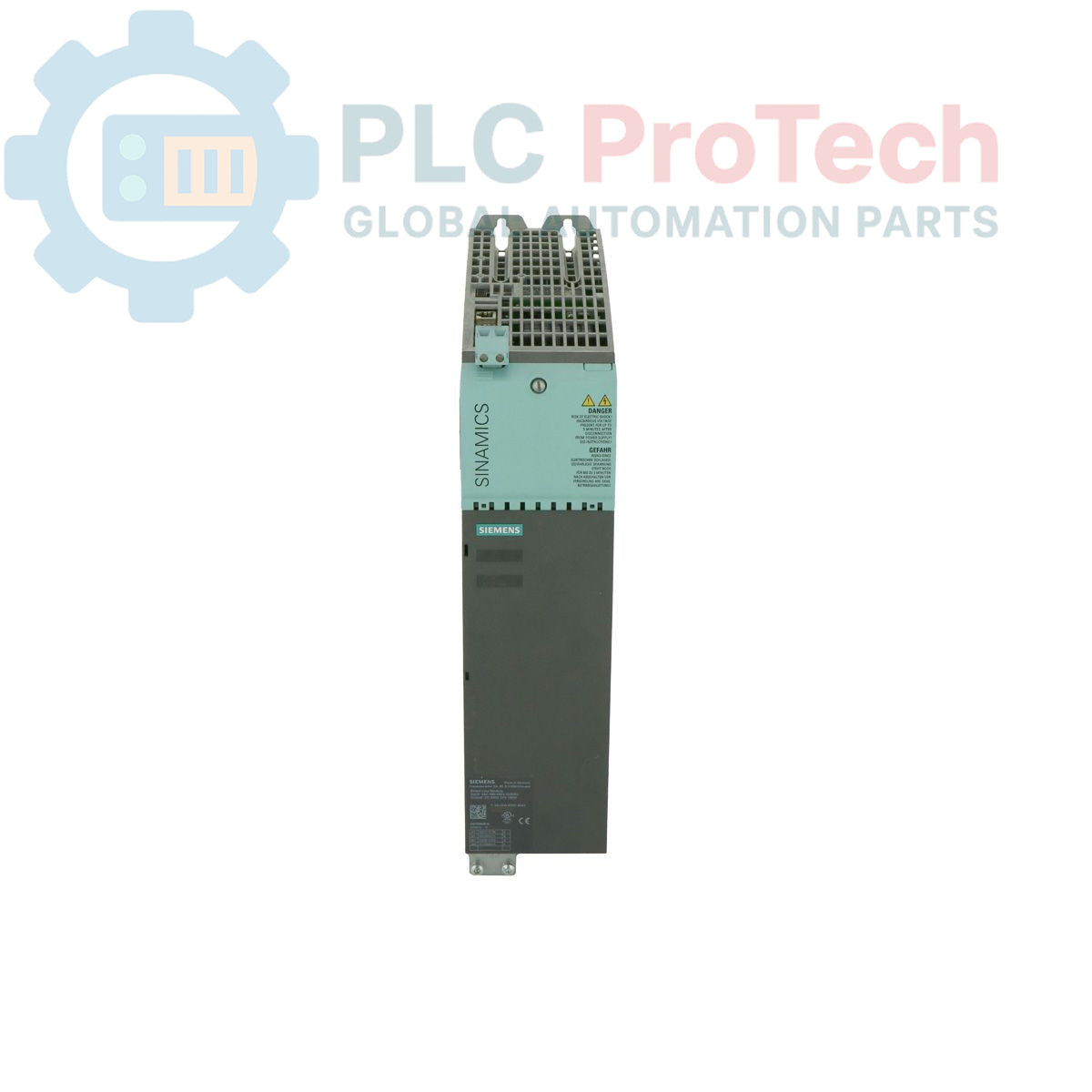

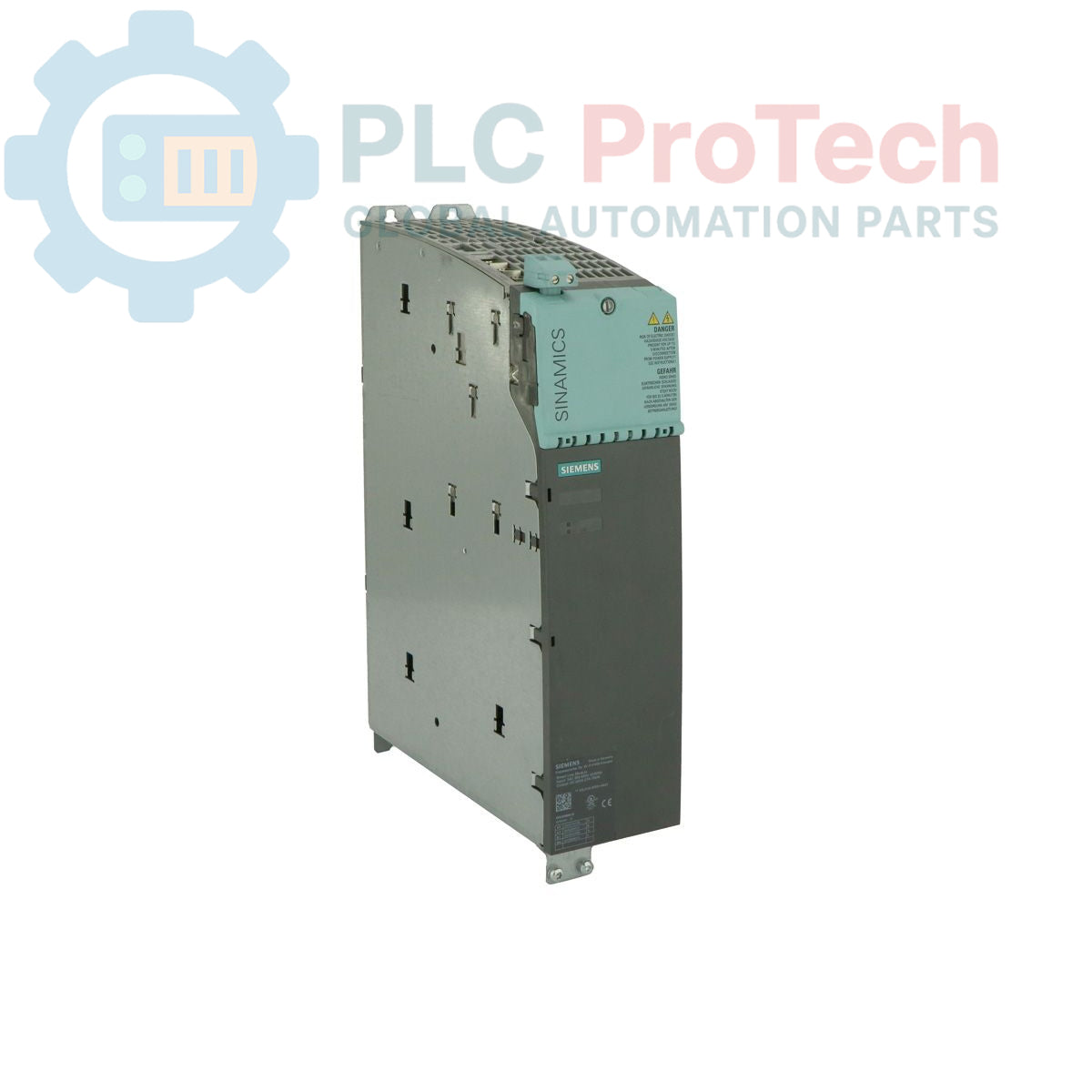

The Siemens 6SL3130-6TE21-6AA3 is a SINAMICS S120 Smart Line Module engineered for high-performance motion control and industrial drive systems. As a critical component of the S120 modular drive family, this Smart Line Module acts as an unregulated infeed/regenerative supply unit. It converts three-phase AC line voltage into a DC link voltage of 600 V, providing a rated power output of 16 kW. The unit features a compact booksize physical construction, making it highly effective for multi-axis configurations where cabinet space is at a premium. Equipped with integrated internal air cooling, the 6SL3130-6TE21-6AA3 is designed to maintain operational stability under demanding load conditions. It includes a standard DRIVE-CLiQ cable for rapid, error-free communication with the system control unit.
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Brand | Siemens |
| Range | Sinamics |
| Subrange | S120 |
| Product Type | Smart Line Module |
| Input Voltage | 380-480 V 3AC, 50/60 Hz |
| DC Link Output | 600 V DC |
| Rated Current | 27 A |
| Rated Power | 16 kW |
| Construction Type | Booksize |
| Cooling Method | Internal air cooling |
| Weight | 6.80 kg |
| Dimensions | 35.60 x 10.20 x 55.90 cm |
| Commodity Code | 85044095 |
| Export Control (ECCN) | EAR99 |
| Product Phase | Phase-Out |
| Successor Model | 6SL3130-6TE21-6AA4 |
Global Express Shipping
Returns & Warranty
Manufacturer: Siemens
Product No.: 6SL3130-6TE21-6AA3
Country of origin:Germany
Product Type: SMart line Modules
Barcode: 85044095
Payment: T/T, Western Union
Weight: 6800g
Dimensions: 35.60cm x 10.20cm x 55.90cm
Shipping port: Xiamen
Warranty: 12 months
