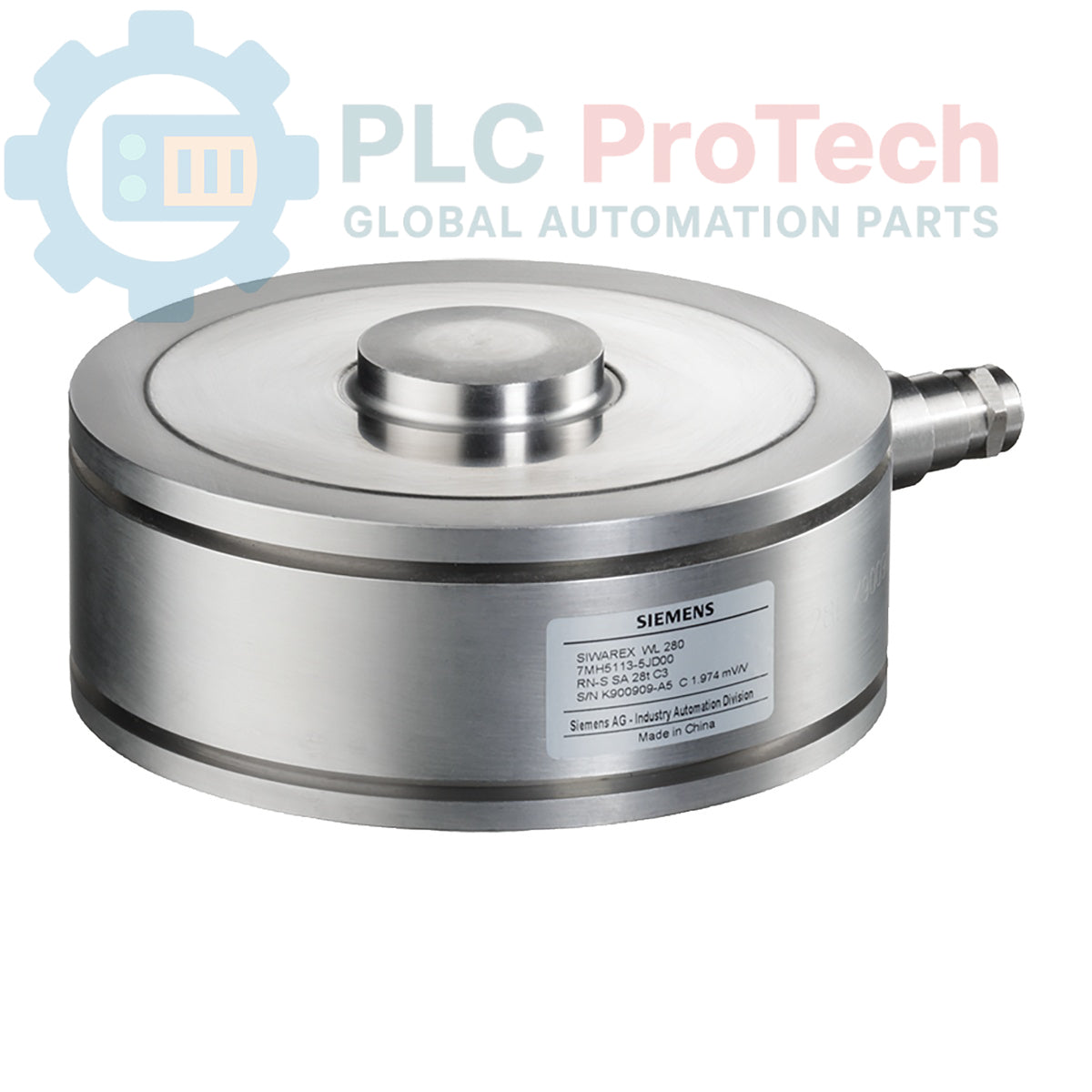

The 7MH5113-5DD00 is a Siwarex WL 280 RN-S SA load cell designed for high-precision weighing applications. Engineered for durability in industrial environments, this unit provides a rated load capacity of 13t and adheres to the C3 accuracy class as defined by OIML R60 standards. The sensor is constructed from high-quality stainless steel and features an IP68 protection class, ensuring reliable performance in harsh conditions where moisture and environmental exposure are factors. It comes equipped with a 15m, 4-wire cable for flexible installation.

Features

• Capacity: Rated load of 13t.
• Accuracy: OIML R60 C3 accuracy class for precise measurement.
• Material: Robust stainless steel construction.
• Environmental Protection: IP68 rating, suitable for submersion and harsh environments.
• Connectivity: Integrated 15m 4-wire cable.

Applications

• Tank and hopper weighing systems.
• Platform scales.
• Process weighing in food, beverage, and chemical industries.
• Harsh environment industrial weighing platforms.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the load cell is mounted on a flat, stable surface to prevent mechanical stress or torque from affecting accuracy.
• Cabling: Protect the 15m cable from sharp edges and potential mechanical damage. If extension is required, ensure connections are shielded and waterproof to maintain the IP68 integrity.
• Alignment: Proper vertical alignment is critical; avoid off-center loading to ensure the measurement stays within the specified accuracy class.
• Environment: While rated IP68, minimize exposure to extreme chemical agents that may compromise the stainless steel housing over time.
