Description

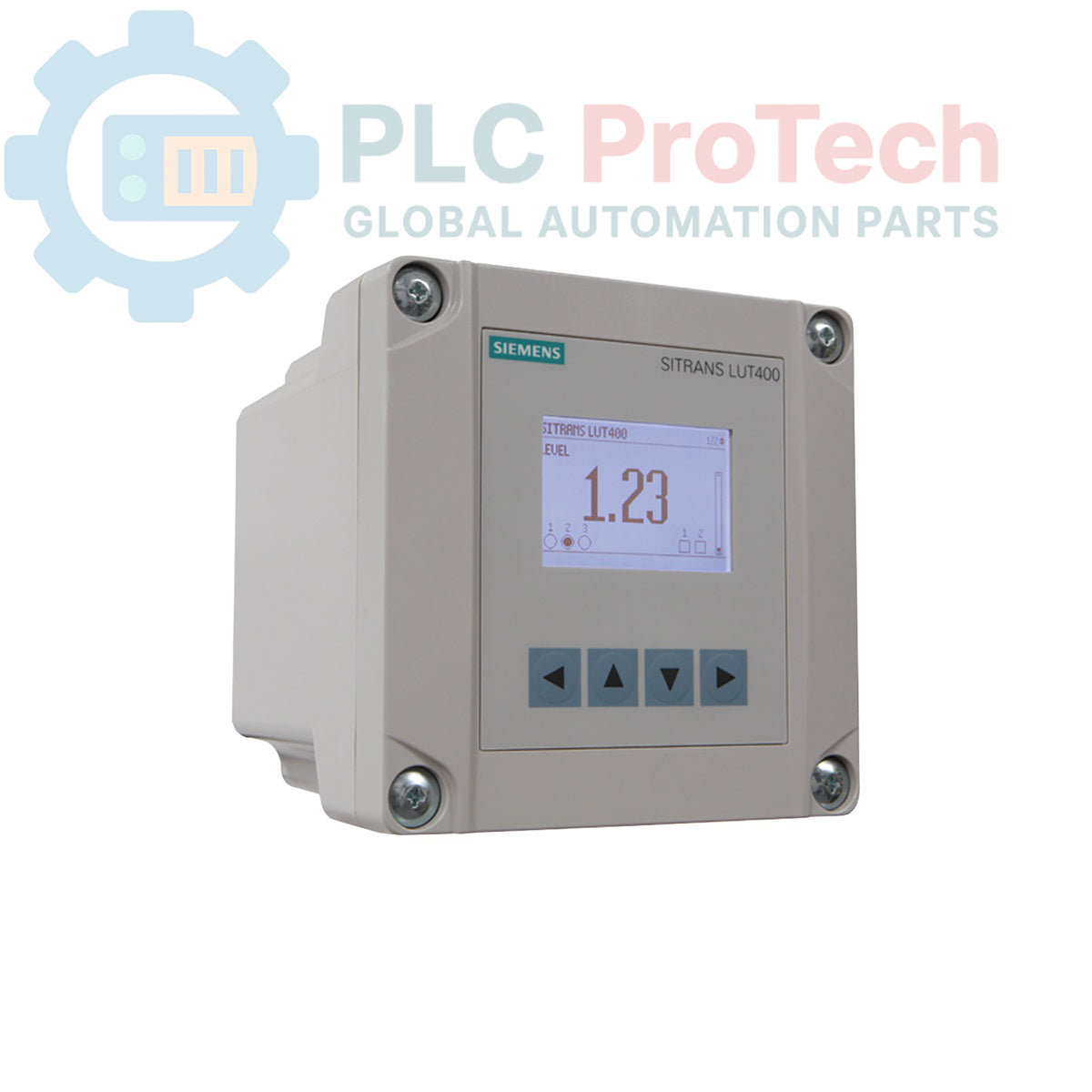

The 7ML5050-0AA11-1DA0 is a SITRANS LUT420 series ultrasonic level controller, engineered for continuous, non-contact level, volume, and volume flow measurement in liquids, slurries, and bulk solids. This controller provides high-accuracy monitoring with a measuring range of up to 60 meters (197 ft). It is equipped with advanced data logging capabilities and precision volume flow calculation, making it suitable for demanding process automation and monitoring applications.

This single-point measurement system includes one transducer input, one mA output, and an external temperature sensor input to ensure accurate level readings regardless of environmental temperature fluctuations. It features an integrated display for local monitoring and supports HART communication for seamless integration into industrial fieldbus systems. The SITRANS LUT400 series is designed to offer reliable performance in various industries, including water and wastewater management, chemical processing, and solids storage.

Features

• Continuous, non-contact ultrasonic level monitoring
• Measuring range of up to 60 meters (197 ft)
• High-accuracy volume flow and level measurement
• Integrated data logging for process history tracking
• Single-point system (1 x transducer input, 1 x mA output, 1 x external temperature sensor input)
• HART communication protocol support
• 2 discrete inputs and 3 integrated relays for control
• Enclosure includes a high-visibility local display
• Operating voltage: 100 to 230 V AC +/- 15%

Applications

• Water and wastewater storage level control
• Slurry and bulk solid inventory monitoring
• Open channel flow measurement
• Chemical process tank level monitoring
• Industrial inventory management

Technical Specifications

Installation Guidelines

• Mounting: Ensure the controller is mounted in an accessible location with adequate clearance for the local display and cable routing.
• Cable Inlets: The unit features three cable inlets; ensure proper cable glands are used to maintain the environmental integrity of the enclosure.
• Grounding: Connect the controller to a solid earth ground to ensure electrical safety and minimize electromagnetic interference.
• Transducer Placement: Ensure the ultrasonic transducer is mounted perpendicular to the surface being measured to maintain signal reflection accuracy.
• Temperature Sensor: Utilize the external temperature sensor input to provide automatic compensation for sound velocity changes due to temperature shifts.

Compliance and Certifications

• CE, FM, CSA US/C, UL, RCM, EAC, KCC (General Purpose)
