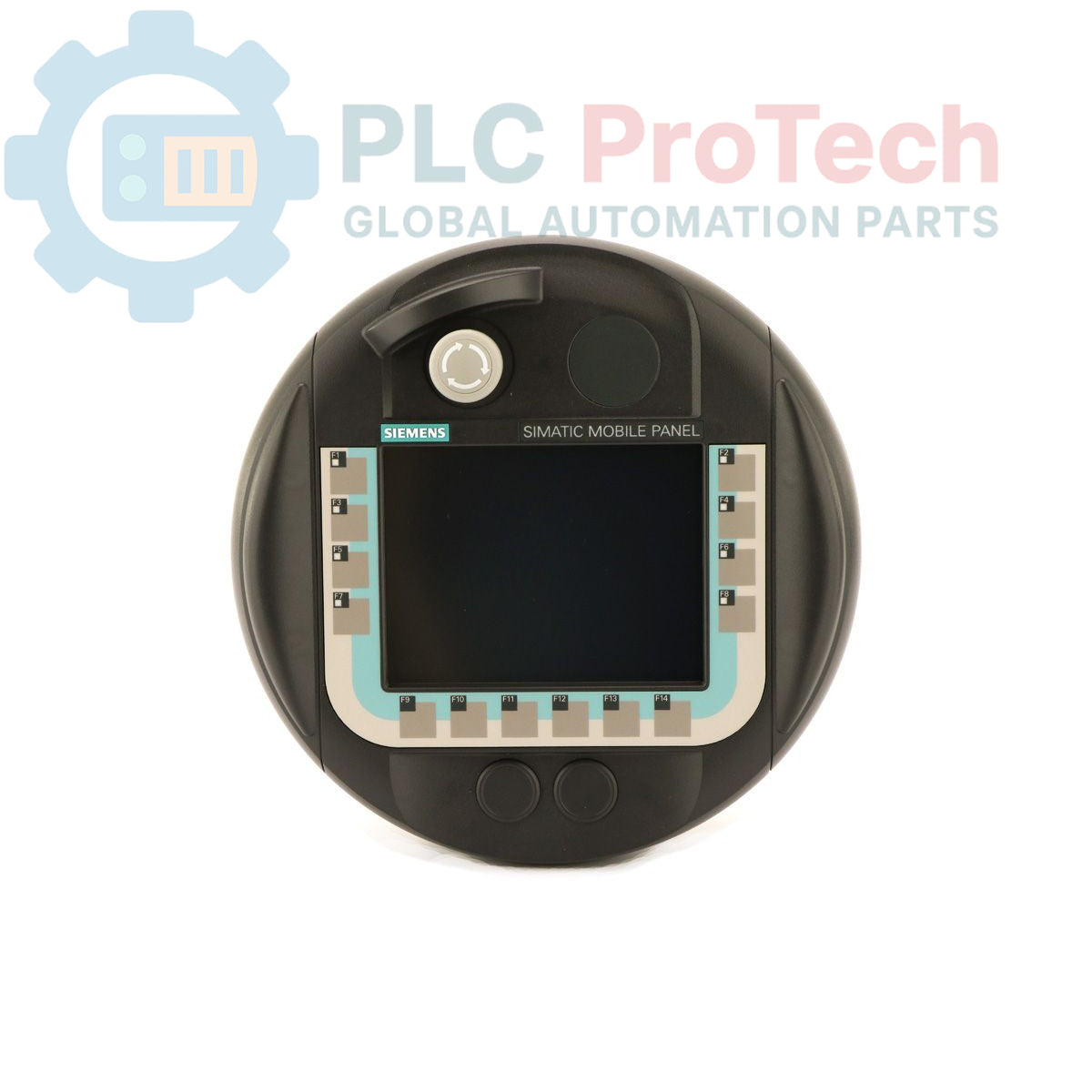

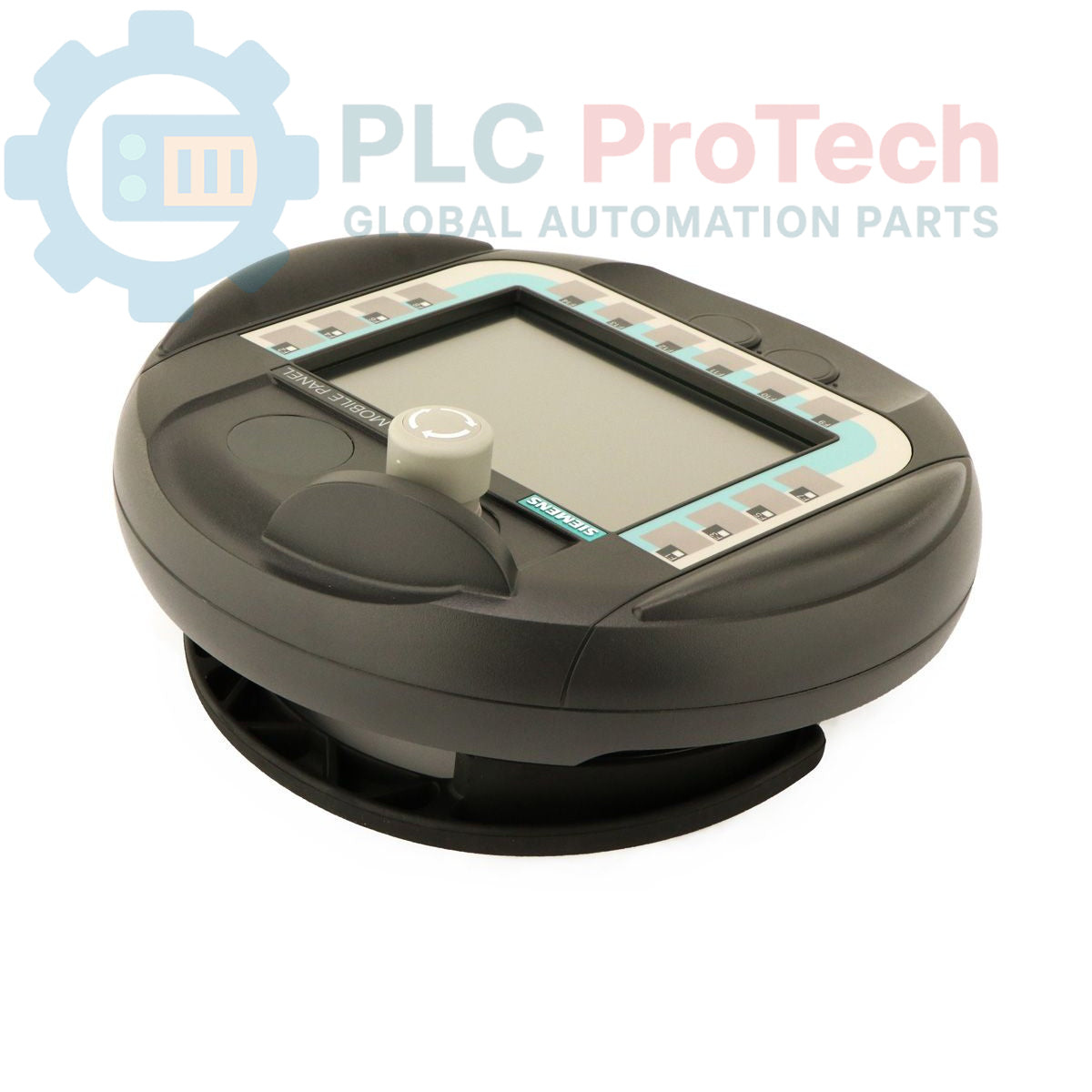

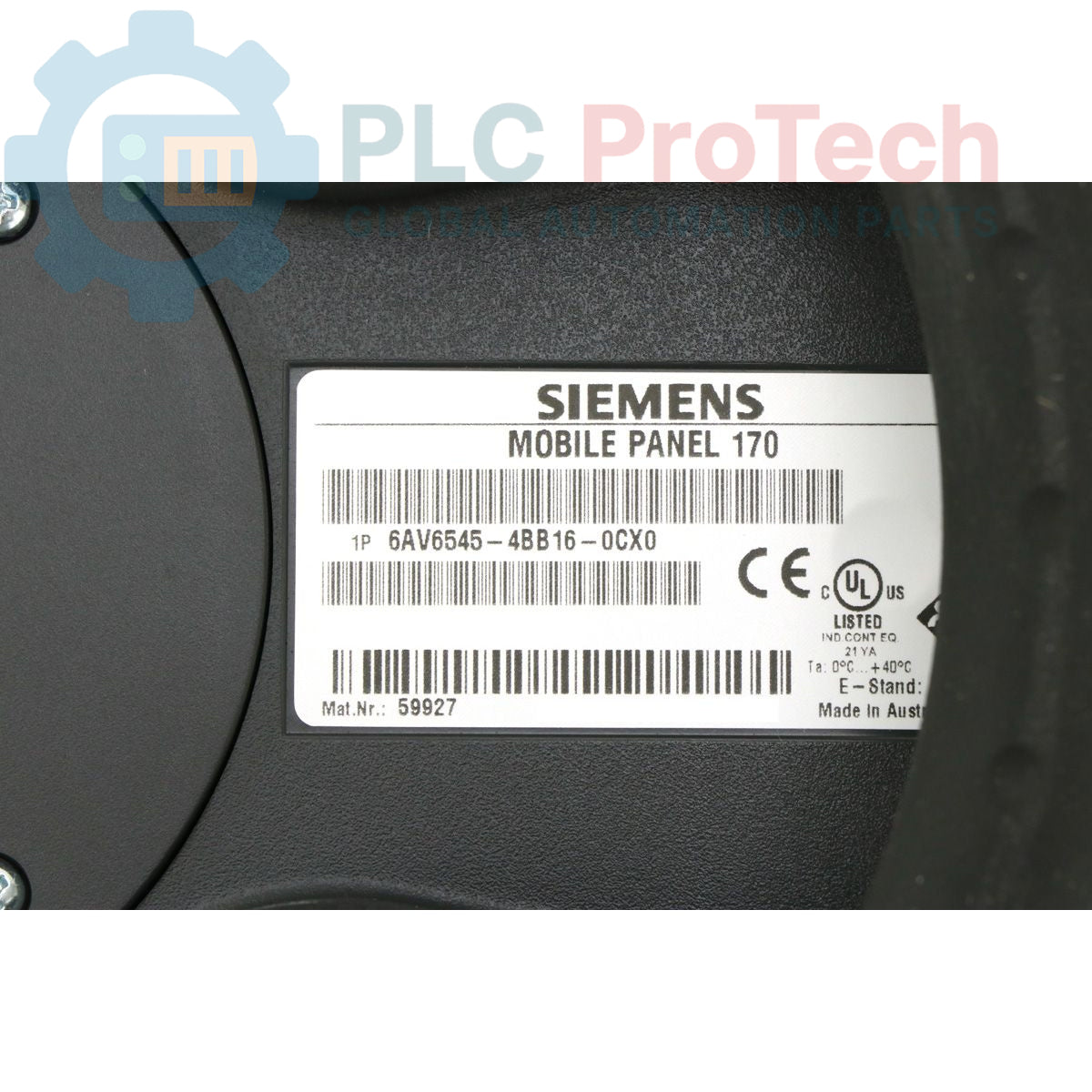

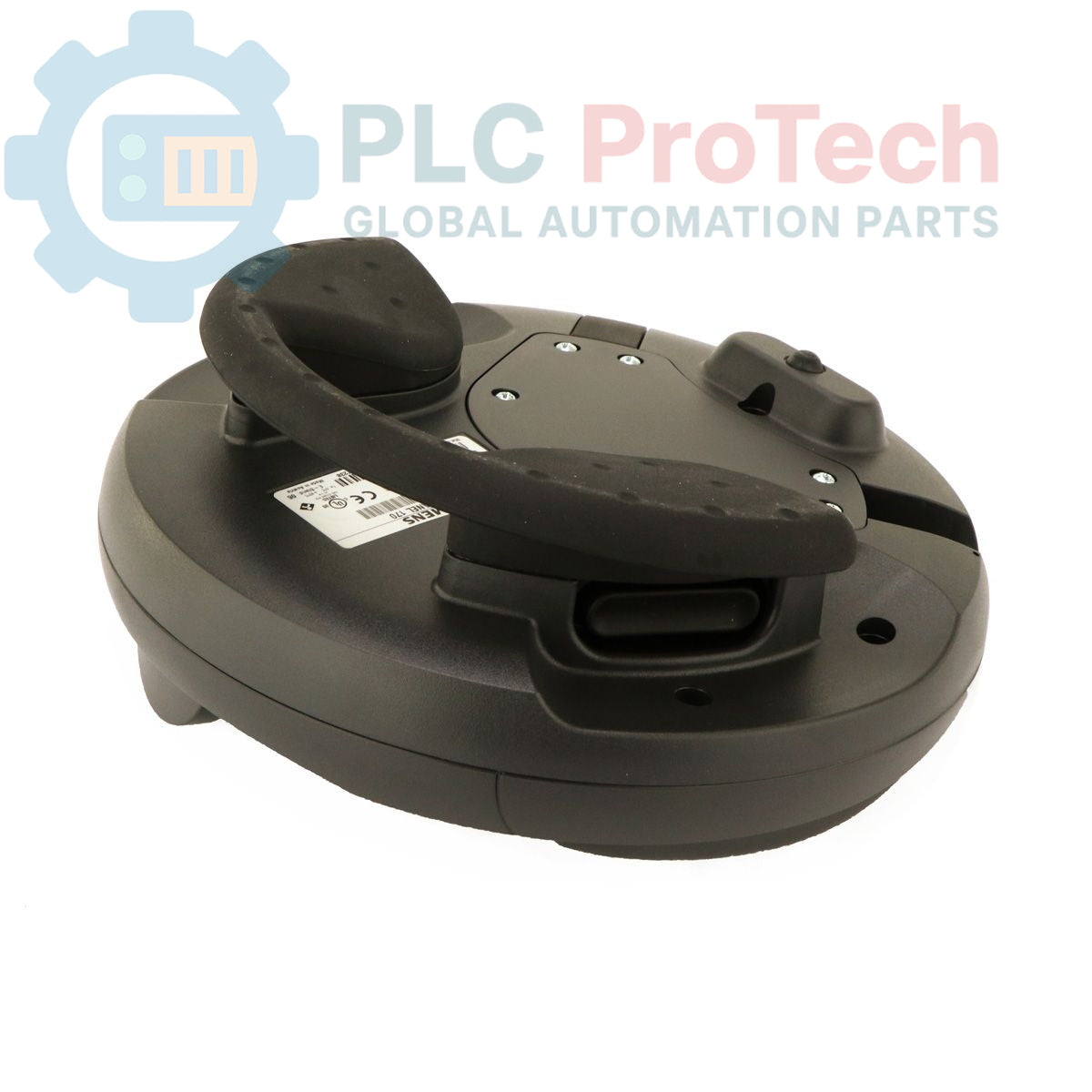

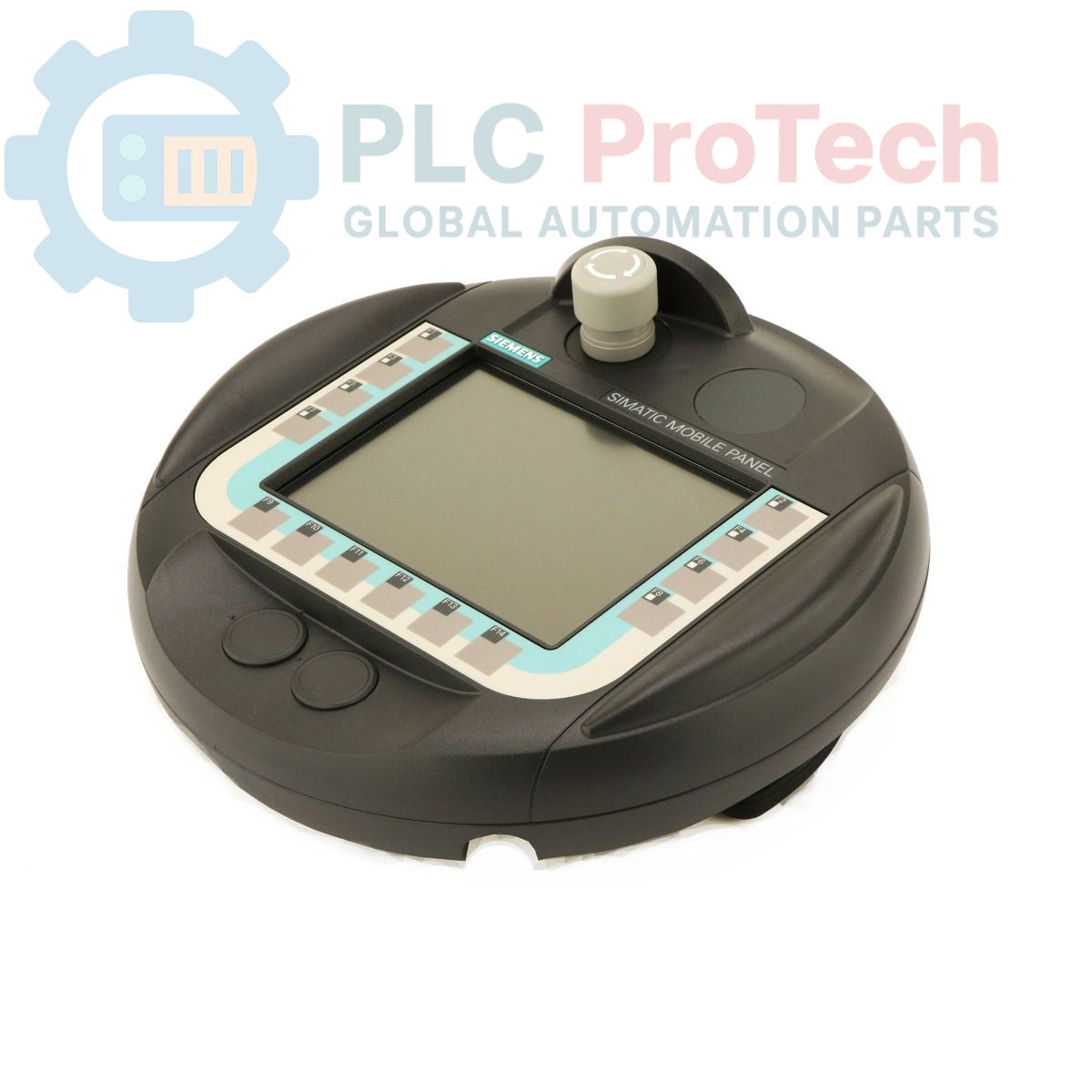

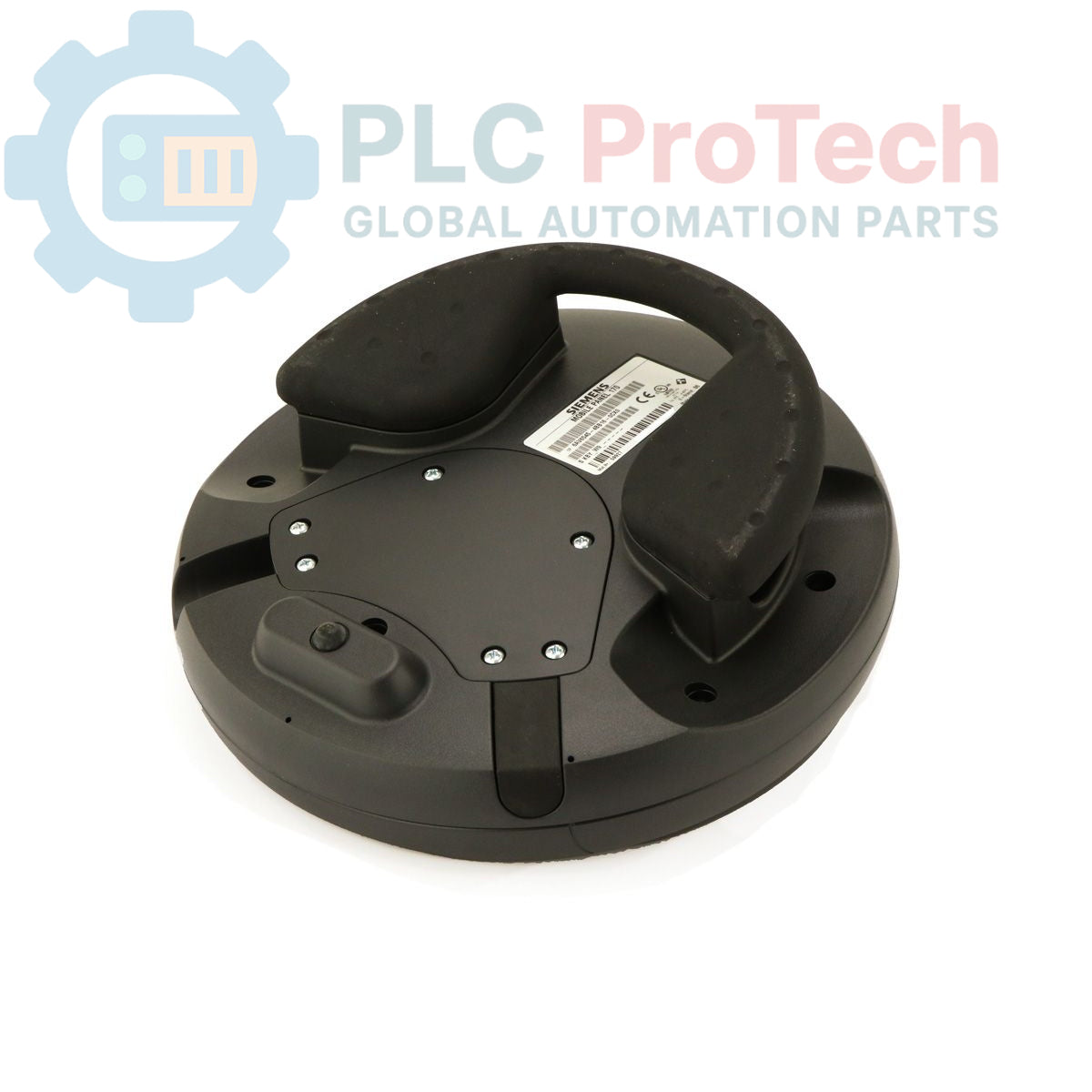

The Siemens 6AV6545-4BB16-0CX0 is a SIMATIC Mobile Panel 170 designed for industrial automation environments. This operator interface features an integrated enabling button and an emergency-off button to provide operator safety and direct control on the plant floor. The unit is configurable using ProTool/Lite version V6.0+SP2 and higher. Equipped with a 5.7-inch STN color display with a resolution of 320 x 240 pixels, it supports a hybrid operation method combining keys and touch input. Built with dimensions of 31.00 x 31.00 x 17.00 cm and a weight of 1.85 kg, it operates on a 24 V DC supply voltage. Although classified as an obsolete product phase, it remains an established component for legacy Siemens HMI applications.
| Specification | Detail |
|---|---|
| Brands | Siemens |
| Manufacturer | Siemens |
| Range | SIMATIC HMI |
| Subrange | Mobile Panels (1st generation) |
| Type of Product | Mobile panels |
| Supply Voltage | 24V DC |
| Product Phase | Obsolete |
| Screen Diagonal | 5.7" inch |
| Type of Display | STN |
| Display Resolution | 320 x 240 pixels |
| Type of Operation | Keys and Touch |
| With Colour Display | Yes |
| Display Colours | 16 |
| Memory | 768 kbyte |
| Dimensions | 31.00 x 31.00 x 17.00 cm |
| Weight | 1.85 kg |
| Commodity Code | 85371091 |
| Export Control Regulations (ECCN) | 5D002 |
| Terminal / Interface | Type |
|---|---|
| Power Supply | 24V DC Connection |
| Communication / Connection Box | Mobile Panel Connection Cable Interface |
