Description

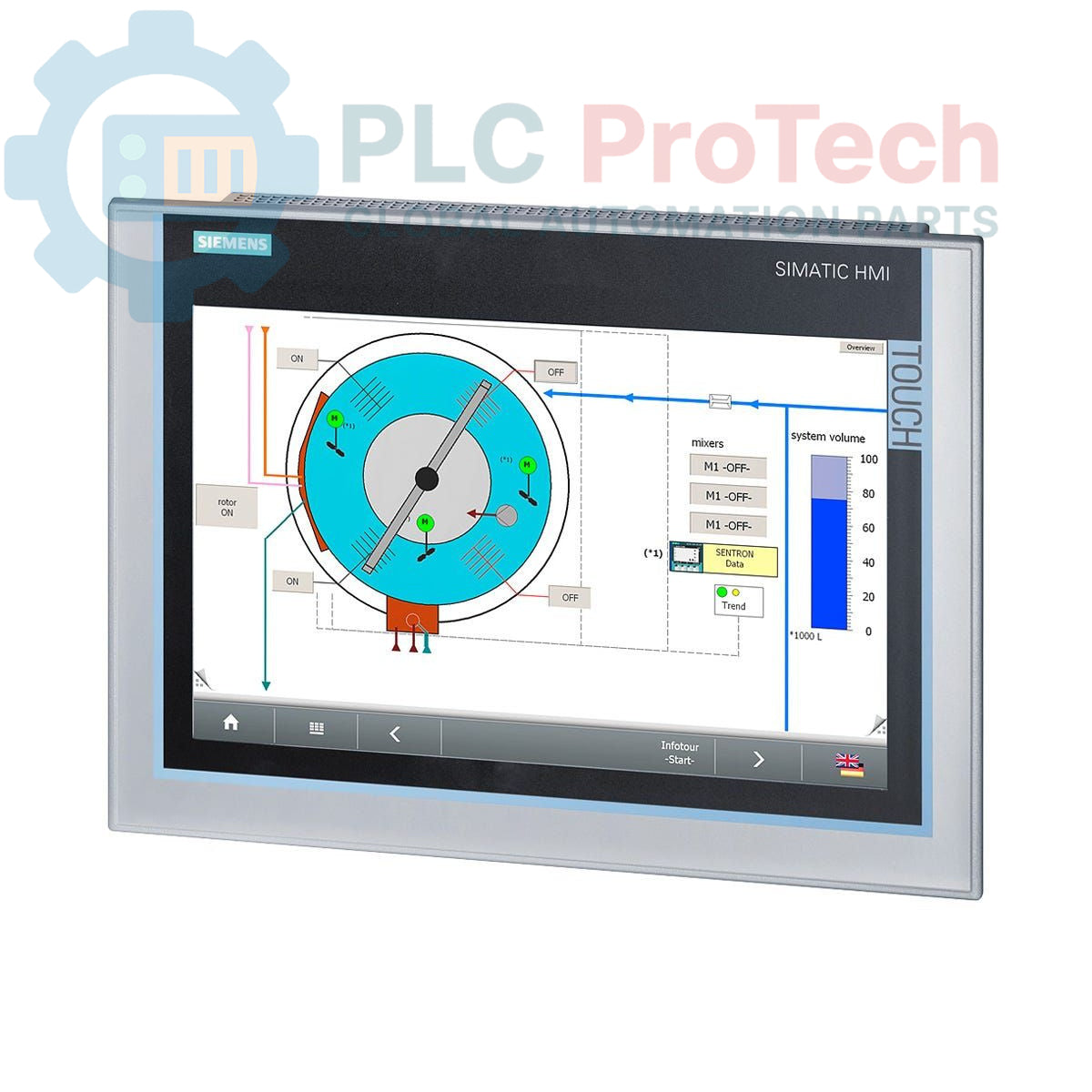

This is a Siemens SIMATIC IPC 477D, model 6AV7240-3AB04-0HJ0, an industrial panel PC engineered for demanding machine-level visualization and control applications. This specific configuration features a 12-inch touch display and is powered by an Intel Core i3-3217UE processor with 2 GB of RAM. It is designed for diskless operation, booting from an included 8 GB CFast card which houses the Windows Embedded Standard 7 operating system. The unit comes pre-licensed with Siemens WinCC RT Advanced software for HMI development. Connectivity is provided through dual Gigabit Ethernet ports for PROFINET/IE integration, a standard LAN port, four USB ports, and an RS-232 serial interface. The device operates on a standard 24 V DC industrial power supply.

Features

• 12-inch resistive touch display for operator interaction.
• Powered by an Intel Core i3-3217UE processor.
• Equipped with 2 GB of main memory.
• Includes an 8 GB CFast card with Windows Embedded Standard 7 (32-bit).
• Pre-licensed for WinCC RT Advanced V13 SP1 (2048 PowerTags).
• Includes a WinCC RT Advanced V15 license package.
• Dual Gigabit Ethernet interfaces for Industrial Ethernet (IE) and PROFINET (PN).
• Requires a 24 V DC industrial power supply.

Applications

• Human-Machine Interface (HMI) for complex machinery and production lines.
• Process visualization, data logging, and recipe management.
• Machine-level data acquisition and control systems.
• Integration into PROFINET (PN) and Industrial Ethernet (IE) automation networks.

Technical Specifications

Connections and Interfaces

Installation Guidelines

1. 1 De-energize the control cabinet and implement Lockout/Tagout (LOTO) procedures before beginning work. Verify the absence of voltage.
2. 2 Prepare the panel cutout according to the mechanical dimensions specified for the IPC 477D. Ensure the mounting surface is clean, flat, and free of debris.
3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure a proper seal.
4. 4 Connect a stable, regulated 24 V DC power source to the designated power supply terminals. Verify correct polarity (+/-) before energizing.
5. 5 Connect all required communication cables (Ethernet, USB, RS-232). Use shielded cables for all network connections and route them separately from high-voltage power lines to minimize interference.
6. 6 Establish a low-impedance functional earth (FE) connection from the IPC's designated grounding point to the main grounding bus bar of the control cabinet.
