Description

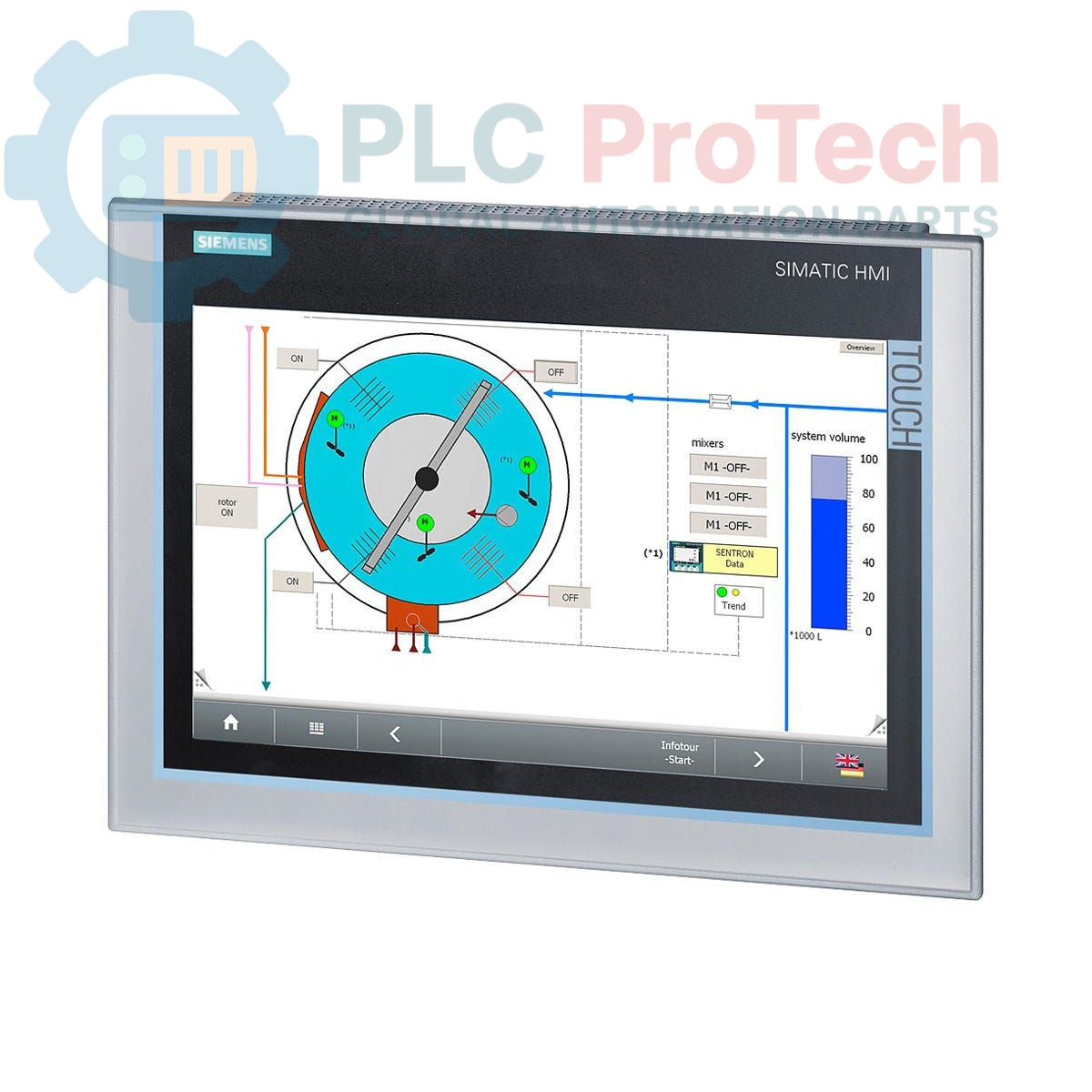

This is a Siemens SIMATIC IPC 477D, an industrial panel PC designed for human-machine interface (HMI) and control tasks in demanding environments. This unit integrates a 12-inch touch display with an Intel Core i3-3217UE processor. It is configured with 1 GB of RAM, an 80 GB MLC solid-state drive, and is pre-installed with the Windows 7 Ultimate (32-bit) operating system. Connectivity is provided through dual Gigabit Ethernet ports, USB, and a serial interface, all powered by a 24 V DC industrial supply.

Features

• Integrated 12-inch resistive touch display
• Powered by an Intel Core i3-3217UE processor
• Equipped with an 80 GB MLC Solid-State Drive (SSD) for durability
• Pre-installed with Windows 7 Ultimate (32-bit)
• Dual Gigabit Ethernet ports supporting IE/PN protocols
• Four rear-mounted USB ports for peripheral connection
• Designed for 24 V DC industrial power systems
• Drive is field-replaceable

Applications

• Process visualization and SCADA systems
• Machine control and data acquisition
• Factory automation and production line monitoring
• Building automation and management systems
• Logistics and material handling control

Technical Specifications

Installation Guidelines

1. 1 Verify Panel Cutout: Ensure the mounting cutout in the enclosure panel matches the dimensions specified for the IPC 477D 12" model. Deburr any sharp edges.
2. 2 Mount the Unit: Insert the Panel PC into the cutout from the front of the enclosure. Ensure the front bezel gasket is properly seated against the panel surface to maintain the IP rating.
3. 3 Secure Mounting Clips: From the rear, install all provided mounting clips into their designated slots. Tighten the screws evenly in a cross-pattern until the unit is securely fastened. Do not overtighten.
4. 4 Connect Protective Earth (PE): Connect a low-impedance protective earth conductor to the designated grounding terminal on the IPC chassis. This is critical for safety and noise immunity.
5. 5 Connect Power Supply: Connect the 24 V DC power source to the power input terminal block. Verify correct polarity (+/-) before connecting. Use appropriately gauged wiring for the load.
6. 6 Connect Peripherals: Connect Ethernet, USB, and any serial devices as required. Use shielded cables for all data communications and ensure shields are properly terminated.
7. 7 Final Checks and Power-Up: After verifying all connections, remove LOTO devices and re-energize the cabinet. The Panel PC should boot into the Windows operating system.
