Description

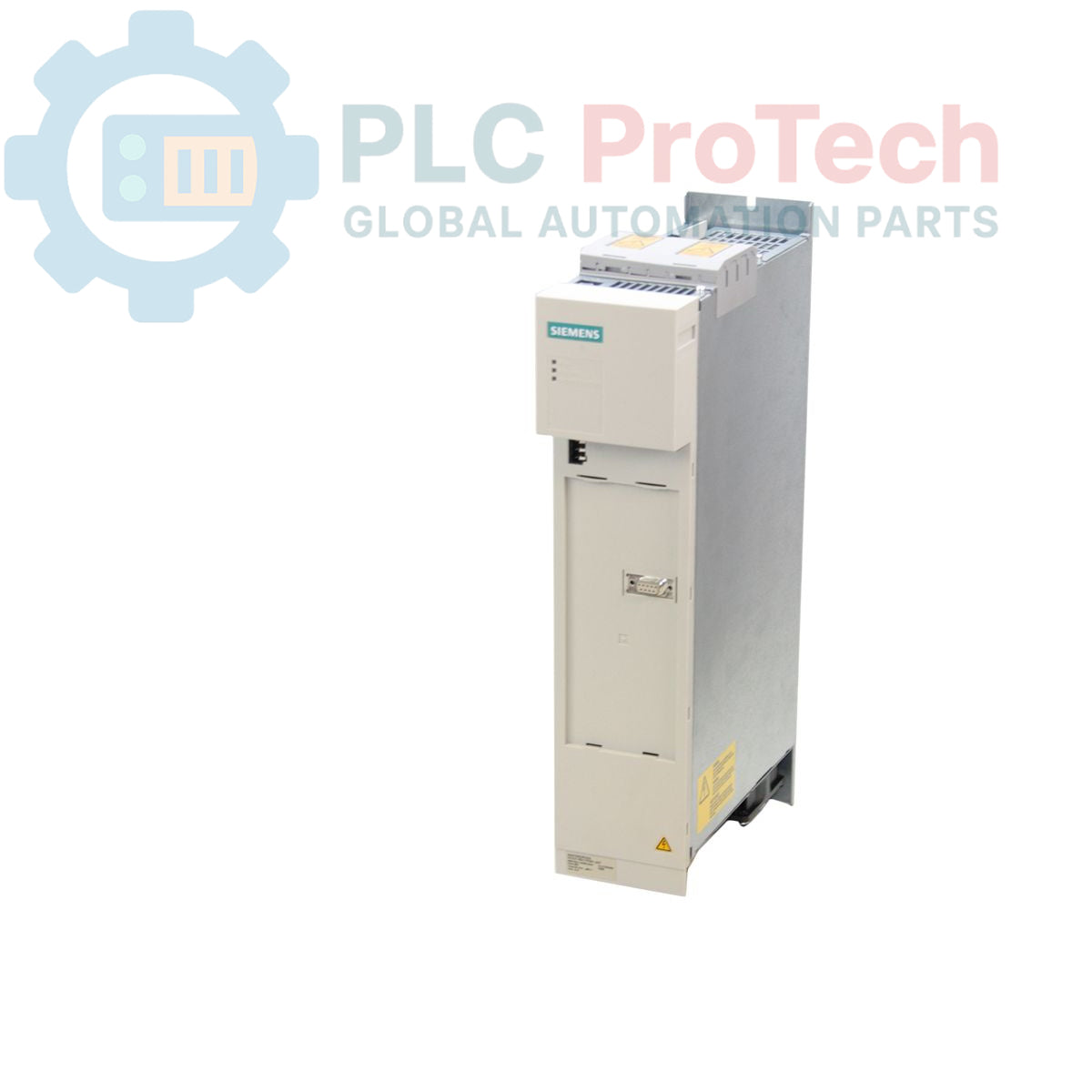

The Siemens SIMOVERT Masterdrives 6SE7024-1EP85-0AA1 is a MASTERDRIVES COMPACT PLUS RECTIFIER UNIT 3-PH. 380-480 V, 41 A UNIT RATING: 15 KW engineered by Siemens for demanding industrial AC-to-DC power conversion applications. Part of the SIMOVERT Masterdrives Compact Plus range, this unit operates on a 3-phase supply voltage of 380-480 V AC at 50/60 Hz, delivering a nominal output current of 41 A and a power rating of 15 kW. Housed in an IP20 protected enclosure, the 6SE7024-1EP85-0AA1 ensures reliable performance in automated production and drive systems. With dimensions of 35.60 x 22.90 x 50.80 cm and a weight of 3.60 kg, this phase-out lifecycle unit is essential for maintaining legacy Masterdrives multi-axis architectures.

Features

• MASTERDRIVES COMPACT PLUS RECTIFIER UNIT 3-PH. 380-480 V, 41 A UNIT RATING: 15 KW design for industrial AC/DC power conversion
• 3-phase input supply voltage range of 380-480 V AC at 50/60 Hz
• Nominal output current of 41 A with a power rating of 15 kW
• IP20 degree of protection for control cabinet installation
• Dimensions of 35.60 x 22.90 x 50.80 cm and 3.60 kg weight
• Phase-out product lifecycle status for legacy system support

Applications

• Industrial multi-axis drive system DC bus power supply
• Production automation and manufacturing line power conversion
• Legacy SIMOVERT Masterdrives Compact Plus system maintenance and retrofits

Technical Specifications

Installation Guidelines

• Mount the rectifier unit vertically inside a clean, well-ventilated control cabinet to maintain the IP20 rating and ensure proper thermal dissipation.
• Verify that the 3-phase incoming supply voltage matches the 380-480 V AC specification and ensure secure protective earth grounding.
• Maintain recommended clearance distances around the 3.60 kg assembly to facilitate adequate airflow during continuous operation.
• Follow standard industrial control wiring practices to separate high-current power cables from sensitive control signal lines.
