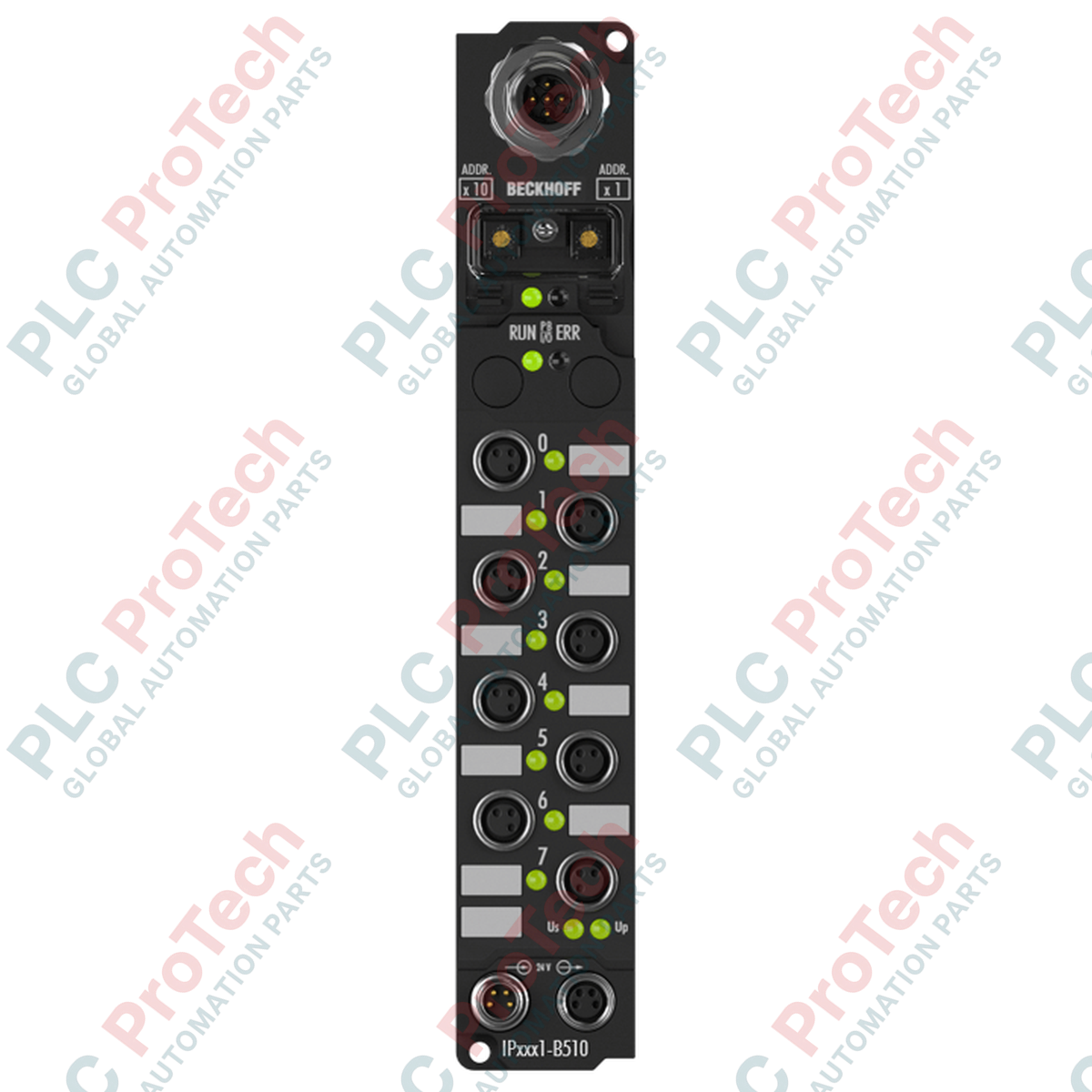

The BECKHOFF IP1001-B510 is a high-performance CANopen Fieldbus Box designed for decentralised digital signal acquisition directly on machinery. This unit integrates eight digital input channels, each featuring a 3 ms filter, with a direct CANopen bus interface. By placing the I/O interface directly at the machine site, it eliminates the need for a separate protective terminal enclosure and complex wiring setups.
With its robust design, the BECKHOFF IP1001-B510 manages high-speed binary input communications for standard industrial sensors. The unit's electronics are shielded from environmental factors and provide complete physical separation between the fieldbus and control voltage potentials to prevent signal interference.
| Manufacturer | BECKHOFF |
| Model | IP1001-B510 |
| Product Type | Fieldbus Box |
| Protection Class | IP65/66/67 (conforms to EN 60529) |
| Installation Position | Variable |
| Operating Temperature | 0 to +55 Celsius |
| Storage Temperature | -25 to +85 Celsius |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| EMC Immunity/Emission | Conforms to EN 61000-6-2 / EN 61000-6-4 |
| Approvals and Markings | CE, UL |
| Digital Inputs | 8 channels |
| Signal Type | Digital, 24 V DC |
| Input Filter Time | 3 ms |
| Sensor Connection | M8 connectors |
| Control Voltage Supply | 24 V DC (-15% / +20%) |
| Load Supply Voltage | According to I/O type |
| Box Supply Current | 45 mA + sensor current consumption (maximum 0.5 A) |
| Electrical Isolation | Control voltage/fieldbus: 500 V; control voltage/inputs: according to I/O type |
| Fieldbus Protocol | CANopen |
| Bus Interface Connection | 1 x M12 plug, 5-pin |
| Data Transfer Rates | Automatic detection from 10 kbaud up to 1 Mbaud |
| Process Data Objects (PDOs) | 16 send and 16 receive PDOs |
| Configuration Options | Via KS2000 configuration software or controller (service data objects) |
| Power Supply Feed Connection | 1 x M8 male socket, 4-pin |
| Power Downstream Connection | 1 x M8 female socket, 4-pin |
When replacing a legacy unit, ensure that all electrical supplies to the BECKHOFF IP1001-B510 are fully shut down. Document the physical M8 and M12 port mappings before physical disassembly. Verify that the matching CANopen baud rate and node parameters are applied to the replacement module to guarantee restoration of correct network communications.
