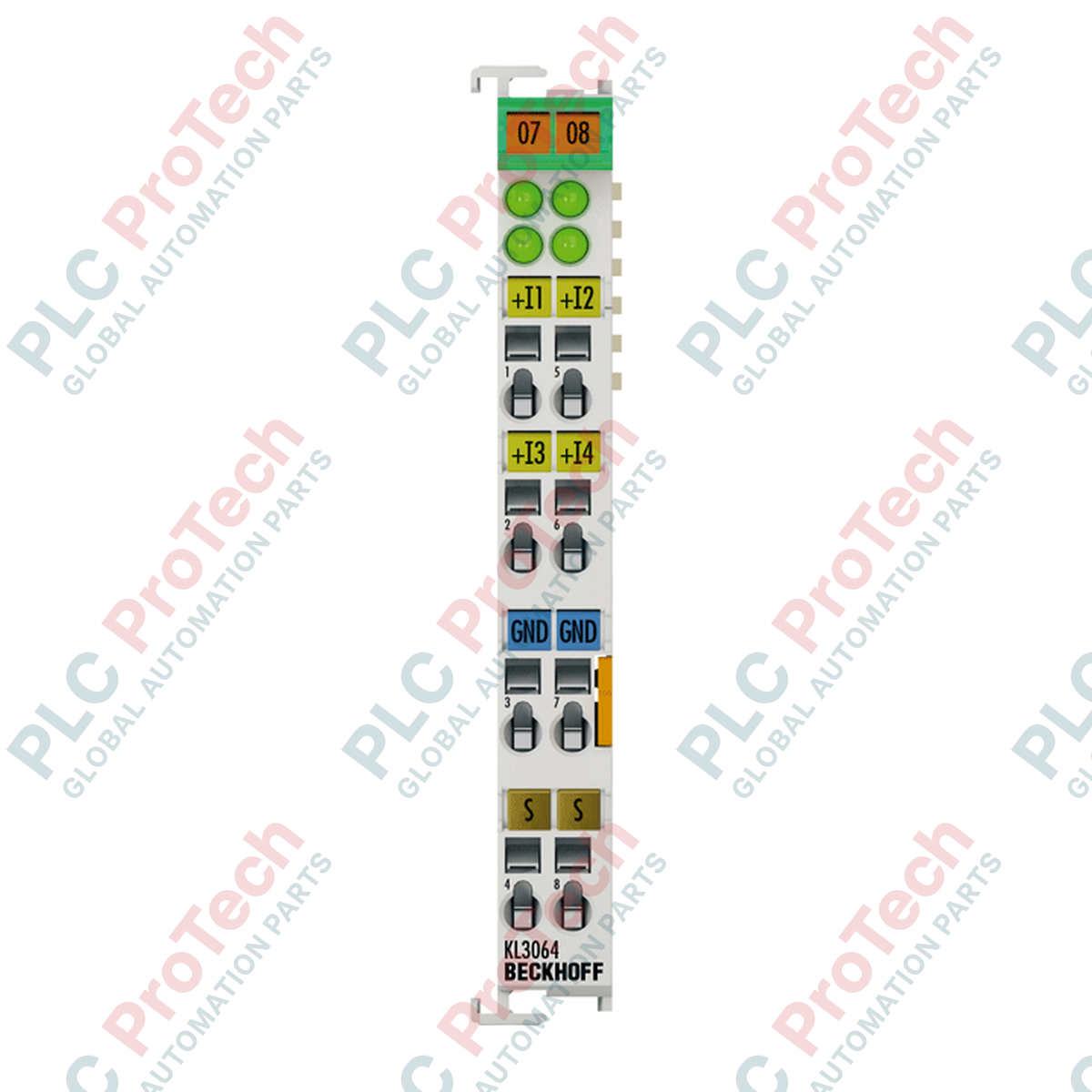

To facilitate precise voltage acquisition in dense processing environments, the Beckhoff KS3064 analog input terminal digitizes field-side signals from 0 to 10 V DC with 12-bit resolution. As part of the premium pluggable KSxxxx series, this 4-channel single-ended module integrates highly reliable performance with a hot-swappable terminal block design, enabling quick hardware change-outs without disturbing existing field wiring. It communicates directly with the primary industrial controller via the standard K-bus interface, combining high processing efficiency with minimal space requirements.
| Specification Parameter | Value / Detail |
|---|---|
| Manufacturer | Beckhoff |
| Model Number | KS3064 |
| Module Type | 4-Channel Analog Input (Single-Ended) |
| Signal Voltage Range | 0 to 10 V DC |
| Internal Resistance | > 200 kOhm (typical) |
| Resolution | 12 bit |
| Conversion Time | Approx. 4 ms |
| Measuring Error | < +/- 0.3 % (relative to full scale value) |
| K-Bus Current Consumption | Typ. 85 mA |
| Electrical Isolation | 500 V (K-bus / signal voltage) |
| Connection Method | Pluggable spring-actuated terminal block |
| Connection Cross-Section | Solid/Stranded: 0.08 to 1.5 mm2 (AWG 28 to 16) |
| Operating Temperature Range | -25 to +60 degC |
| Storage Temperature Range | -40 to +85 degC |
| Protection Class | IP20 |
| Ex Marking | II 3 G Ex nA IIC T4 Gc (ATEX certified) |
| Country of Origin | Germany |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Unit Weight | 0.08 kg |
| Terminal Pin Number | Signal Type | Description |
|---|---|---|
| 1 | Input 1 (+) | Voltage input channel 1 (0 to 10 V) |
| 5 | Input 2 (+) | Voltage input channel 2 (0 to 10 V) |
| 2 | Input 3 (+) | Voltage input channel 3 (0 to 10 V) |
| 6 | Input 4 (+) | Voltage input channel 4 (0 to 10 V) |
| 3, 7, 4, 8 | Common GND | Internal common reference ground points (0 V) |
The KS3064 functions identically to the standard KL3064 Bus Terminal. The critical system-level distinction is the physical terminal interface; the KS3064 employs a pluggable terminal system, while the KL3064 utilizes fixed tension clamps. Both share exact software mappings in TwinCAT 2 and TwinCAT 3 systems. If replacing a KL3064, no modifications are required within the PLC configuration.
Because this is a single-ended terminal, all 4 input channels share a common internal ground reference linked directly to the system's external ground. If integrating transmitter signals sourced from different, isolated field power supplies, any potential offsets between the power supplies will introduce measurement offset errors. To preserve the 12-bit measurement integrity, ensure that all sensor reference grounds are bonded to a common equipotential earth system.
Analog signals in the 0 to 10 V range are highly susceptible to high-frequency electromagnetic interference from surrounding VFDs and power contacts. It is vital to use shielded twisted-pair cabling. Always ground the signal shield only at the central control cabinet ingress plate rather than terminating the shield to the terminal blocks, to avoid creating ground loop currents across the internal K-bus.
Align the KS3064 terminal housing with the 35 mm DIN rail (EN 60715) and push firmly until the locking mechanism clicks audibly.
Slide the terminal adjacent to the surrounding K-bus modules until the integrated tongue-and-groove side locking tracks slot securely together.
Insert pre-stripped wire conductors (stripped length: 9 to 10 mm) into the pluggable tension-clamp terminal by depressing the spring actuator latch with a flat-head terminal screwdriver.
Seat the pluggable terminal connector block firmly into the KS3064 front housing interface until it is fully retained.
