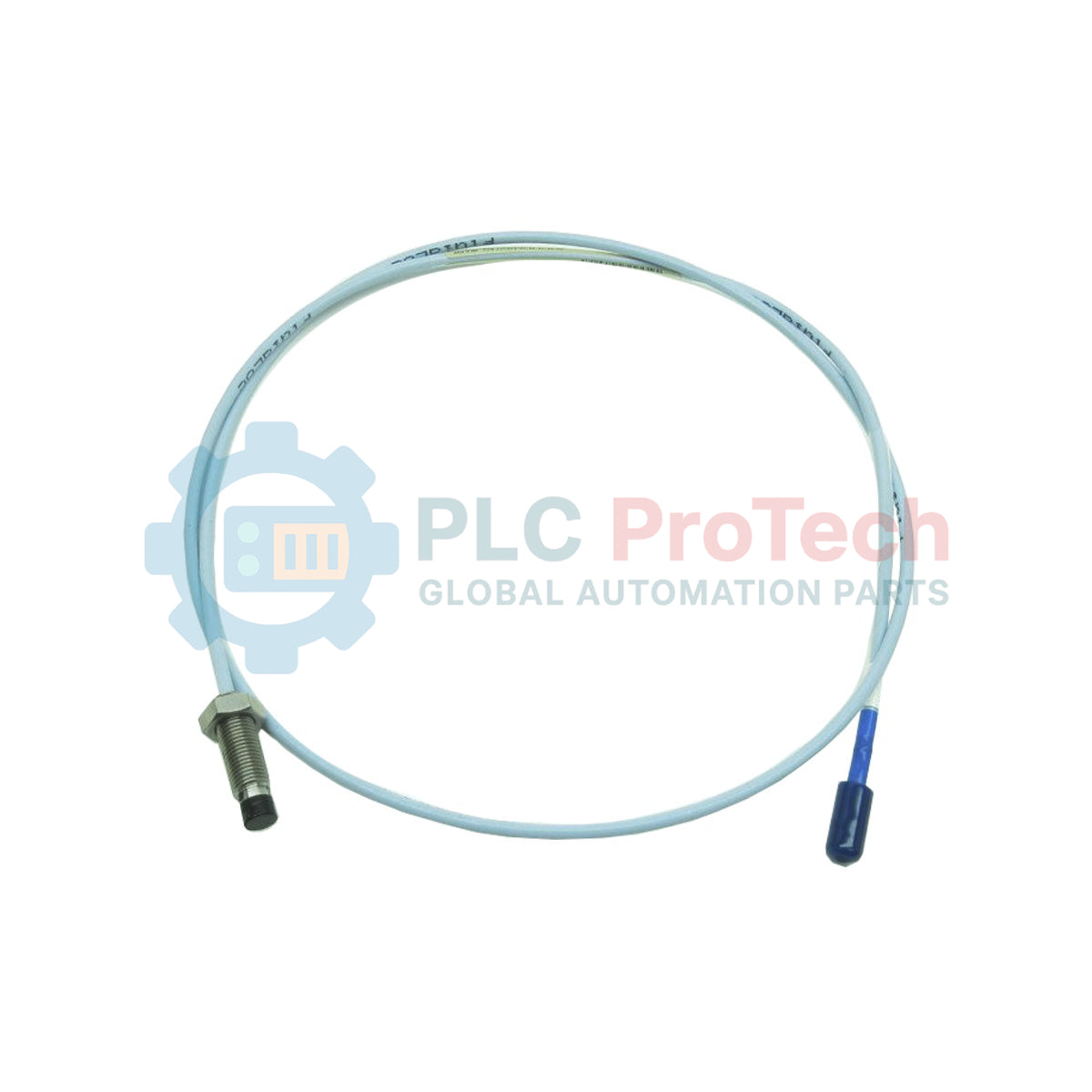

Bently Nevada 330101-00-36-10-02-CN 3300 XL 8 mm Proximity Probe

Description

Optimized for dynamic machinery protection and diagnostic testing, the Bently Nevada 330101-00-36-10-02-CN eddy current proximity probe delivers high-accuracy non-contact displacement measurements. This probe is a critical sensor component within the industry-standard 3300 XL 8 mm Series, engineered to monitor radial vibration, axial thrust position, and keyphaser reference signals on critical rotating assets such as steam turbines, centrifugal compressors, and heavy industrial pumps.

The system relies on a rugged Polyphenylene Sulfide (PPS) tip mold chemically bonded to an AISI 303/304 stainless steel case, ensuring absolute sealing against oil, water, and synthetic lubricants. By leveraging the advanced ClickLoc miniature coaxial connector, the system guarantees a stable, moisture-resistant signal path to the Proximitor sensor, eliminating common field connection signal losses and keeping installation time to a minimum.

Features

• Unthreaded Length: 0.0 inches, allowing for flush-mount or close-tolerance mounting block configurations.
• Thread Pitch: Standard 3/8-24 UNF-2A thread pattern for seamless mounting directly into machine cases or external brackets.
• ClickLoc Coaxial Technology: Features an integrated miniature coaxial connector with gold-plated contacts and a positive locking mechanism.
• Unarmored Cable: Lightweight, highly flexible standard coaxial cable designed for routing through sealed conduits and bulkheads.
• Rugged Material Selection: Corrosive-resistant AISI 303/304 stainless steel casing paired with a heavy-duty PPS tip for extreme industrial environments.
• Compliance Certifications: Approved under "CN" options, ensuring local hazardous area and electrical equipment safety conformity.

Applications

• Steam and Gas Turbines: High-reliability measurement of shaft radial vibration and thrust bearing movement.
• Centrifugal and Reciprocating Compressors: Crosshead guide monitoring and shaft alignment verification.
• Industrial Gearboxes: Precision gear pitch and high-speed shaft deflection profiling.
• Large Scale Pumps: Real-time cavitation detection and rotor position tracking.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

This probe works strictly within the 3300 XL series architecture. Ensure that the total system electrical length (probe cable + extension cable) equals 5.0 meters or 9.0 meters depending on the specific model of your 3300 XL Proximitor Sensor. Mixing non-XL components with 3300 XL components will cause scale factor mismatch errors.

Application Pitfalls & Engineering Notes

Because this model has an unthreaded length option of 00 (0.0 inches), the threads run completely to the end of the metal housing. During installation inside internal brackets, watch for thread galling. Using low-tolerance mounting sleeves can damage the threaded case and block clean access to target areas.

Commissioning & Wiring Tips

Always use a physical calibration spindle to set your probe gap rather than relying purely on digital voltage readings. Ensure the miniature ClickLoc coaxial connections are completely dry before sliding on the outer protective rubber boot. Moisture ingress in the connector area is the primary cause of signal drift on high-frequency machines.
