Bently Nevada 330103-00-06-10-01-00
Bently Nevada 330103-00-06-10-01-00
Bently Nevada 330103-00-06-10-01-00
1 / 3

Bently Nevada

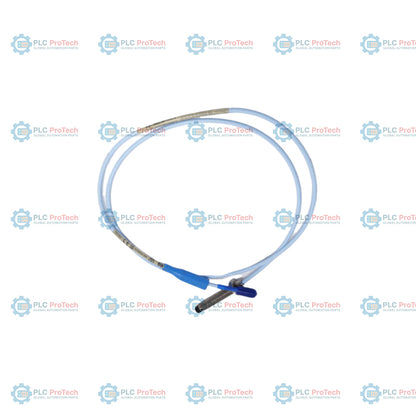

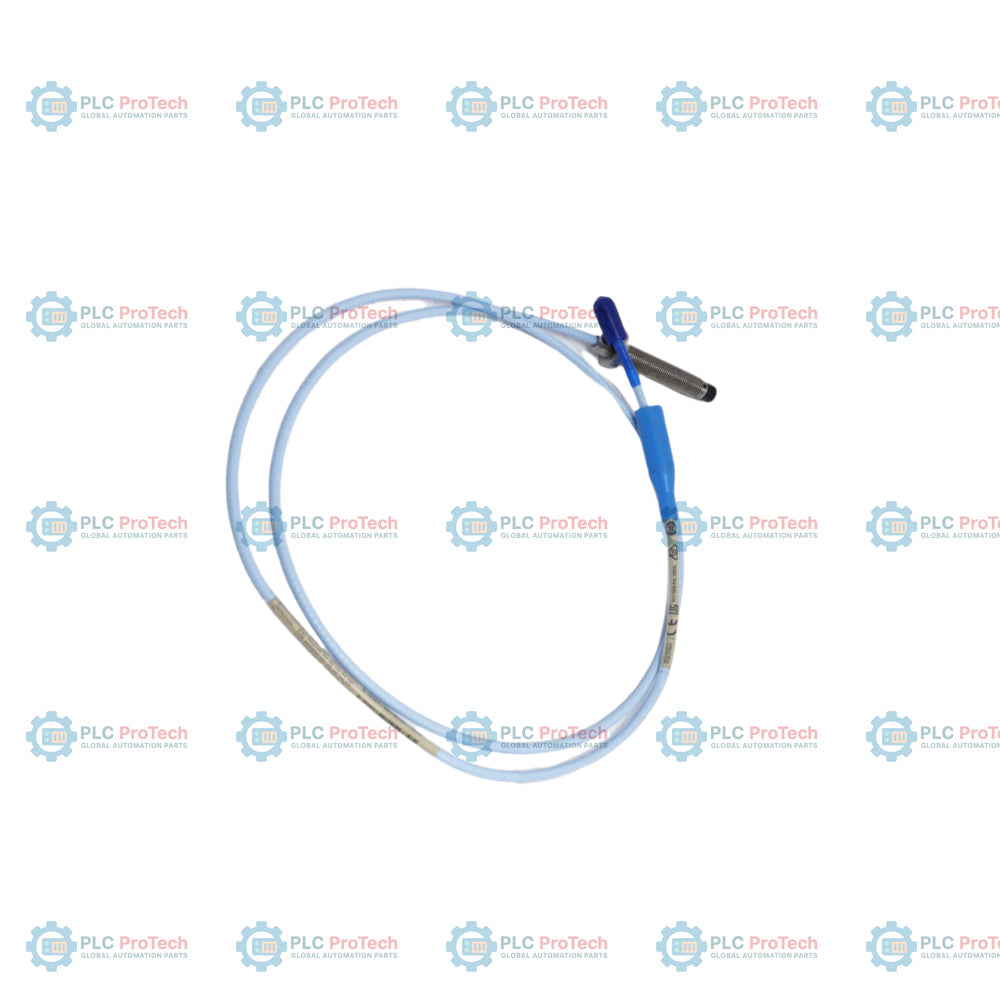

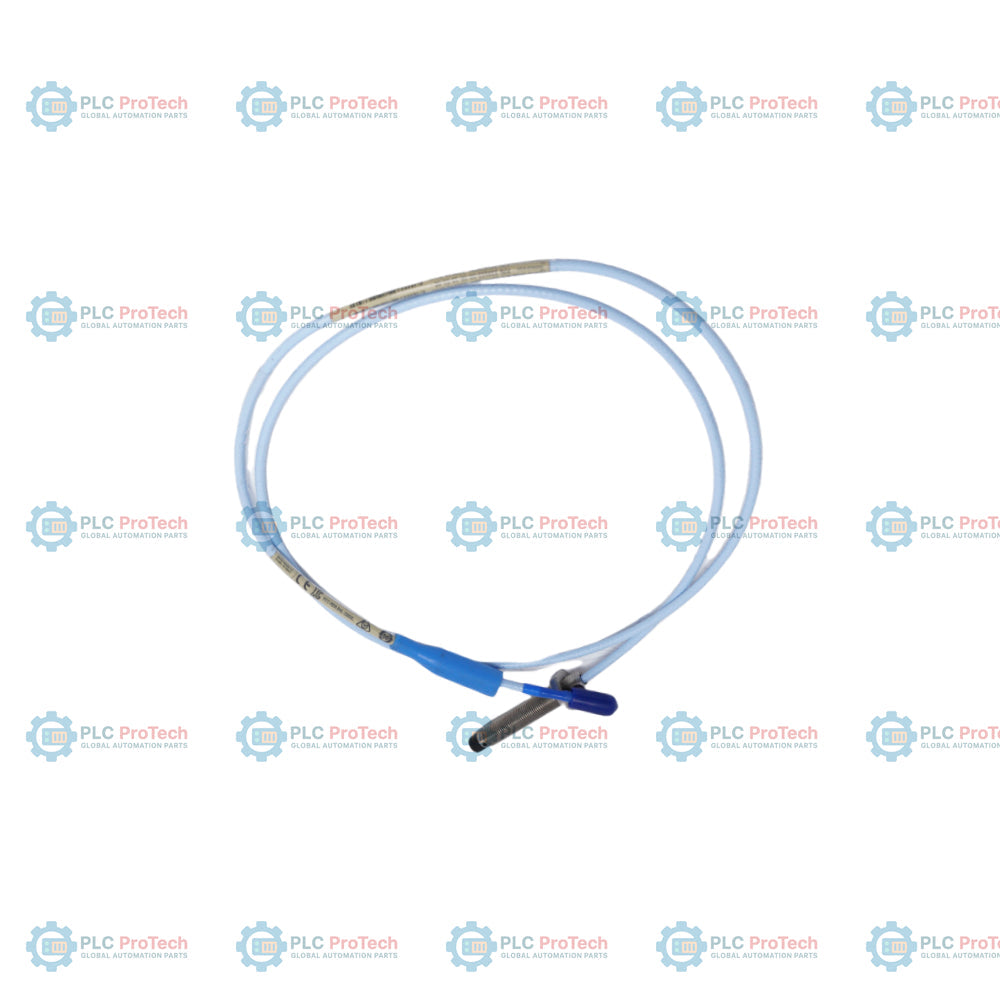

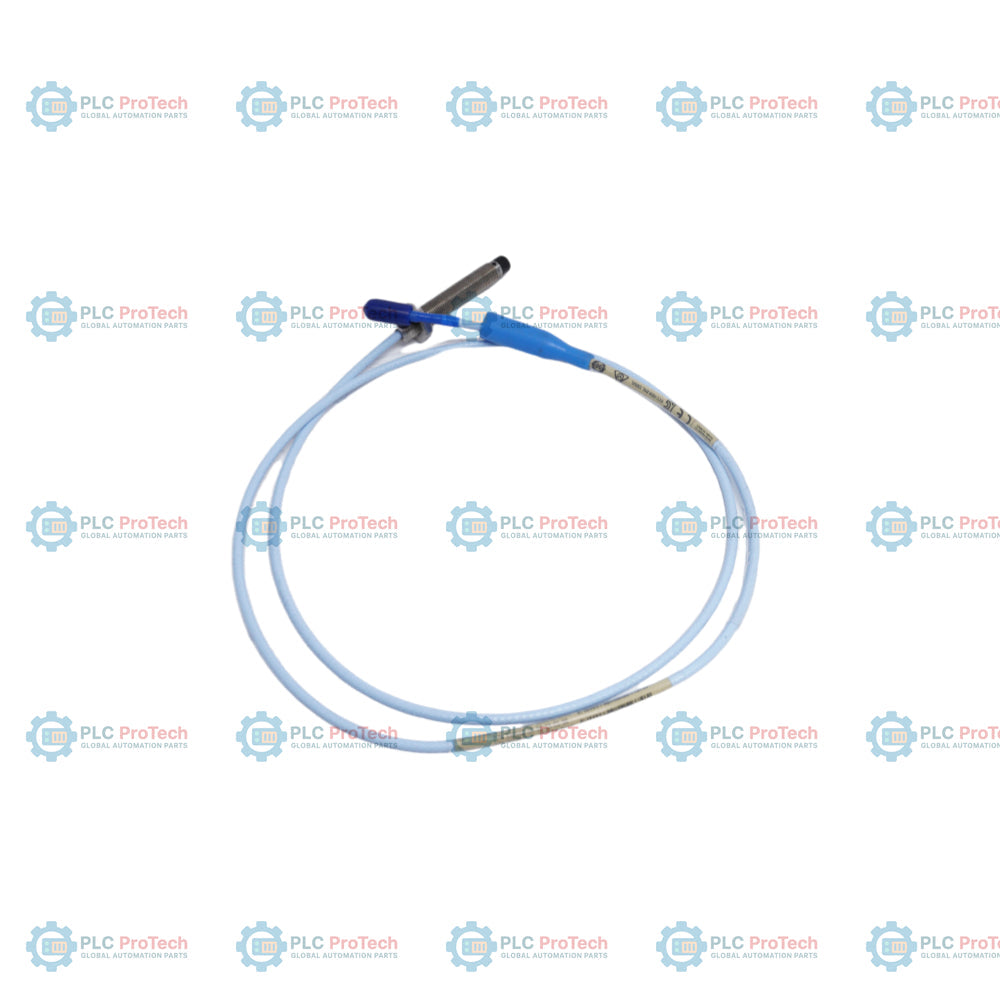

Bently Nevada 330103-00-06-10-01-00 3300 XL 8 mm Proximity Probe

SKU 330103-00-06-10-01-00

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330103-00-06-10-01-00
  • Origin United States
  • Product Type: 3300 XL 8 mm Proximity Probe
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.15 kg
  • Dimensions: 150 mm x 150 mm x 45 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330103-00-06-10-01-00 3300 XL 8 mm Proximity Probe

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

Option 00 (0 mm unthreaded length) and Option 01 (ClickLoc connector with connector protector, standard cable) specify this 3300 XL 8 mm metric probe configuration — 330103-00-06-10-01-00.

Unlike variants configured with the standard coaxial connector (Option 02) or FluidLoc water-blocking cable, this assembly features an integrated connector protector designed to shield the ClickLoc coaxial junction from industrial fluids and physical damage. The 60 mm overall case length is fully threaded with an M10 x 1 metric thread and has no protective armor sleeve, pairing with a 1.0 m lead cable for non-contact eddy-current shaft displacement and position measurements.

Features

  • M10 x 1 metric thread body without protective armor.
  • 0 mm unthreaded case length, providing a fully threaded body.
  • 60 mm overall case length for standard machine casing depths.
  • 1.0 meter (3.3 feet) total cable length.
  • Miniature coaxial ClickLoc connector with pre-installed connector protector.
  • Gold-plated brass and gold-plated beryllium copper contacts for signal integrity.
  • Standard FEP-insulated coaxial cable jacket.
  • Polyphenylene sulfide (PPS) probe tip material for industrial process resistance.

Applications

  • Non-contacting eddy-current vibration sensing in machinery protection systems.
  • Radial shaft vibration, axial thrust position, and speed measurements on rotating shafts.
  • Monitoring critical assets including steam turbines, gas turbines, compressors, and gearboxes.
  • Fluid-film bearing clearance monitoring in standard industrial installations.

Ordering Information

Option / Segment Code on This SKU Meaning / Description
Orderable Part Number 330103-00-06-10-01-00 3300 XL 8 mm proximity probe, M10 x 1 metric thread, without armor
A - Unthreaded Length 00 0 mm (fully threaded case)
B - Overall Case Length 06 60 mm overall case length
C - Total Length 10 1.0 meter (3.3 feet) total cable length
D - Connector and Cable-Type 01 Miniature coaxial ClickLoc connector with connector protector, standard FEP cable
E - Agency Approval 00 Agency approval not required

Technical Specifications

Manufacturer Bently Nevada
Part Number 330103-00-06-10-01-00
Transducer Type Non-contact eddy-current proximity probe
Probe Tip Diameter 8.0 mm
Thread Size M10 x 1 metric thread
Unthreaded Length 0 mm
Case Length 60 mm
Total Cable Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc with connector protector
Cable Material 75 ohm triaxial, FEP insulated
Tip Material Polyphenylene sulfide (PPS)
Case Material AISI 303 or 304 stainless steel
Nominal Probe Resistance 7.59 ohms +/- 0.50 ohms (center conductor to outer conductor)
Operating Temperature Range -52 degC to +177 degC
Pressure Seal Rating Seals differential pressure between probe tip and case to 7.0 bar (100 psi)
Minimum Cable Bend Radius 25.4 mm (1.0 in)
Tensile Strength (Max Rated) 330 N (75 lbf) probe case to probe lead; 270 N (60 lbf) lead to cable connectors
Dimensions 150 mm x 150 mm x 45 mm (H x W x D)
Weight 0.15 kg

Connections and Interfaces

Connection Point Description
Center Conductor Signal pathway (RF / DC voltage)
Outer Conductor (Shield) Return / Ground reference pathway
ClickLoc Male Connector Connects to miniature female ClickLoc coaxial connector on 3300 XL extension cable

Installation Guidelines

  • Observe a minimum cable bend radius of 25.4 mm (1.0 in) to protect the internal FEP insulation.
  • Avoid over-tightening the probe case; the maximum rated torque for an M10 x 1 probe case is 22.6 N-m (200 in-lbf), with a recommended installation torque of 7.5 N-m (66 in-lbf).
  • Use a thread-locking compound or safety wire with the lock nut to prevent mechanical loosening under severe machinery vibration.
  • Ensure coaxial connectors are completely clean and dry before mating. Hand-tighten the Gold ClickLoc connectors until they click; do not use pliers.
  • Maintain adequate side clearance of at least three probe diameters of flat surface area around the probe tip to prevent cross-talk or calibration errors from surrounding metal.

Compliance and Certifications

  • Hazardous Area Approvals: Option 00 specifies agency approval is not required.
  • RoHS compliant.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What does the -01 connector option signify for this 3300 XL probe?
The -01 option indicates that this probe is equipped with a miniature coaxial ClickLoc connector and an integrated connector protector, which shields the coaxial junction from fluid ingress and physical damage.
What are the mounting thread and case dimensions of the 330103-00-06-10-01-00?
This probe features an M10 x 1 metric thread with a 60 mm overall case length (Option 06) and 0 mm of unthreaded length (Option 00), meaning the case is fully threaded.
Does this Bently Nevada probe have hazardous area approvals?
No, the trailing -00 option on this specific part number signifies that agency approvals are not required for this configuration.
What is the total cable length of this proximity probe?
The total cable length is 1.0 meter (3.3 feet), indicated by the -10 segment in the model code.
Does this probe include armored protection for the cable?
No, the 330103 base model represents an unarmored configuration. If your application requires a stainless steel armor sleeve, consider the 330104 series instead.
