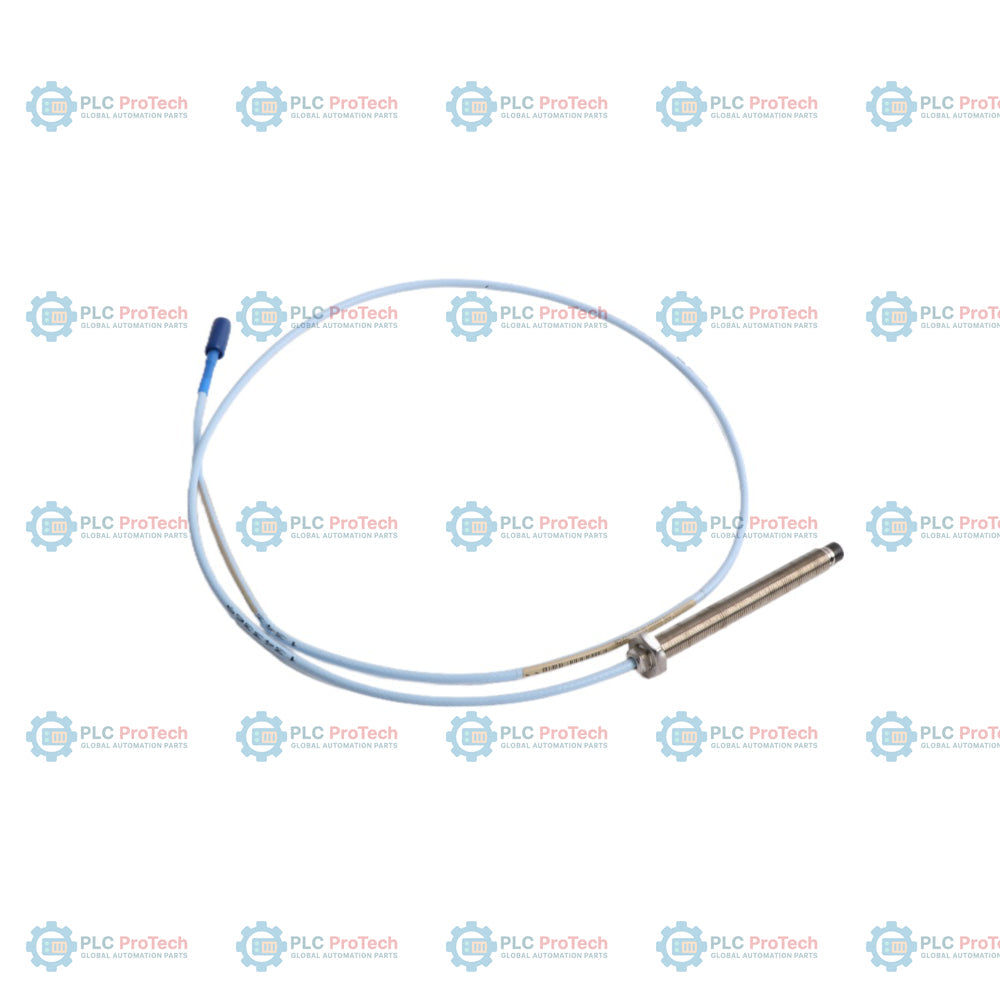

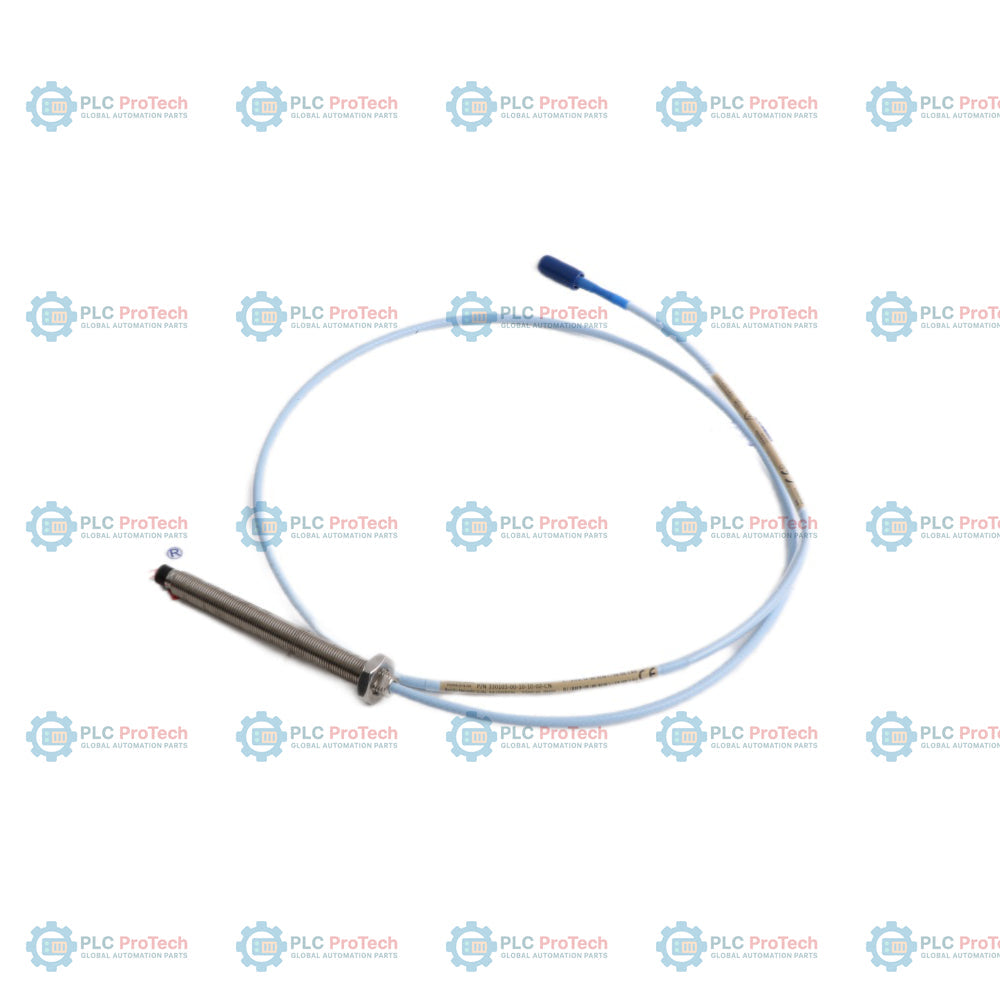

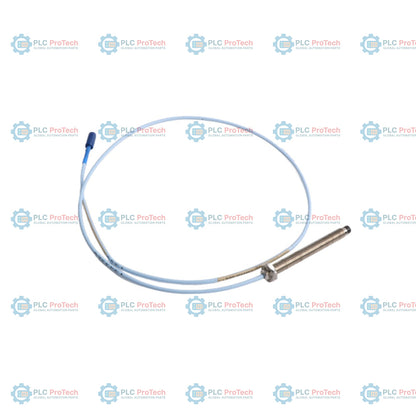

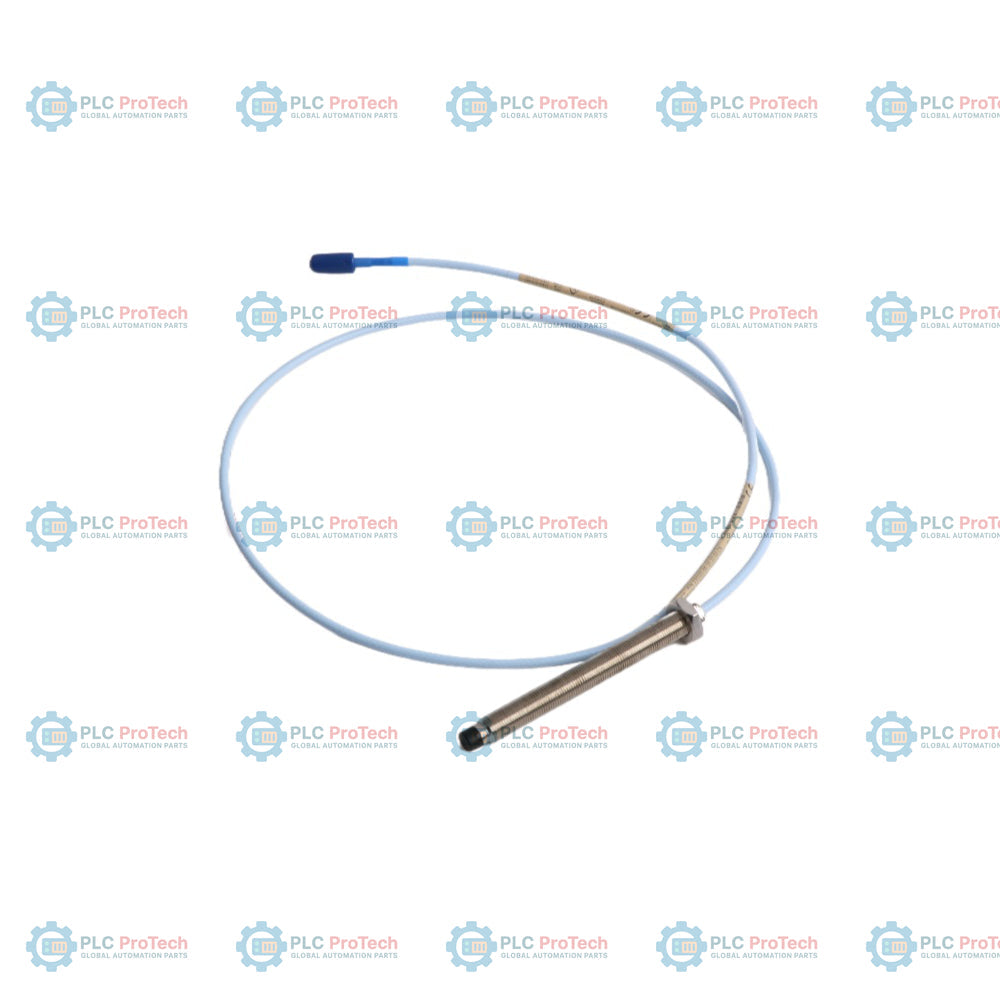

Option 00 (0 mm unthreaded length) and Option 10 (100 mm overall case length) define this metric M10 x 1 threaded proximity probe configuration — 330103-00-10-15-02-05, a 3300 XL 8 mm proximity probe without armor.
This configuration incorporates a 1.5-meter (4.9 ft) standard coaxial cable terminated with a miniature ClickLoc coaxial connector (Option 02) and is certified with CSA, ATEX, and IECEx hazardous area approvals (Option 05). Designed for non-contacting eddy-current displacement measurements, this M10 x 1 threaded probe pairs with a 3300 XL Proximitor sensor and an extension cable to form a complete 3300 XL 8 mm transducer system.
| Option / Segment | Code on This SKU | Description / Meaning |
|---|---|---|
| Base Model | 330103 | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, without armor |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length |
| B - Overall Case Length Option | 10 | 100 mm overall case length |
| C - Total Length Option | 15 | 1.5 meters (4.9 feet) total length |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 05 | CSA, ATEX, IECEx approvals |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number / Model | 330103-00-10-15-02-05 |
| Product Series | 3300 XL 8 mm Transducer System |
| Thread Size | M10 x 1 (Metric) |
| Unthreaded Length (Option 00) | 0 mm |
| Overall Case Length (Option 10) | 100 mm |
| Total Length (Option 15) | 1.5 meters (4.9 feet) |
| Connector Option (Option 02) | Miniature coaxial ClickLoc connector, standard cable |
| Agency Approval Option (Option 05) | CSA, ATEX, IECEx Approvals |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Body/Case Material | AISI 303 stainless steel (S30300) |
| Cable Construction | 75 ohm miniature coaxial cable, FEP insulated jacket |
| Sealing | Viton O-ring differential pressure seal between tip and case |
| Operating Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Recommended Torque | Finger tight for gold ClickLoc connectors |
| Weight | 0.14 kg |
| Dimensions | 100 mm x 10 mm x 10 mm (H x W x D) |
Provide mechanical clearance and observe proper mounting torque for the M10 x 1 thread during installation. The maximum thread engagement length for this M10 x 1 case is 15 mm. Thread engagement exceeding this limit may cause binding. When routing the integrated 1.5-meter coaxial cable, maintain standard bend radii and protect the miniature ClickLoc coaxial connector from dirt and fluid exposure. Connect the probe to a compatible 3300 XL standard extension cable by turning the gold-plated click-type connectors finger-tight to secure the mechanical and electrical contact. Ensure the sensor is calibrated for an AISI 4140 steel target for accurate displacement measurements.
