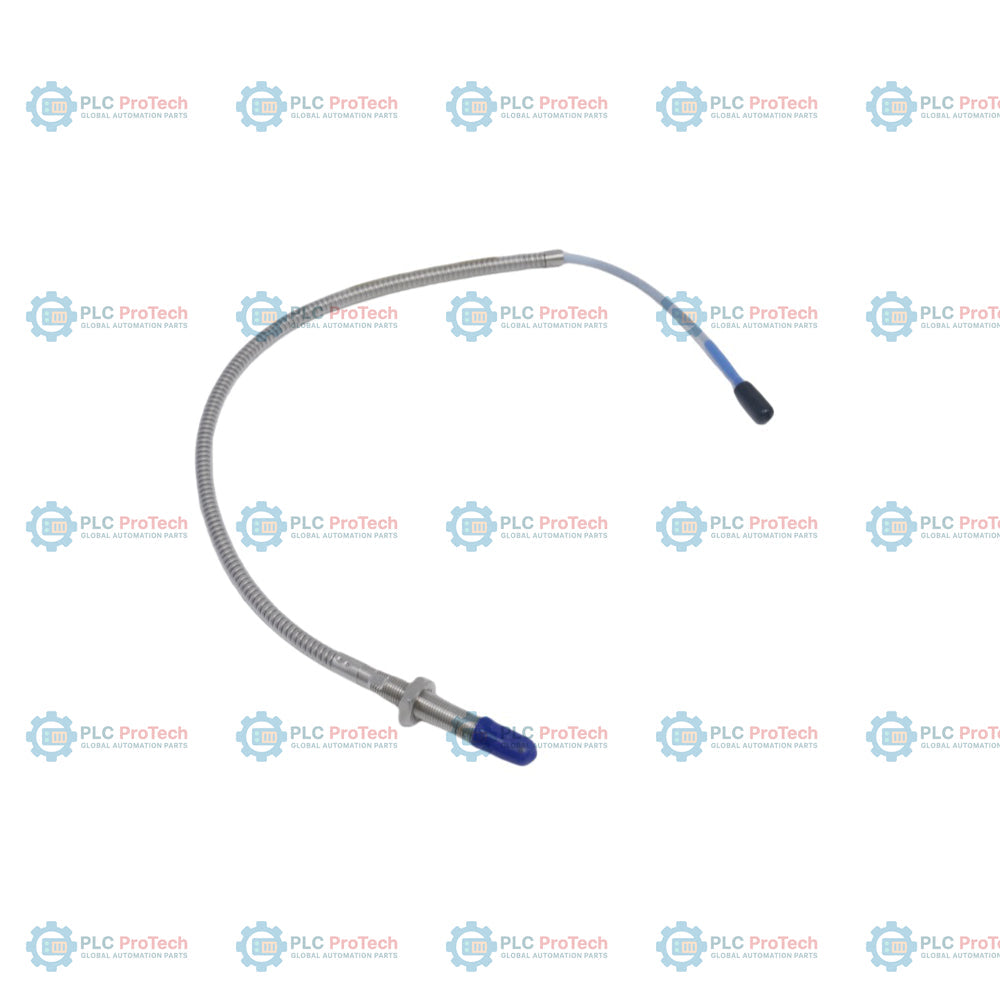

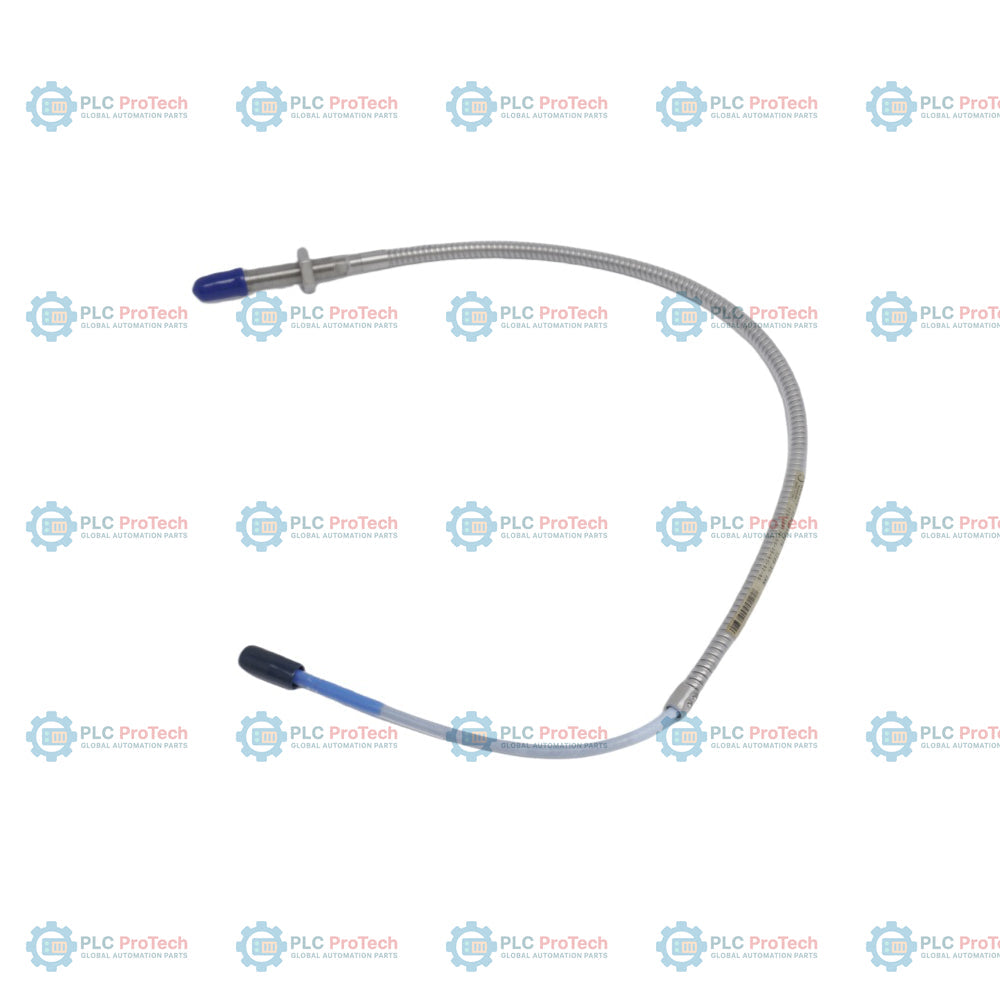

Bently Nevada 330104-00-05-05-02-00 3300 XL 8 mm Proximity Probe

Description

Option 00 (0 mm unthreaded length), Option 05 (50 mm overall case length), and Option 05 (0.5 meter total length) specify this metric threaded, armored probe configuration — 330104-00-05-05-02-00. This 3300 XL 8 mm proximity probe has an M10 x 1 metric thread and is supplied with a protective stainless steel armor sleeve over its coaxial cable. The 0.5-meter probe must be used with a compatible standard 3300 XL extension cable to achieve a total system length of either 5 meters or 9 meters, matching the requirements of the 3300 XL Proximitor Sensor.

This configuration utilizes a miniature coaxial ClickLoc connector (Option 02) without a connector protector. It does not carry hazardous area certifications (Option 00), making it suitable for standard, non-certified industrial environments where mechanical cable protection is necessary due to physical routing hazards. The 8 mm tip provides rugged encapsulation of the internal coil within a polyphenylene sulfide (PPS) plastic housing, designed to withstand standard mechanical wear and exposure to industrial lubricants.

Features

• Option 00 unthreaded length specifies a fully threaded case for rigid mounting in threaded bores.
• Option 05 overall case length provides a 50 mm body thread depth.
• Option 05 total length provides a 0.5-meter (1.6-foot) integral cable length.
• Option 02 connector specifies a miniature coaxial ClickLoc connector for secure mechanical and electrical connections.
• Integral stainless steel armor sleeve provides robust protection for the coaxial cable against abrasion, cutting, and pinch damage.
• Metric M10 x 1 thread body size simplifies mounting in machinery with metric tapping.
• Polyphenylene sulfide (PPS) probe tip offers environmental resistance against degradation in industrial fluids.

Applications

• Vibration monitoring on steam turbines, gas turbines, and hydro turbines with metric mounting holes.
• Shaft axial position and radial displacement measurements in centrifugal compressors and pumps.
• Industrial rotating machinery protection where mechanical routing hazards require armored cables.
• Non-contact distance measurements in standard, non-hazardous industrial environments.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Ensure the maximum thread engagement length does not exceed 15 mm during installation to prevent binding or mechanical stress on the probe case.
• Avoid over-torqueing the coaxial ClickLoc connectors; they should be tightened finger-tight only.
• Maintain the minimum bend radius of the armored cable (typically 25 mm) to prevent internal coaxial cable damage.
• Verify proper probe air gap (typically 1.27 mm or 50 mils for standard calibration) prior to final locking of mounting nuts.
• Keep the probe tip clear of adjacent metal surfaces to prevent side-view interference.
