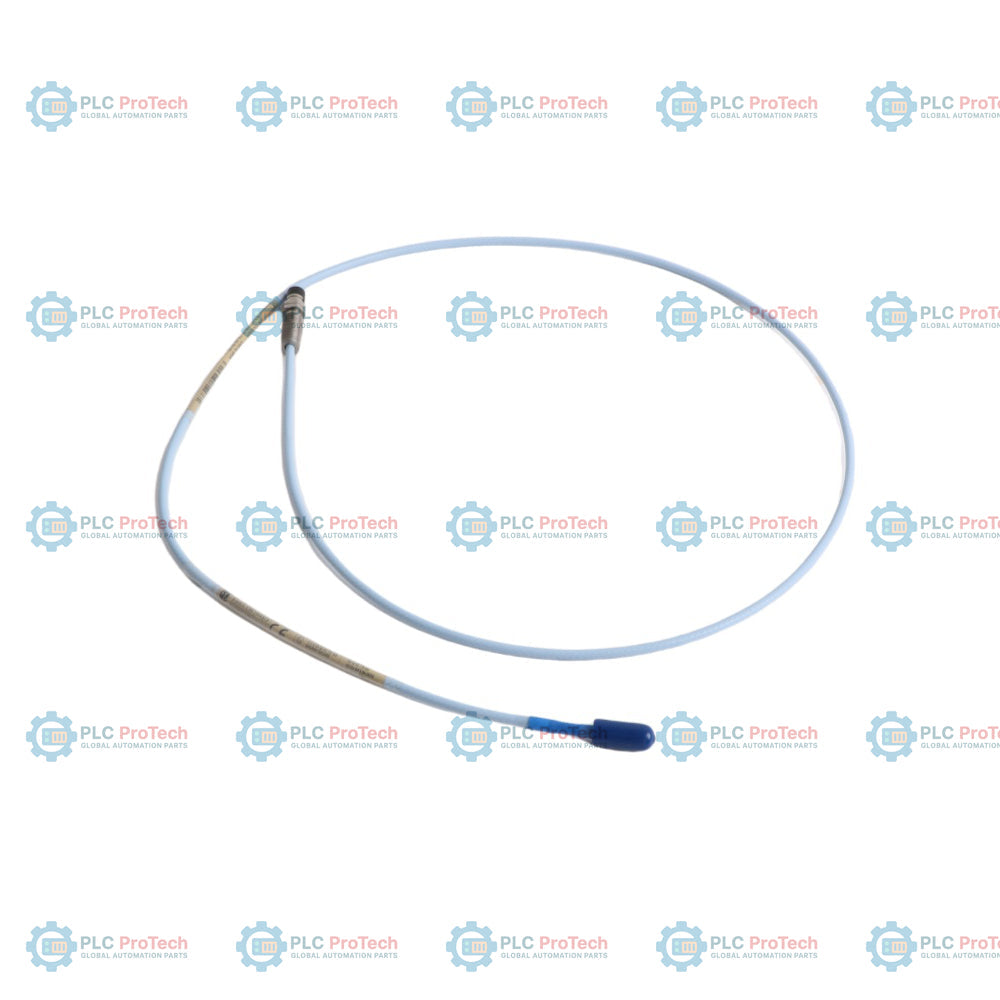

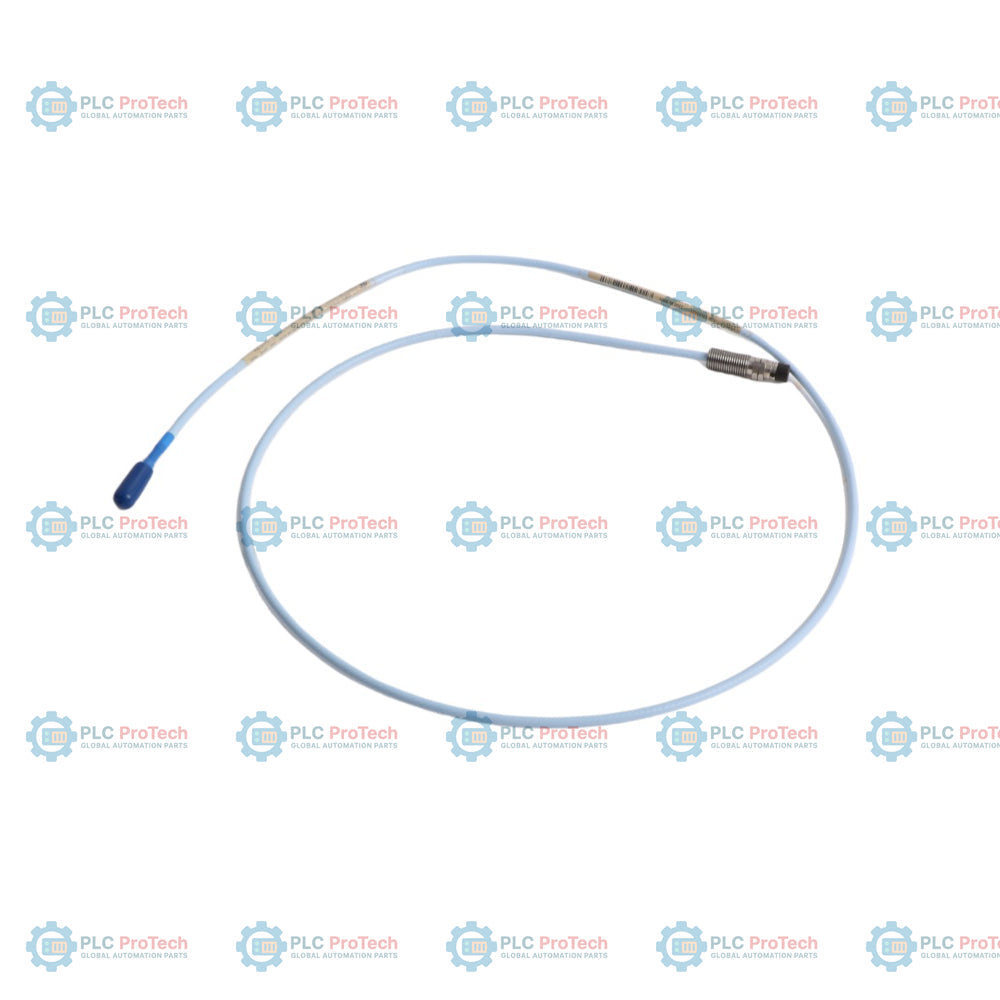

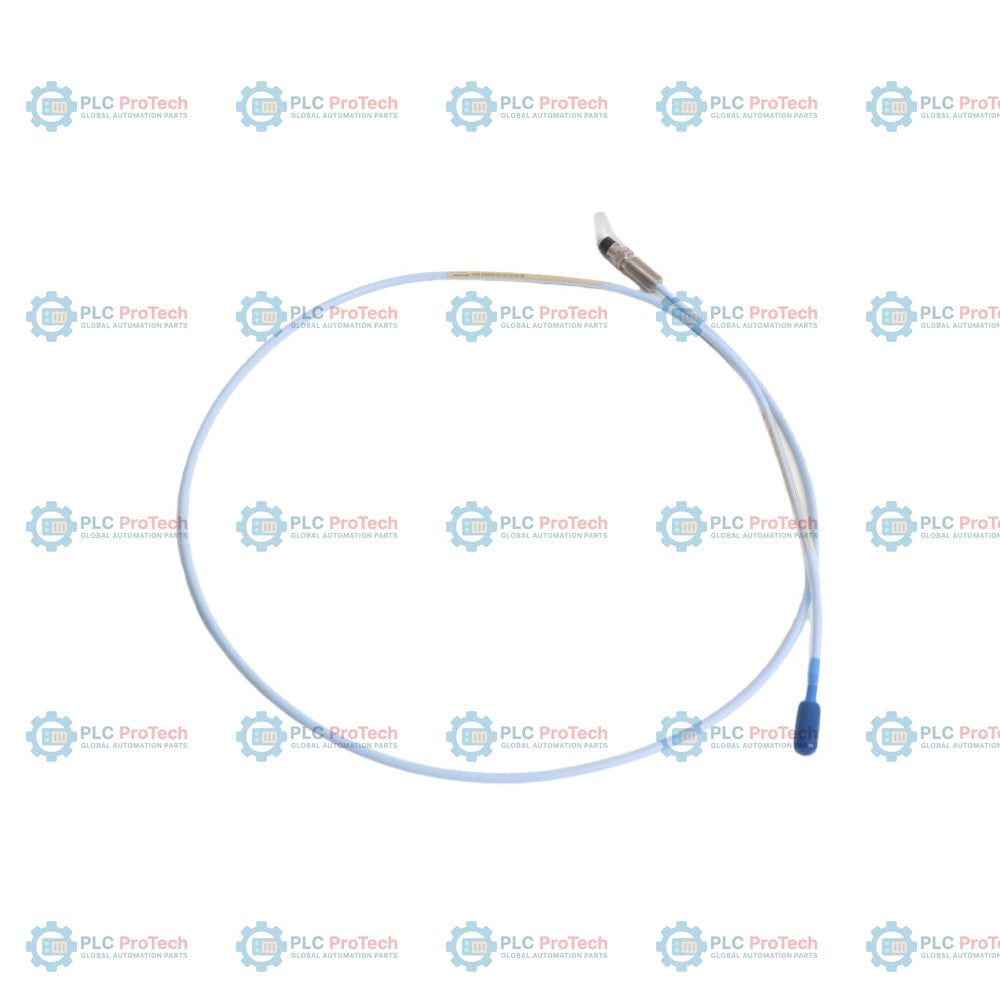

Bently Nevada 330106-05-30-10-02-05 3300 XL 8 mm Reverse Mount Proximity Probe

Description

330106-05-30-10-02-05 specifies this 3300 XL 8 mm reverse mount proximity probe configuration, which features metric M10 x 1 threads, an unthreaded case length of 5.0 mm (Option 05), an overall case length of 30 mm (Option 30), a 1.0-meter total cable length (Option 10), standard ClickLoc coaxial connector (Option 02), and CSA/ATEX/IECEx hazardous area approvals (Option 05).

In contrast to sibling configurations like the 330105 which uses 3/8-24 UNF imperial threads, this metric variant uses M10 x 1 threads. While other options in this family may specify armored cabling or FluidLoc fluid barrier protection (such as Option 12), this standard configuration provides a non-armored standard coaxial cable with a miniature ClickLoc connector. It is calibrated for a standard 80 mil (2.0 mm) linear range when paired with a matching 3300 XL extension cable and Proximitor sensor.

Features

• M10 x 1 threaded metal body designed specifically for rear-mounting installations.
• Option 05 unthreaded length of 5.0 mm (0.20 in) optimizes positioning within mounting sleeves.
• Option 30 overall case length provides 30 mm (1.2 in) of thread engagement depth.
• Option 10 specifies a 1.0-meter (3.3 feet) total probe length.
• Option 02 provides a miniature gold-plated coaxial ClickLoc connector on standard coaxial cable.
• Option 05 certification package covers CSA, ATEX, and IECEx hazardous area installations.
• Backward compatible with standard non-XL 3300 series 5 mm and 8 mm components.

Applications

• Shaft vibration and axial position measurements on high-speed rotating machinery.
• Fluid-film bearing monitoring in steam turbines, gas turbines, compressors, pumps, and industrial motors.
• Keyphasor phase reference and rotational speed measurements.
• Reverse mount installations utilizing a probe sleeve or bracket where access to the front of the machine is restricted.

Ordering Information

Technical Specifications

Installation Guidelines

Proper installation of the 3300 XL reverse mount probe is critical for accurate eddy-current displacement monitoring. Observe the following physical and electrical installation guidelines:

• Target Gap: Mechanical gapping should place the probe tip within the linear operating range (normally around 1.25 mm or 50 mils from the target surface, yielding approximately -10 VDC on the Proximitor sensor output).
• Thread Torque: Tighten the reverse-mount body into its mounting sleeve finger tight, then apply torque not exceeding 4.5 N-m (40 in-lb) for M10 x 1 threads to avoid damaging the case.
• Connector Care: Hand-tighten the ClickLoc coaxial connector. Ensure the connection is clean and dry. Use a connector protector if there is exposure to fluids.
• Sleeve Fit: Reverse-mount probes are typically installed in a sleeve with a matching female thread. Maintain a minimum clearance around the probe tip to prevent cross-talk or side-wall interference.

Compliance and Certifications

This 3300 XL reverse-mount probe configuration (Option 05) complies with the following safety and environmental standards:

• CSA/cCSAus: Class I, Zone 0, AEx/Ex ia IIC T5...T1 Ga; Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III.
• ATEX/IECEx: II 1 G Ex ia IIC T5...T1 Ga; II 3 G Ex nA IIC T5...T1 Gc; Ex ec IIC T5...T1 Gc.
• CE Mark: Directive 2014/30/EU (EMC) and Directive 2011/65/EU (RoHS).
• China RoHS: EFUP designation of 15 years in accordance with SJ/T 11364-2024.
• Maritime Approvals: Complies with major classification society rules for steel ships and offshore units.
• SIL Rating: SIL 2 certified (Hardware Fault Tolerance HFT = 0), SIL 3 compliant (HFT = 1) when implemented within a certified safety-instrumented system.
• -CN Option Compliance: While not selected on this SKU, configurations carrying the -CN suffix are additionally certified by NEPSI and CCC for hazardous areas in mainland China.
