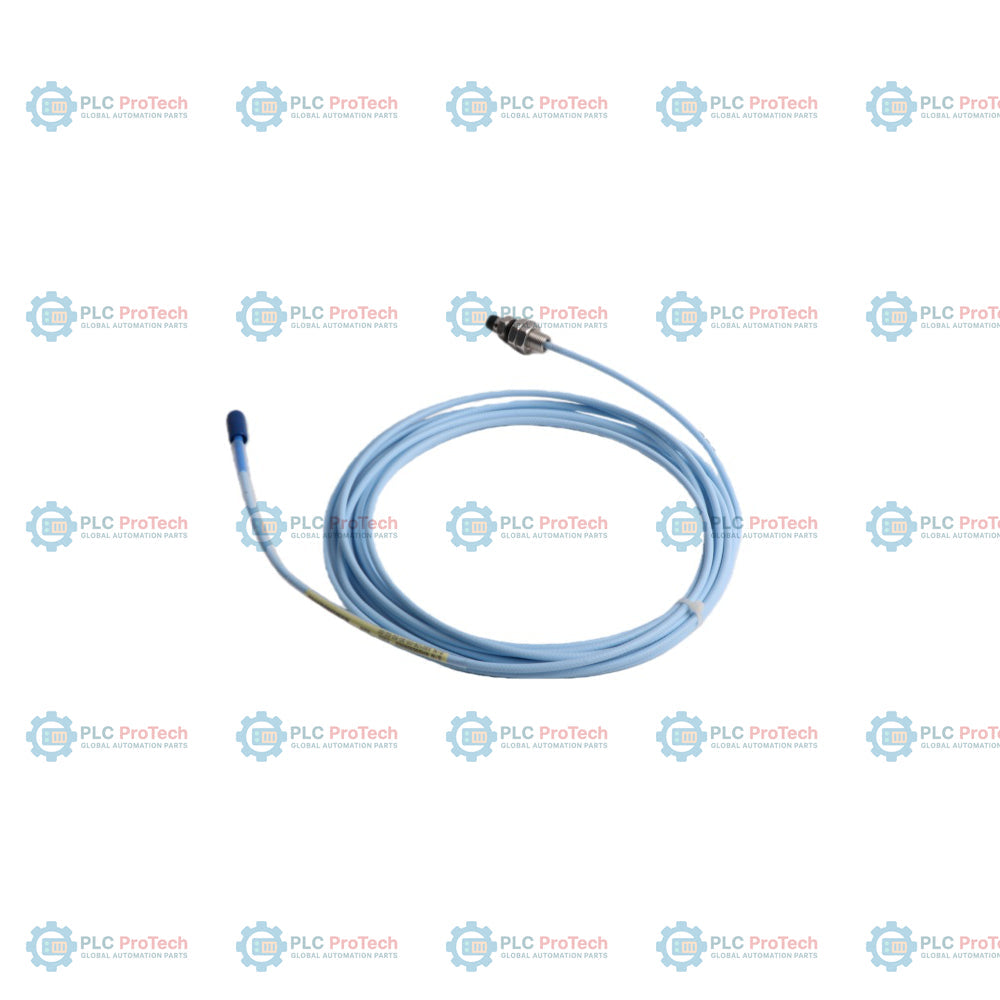

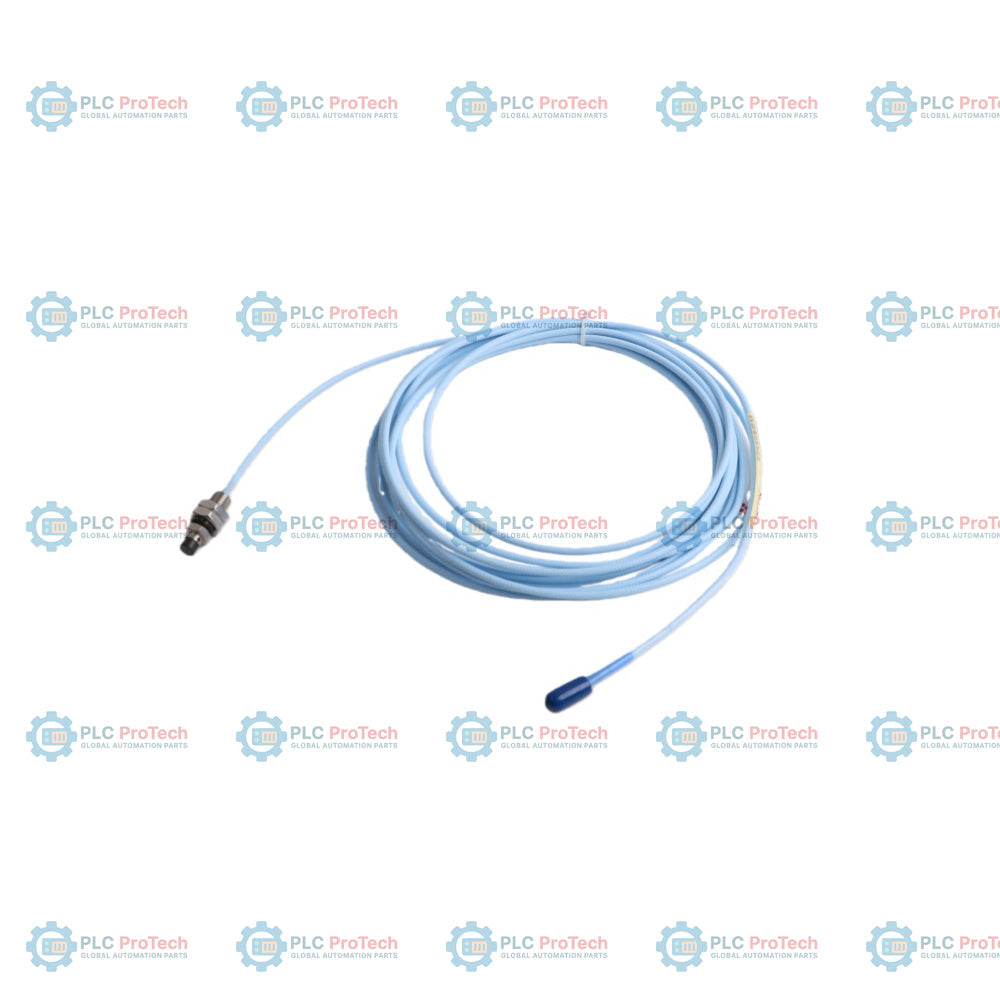

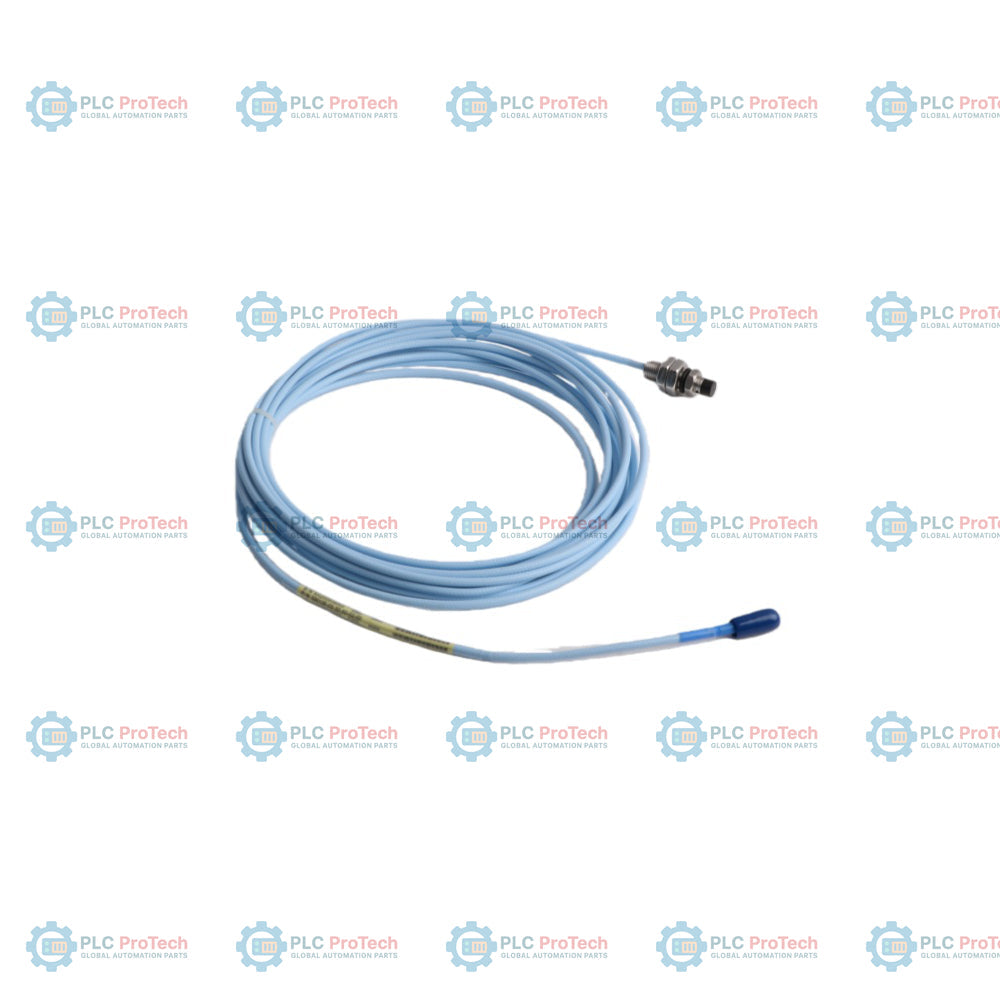

Option 05 (5.0 mm unthreaded length), Option 30 (30 mm case length), Option 50 (5.0 m total length), and Option 12 (ClickLoc connector with FluidLoc cable) specify this 330106-05-30-50-12-CN 3300 XL 8 mm Reverse Mount Proximity Probe with China hazardous area approvals (-CN).
This reverse-mount probe configuration features M10 x 1 metric threads and is engineered for installation inside machine casings or sleeves where standard forward-mounting is physically restricted. Unlike standard probes utilizing standard coaxial cables, this variant integrates a FluidLoc cable (Option 12), which provides a block against oil or process fluids from migrating along the cable via capillary action. Additionally, the 5.0-meter integral probe cable (Option 50) matches perfectly with a 5-meter 3300 XL Proximitor sensor, eliminating the need for an intermediate extension cable in specific turbine housing mounting layouts.
| Option Segment | Code Value | Meaning / Description |
|---|---|---|
| Orderable Part Number | 330106-05-30-50-12-CN | 3300 XL 8 mm Reverse Mount Proximity Probe (M10 x 1 threads) |
| Segment A (Unthreaded Length) | 05 | 5.0 mm (0.20 in) unthreaded length |
| Segment B (Overall Case Length) | 30 | 30 mm (1.2 in) case length |
| Segment C (Total Length) | 50 | 5.0 meters (16.4 feet) total length |
| Segment D (Connector & Cable) | 12 | Miniature ClickLoc coaxial connector, FluidLoc cable |
| Suffix -CN (Agency Approval) | -CN | China hazardous area approval package (NEPSI + CCC) |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330106-05-30-50-12-CN |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Thread Size | M10 x 1 (Metric) |
| Unthreaded Length | 5.0 mm (0.20 in) |
| Overall Case Length | 30 mm (1.2 in) |
| Total Probe Length | 5.0 meters (16.4 feet) |
| Cable Type | 75 Ohm FluidLoc triaxial cable |
| Connector Type | Miniature ClickLoc coaxial connector |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Operating Temperature (Probe) | -52 degC to +177 degC (-62 degF to +350 degF) |
| Maximum Rated Pressure | Designed to seal differential pressure between tip and case |
| Tensile Strength (Maximum Rated) | 330 N (75 lbf) probe case to probe lead; 270 N (60 lbf) lead to connectors |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Connector Torque (Maximum) | 0.565 Nm (5 in-lbf) |
| Probe Case Torque (Maximum) | 22.6 Nm (200 in-lbf) for reverse-mount probes |
| Nominal DC Resistance | 7.45 to 9.87 Ohms depending on overall circuit (8.73 Ohms typical for 5.0m probe) |
| Dimensions | 250 mm x 250 mm x 50 mm (H x W x D) (coiled probe envelope) |
| Weight | 1.65 kg (3.64 lb) |
