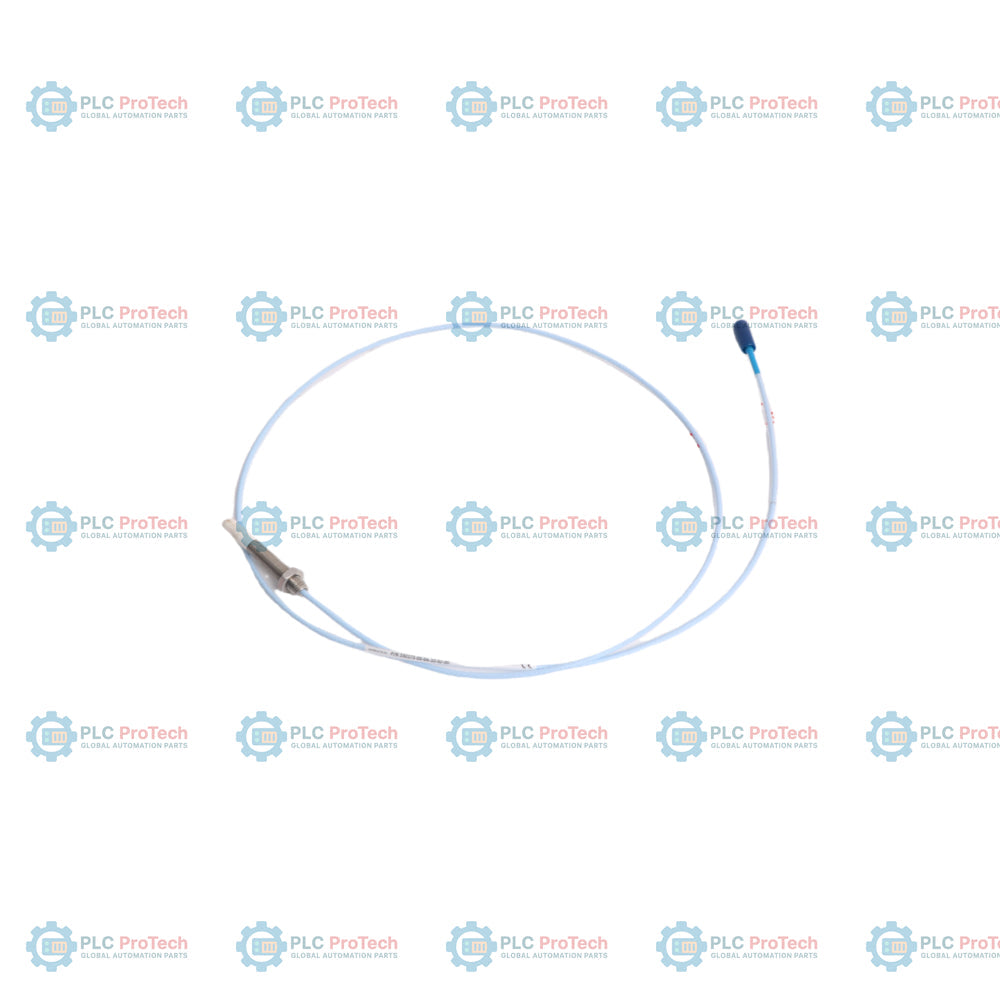

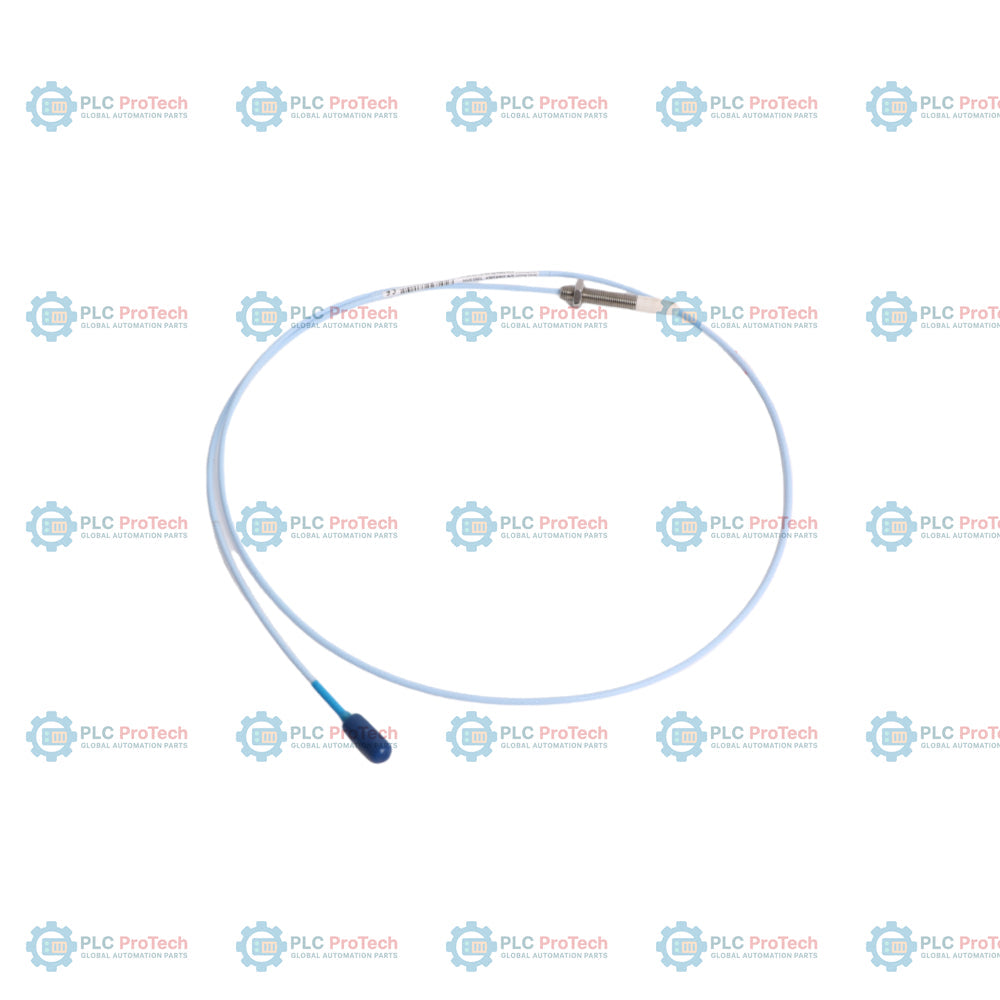

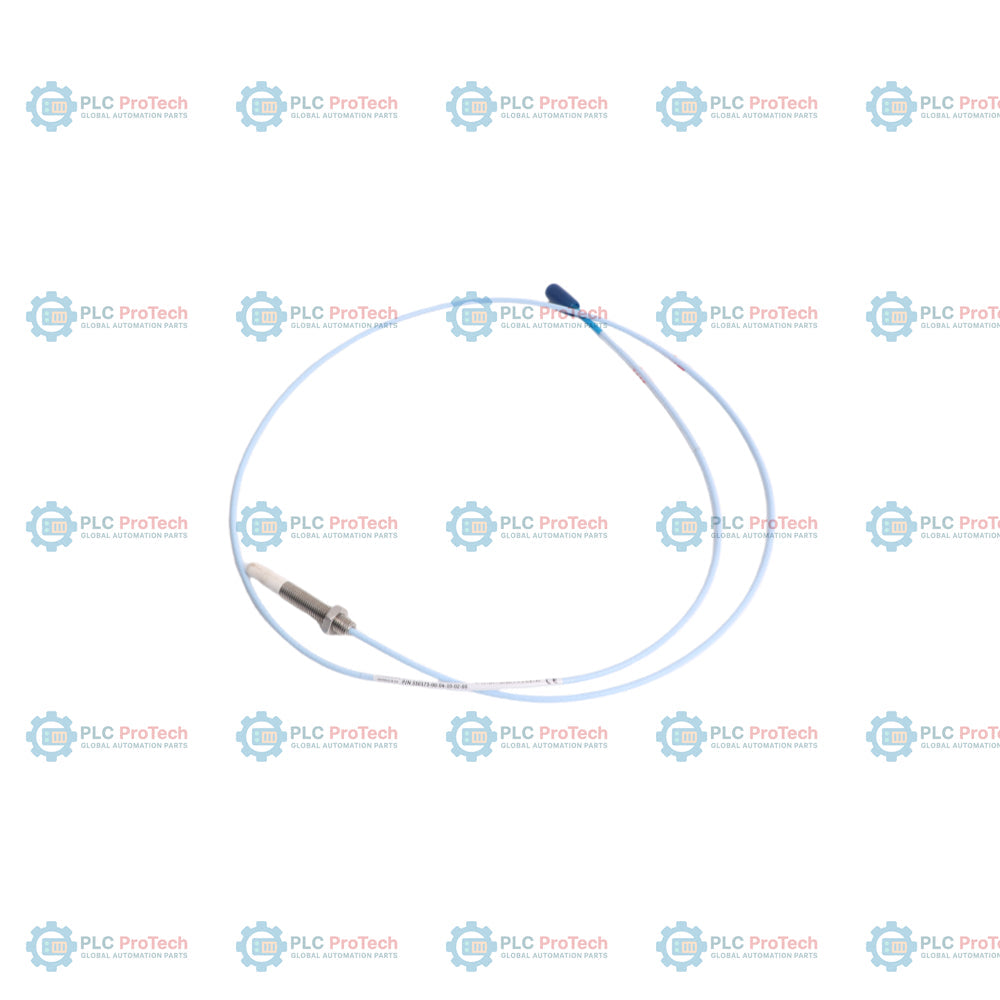

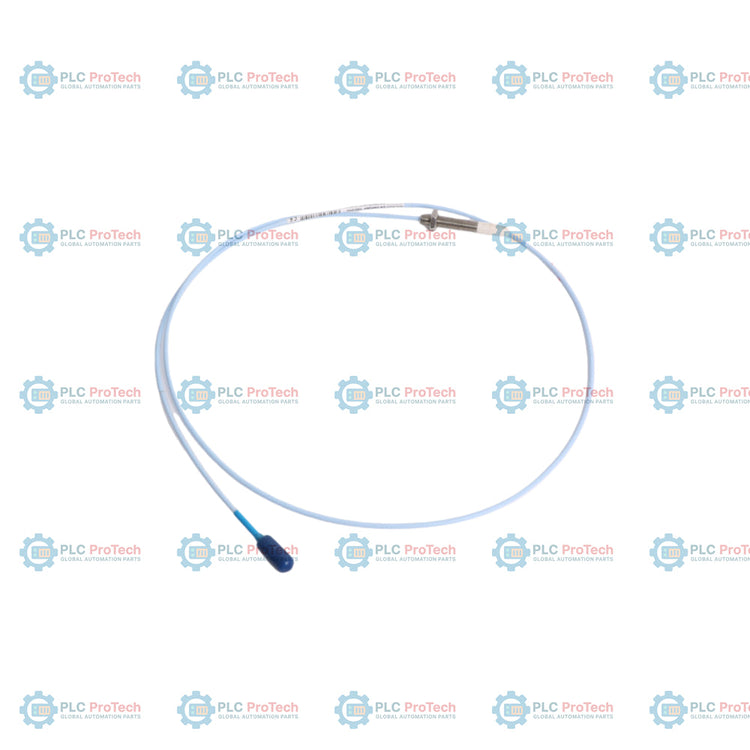

Bently Nevada 330173-00-04-10-02-00 3300 5mm Proximity Probe

Description

Option 00 (0.0 mm unthreaded length) and Option 02 (ClickLoc miniature coaxial connector without connector protector) specify this metric 3300 5mm proximity probe configuration — 330173-00-04-10-02-00.

This non-armored proximity probe features an M8 x 1 metric thread with an overall case length of 40 mm (Option 04) and a 1.0 meter total length (Option 10) on a standard coaxial cable. Designed without agency approvals (Option 00), this configuration is ideal for industrial environments where local safety regulations do not mandate hazardous area certifications. It operates as part of the 3300 5 mm Transducer System, measuring static position and dynamic shaft vibration with high thermal stability and interchangeability without manual recalibration.

Features

• Thread type and case: M8 x 1 metric thread, fully threaded (0.0 mm unthreaded length) with a 40 mm overall case length.
• Core construction: Non-armored standard coaxial cable with a 5 mm tip diameter utilizing robust TipLoc molding.
• Total length: 1.0 meter (3.3 feet) total system length.
• Connector: Miniature coaxial ClickLoc connector, standard cable option without a connector protector.
• Interchangeability: Complete physical and electrical compatibility with compatible 3300 XL extension cables and Proximitor sensors without individual matching or calibration.
• Target material: Calibrated for AISI 4140 steel targets.

Applications

• Shaft vibration and position measurements on small machinery with limited mounting clearances.
• Radial vibration and axial position monitoring in low-profile industrial environments.
• Keyphasor speed and phase measurements on high-speed rotating shafts.
• Continuous machinery protection on fluid-film bearing systems.

Ordering Information

Technical Specifications

Installation Guidelines

• Secure the probe using the recommended case torque of 5.1 N-m (45 in-lb) to prevent thread binding or mechanical deformation.
• Ensure the thread engagement length is within the 12 mm maximum limit to avoid damage during installation.
• Maintain a minimum cable bend radius of 25.4 mm (1.0 in) along the standard coaxial routing.
• Set the initial physical gap to approximately 1.27 mm (50 mils) using a caliper or digital voltmeter to establish the center of the linear calibration range.
• Clean and dry the ClickLoc coaxial connection before mating; finger-tighten the connectors to complete the low-resistance mechanical click seal.

Compliance and Certifications

• Electromagnetic Compatibility (EMC): EN 61000-6-2, EN 61000-6-4, EMC Directive 2014/30/EU
• RoHS Directive: 2011/65/EU
• Note: This specific configuration (Option 00) does not feature hazardous area approvals. For hazardous environments, order the compatible probe with Option 05 approvals.
