Bently Nevada 330903-00-05-50-02-05 3300 XL NSv Proximity Probe

Description

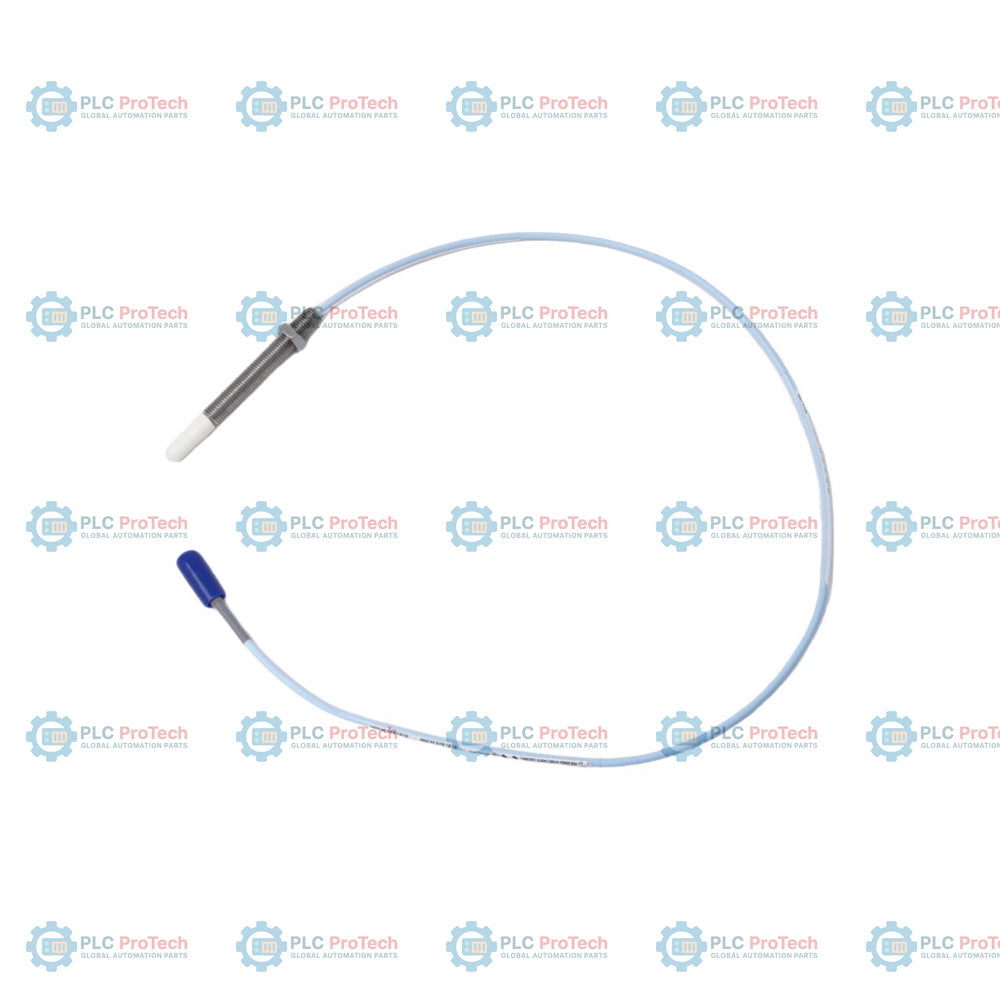

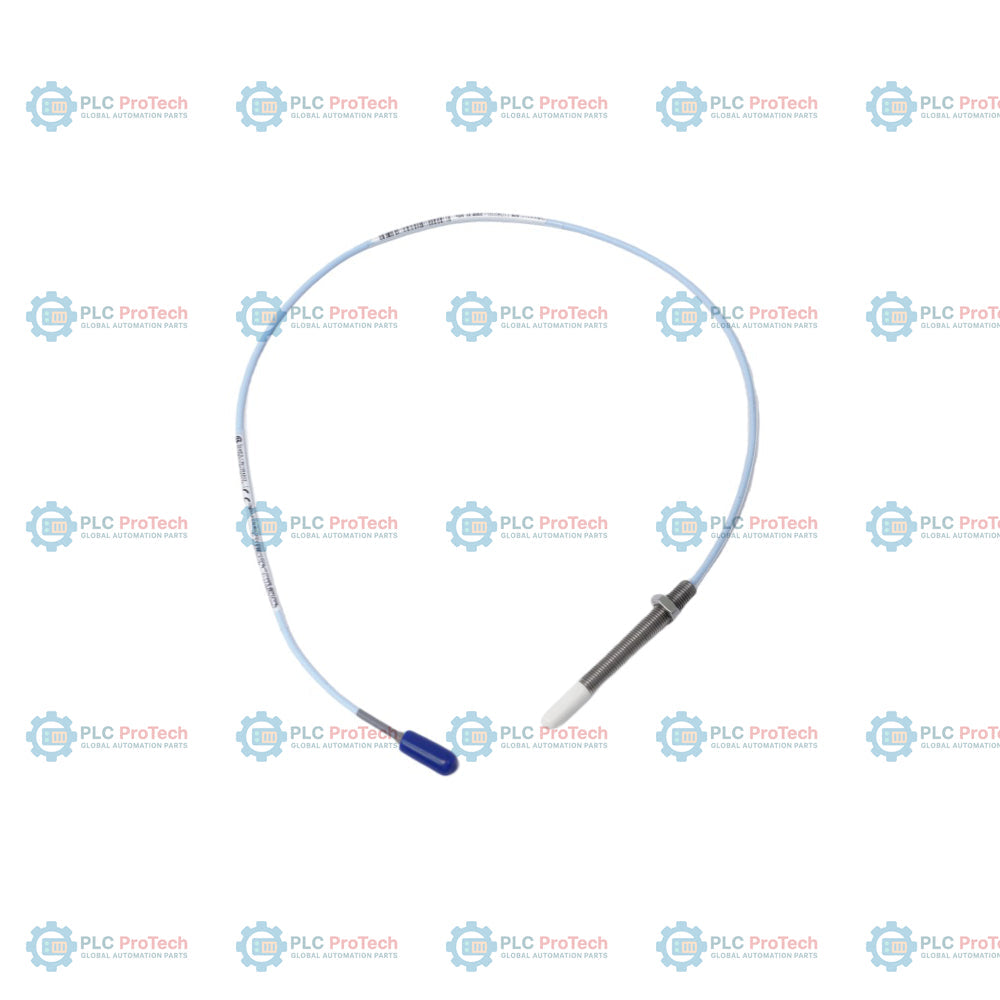

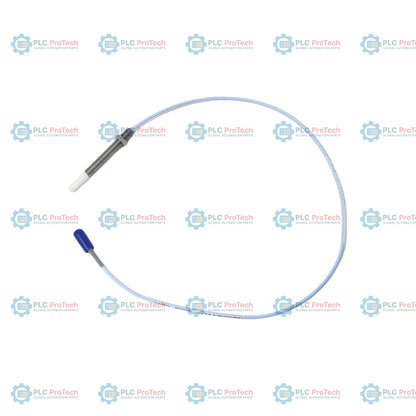

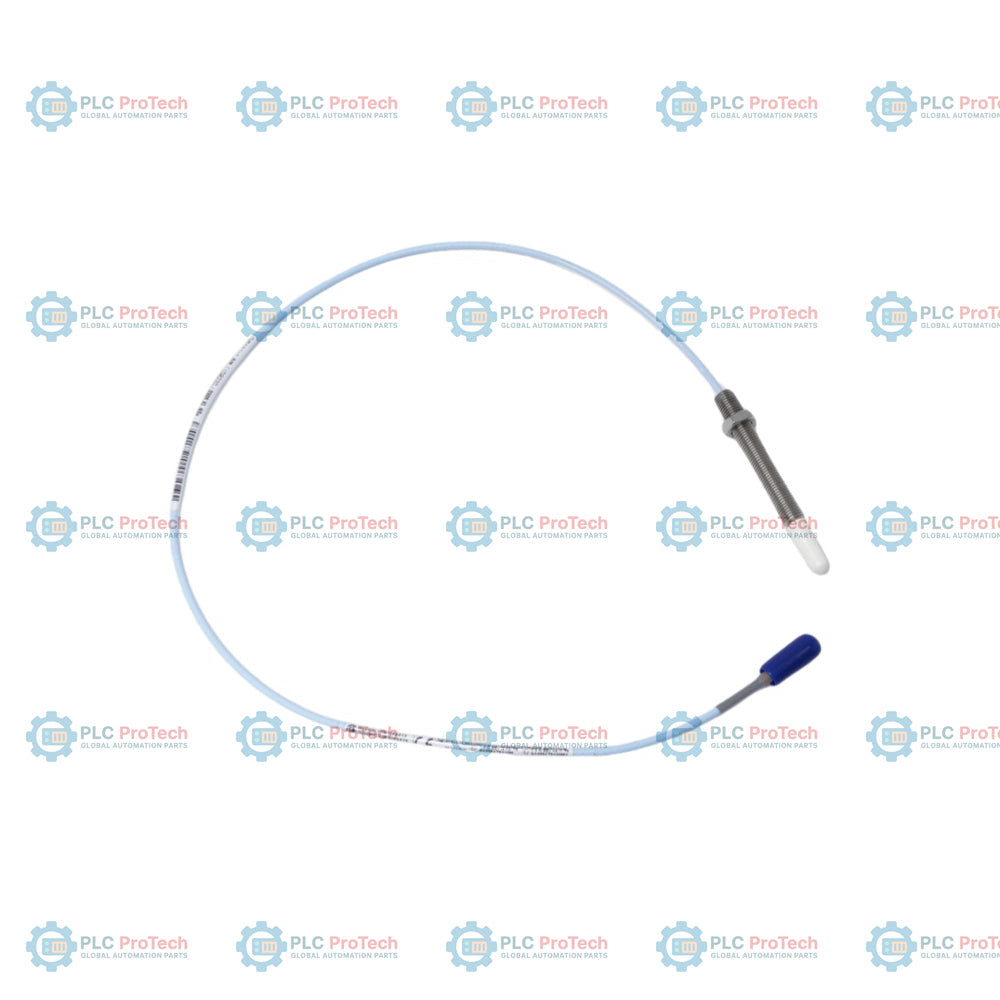

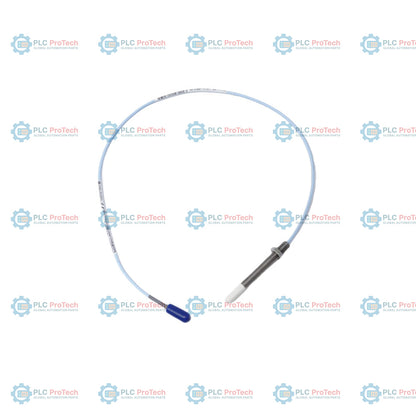

330903-00-05-50-02-05: 3300 XL NSv proximity probe, M8x1 thread, configured with 0.0 in unthreaded length (Option 00) and 0.5 in case length (Option 05). This non-contact eddy-current displacement probe is a core element of the 3300 XL NSv Proximity Transducer System, utilizing a 5.0 m system length (Option 50) and a standard coaxial ClickLoc connector (Option 02). The device is rated for Multiple Approvals (Option 05) for use in hazardous areas.

The 3300 XL NSv proximity probe is engineered for machinery with tight installation requirements, such as centrifugal air compressors, refrigeration compressors, and process gas compressors. It is specifically designed for applications with small target geometries, including shafts smaller than 51 mm (2 in) or flat targets smaller than 15 mm (0.6 in). This transducer system is fully compatible with 3300 XL NSv Proximitor Sensors and extension cables, providing reliable radial vibration, axial position, and speed measurements on fluid-filmed bearing machines.

Features

• M8x1 probe thread, unarmored construction for standard industrial mounting.
• 0.0 in unthreaded length and 0.5 in case length configuration.
• Miniature coaxial ClickLoc connector for secure, reliable signal termination.
• 5.0 m total system length including probe and extension cable integration.
• Multiple agency approvals (Option 05) for hazardous location compatibility.
• Optimized for small-target measurements where standard 3300 XL probes are restricted by counter-bore or side-view limitations.

Applications

• Radial vibration and radial position monitoring on fluid-filmed bearings.
• Axial (thrust) position measurements on small-diameter shafts.
• Tachometer and zero speed sensing on high-speed rotating machinery.
• Phase reference (Keyphasor) signal acquisition.
• Aeroderivative turbines and small-bore compressors.

Ordering Information

Technical Specifications

Installation Guidelines

• Ensure the probe-to-extension cable and cable-to-Proximitor connections are kept clean and dry.
• Use recommended connector protectors or silicone self-fusing tape to prevent liquid ingress, especially in oil-exposed environments.
• Maintain a minimum bend radius of 25.4 mm (1.0 in) for all cables to prevent signal degradation.
• Installation must comply with Bently Nevada drawings 141092 (Intrinsic Safety) and 140979 (Non-Incendive) for hazardous area compliance.
• Do not exceed torque limits during installation; use finger-tight for initial probe positioning before locking.

Compliance and Certifications

• Functional Safety: SIL 2 (HFT=0), SIL 3 (HFT=1)
• Hazardous Area: Multiple approvals (ATEX, IECEx, CSA/NRTLus)
• EMC: Directive 2014/30/EU, EN 61000-6-2/6-4
• RoHS: Directive 2011/65/EU and China RoHS (EFUP 15 years)
