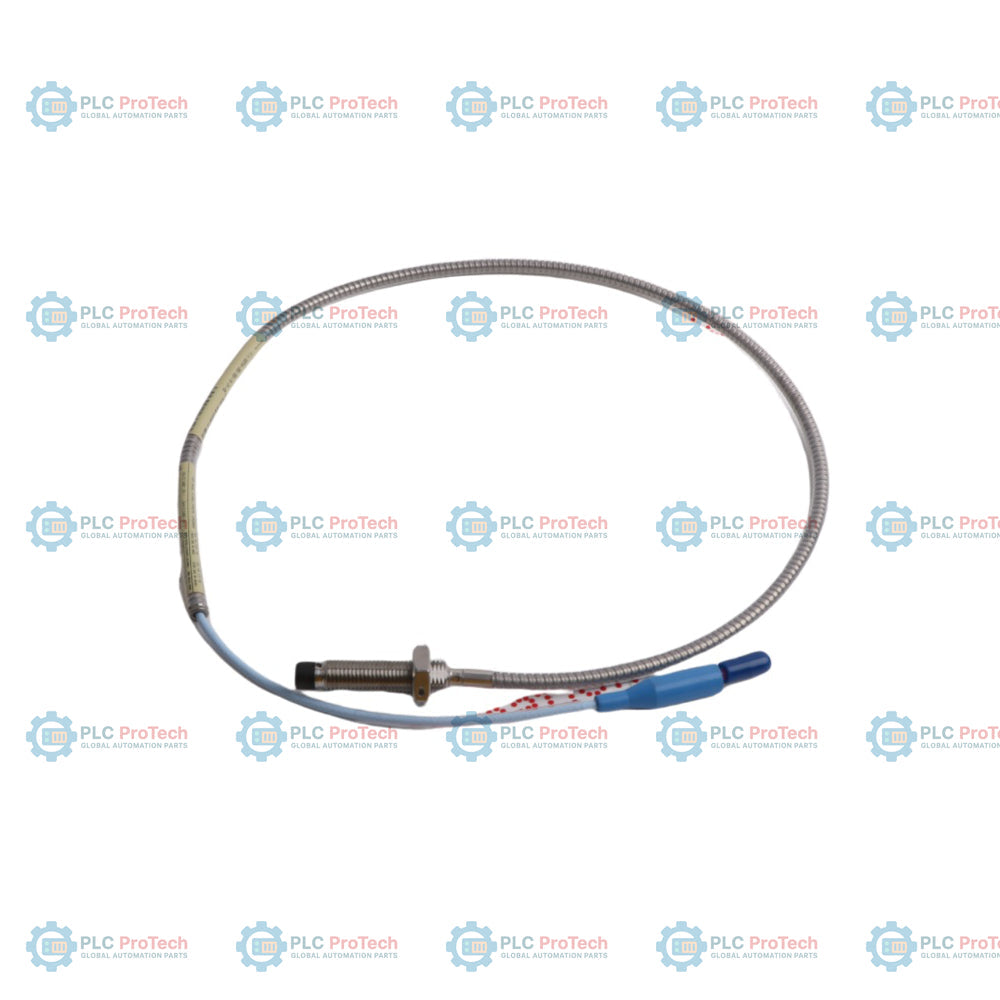

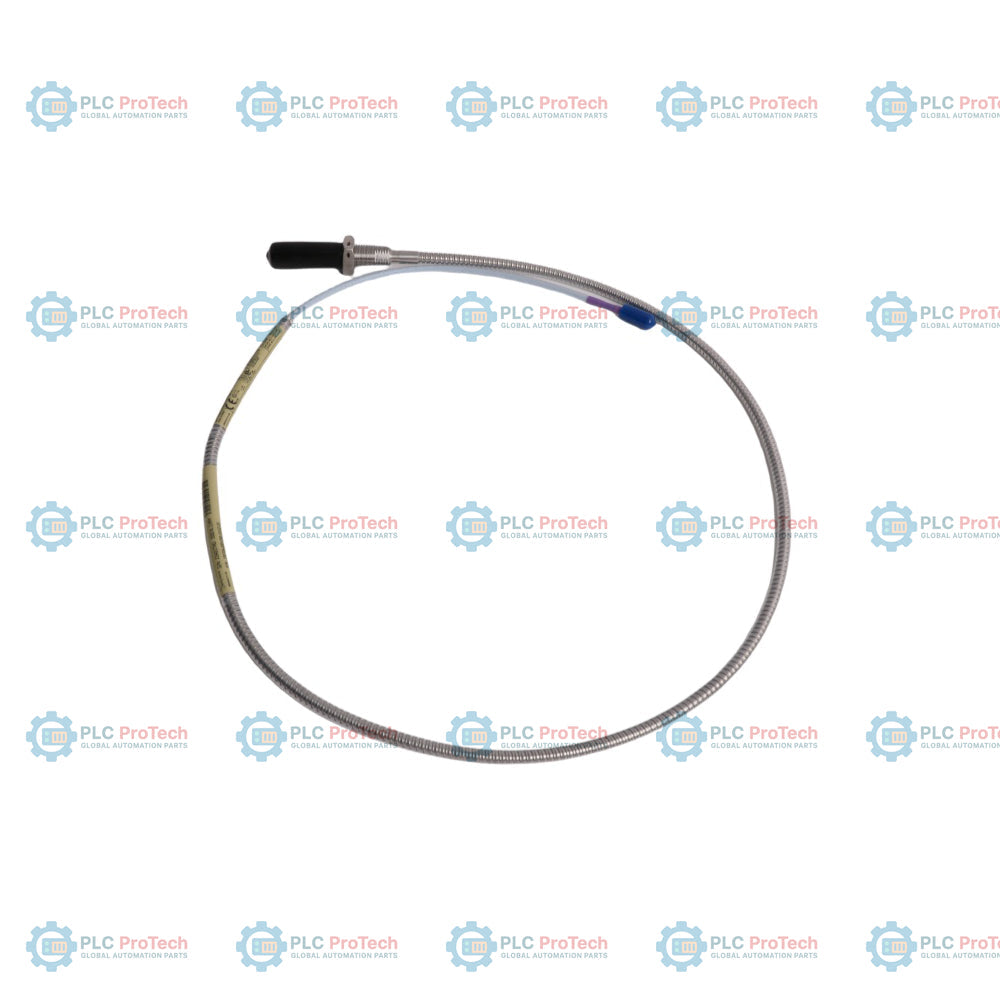

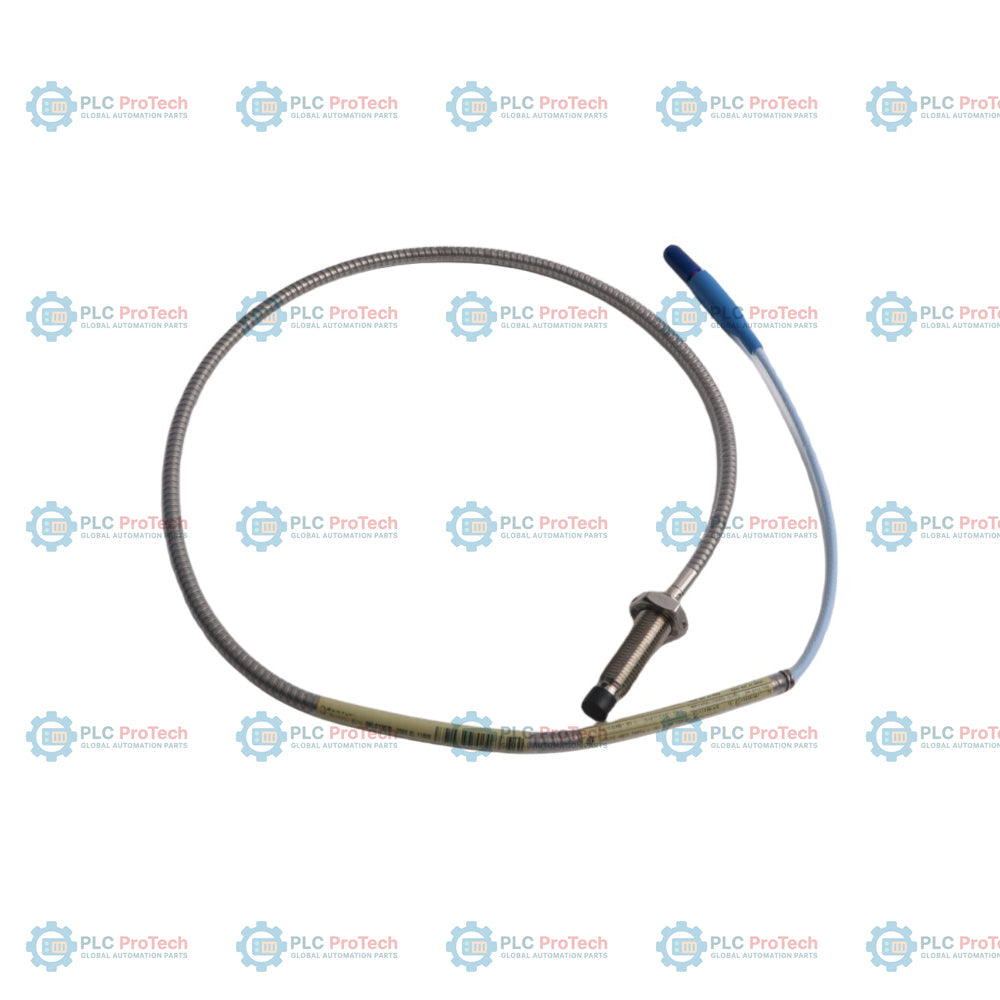

Bently Nevada 330704-000-100-10-02-00 3300 XL 11 mm Proximity Probe

Description

Fully threaded M14 x 1.5 metric armor-clad probe body (Option 330704) with a 100 mm case length (Option 100) and 0 mm unthreaded length (Option 000) specifies the 330704-000-100-10-02-00 3300 XL 11 mm Proximity Probe. This non-contacting eddy-current sensor features a 1.0-meter total cable length (Option 10) terminated in a miniature ClickLoc coaxial connector without a connector protector (Option 02), configured without hazardous area approvals (Option 00).

This specific configuration incorporates robust stainless steel armor to shield the standard FEP-insulated coaxial cable from mechanical wear and abrasive environments. Designed to operate as a part of a 3300 XL 11 mm Proximity Transducer System, this 11 mm tip probe offers a wide 4.0 mm (160 mil) linear range and output of 3.94 V/mm (100 mV/mil). It is fully compatible with the 330780 Proximitor Sensor and 330730 extension cable, providing non-contacting shaft displacement and axial position monitoring under harsh industrial conditions. Utilizing standard cable (Option 02) instead of FluidLoc ensures cost-effective performance in non-pressurized fluid environments, and the M14 x 1.5 threaded armored casing delivers high mechanical torque capability.

Features

• M14 x 1.5 Threaded Case with Stainless Steel Armor: Protective AISI 302 stainless steel armor over FEP jacket defends the coaxial cable from abrasive contact and mechanical damage.
• 0 mm Unthreaded Length (Option 000): Fully threaded M14 x 1.5 metric case profile ensures maximal mounting depth adjustments.
• 100 mm Case Length (Option 100): Direct threaded engagement length of 100 mm for installations requiring extended reach or deep mounting brackets.
• 1.0 Meter Total Length (Option 10): Convenient 1-meter integrated cable length matches 5.0 m or 9.0 m overall system configurations when combined with an extension cable.
• Miniature ClickLoc Coaxial Connector (Option 02): Gold-plated brass ClickLoc connector ensures secure, low-loss electrical coupling without the added bulk of an external connector protector.
• 11 mm Probe Tip Diameter: Large 11 mm tip design provides an extended 4.0 mm linear range, making it ideal for tracking large thermal expansions or axial shifts.
• No Agency Approvals (Option 00): Cost-optimized variant for non-hazardous locations and standard industrial environments.

Applications

• Steam and gas turbine rotor axial (thrust) position and axial displacement monitoring
• Ramp differential expansion measurements on industrial steam turbines
• Rod drop or piston rod position tracking on large reciprocating compressors
• Phase reference (Keyphasor) signal generation and zero speed / tachometer measurements
• Compressor and high-power fan shaft vibration analysis in utility and process industries

Ordering Information

Technical Specifications

Installation Guidelines

• Grounding and Shielding: Ensure proper isolation and shielding of cable connections to prevent ground loops and external electromagnetic interference.
• Thread Torque: Tighten M14 x 1.5 probe case to a maximum of 63.3 N-m (recommended torque is 21.1 N-m).
• Connection Guide: Hand-tighten the miniature coaxial ClickLoc connector (maximum torque 0.565 N-m).
• Minimum Bend Radius: Maintain a minimum bend radius of 25.4 mm (1.0 in) for armored probe cable routing to avoid physical damage to the coaxial core.
• Gap Setting: Target a recommended gap of 2.5 mm (100 mils) corresponding to approximately -10 Vdc output voltage during normal operation.

Compliance and Certifications

While this specific SKU (Option 00) does not carry hazardous area certifications, the 3300 XL 11 mm Proximity Transducer System series complies with the following standards:

• CE Mark: EMC Directive 2014/30/EU (EN 61000-6-2, EN 61000-6-4) and RoHS Directive 2011/65/EU.
• FCC: Complies with Part 15 of the FCC Rules for industrial EMC compliance.
• RoHS: China RoHS compliance with standard EFUP designation.
