Manufacturer: Emerson
Product No.: 1C31194G01
Country of origin:United States
Product Type: Valve Positioner Electronics Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 340g
Dimensions: 12.1cm x 5.2cm x 16.6cm
Shipping port: Xiamen
Warranty: 12 months

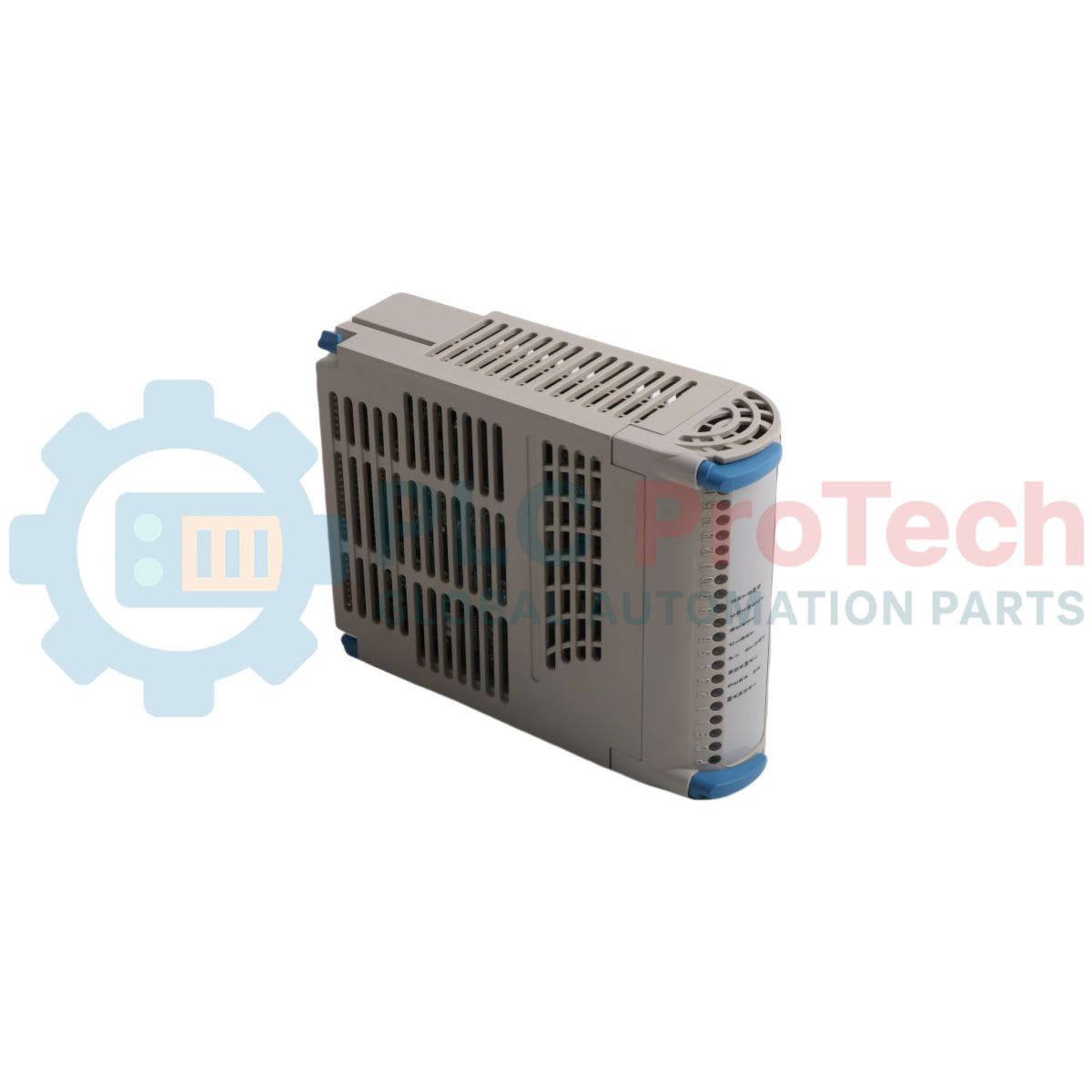

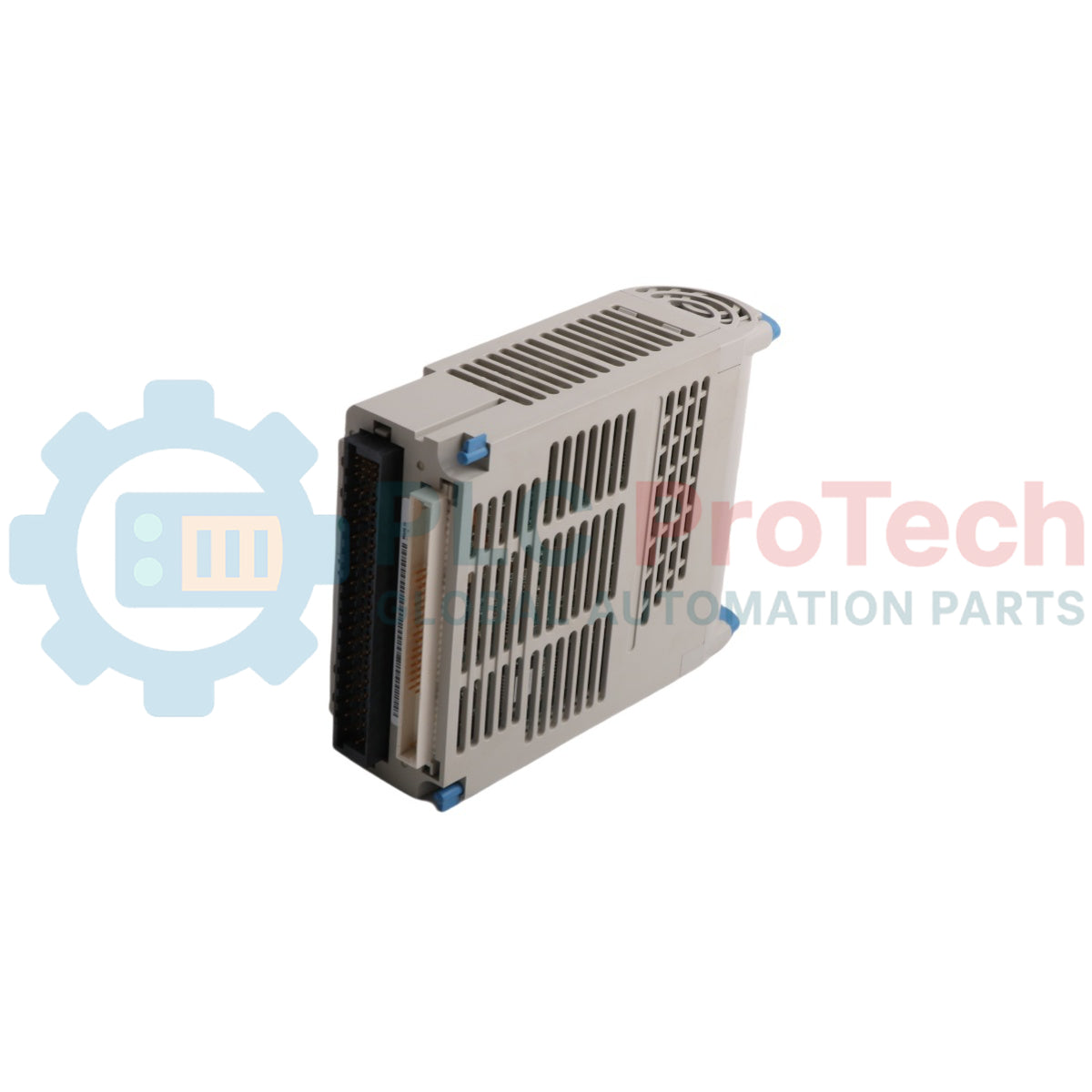

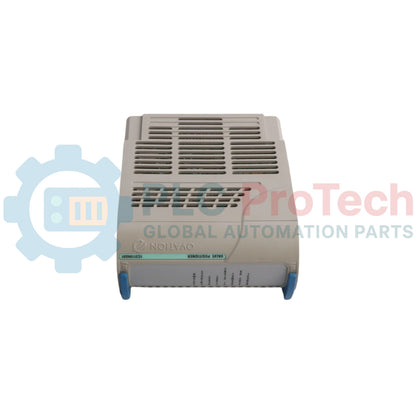

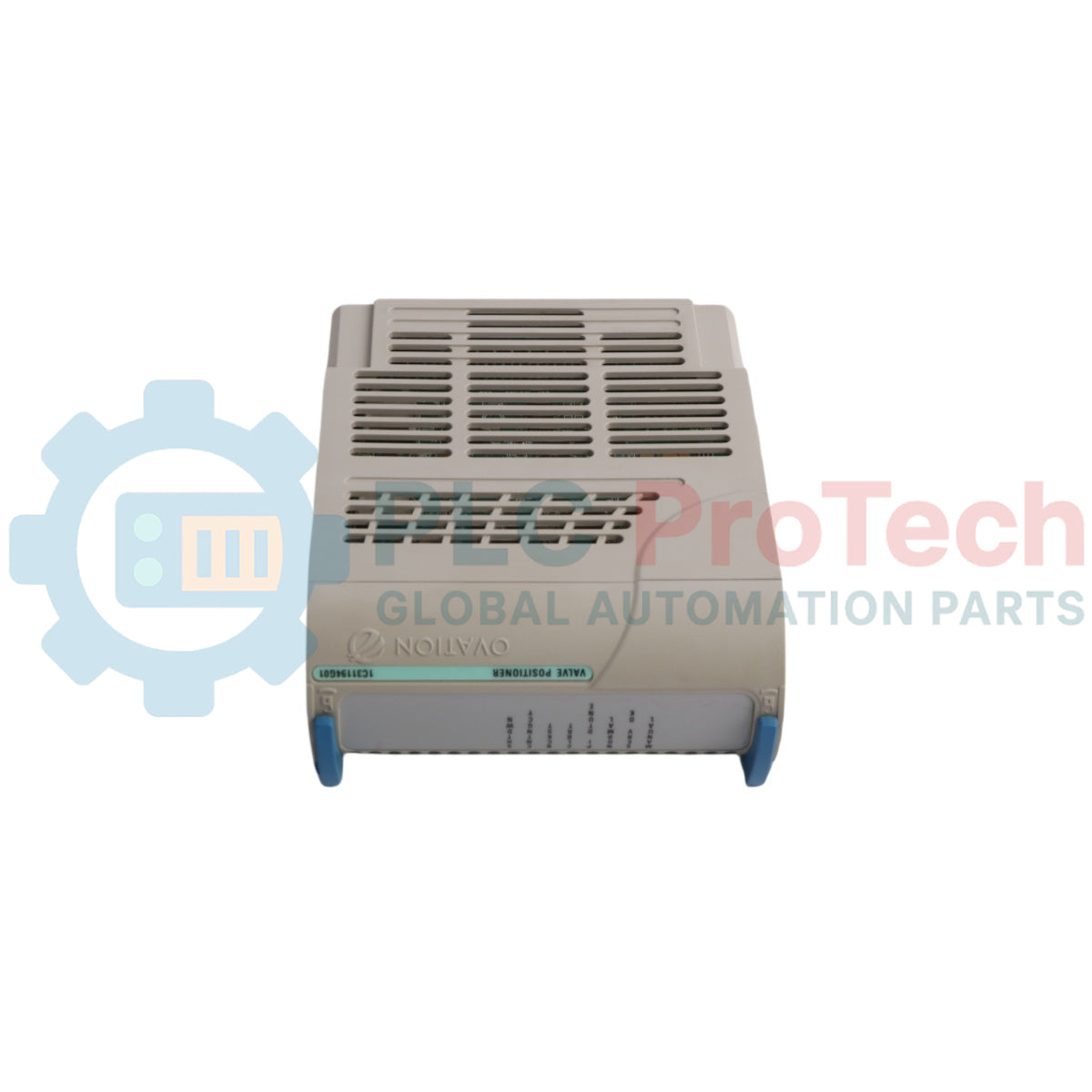

The 1C31194G01 (1C31194G01) is a Valve Positioner Electronics Module designed for the Emerson Ovation distributed control system, providing a fixed excitation signal for LVDT position feedback in electro-hydraulic actuator control applications. This module is widely installed in steam turbine governing systems, boiler feedwater control loops, and refinery valve regulation systems where precise position control is required for safe plant operation. It generates a stable excitation signal and processes feedback data to maintain accurate valve positioning during dynamic load changes and protective shutdown sequences. Reliable excitation output is essential for preventing valve instability and maintaining system availability in high-demand industrial environments.
The module provides a fixed 17 V AC peak-to-peak excitation at 1 KHz, which defines its compatibility with standard-response LVDT-based servo valve actuators.
The 1C31194G01 operates as the signal-conditioning and excitation generator component within the Ovation valve positioner subsystem.
Key configuration features include:
Fixed 17 V AC peak-to-peak LVDT excitation
Stable 1 KHz excitation frequency
Differential position feedback signal processing
Integrated shutdown digital input monitoring
High isolation between field interface and logic bus
Designed for single actuator control channel
Full compatibility with 1C31197 personality modules
The excitation signal characteristics determine the compatibility of the module with the specific servo actuator and feedback sensor configuration used in turbine and process control systems.
| Parameter | Specification |
|---|---|
| Model | 1C31194G01 |
| Brand | Emerson |
| Series | Ovation |
| Module Type | Valve Positioner Electronics Module |
| Origin | USA |
| Weight | 0.34 kg |
| Dimensions | 178 x 102 x 25 mm |
| Operating Temp | 0 to 60 deg C |
| Storage Temp | -40 to 85 deg C |
| Humidity | 0 to 95 percent non-condensing |
| Power Consumption | Typical 4.3 W, Maximum 6.5 W |
| LVDT Excitation Output | 17 V AC peak-to-peak at 1 KHz |
| Position Feedback Input | Maximum 25 V AC peak-to-peak |
| Input Impedance | 20 kOhm differential |
| Communication Interface | RS-485, RS-232 |
| Isolation Rating | 1000 V DC |
| Control Capacity | One electro-hydraulic actuator |
| Compatible Personality Module | 1C31197 Series |
What is the main functional difference between 1C31194G01 and G02?
The difference is the excitation signal configuration. The G01 provides 17 V AC peak-to-peak at 1 KHz, while the G02 provides higher frequency and voltage excitation.
Is this module used in turbine control systems?
Yes. It is specifically designed for turbine valve positioning and similar critical control applications.
Can this module be replaced without recalibration?
Calibration verification is recommended after replacement to ensure stable actuator response.
Verify LVDT wiring polarity before energizing the system.
Maintain proper grounding to prevent signal noise in high-power turbine environments.
Perform actuator stroke calibration after installation to confirm stable valve positioning.
