Technical Infrastructure & Site Operations Value

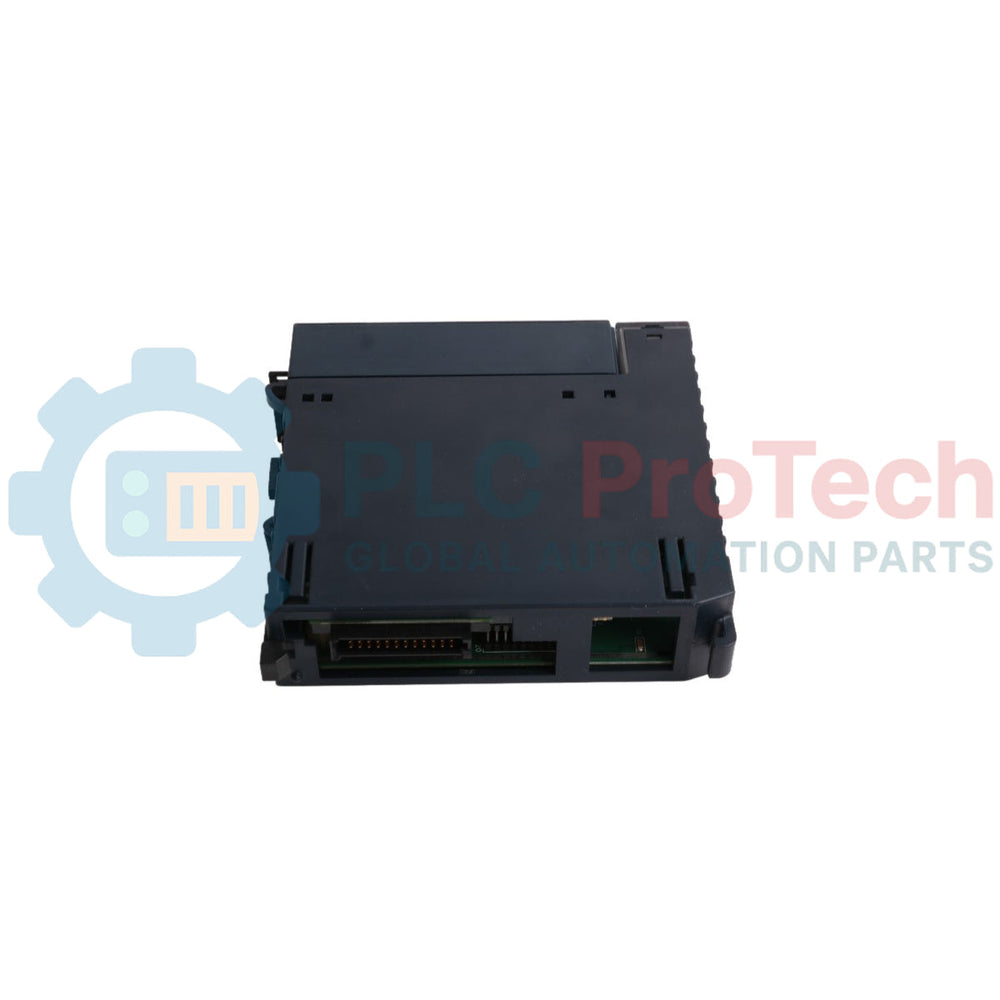

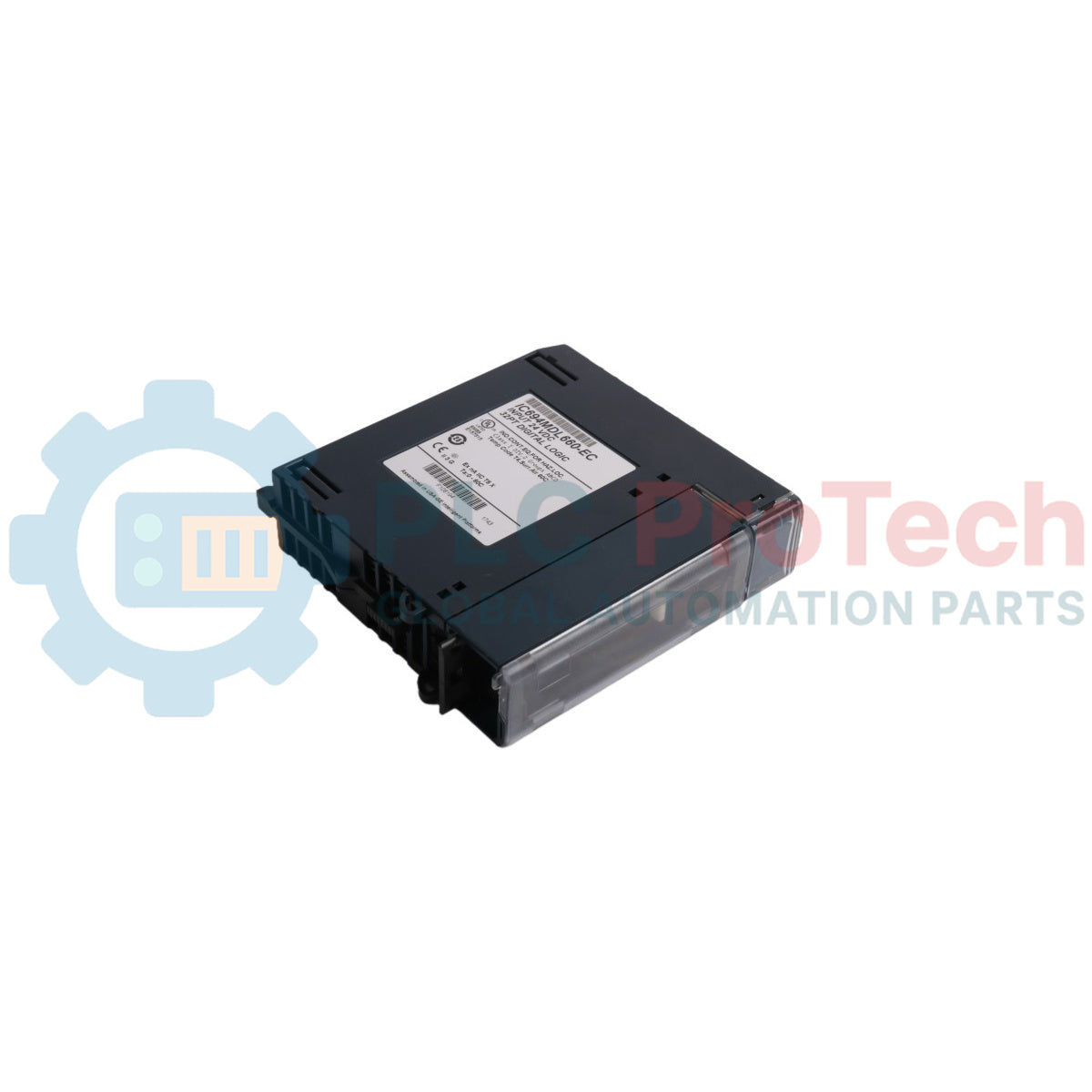

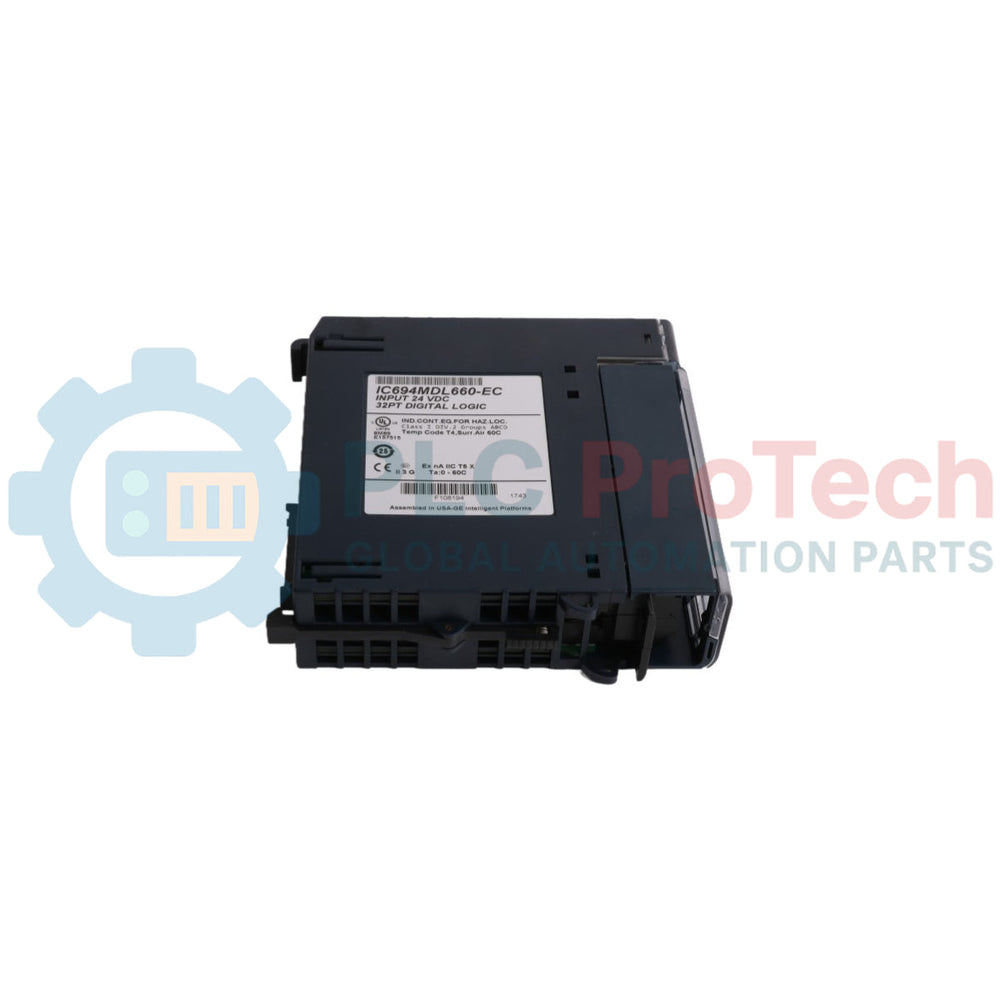

The IC694MDL660 (IC694MDL660) is a high-density, 32-point discrete input module engineered natively for the GE Fanuc PACSystems RX3i controller platform. Functioning as a dual-logic Positive/Negative Logic Input Module, this card utilizes flexible internal circuitry to process input thresholds up to an operational voltage ceiling of 30 VDC. Industrial processing plants, automated material handling hubs, and power infrastructure deployments utilize the IC694MDL660 (IC694MDL660) to reliably stream discrete on/off states from proximity sensors, physical pushbuttons, and field limit switches. By converting highly dynamic physical contact states into stable digital registry values, the module enables deterministic machine tracking. Its isolated circuit banks allow the control system to operate through localized electrical surges without processing interruptions, isolating severe ground faults, mitigating control loops failure, and preventing extended factory downtime.

Architectural Layout & Electrical Specifications

The hardware framework and system integration parameters of the IC694MDL660 discrete module establish clear operational boundaries within high-speed backplanes.

• Four Isolated Common Banks: Organizes the 32 discrete inputs into four electrically separate groups of eight channels. Each independent group features a dedicated user common return node, permitting concurrent processing of mixed positive logic (sourcing) and negative logic (sinking) external field configurations.
• Variable Noise Filtering Registers: Provisions seven software-selectable input filter profiles ranging natively from 0.5 ms up to 100.0 ms. Control programmers adjust these timing values directly within the module's assigned data references to match specific machine characteristics and cancel high-frequency contact bounce.
• Detachable Block Monitoring Matrix: Features automated interface verification contacts that monitor terminal block positioning in real time. A front-facing dual-color LED changes color states based on mechanical locking position, automatically relaying block loss or addition faults to the RX3i CPU.
• Backplane and Firmware Dependencies: Allocates a module identification code of 0x058h and consumes up to 300 mA from the internal 5 VDC logic bus. This low-voltage card requires an RX3i processor running firmware version 2.90 or greater and is completely barred from insertion into legacy Series 90-30 PLC backplanes.

Performance Data & Compliance Matrix

Hardware Lifecycle & Troubleshooting FAQs

How does the IC694MDL660 module manifest a critical failure if its firmware becomes missing or corrupted?When the internal operating firmware is missing or corrupted, all 32 channel LEDs and diagnostic indicators on the front face will remain completely OFF. Crucially, the RX3i CPU may continue scanning the module slot normally without pushing any automated warning flags or error codes to the system master log. For high-consequence, critical control operations, engineering teams must deploy software-level consistency logic instead of relying solely on baseline diagnostic fault messaging to flag inoperability.

What specific electrical issues cause the IC694MDL660 input card to enter a sudden "lights out" state during power transitions?This dead state typically occurs following a rapid sequence of system power cycles occurring with intervals shorter than 1 second. It can also be triggered if external control loops feed utility power through mechanical switching relays that exhibit contact bounce. These fast micro-power fluctuations disrupt the internal processing chips during initialization. To rectify this, technicians must cycle the main power clean and retry the operation.

Is it normal for a "Loss of Terminal Block" fault message to trigger during live hot-swapping?Yes, on rare occasions, executing a live hot insertion or mechanical removal of the module can trick the tracking pins into logging a transient Loss or Addition of Terminal Block alarm message. If the maintenance technician verifies that the removable terminal block assembly is physically present, flush, and properly locked into place, this fault code can be safely ignored.

Field Engineering & Installation Protocol

• Logic Interlock Group Wiring Architecture:When installing field wiring to the 36-point layout, verify that each group of eight inputs has its own dedicated common line mapped to its designated common terminal node. Connect Common 1–8 to Terminal 9, Common 9–16 to Terminal 18, Common 17–24 to Terminal 27, and Common 25–32 to Terminal 36. Do not jumper different group commons together if they operate on separate field loops, as this bypasses the module's 250 VAC continuous group-to-group optical safety isolation.

• Power Isolation and Contact Bounce Prohibitions:Never route primary utility power to the RX3i control rack through uncompensated mechanical relays or toggle switches prone to high-frequency contact bounce. Rapid power micro-interruptions of durations less than 1 second can corrupt the initialization sequence of the IC694MDL660, causing it to fail to start up. If a firmware flash operation is interrupted or fails midway, isolate power to the slot, check the installation integrity, and re-run the software utility to rewrite the baseline system files.

• Terminal Block Torque and Retention Guidelines:When utilizing the IC694TBB032 box-style block, strip conductor wire jackets back by 8 mm and torque the mechanical screws to 0.5 N-m (4.4 inch-lbs). In areas subject to continuous industrial machine vibration, substitute the box block for the IC694TBS032 spring-clamp terminal block to eliminate mechanical back-out and maintain steady communication contacts with the core processing rack.
