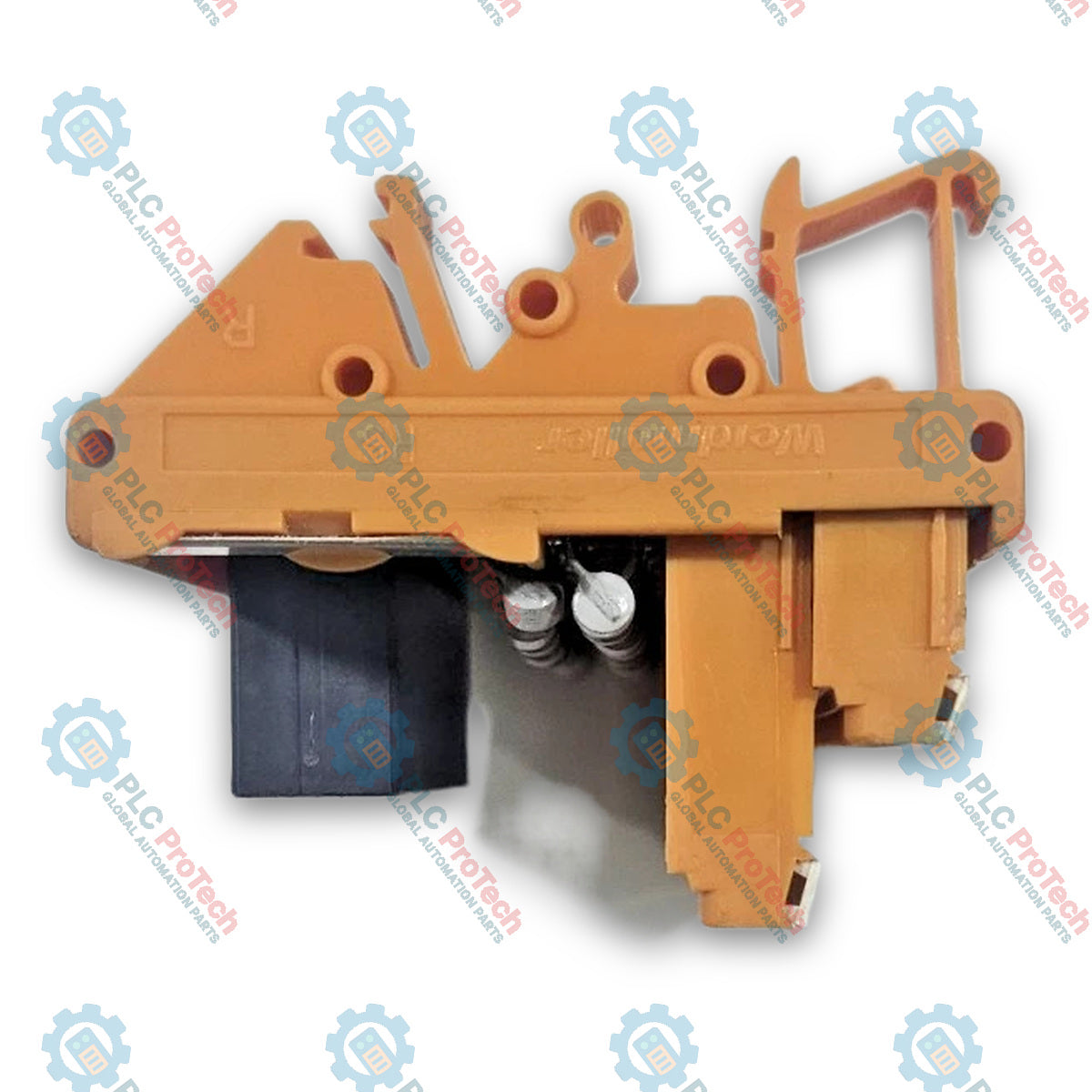

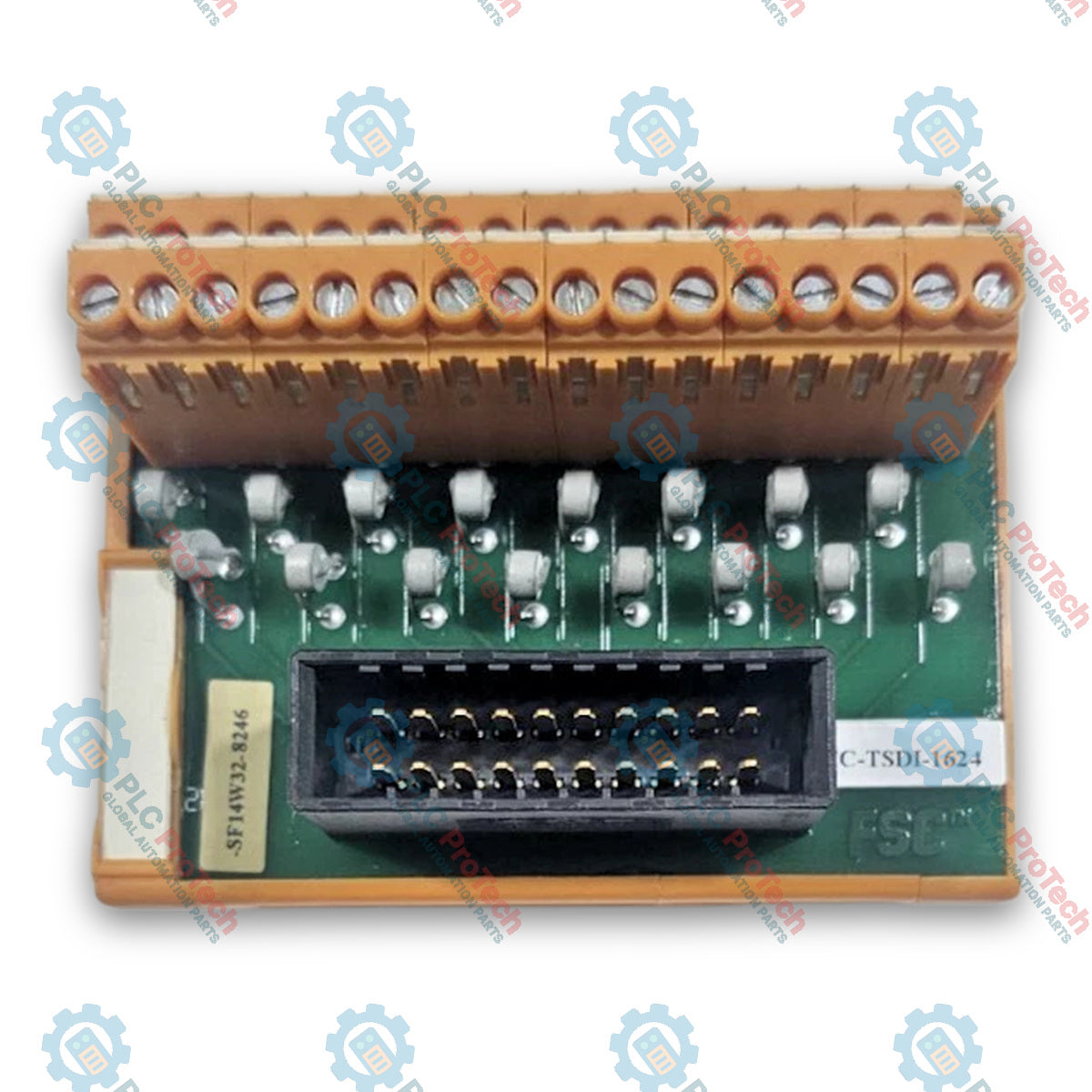

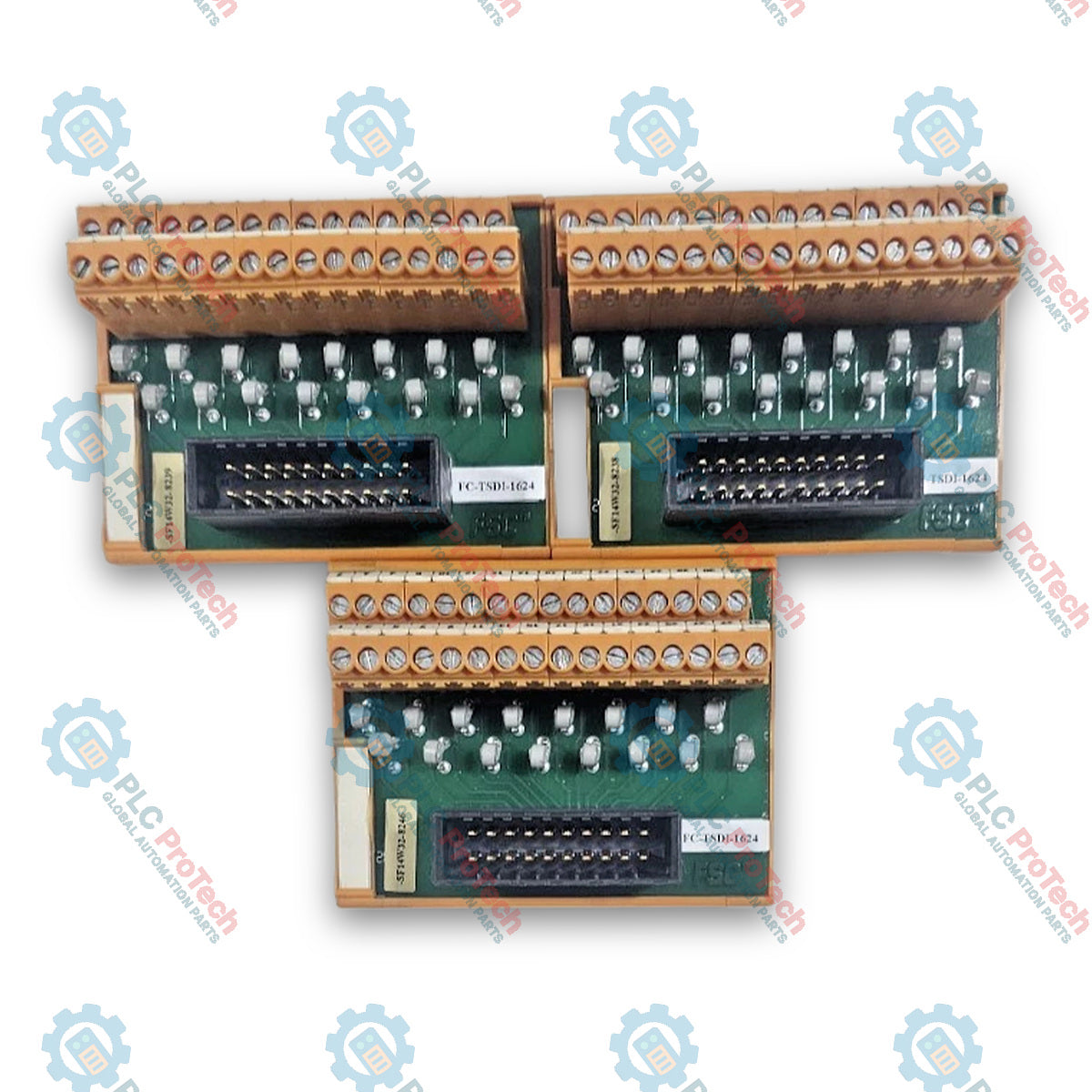

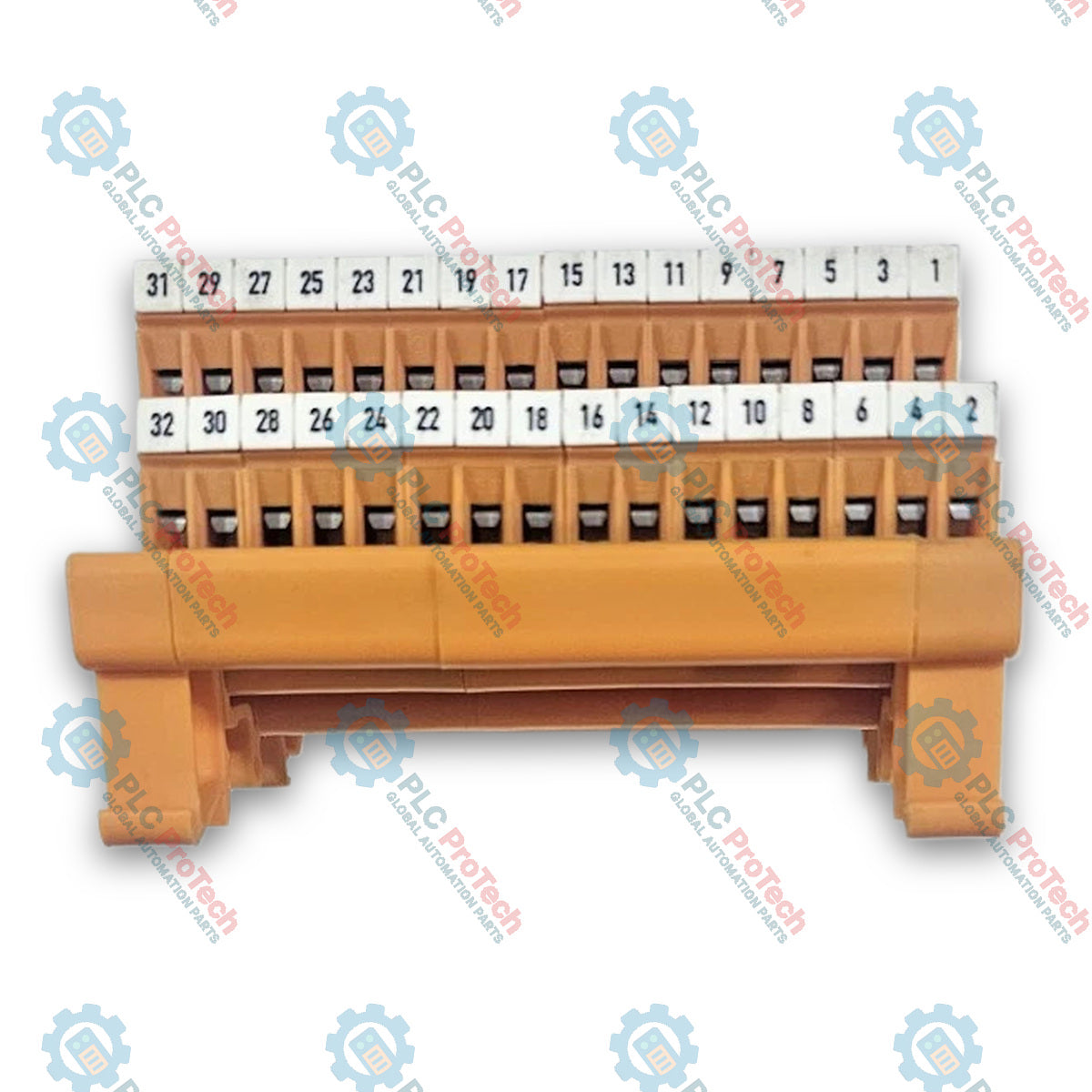

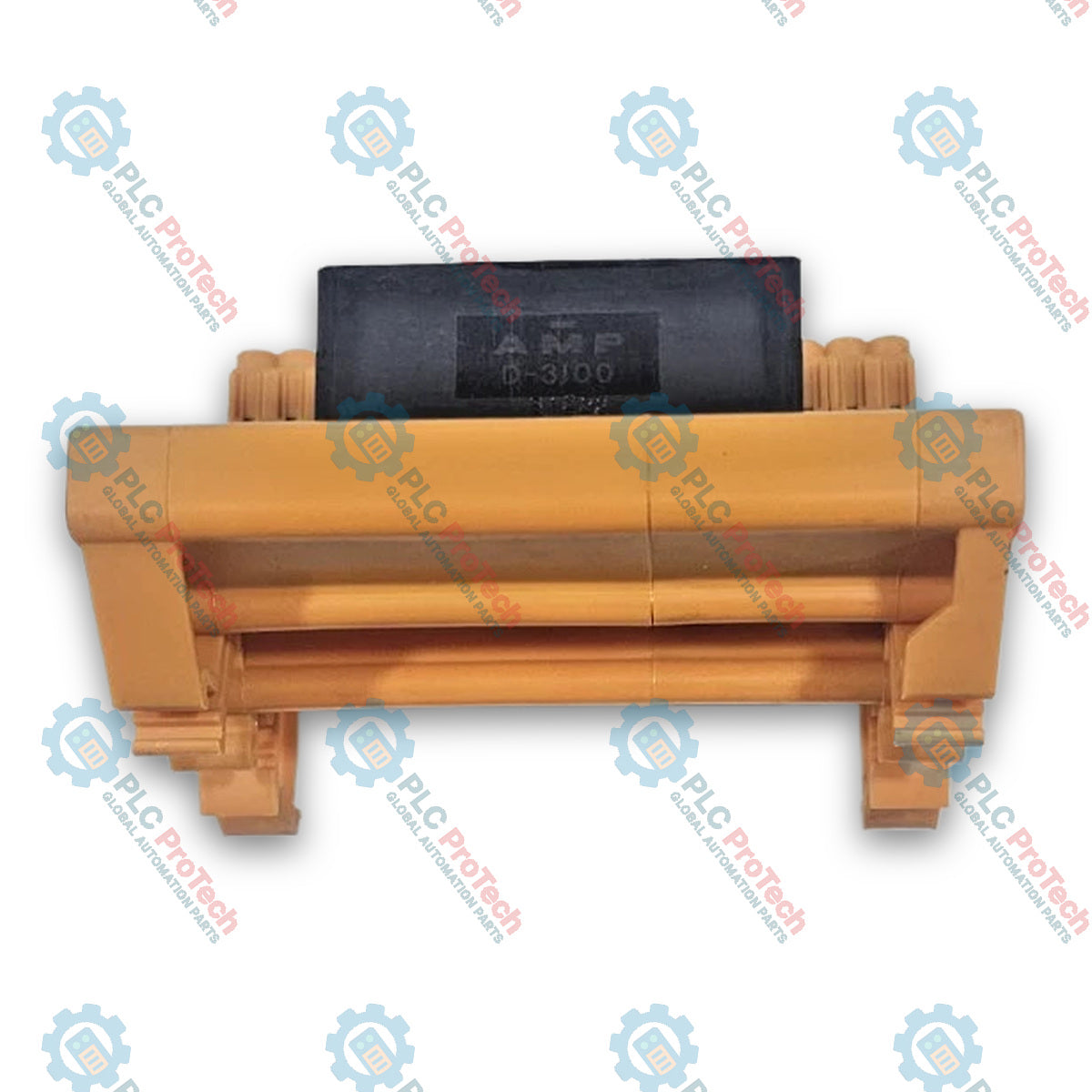

Honeywell FC-TSDI-1624 Digital Input Field Termination Assembly

Description

The Honeywell FC-TSDI-1624 is a 16-channel safe digital input Field Termination Assembly (FTA) engineered for high-integrity process safety applications within the Honeywell Safety Manager platform. Serving as the primary wiring interface between field switch devices and the Safety Manager system, the FC-TSDI-1624 terminates incoming field signals and routes them via System Interconnection Cables (SIC) directly to the corresponding Safety Digital Input Module (such as the FC-SDI-1624).

Featuring factory-applied conformal coating (designated by the FC prefix), this Field Termination Assembly is built to withstand harsh, humid, and corrosive industrial environments. Operating on a 24 Vdc nominal field voltage architecture, the FC-TSDI-1624 provides rugged, organized screw terminal connections for field instrumentation including pushbuttons, pressure switches, level switches, and discrete trip contacts used across critical safety loops.

Features

• Conformal-Coated Assembly: Built with protective conformal coating (FC designation) to protect PCB components against moisture, dust, and atmospheric pollutants in demanding plant locations.
• 16-Channel Field Termination: Provides dedicated screw terminal points for 16 discrete digital input channels operating at 24 Vdc field loop power.
• Seamless Safety Manager Integration: Connects seamlessly to Safety Digital Input Modules using standardized System Interconnection Cables (FS-SIC-0001 series).
• Simplified Field Wiring Management: Streamlines cabinet cable management and field termination organization, reducing wiring density and installation time.
• Compact Panel Mounting: Features a compact DIN-rail / mounting plate layout designed to optimize enclosure space within field termination cabinets.

Applications

• Emergency Shutdown Systems (ESD): Terminates field lines for emergency stop buttons, automated trip valves, and critical pressure/temperature switches.
• Fire & Gas (F&G) Systems: Connects discrete field detectors, manual call points, and alarm contacts to the Safety Manager logic solver.
• Burner Management Systems (BMS): Safe field wiring termination for fuel valve limit switches, flame switches, and permissive interlocks.
• Turbomachinery Protection: Interfaces discrete field trip signals and status feedback for compressor and turbine safeguarding systems.

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Environmental & Model Check: Confirm the unit has the FC-TSDI-1624 conformal coating rating required for the target environment before installation.
2. Mounting: Securely mount the assembly onto the cabinet DIN rail or mounting panel within the dedicated Field Termination Cabinet.
3. Power Isolation: Ensure field transmitter loop power and cabinet main power are isolated prior to landing field wiring.
4. Field Wiring Termination: Connect incoming field sensor/switch wires to the corresponding screw terminals according to system loop diagrams. Ensure correct wire stripping and torque.
5. System Interconnection: Connect the System Interconnection Cable from the assembly's system port to the corresponding slot port on the Safety Manager I/O rack.

Configuration / Commissioning / Replacement

Commissioning Recommendations

• Perform point-to-point continuity and polarity checks from the field switch through the FC-TSDI-1624 terminal block to the Safety Manager I/O rack.
• Verify 24 Vdc loop power levels at the terminal board prior to energizing safety logic channels.

Replacement Recommendations

• Tagging & Labeling: Label all field terminal wiring pairs and system cables prior to disconnecting a unit scheduled for maintenance.
• Exact Replacement: Replace with an identical conformal-coated FC-TSDI-1624 assembly to maintain environmental and safety approvals.

Compliance and Certifications

• Safety & Electrical Approvals: CE, TUV, UL, CSA, FM.
