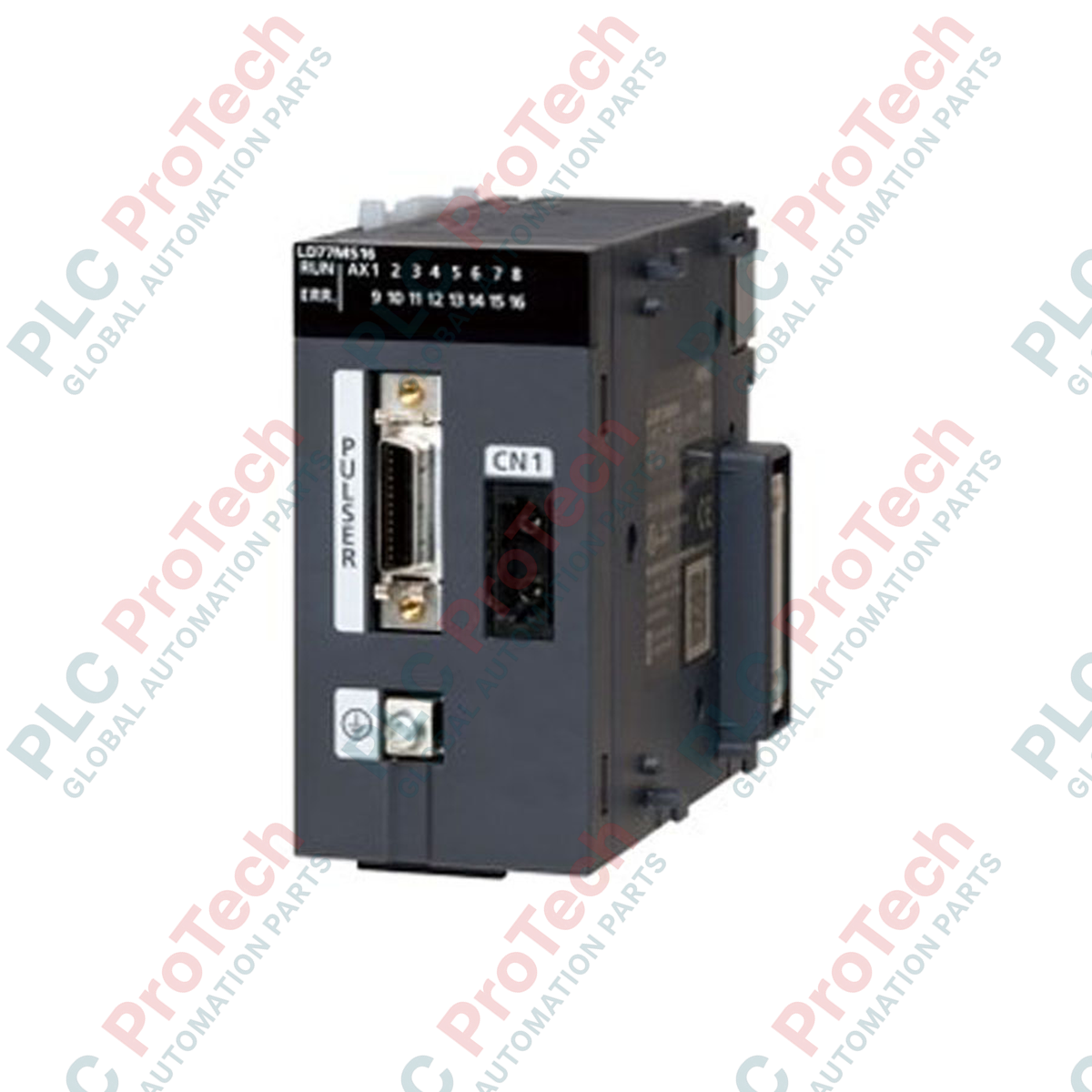

Mitsubishi Electric LD77MH16 MELSEC L Series Simple Motion Module

Description

Designed for high-speed multi-axis synchronization within the MELSEC L series platform, the Mitsubishi Electric LD77MH16 provides advanced motion, positioning, and synchronous control via a high-performance fiber optic network. This high-density positioning module supports up to 16 axes of motion over SSCNET III/H, delivering robust noise immunity and rapid command transmission for demanding industrial machinery. Featuring built-in digital inputs for high-speed registration, the device functions as a central command interface to bridge PLC logic with servo amplifier execution without sacrificing backplane performance.

Features

• 16-Axis Control Capability: Manages up to 16 physical servo axes over a single network loop.
• SSCNET III/H Communication: High-speed optical fiber network running at 50 Mbps with complete noise immunity.
• Integrated Digital Inputs: Features 4 isolated input channels supporting shared positive/negative common setups.
• Advanced Synchronous Control: Supports electronic cam, gear, phase compensation, and rotary cutter software configurations.
• High-Speed Registration: Inputs process signals with a response time of 1 ms or less for precise product marking.

Applications

• Multi-Axis Packaging Systems: Real-time electronic cam profiling and synchronous feed cutting.
• High-Speed Labeling Machines: Utilizing quick-response registration inputs to align print marks.
• Material Handling & Gantries: Interpolation and coordinated motion for pick-and-place systems.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The LD77MH16 is the 16-axis variant of the MELSEC L positioning line. For systems requiring fewer axes, the hardware-identical LD77MH4 (4-axis) serves as a drop-in software-subset alternative. When migrating software configurations from Q-series QD77MS modules, confirm that buffer memory allocations match, as the L-series architecture maps configuration blocks slightly differently within the global address space.

Application Pitfalls & Engineering Notes

The fiber-optic system relies entirely on optical signal integrity. Ensure that the MR-J3BUS optical cables do not exceed their rated minimum bend radius. Excessively sharp bends cause high signal attenuation, leading to intermittent communication dropouts, "SSCNET Frame Error" faults, or unexpected servo disconnects under high-vibration operating conditions.

Commissioning & Wiring Tips

When configuring absolute encoder systems, ensure that absolute coordinates are initialized correctly in the Simple Motion Setting Tool. Ensure the 24 VDC external registration inputs are routed using shielded, twisted-pair cabling. Keep these lines separated from high-current AC servo power runs to eliminate capacitive coupling, which can cause false registration triggers.

Installation Guidelines
