DELTA VFD007C43A-21 C2000 Plus Series Field Oriented Control AC Drive

Advanced Vector Drive Overview

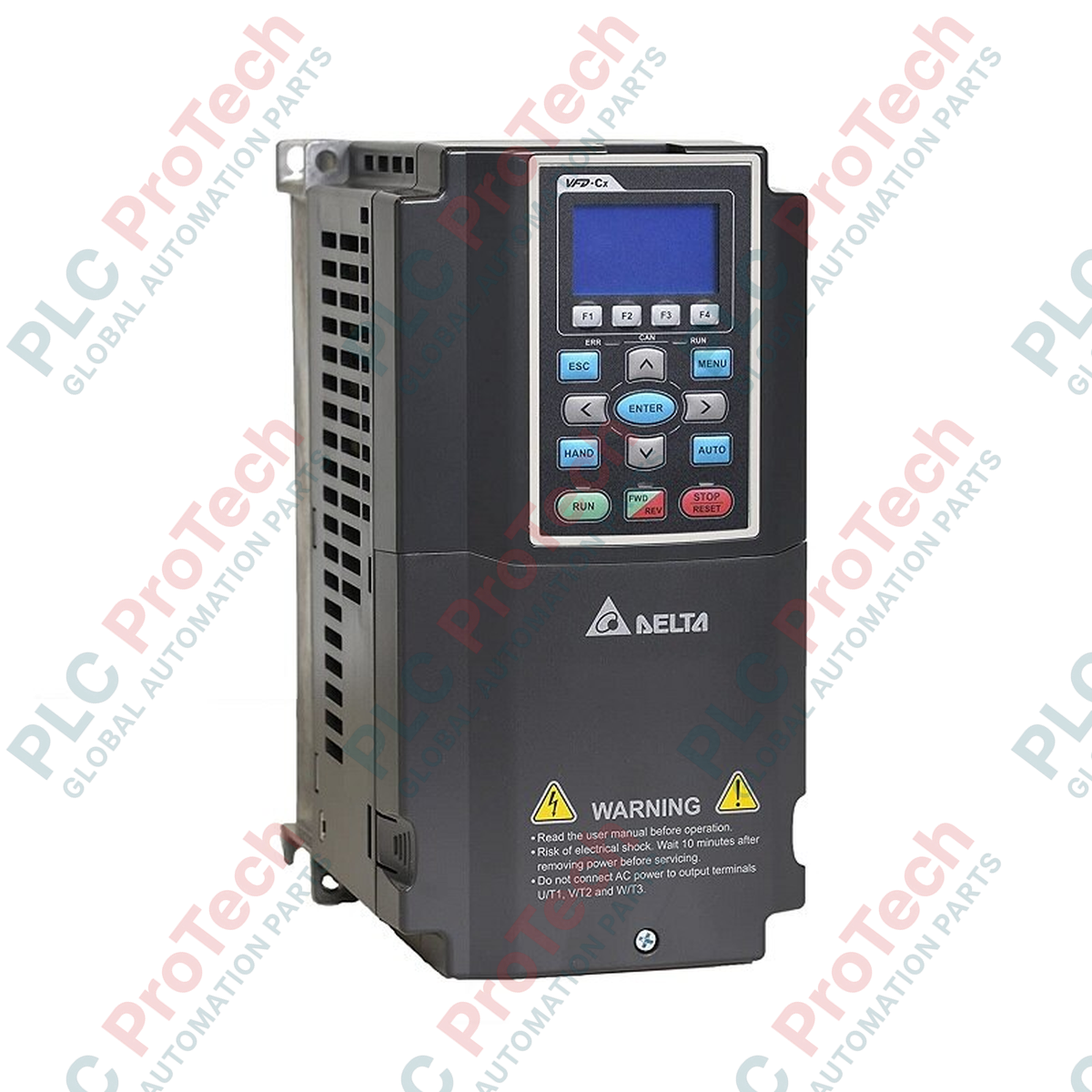

The VFD007C43A-21 (VFD007C43A-21) is a high-performance, intelligent variable frequency drive engineered by Delta within the enhanced C2000 Plus Series platform. Rated for a 0.75 kW (1 HP) motor capacity, this premium field-oriented control drive is designed to manage complex automation processes requiring high precision, dynamic speed regulation, and substantial low-speed torque. In continuous-duty industrial environments such as automated packaging lines, high-speed textile machinery, precision material handling hoists, and centralized pump arrays, the VFD007C43A-21 ensures absolute process continuity and drastically minimizes unscheduled downtime through its advanced permanent magnet motor algorithms, integrated PLC features, and comprehensive structural protection. Its versatile power electronics configuration adapts to changing plant floor loads, delivering exceptional energy efficiency and deterministic motor control.

Hardware Identification & Configuration Breakdown

Delta utilizes a structured alphanumeric nomenclature matrix to define the precise structural and performance characteristics of the C2000 Plus drive series:

• VFD: Variable Frequency Drive (Core Product Group)

• 007: 0.75 kW (1 HP) applicable motor power capability

• C: C2000 / C2000 Plus high-performance vector control series

• 43: 460 V AC, 3-phase incoming utility line voltage

• A: Standard wall-mountable mechanical chassis configuration

• 21: Integrated IP20 environmental protection and NEMA 1 industrial enclosure compliance layout

Engineering Specification Matrix

The following performance parameter table outlines the core electrical, mechanical, and environmental boundary limits verified for system integration:

Technical Knowledge Base & Common Inquiries

What is the functional difference between the Heavy Duty (HD) and Super Heavy Duty (SHD) ratings?

The dual-rating structure allows engineers to optimize the drive based on the machine load profile. The Heavy Duty (HD) configuration permits a continuous current output of 3.0 Amps and is ideal for standard industrial applications like centrifugal pumps and conveyors. The Super Heavy Duty (SHD) mode constrains continuous current to 1.7 Amps but recalibrates the internal IGBT thermal tracking algorithms to withstand severe, repetitive transient torque shocks, optimizing the drive for extreme industrial cycles like metal stampers or heavy crushers.

Can the detachable keypad be mounted externally, and does it support parameter copying?

Yes, the built-in keypad can be unclipped from the drive chassis and mounted on the exterior door of an electrical enclosure using a standard RJ45 patch cable. The keypad incorporates non-volatile EEPROM memory, enabling technicians to upload, store, and clone complete parameter maps from one drive unit to another without a PC.

Does this drive series provide built-in positioning functionality?

Yes, the C2000 Plus drive platform includes a native, built-in PLC execution layer (up to 10k steps) alongside advanced position control algorithms. When paired with an optional encoder feedback card, the drive can execute precise point-to-point positioning loops, homing sequences, and electronic gear ratio tracking natively.

Field Commissioning & Safety Guidelines

• Enclosure Thermal Management Clearances: Mount the IP20 / NEMA 1 chassis vertically onto a rigid, vibration-free backpanel inside the electrical cabinet. Maintain a strict minimum clearance boundary of at least 50 mm on both sides and 120 mm above and below the cooling fan assembly to permit natural convective airflow. Ensure the ambient air temperature stays within the recommended factory limits.

• Power Terminal Torques & Wiring Protocol: Connect all main incoming AC lines (R/L1, S/L2, T/L3) and high-frequency PWM motor leads (U/T1, V/T2, W/T3) using the factory-specified terminal torque limits. Loose connections create localized contact resistance, causing serious thermal breakdown, erratic phase-to-phase voltages, and accidental fault tripping during high 3.0 Amp current spikes.

• High-Frequency Noise Suppression Layout: Always route motor power runs using continuous, high-grade braided shielded VFD cables. Terminate the copper shield tightly to the drive's internal grounding block and the motor frame chassis. This low-impedance pathway safely dampens high-frequency PWM electromagnetic interference (EMI), preventing cross-talk into low-voltage sensor loops and communication networks.
