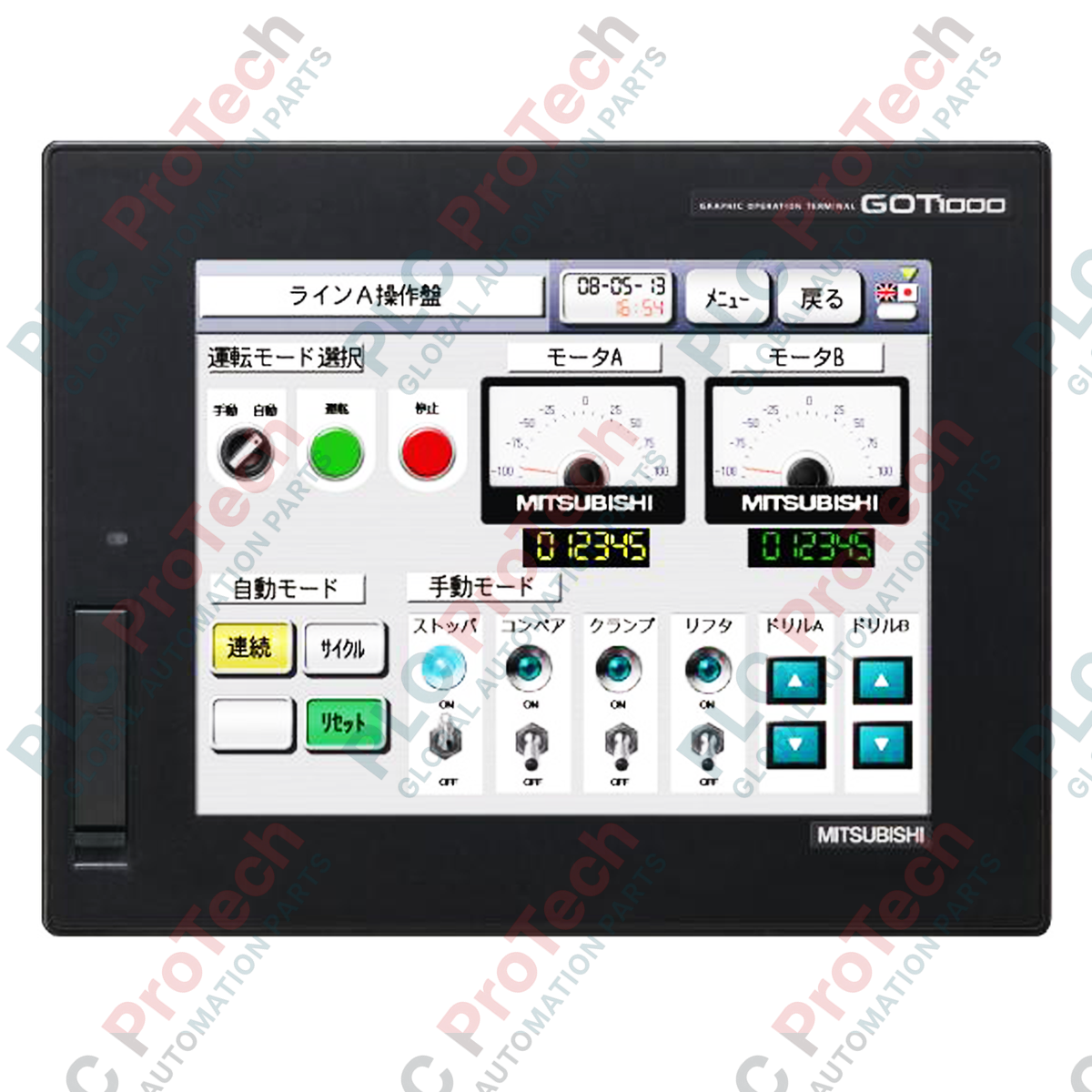

Mitsubishi Electric GT1665M-VTBD GT1000 HMI Touch Panel

Description

To facilitate high-performance operator interaction and machine visualization, the GT1665M-VTBD serves as a rugged human-machine interface within the GOT1000 series platform. This 8.4-inch high-resolution TFT display module supports multi-channel communications, enabling simultaneous connection to multiple automation devices such as PLCs, frequency inverters, and servo drives. Designed with a black bezel and powered by a nominal 24V DC supply, the unit provides a robust resistive touch interface optimized for harsh industrial environments. Integrated USB, Ethernet, and serial interfaces ensure seamless data transfer, project uploading, and peripheral integration without requiring external adapter modules.

Features

• 8.4-inch VGA TFT color LCD display showing up to 65,536 colors.
• Analog resistive touch panel supporting flexible touch key layouts.
• Built-in communication ports: Ethernet, RS-232, and RS-422/485.
• Integrated USB host and device ports for programming and data logging.
• Compact Flash (CF) card slot for memory expansion and project backup.
• 15 MB of internal flash memory for screen design data.
• IP67F-rated front panel protection against dust and water ingress.

Applications

• Automotive manufacturing and assembly lines.
• Water and wastewater treatment facility control.
• Food and beverage processing systems.
• Packaging and material handling machinery.
• HVAC and environmental control monitoring.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Ensure the panel cutout matches official dimensional specifications to preserve the IP67F front seal.
• Maintain at least 100 mm of clearance around the rear of the module for proper natural convection cooling.
• Ground the unit using the dedicated functional ground terminal with a wire of 2 mm or larger (Class D grounding).
• Avoid running communication cables in parallel with high-voltage AC power lines to prevent signal interference.

Compliance and Certifications

• CE
• UL
• cUL
• KC
