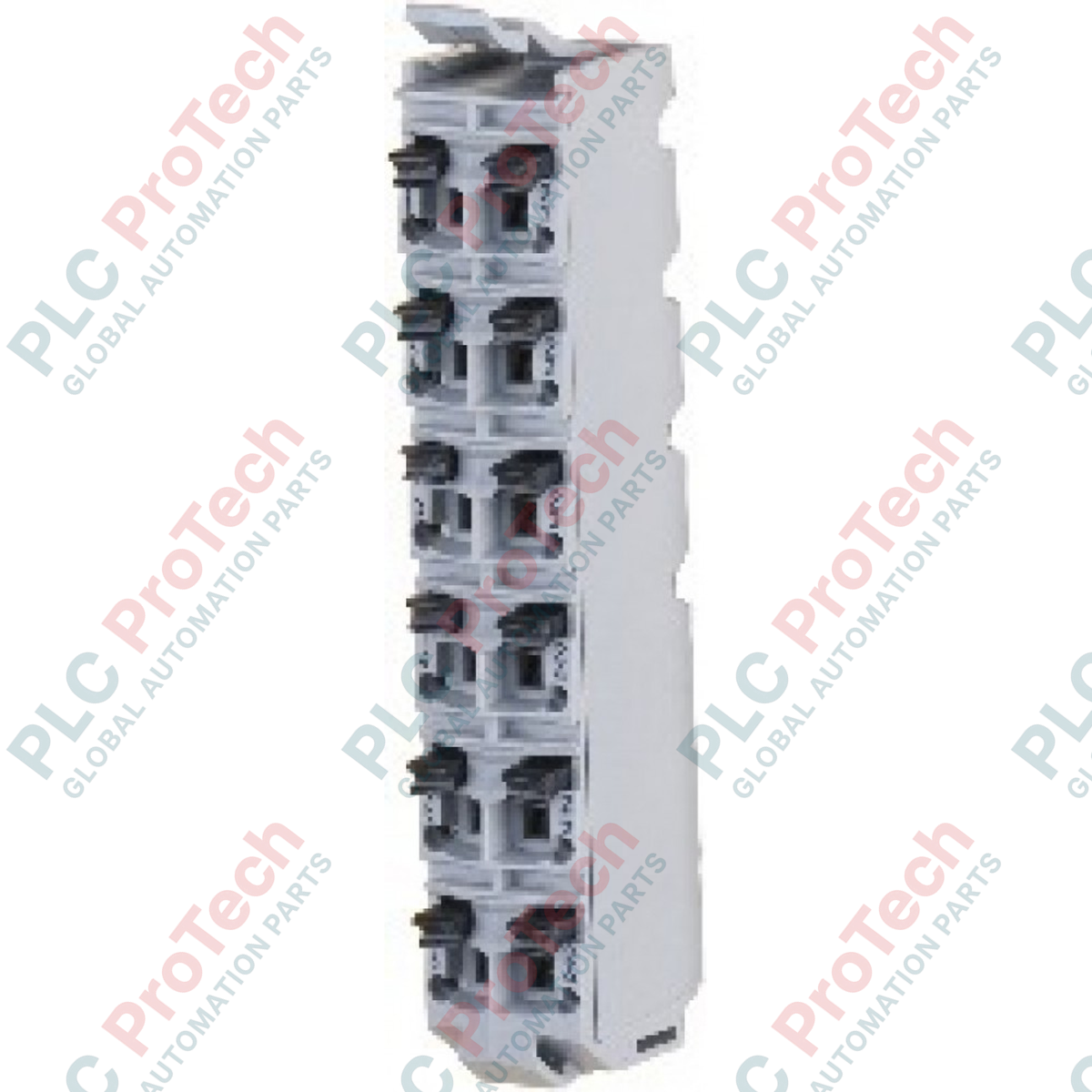

X20TB12 B&R X20 Series 12-Pin Push-In Terminal Block

Product Overview

The X20TB12 (X20TB12) is a high-density 12-pin terminal block specifically engineered for the B&R X20 I/O system. Designed to streamline cabinet assembly and field wiring, this module utilizes advanced push-in technology, allowing for tool-free installation of solid or ferruled copper conductors. The X20TB12 acts as the critical physical interface between external field sensors/actuators and the X20 electronics, ensuring a gas-tight, vibration-resistant connection. Its robust design is rated for operational environments ranging from standard industrial automation to high-power distribution, providing a reliable electrical path while maintaining the compact modularity that defines the B&R X20 architecture.

Technical Configuration

The X20TB12 hardware is optimized for high-speed installation and long-term maintenance efficiency. The integrated "Push-in" terminal clamp mechanism requires a typical insertion force of only 10 N per contact, significantly reducing technician fatigue during large-scale deployments. To ensure maximum electrical conductivity and safety, this terminal block is strictly rated for use with copper wiring only. The internal contact geometry is designed to handle a nominal voltage of 240 VAC, with a maximum dielectric withstand capability of 300 VAC. Every contact point is engineered to support substantial current loads, ensuring that even power-intensive I/O configurations remain stable without thermal degradation of the housing.

Technical Specifications

Technical FAQs

Can I use aluminum wires with the X20TB12 terminal block?

No. The X20TB12 is strictly designed for copper wires only. Using aluminum wires can lead to galvanic corrosion and increased contact resistance, which may result in localized overheating or connection failure.

Does this terminal block require a screwdriver for wiring?

For solid wires or wires with ferrules, no tool is required; they can be pushed directly into the terminal. To remove a wire or to insert fine-stranded wires without ferrules, a standard small flat-head screwdriver is used to depress the release lever.

What is the correct stripping length for the field wiring?

For an optimal gas-tight connection, wires should be stripped to a length between 7 mm and 9 mm. Stripping too short may result in the insulation being clamped, while stripping too long leaves exposed live copper, increasing the risk of short circuits.

Engineering & Installation Guide

• Wiring Precision: When preparing cables for the X20TB12, ensure that the wire ends are clean and straight. If using ferrules, select the correct crimping profile (square or hexagonal) to ensure the ferrule fits smoothly into the 12-pin layout without stressing the neighboring terminals.

• Vibration Management: The push-in mechanism is inherently vibration-resistant. However, in high-vibration environments such as marine propulsion or stamping presses, ensure that the incoming cable harness is properly strain-relieved within 10 cm of the terminal block to prevent mechanical leverage from weakening the internal spring contacts.

• Voltage Clearance: Given the 240 VAC nominal rating, ensure that wiring for high-voltage signals is physically separated from low-voltage DC signals within the cable trunking to prevent inductive coupling and ensure compliance with local electrical safety codes.
