C9900-G005 | BECKHOFF | Extension à bouton-poussoir pour panneaux multi-touch intégrés CP2xxx

Description

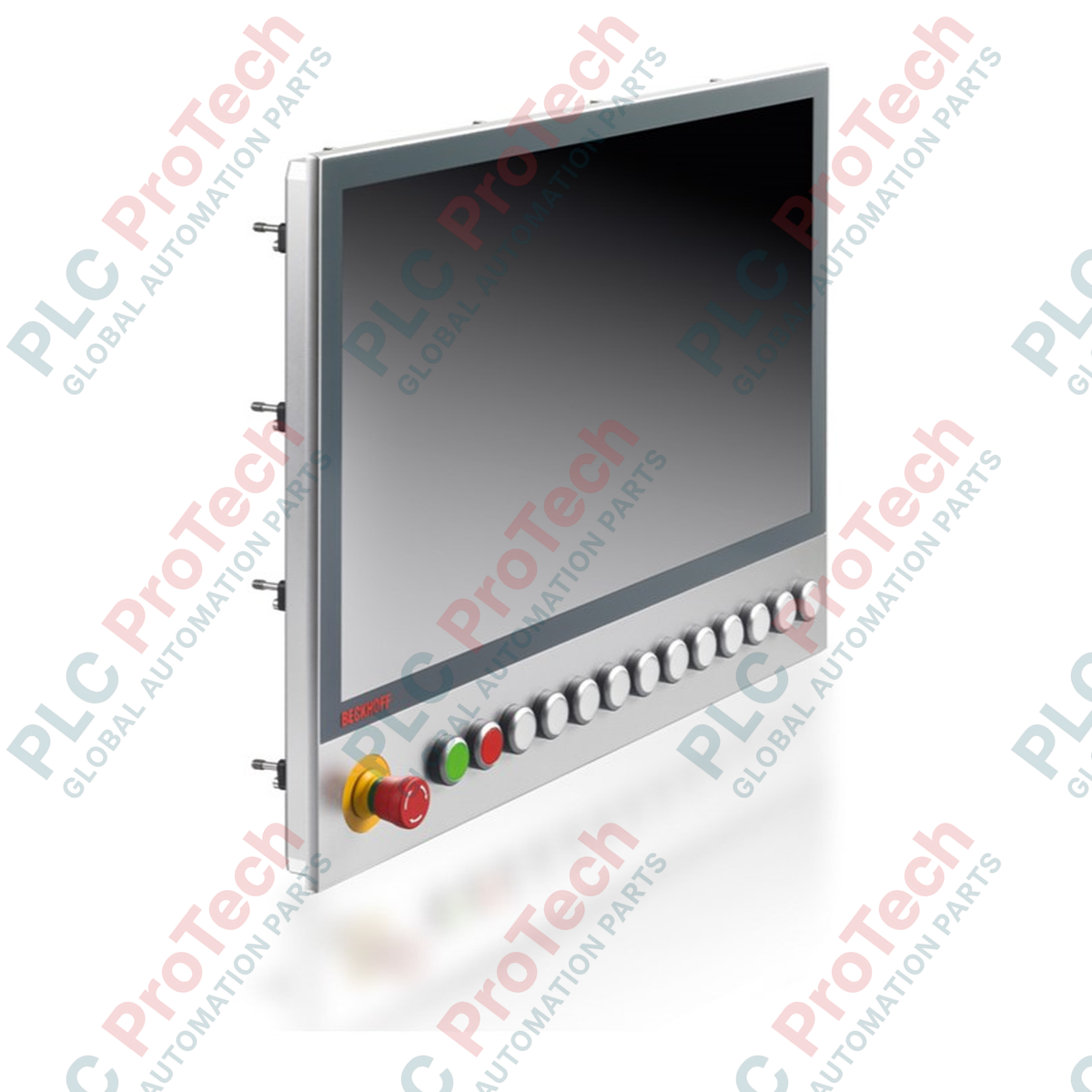

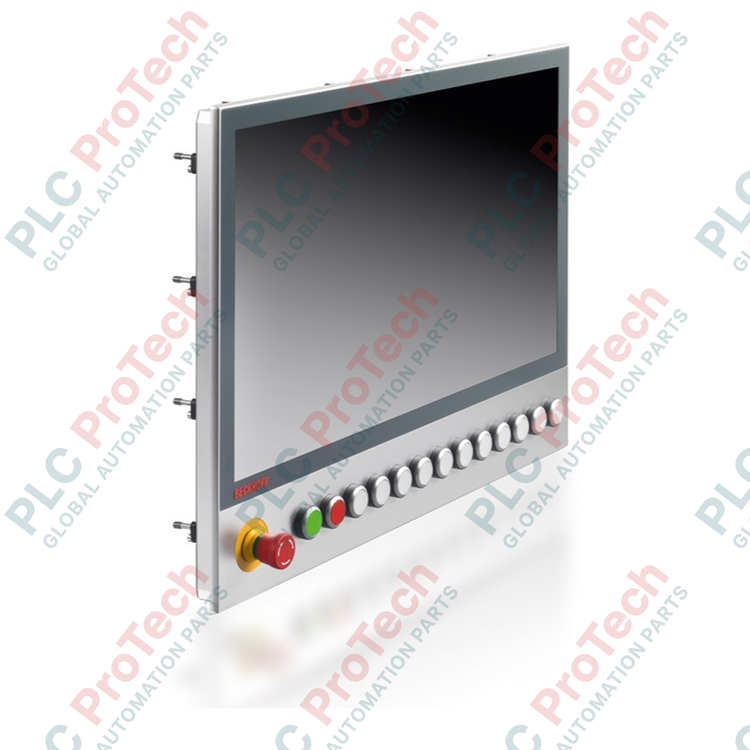

Designed to expand the physical control interface of built-in CP2xxx multi-touch panels, the Beckhoff C9900-G005 push-button extension provides direct tactile operator feedback directly below the primary display. This robust horizontal extension module integrates physical control elements into the machine-level visualization architecture, bridging software control and physical action. By combining traditional hardwired safety connections with modern USB interface options, this module ensures flexible control integration while maintaining safety integrity for critical emergency systems.

The unit features premium tactile components designed for high-duty cycle industrial environments, allowing operators to execute commands reliably without looking away from the primary display interface. Slide-in label options for each push-button cap enable clear, custom marking of control paths to suit specialized machine configurations.

Features

• Equipped with high-reliability RAFI RAFIX 22FS+ round 30 mm push-button keys featuring integrated signal lamps.
• Includes a dedicated, high-visibility emergency stop key (RAFI RAFIX 22FS+) for safety shutdown operations.
• Dual-channel communication design utilizing both a direct USB interface and a hardware-level terminal strip.
• Ergonomic horizontal layout designed for seamless physical alignment below the host multi-touch panel.
• Equipped with an M20 cable gland for clean, secure, and strain-relieved cable routing.
• Supports customizable slide-in labels for individual marking of each button cap.

Applications

• Machine tool control panels and manufacturing cells.
• Automotive assembly lines and robotic workcells.
• Process control systems requiring physical emergency shutdown buttons.
• Packaging, material handling, and logistics visualization stations.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Ensure the system power is completely isolated before executing any mechanical installation or wiring activities.
• Install the extension assembly directly below the designated built-in CP2xxx multi-touch panel, ensuring the gasket seals tightly against the mounting surface to maintain the rated ingress protection.
• Wire the emergency stop break contacts directly to a certified safety relay, safety controller, or Beckhoff TwinSAFE terminal strip; do not route safety-critical emergency circuits through the USB bus.
• Tighten the M20 cable gland to secure the incoming cable harness, preventing tensile stress on internal wire connections and ensuring environmental sealing.
