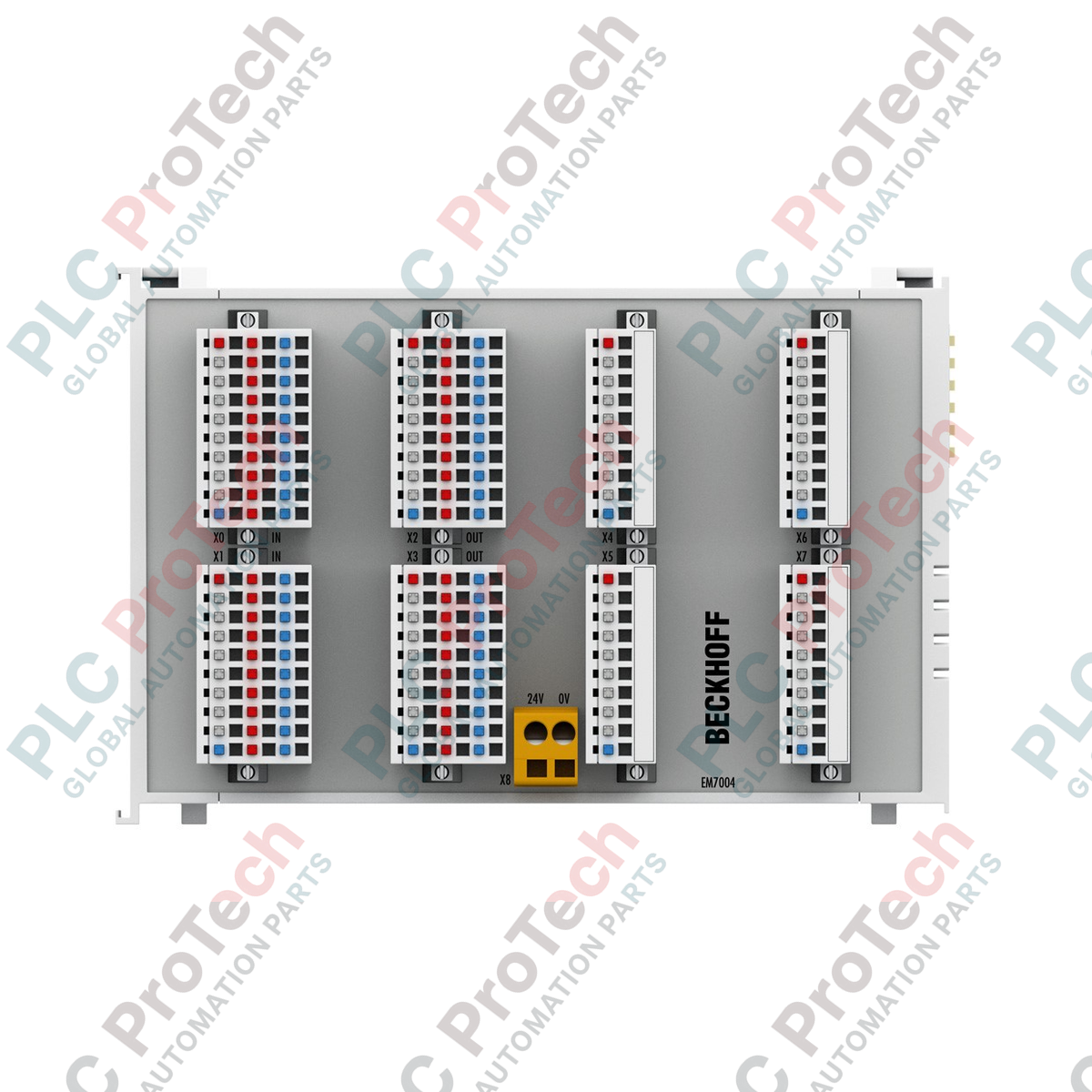

EM7004-0000 | BECKHOFF | Module terminal EtherCAT

Description

Designed for compact and high-density motion control tasks, the Beckhoff EM7004-0000 serves as a specialized multi-axis interface within the EtherCAT I/O environment. This high-performance EtherCAT Terminal module integrates a comprehensive array of physical inputs and outputs designed to coordinate compact drive applications directly from the I/O station. By unifying 16 digital inputs, 16 digital outputs, 4 analog outputs, and 4 encoder interfaces in a single housing, this module minimizes control cabinet footprint and simplifies network topology.

The module features onboard logic allowing outputs to be switched in direct relation to counter states, enabling high-speed hardware-level interactions. Built-in watchdog functionality and parameterizable user scaling ensure reliable operation under demanding industrial conditions.

Features

• Simultaneous 4-axis control interface integrated within a single robust housing.
• 16-channel digital input stage rated at 24 V DC for limit switches, sensors, or operational interlocks.
• 16-channel digital output stage divided into eight 0.5 A channels and eight 1.5 A channels to accommodate varying load demands.
• 4-channel analog output stage delivering ±10 V (2 mA) for speed, torque, or position setpoints.
• 4 isolated encoder inputs supporting RS422/RS485 quadrature signals up to 400 kHz with 16-bit resolution.
• Onboard output switching capabilities triggered directly by counter states for low-latency positioning tasks.
• Parameterizable watchdog and user-defined scaling for precise drive system matching.

Applications

• Multi-axis positioning systems and compact servo/stepper drives.
• Packaging, labeling, and filling machinery.
• Material handling systems and synchronized conveyor lines.
• Specialty machine manufacturing requiring localized high-speed I/O processing.

Technical Specifications

Installation Guidelines

• Mounting: Mount on standard 35 mm DIN rails. Ensure the installation position allows for adequate convective airflow.
• Shielding: Use shielded cabling for all encoder inputs (A, B, gate, latch) and analog output signals to mitigate electromagnetic interference. Ground the shielding at the entry point of the control cabinet.
• Wiring: Strictly separate external 24 V DC electronics supply from high-current field power lines to minimize potential noise coupling.
• Environmental Protection: Since the terminal carries an IP20 protection rating, it must be installed in a dust-free, dry control cabinet or enclosure.

Compliance and Certifications

• CE
