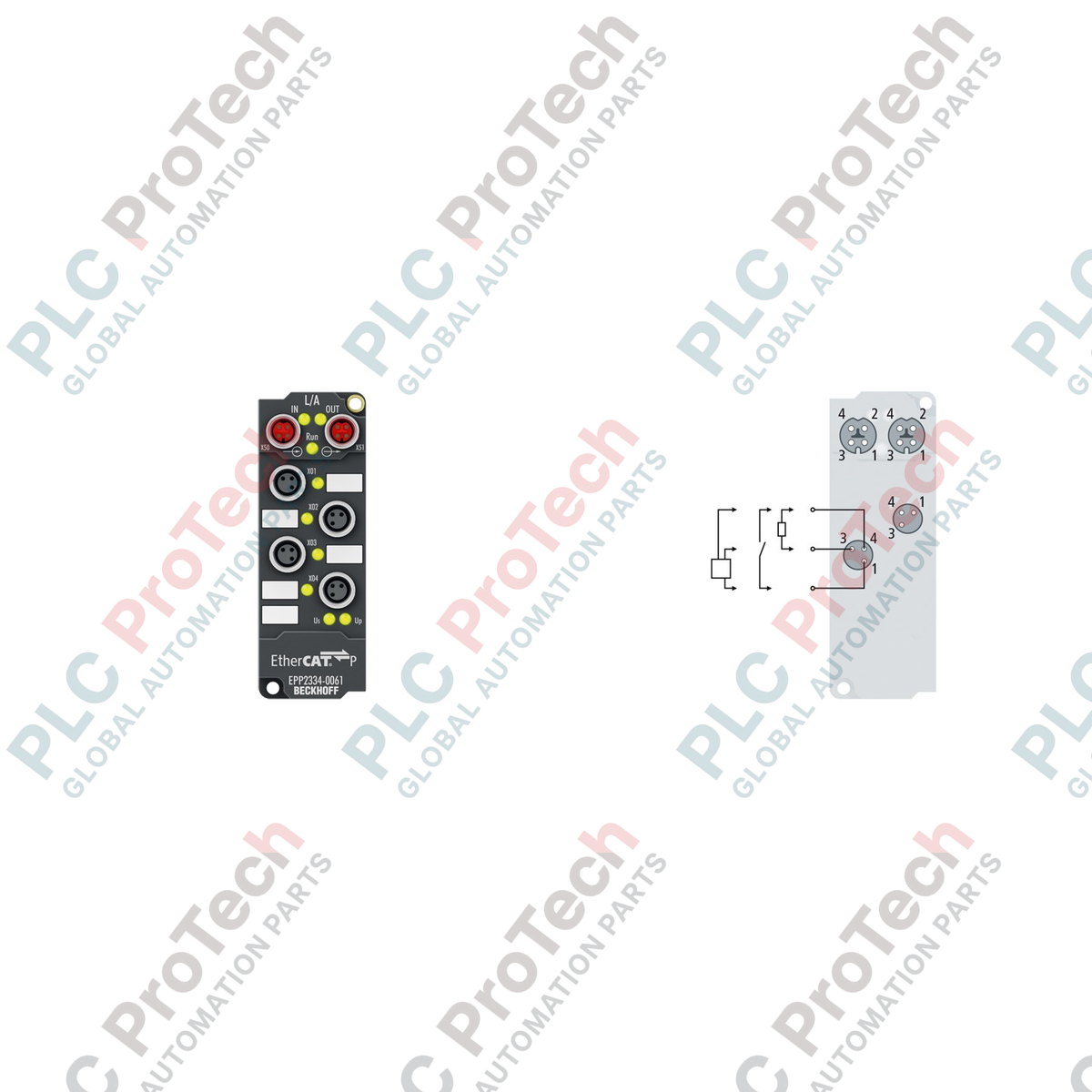

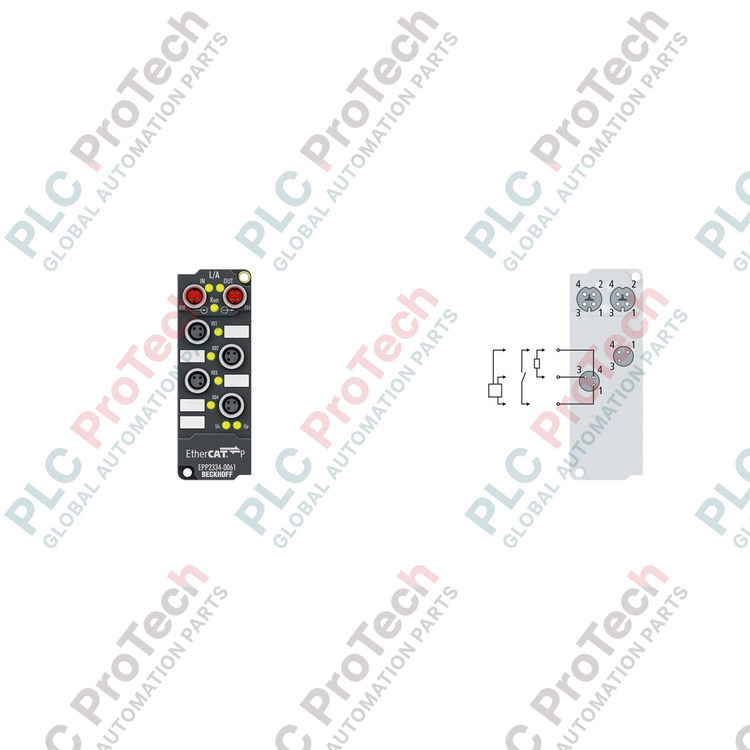

Module boîte EtherCAT BECKHOFF EPP2334-0061

Product Overview

The EPP2334-0061 (EPP2334-0061) is a high-performance EtherCAT Box module designed for decentralized, cabinet-free industrial automation. Engineered for rugged environments, this versatile component features 4 configurable digital input or output channels, allowing for flexible signal processing in harsh conditions. Its compact, IP65/66/67-rated housing ensures durability in applications involving high humidity, dust, or potential liquid exposure, such as assembly lines, food processing, and logistics automation. By enabling direct field installation, this module significantly reduces cabling complexity and system installation time.

Technical Configuration

This module utilizes the high-speed EtherCAT protocol for real-time fieldbus communication. The bus interface is equipped with 2 x M8 sockets, featuring a shielded, P-coded screw-type design that ensures reliable connection integrity even under heavy mechanical strain. Each of the 4 I/O channels is connected via M8 x 1, 3-pin A-coded interfaces. The module adheres to the EN 61131-2 Type 1/3 specification, providing high noise immunity and standardized voltage thresholds, making it highly compatible with modern sensor and actuator arrays. The logic supports ohmic, inductive, and lamp loads, with each channel featuring individual short-circuit protection and a maximum output current of 0.5 A.

Technical Specifications

FAQs

Can the EPP2334-0061 be used in outdoor environments?

Yes, the module is rated IP65/66/67, making it resistant to dust and water ingress. However, ensure that all unused M8 ports are properly capped with original protective covers to maintain the protection rating.

How does the short-circuit protection function?

Each of the 4 channels is individually short-circuit proof. If a short occurs, the specific channel will disable the output to prevent hardware damage, while the EtherCAT diagnostic bits will report the fault to the master controller.

Is this module compatible with standard 24 V DC sensors?

Yes, it complies with EN 61131-2 Type 3 standards, which are fully compatible with standard industrial 24 V DC proximity switches and sensors.

Does this module require a separate power supply for the load?

Yes, the load supply voltage is provided separately from the EtherCAT communication power. You must ensure the 24 V DC load voltage is within the specified range to maintain reliable output switching.

Installation Guidelines and Best Practices

• Connector Torque: When fastening M8 connectors, ensure they are tightened to the manufacturer's specified torque. Overtightening can damage the O-ring seals, while undertightening may compromise the IP67 rating and electrical contact.
• Cable Selection: Use high-flex, shielded cables rated for EtherCAT communication. Given the M8 P-coded and A-coded interfaces, ensure the cable shielding is correctly grounded at the panel side to maintain the high EMC immunity conforming to EN 61000-6-2.
• Thermal Considerations: Although rated for -25 to 60 deg C, avoid mounting the module in areas with extreme temperature cycling or directly adjacent to high-heat-emitting machinery, as this can degrade the service life of internal electronic components.
