ECMA-L11830SS | DELTA | Moteur servo série ECMA

Description

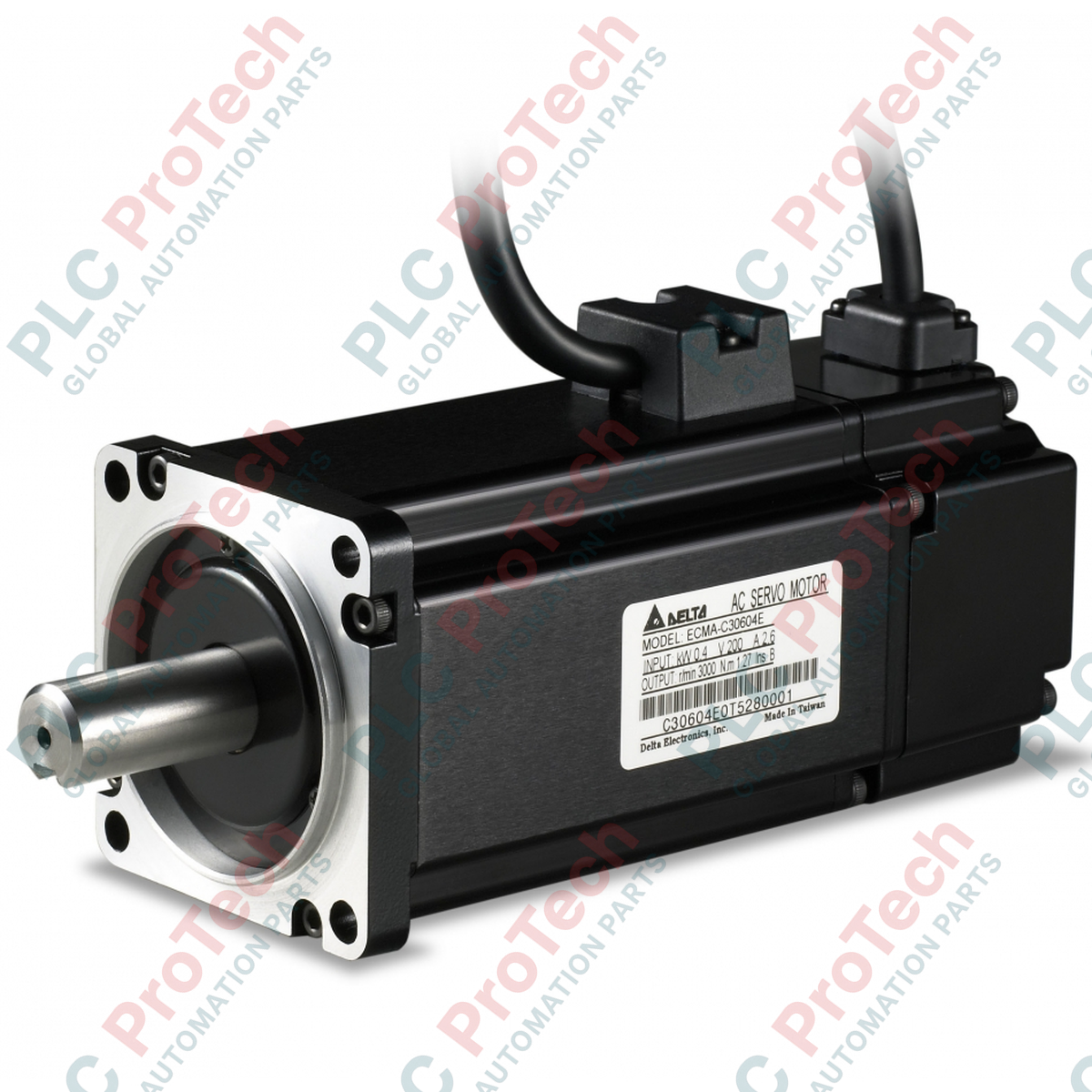

Operating within high-voltage industrial networks, the Delta Electronics ECMA-L11830SS AC Servo Motor delivers high-torque dynamic positioning and motion control. This motor belongs to the 400V class and features a medium-to-high rotor inertia design, making it ideal for managing heavy loads and stabilizing mechanical transients. It comes equipped with a high-resolution 20-bit incremental encoder for micro-positioning accuracy, an integrated holding brake for secure vertical axis control, and a durable oil seal to withstand aggressive industrial environments. Engineered for seamless integration with Delta ASDA series servo drives, this unit ensures stable mechanical power delivery under continuous duty cycles.

Features

• High-Resolution Feedback: Integrated 20-bit incremental encoder provides precise position and velocity feedback to minimize tracking errors.
• Electromagnetic Holding Brake: Built-in brake secures the motor shaft during power-off conditions, preventing gravity-induced slide on vertical axes.
• Robust Environmental Protection: Integrated oil seal protects motor internals from cutting fluids, oil mist, and particulate contamination.
• Optimized Inertia Design: Medium-to-high rotor inertia configuration minimizes load mismatch issues and stabilizes motion profiles under heavy loads.
• Standard Mechanical Interface: 180mm frame size with a standardized keyed shaft and screw mounting configuration for simple mechanical retrofitting.

Applications

• Multi-Axis CNC Machinery: Perfect for drive axes on heavy-duty milling, routing, and cutting installations.
• Automated Gantry Systems: Manages high-mass Cartesian gantries and material handling transfer lines.
• Metal Stamping and Pressing: Supplies steady, high-torque feed-in capabilities for metal forming processes.
• Industrial Packaging and Printing: Provides synchronized, high-speed tensioning and cutting motion.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The ECMA-L11830SS is typically paired with Delta's 3.0 kW ASDA-A2 (e.g., ASD-A2-3043-M) or ASDA-B2 series 400V drives. Ensure the drive firmware parameter sets are configured specifically for the ECMA motor series 20-bit feedback. Replacing an "SS" suffix motor with an "RS" variant removes the internal holding brake, which is hazardous on vertical or non-balanced systems.

Application Pitfalls & Engineering Notes

Because this is a high-inertia motor (54.95 x 10-4 kg.m2), rapid deceleration profiles from its rated 1500 r/min down to stop can generate substantial regenerative energy. If your cycle demands frequent start/stop routines, verify the drive's built-in regenerative capacity. Under heavy duty cycles, an external braking resistor must be wired to the drive to avoid DC bus overvoltage faults (AL005 on Delta ASD drives).

Commissioning & Wiring Tips

Always route the encoder feedback line through a dedicated, shielded channel separated by at least 100mm from the high-voltage motor power line. High frequency PWM switching from the drive can introduce electromagnetic noise, triggering encoder mismatch alarms (AL011) if shielding or grounding is inadequate.
