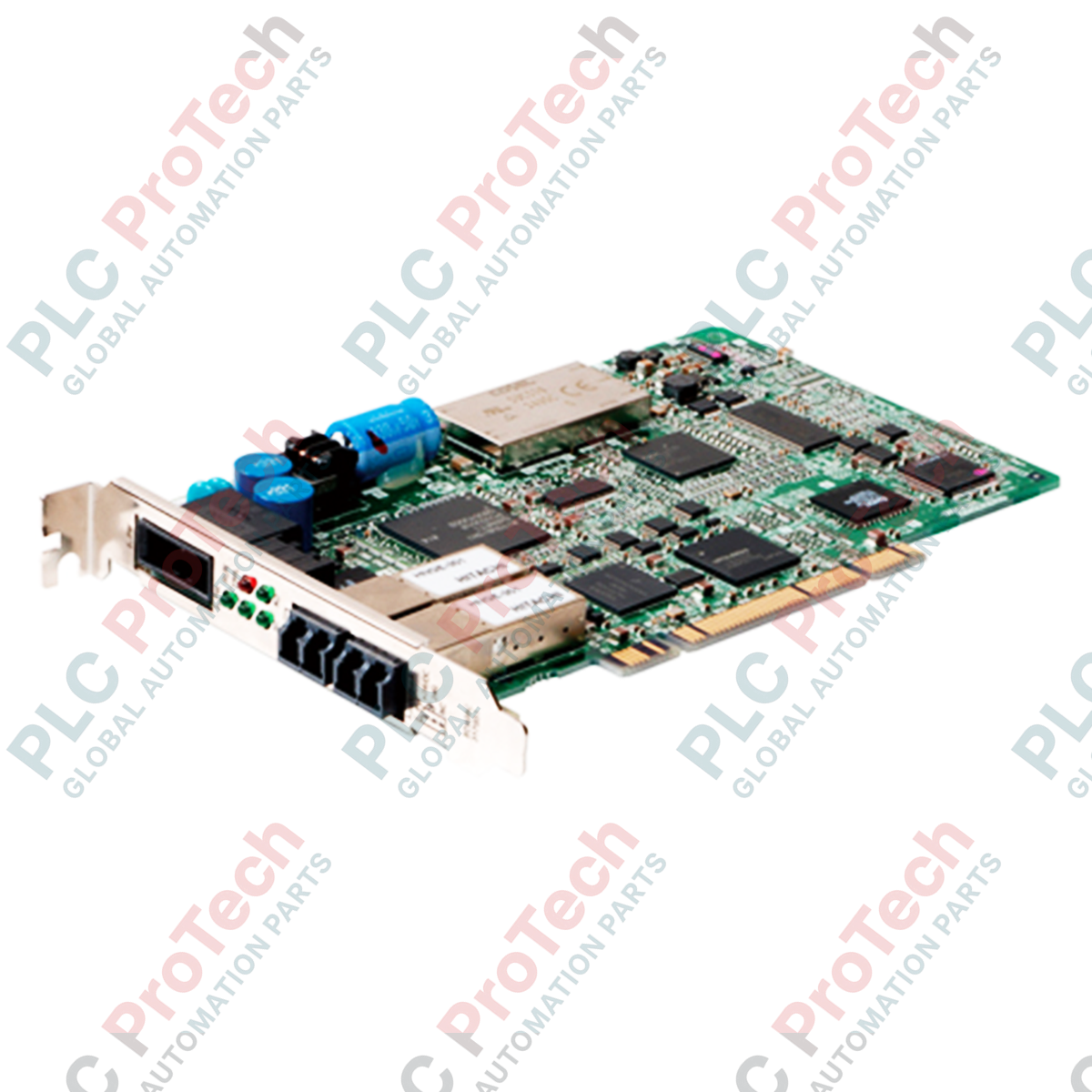

Carte interface réseau contrôleur CC-Link IE Q80BD-J71GP21S-SX

Il ne reste que 10 article(s) en stock

Fabricant : Mitsubishi Electric
N° de produit : Q80BD-J71GP21S-SX
Pays d'origine :États-Unis
Type de produit : Interface Boards
Paiement : Virement bancaire, Western Union
Poids : 1200g
Port d'expédition : Xiamen
Garantie : 12 mois

Voir les détails complets

Description

Integrating industrial PC-based systems into high-speed automation networks is streamlined using the Q80BD-J71GP21S-SX interface board, which facilitates seamless connection to a CC-Link IE Controller Network. This high-performance PCI/PCI-X compatible board provides gigabit-rate optical loop communication, delivering large-capacity deterministic data exchange across industrial plant architectures. Designed for physical placement within industrial computer chassis, it features dual-loop redundancy to protect against network partition during cable breaks or individual station power-downs.

Features

Supports gigabit transmission speeds of 1 Gbps via reliable optical fiber media.
Double-loop transmission path configuration guarantees network loopback functionality in the event of cable failures.
Designed for versatility with standard PCI or PCI-X half-size single-slot form factors.
Large cyclic data capacity handling up to 128 K points (LW) per network and up to 32 K points per station under extended mode.
Laser Class 1 compliant design following international standards (JIS C 6802 and IEC 60825-1).
External power supply input keeps the optical bypass circuitry alive when the host computer is turned off.

Applications

Centralized supervisory control and data acquisition (SCADA) systems.
Automotive assembly line network synchronization.
Large-scale material handling and distribution systems.
High-speed industrial PC-to-PLC distributed communication.

Technical Specifications

Manufacturer	Mitsubishi Electric
Model / Part Number	Q80BD-J71GP21S-SX
Module Type	CC-Link IE Controller Network Interface Board
Interface Slot Type	PCI or PCI-X slot (half size, occupies 1 slot)
Maximum Number of Installable Boards	Up to 4 boards per host system
Communication Speed	1 Gbps
Transmission Path Format	Double loop
Communication Method	Token ring method
Applicable Connection Cable	Multimode optical fiber (GI) complying with 1000 BASE-SX standards
Connector Type	Double LC connector
Laser Classification	Class 1 laser product (JIS C 6802, IEC 60825-1)
Max Connected Stations per Network	120 units (1 management station, 119 normal stations)
Maximum Number of Networks	239
Maximum Number of Groups	32
Maximum Inter-Station Distance	550 m
Total Extension Distance	66,000 m (when maximum of 120 units are connected)
Maximum Link Points (Network)	LB: 32 K points (32768 points) LW: 128 K points (131072 points) LX: 8 K points (8192 points) LY: 8 K points (8192 points)
Transient Transmission Capacity	Maximum 1920 bytes
External Power Supply Voltage	DC 20.4 V to 31.2 V
External Current Consumption	0.27 A
Allowable Momentary Power Failure Time	1 ms (level PS 1)
Internal Current Consumption (DC 5 V)	1.10 A
Operating Ambient Temperature	0 to 55 degC
Storage Ambient Temperature	-25 to 75 degC
Operating / Storage Humidity	5 to 95% RH (non-condensing)
Vibration Resistance	Meets JIS B 3502, IEC 61131-2 standards
Impact Resistance	Meets JIS B 3502, IEC 61131-2 standards (147 m/s2, 3 times in X, Y, and Z directions)
Net Weight	0.14 kg
Shipping Weight	1.2 kg

Installation Guidelines

Always shut down the host industrial computer and completely isolate all external power sources before installing the interface card into the PCI/PCI-X slot.
Ensure strict static electricity protection measures are taken while handling the board to prevent ESD damage to delicate onboard micro-components.
Adhere to the minimum allowable bending radius specified for optical fiber cables to prevent signal attenuation or physical damage during connection.
Connect the auxiliary DC 24V external power supply directly to the card terminal block to ensure loopback routing functionality remains active when the PC is turned off.
Ensure the system is housed in an industrial control enclosure that meets Pollution Degree 2 or better guidelines.

Key Features:

#Interface Boards #MELSEC Q Series

What type of slot interface does the Q80BD-J71GP21S-SX board require?

The board requires a single half-size PCI slot or PCI-X slot in the host computer.

Why does this interface board have an external power supply connection?

The external DC 24V power supply (DC 20.4 to 31.2 V) ensures that the network loopback and communication bypass circuitry remain functional even when the host PC is powered down.

What type of fiber optic cables and connectors are compatible?

It is compatible with multimode optical fiber (GI) cables matching 1000 BASE-SX standards, terminated with double LC-type connectors.

What is the maximum distance allowed between individual stations?

The maximum distance between adjacent stations is 550 meters, with a total maximum network length of 66,000 meters when all 120 stations are linked.

Expédition express mondiale

Livraison standard : 4 à 6 jours ouvrables via DHL, FedEx et UPS.
Expédition express : Expédition le jour même pour les commandes en stock passées avant 14h00 (GMT+8).
Couverture mondiale : Service dans plus de 150 pays, avec livraison rapide en Arabie Saoudite et aux Émirats arabes unis.

Retours et garantie

Garantie de 30 jours : Retours acceptés pour les produits en stock dans leur emballage d'origine scellé en usine.
Garantie de 12 mois : Chaque composant industriel est couvert par notre garantie technique professionnelle.

Les commandes sont traitées et livrées du lundi au vendredi (hors jours fériés).

Pour connaître l'éligibilité complète, les frais de restockage et les détails des retours internationaux, veuillez consulter notre site officiel Politique de remboursement et de retour .
