Siemens SIMATIC S5 6ES5921-3WA13 Module CPU

Product Overview

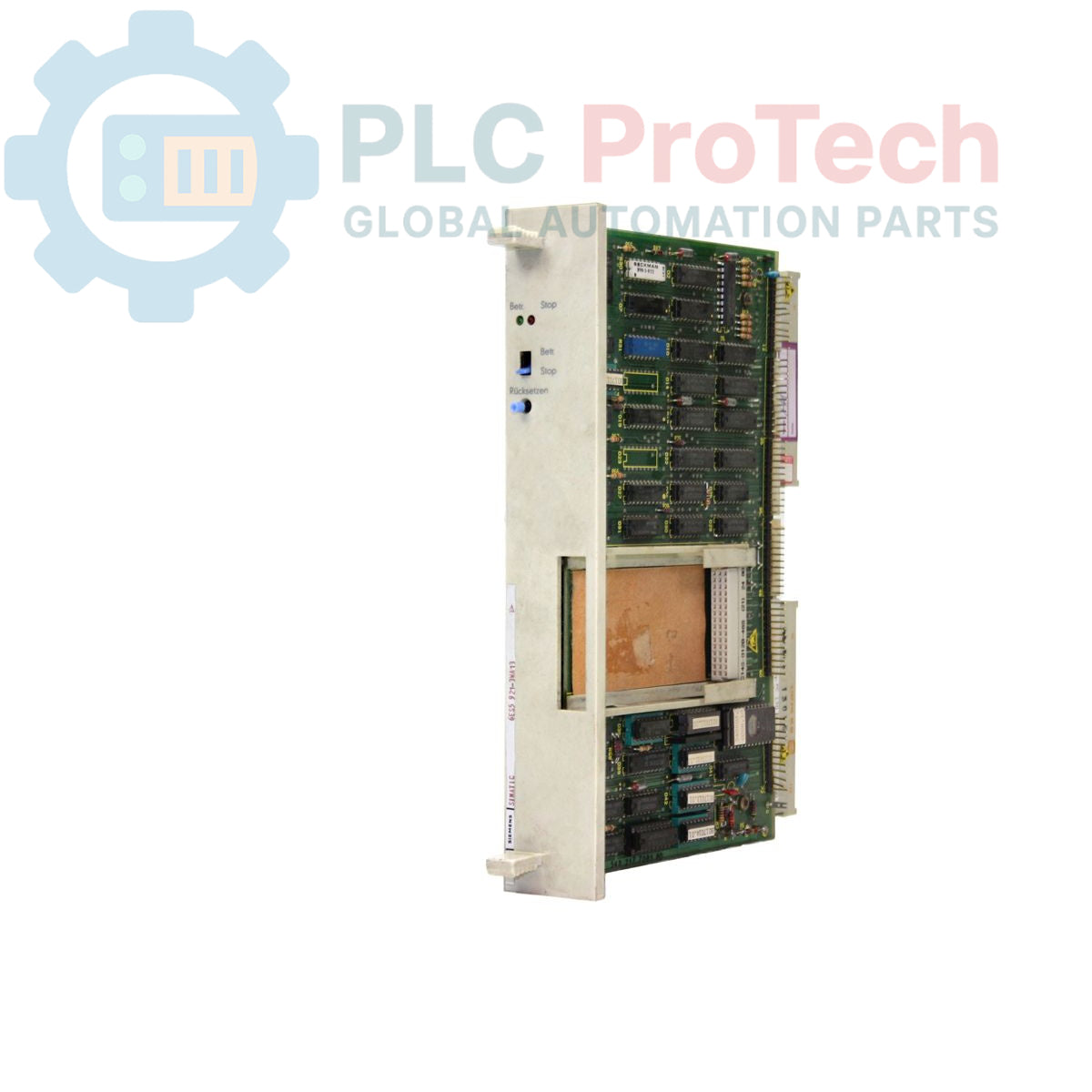

The Siemens 6ES5921-3WA13 (6ES59213WA13) is a high-performance CPU 921 module designed for the Siemens SIMATIC S5-130W and S5-135U programmable controller series. Functioning as a Central Controller, this module is the operational "brain" of the PLC system, responsible for executing complex binary logic, word processing, and timing functions. It is a critical component for maintaining legacy automation systems in sectors such as automotive manufacturing, industrial drying, and material handling. The 6ES5921-3WA13 is engineered for durability and deterministic performance, ensuring that high-speed industrial processes remain synchronized and stable even in environments with significant electrical noise.

Technical Configuration

The 6ES5921-3WA13 CPU 921 is optimized for the S5-130W/135U backplane architecture, providing robust control for distributed and local I/O.

• Processor Performance: Designed to process STEP 5 programmed logic with high efficiency, handling both bit-oriented and word-oriented operations.

• System Integration: Functions within the central rack, communicating with digital, analog, and functional modules via the parallel S5 bus.

• Diagnostic Capabilities: Features front-panel LED indicators that provide real-time status on CPU health, program execution (RUN), and system errors (STOP/FAULT).

• Memory Slot: Includes an integrated interface for external memory submodules, allowing for easy program updates and non-volatile storage of critical process data.

• Programming Interface: Standardized front port allows for direct connection to Siemens PG (Programming Units) or modern engineering workstations via appropriate TTY/RS232 adapters.

Technical Specifications

Technical FAQs

Can the 6ES5921-3WA13 be used in an S5-115U rack?

No. This module is specifically designed for the S5-130W and S5-135U rack systems. The physical dimensions and backplane connector pinouts are incompatible with the S5-115U series.

What should I check if the STOP LED is illuminated?

A red STOP LED indicates the CPU has halted. You should use a programming unit to check the "I-Stack" and "B-Stack." Common causes include a "QVZ" (Time-out) error due to a faulty I/O module or a programming error in the STEP 5 logic.

Is a battery required for this CPU module?

The CPU requires a backup battery (typically located in the power supply module of the S5 rack) to retain the RAM-based user program and internal flags during power-off. If the "BATT LOW" light on the power supply is on, replace it immediately to avoid program loss.

Engineering & Installation Guide

• Memory Submodule Handling: When installing or replacing the memory submodule (EPROM/RAM) on the front of the 6ES5921-3WA13, ensure the PLC power is completely disconnected. Electrostatic Discharge (ESD) precautions should be taken, as the internal CMOS memory is highly sensitive to static.

• Backplane Seating: This module uses high-density S5 backplane connectors. When inserting the module into the rack, ensure it is aligned perfectly with the guide rails. Press firmly until the module is fully seated, then tighten the top and bottom retaining screws to ensure proper grounding and signal continuity.

• Legacy Maintenance: Since this module is in the "Obsolete" phase, regular inspections of the electrolytic capacitors and contact points are recommended. If the module is being installed from long-term storage, verify the pins for oxidation and clean them with a non-residue contact cleaner if necessary.
