Product Overview

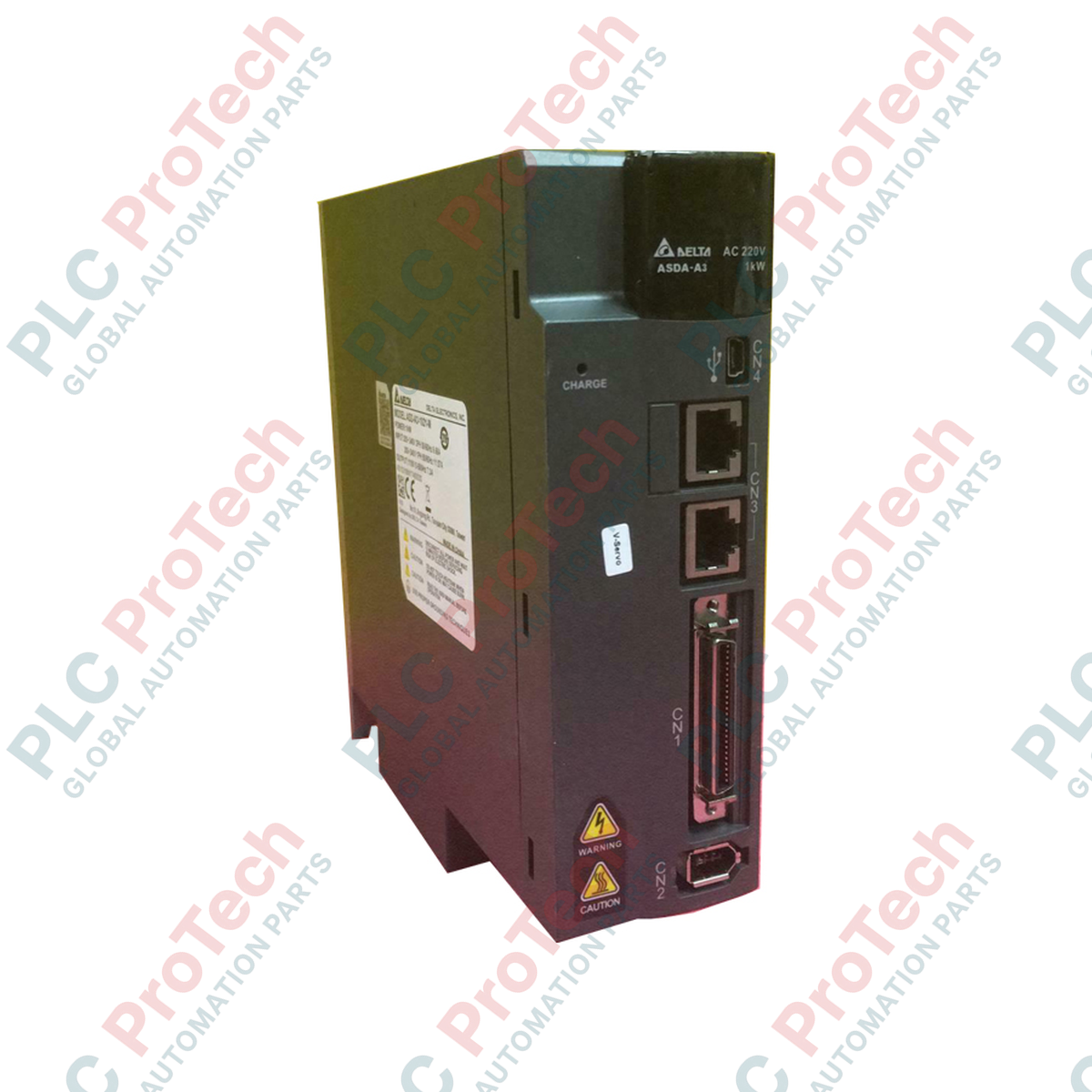

The ASD-A3-3023-F (ASDA33023F) is a cutting-edge 3.0 kW AC Servo Drive from Delta’s flagship ASDA-A3 series, designed to meet the extreme precision requirements of modern smart manufacturing. Featuring an industry-leading 24-bit (16,777,216 pulses/rev) encoder resolution, this drive provides unparalleled smoothness and positioning accuracy for high-end applications like five-axis CNC machining, gantry systems, and electronic assembly. The ASD-A3-3023-F is built to handle dynamic loads with an instantaneous maximum output current of 70.71 A, significantly reducing settling time and enhancing the throughput of high-speed automated production lines.

Technical Configuration

The hardware architecture of the ASD-A3-3023-F represents a major leap in motion control technology. It utilizes an advanced SVPWM algorithm coupled with a high-speed system bandwidth of 3.1 kHz, enabling rapid response to command changes. The drive incorporates a built-in regenerative resistor to manage energy during deceleration, while its sophisticated smoothing strategy employs both Low-pass and P-curve filters to eliminate mechanical resonance. With a 1:6000 speed control range, this drive ensures stable torque delivery even at ultra-low speeds, making it ideal for applications requiring delicate force control or steady-state synchronization.

Technical Specifications

Technical FAQs

How does the 24-bit resolution benefit my mechanical system?

The 24-bit encoder resolution allows the ASD-A3-3023-F to detect even the smallest mechanical deviations. This high granularity results in smoother motor rotation, reduced torque ripple, and significantly improved surface finish quality in precision machining applications.

Can this drive handle high-inertia loads during rapid deceleration?

Yes. The drive features a built-in regenerative resistor designed for standard duty cycles. However, for applications with high inertia or frequent vertical braking, check the average regenerative power; if it exceeds the built-in capacity, an external regenerative resistor should be wired to the P and D terminals.

What is the advantage of the 3.1 kHz bandwidth in the A3 series?

The 3.1 kHz speed frequency response bandwidth allows the drive to react to commands and external disturbances almost instantaneously. This minimizes following error and ensures that the motor tracks the motion profile with extreme fidelity, even during high-speed direction changes.

Engineering & Installation Guide

• System Grounding and Noise Suppression: To maintain the integrity of the 24-bit feedback signal, use high-quality double-shielded encoder cables. Ground the shield at the drive-side connector only. To mitigate electromagnetic interference (EMI), ensure the drive is mounted to a grounded metal backplane and install an AC line filter on the power input side if operating near sensitive measurement equipment.

• Thermal Management: The ASD-A3-3023-F is equipped with internal fan cooling. Ensure a minimum clearance of 50 mm above and below the drive to facilitate upward airflow. For multi-drive installations, a side-by-side mounting is permissible, but the ambient temperature within the enclosure must be maintained below 45 Celsius to avoid automatic current derating.

• Auto-Tuning and Vibration Suppression: Utilize the ASDA-Soft software to perform "Advanced Auto-Tuning." The A3 series features automatic high-frequency notch filters that can identify and suppress mechanical resonance in real-time. This is critical when commissioning systems with flexible couplings or long transmission shafts.
