High-Precision Process Integration Overview

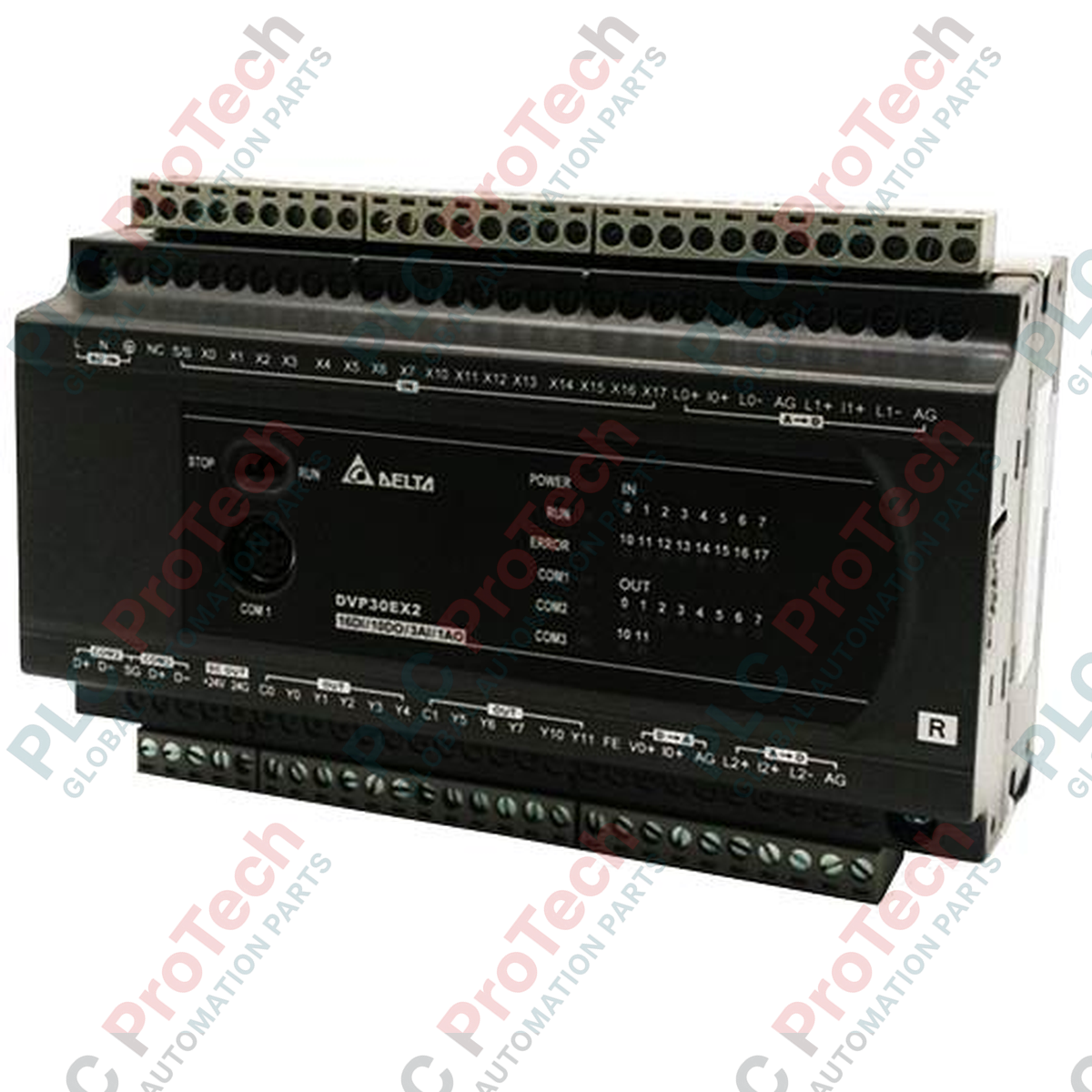

The DVP30EX200T (DVP30EX200T) is a specialized, high-performance main processing unit within Delta's DVP-ES2/EX2 series standard programmable logic controller family. Engineered to excel in thermal regulation and continuous process monitoring, this 30-point controller combines high-density digital I/O with integrated, high-resolution analog and temperature measurement circuitry. In intensive production environments such as plastics extrusion, industrial food ovens, and municipal chemical dosing units, the DVP30EX200T safeguards process repeatability and drives down unexpected plant outages through its direct physical sensor tracking and robust solid-state isolation layers. Its unified design handles complex closed-loop control loops natively, saving physical panel space and optimizing runtime performance across the automation network.

Multi-Functional Hardware Configuration

The internal electrical architecture of the EX2 process controller is customized for concurrent digital execution and precision analog filtering:

• Integrated Hybrid I/O Allocation: Outfitted with 30 onboard physical execution channels, including 16 digital inputs (24 VDC), 8 fast-acting transistor outputs, and 6 specialized process channels.

• Dedicated Temperature and Analog Block: Incorporates 4 high-resolution analog input channels (supporting voltage/current signals alongside direct PT100/Thermocouple sensors) and 2 precision analog voltage/current output channels.

• High-Speed Pulse Tracking: Features hardware counters capable of accepting input frequencies up to 100 kHz for seamless position tracking via incremental rotary encoders.

• Solid-State Transistor Outputs: Utilizes NPN (Sink) open-collector transistor switches that deliver wear-free, microsecond-level reaction intervals ideal for high-frequency pulse-train positioning or PWM control.

Critical Engineering Parameters

The following detailed technical parameters represent the verified mechanical, electrical, and environmental limits for control system planning:

Technical Knowledge Base & Common Inquiries

How do the integrated analog inputs handle temperature sensor configurations without an external transmitter?

The DVP30EX200T contains dedicated internal signal conditioners on its analog input banks. By adjusting the system registers (CR registers) via Delta's ISPSoft programming software, the input channels can be set to decode standard 0-10V/4-20mA signals or directly linearize temperature data from platinum resistance temperature detectors (PT100) and thermocouples.

What is the maximum electrical output capacity of the solid-state transistor channels?

The onboard NPN transistor outputs are rated for a peak switching voltage of 30 VDC and a continuous maximum current of 0.5 A per output channel. To shield the internal optocouplers against voltage degradation, an external freewheeling diode must be used when switching inductive field components.

Can the serial network interfaces run independent protocols at the same time?

Yes. The PLC includes three independent serial communication ports. While the RS-232 port is primarily used for local HMI or programming connections, the dual RS-485 interfaces can run separate Modbus RTU loops concurrently—allowing one port to act as a master polling variable frequency drives while the other operates as a slave to a supervisory SCADA system.

Field Commissioning & Safety Guidelines

• Analog Grounding and Noise Suppression: To maintain stable 12/14-bit readings on the temperature and analog sensor inputs, route all process signal lines through twisted-pair shielded cables. Bond the braided shields strictly to the system instrumentation ground at the panel star point, and route them completely isolated from high-current AC motor leads or VFD cables.

• Thermal Layout and Orientation: Mount the base unit horizontally onto a solid 35 mm DIN rail. To facilitate proper natural convective cooling across the internal analog components, maintain a rigid clearance safety zone of at least 50 mm above and below the PLC chassis. Ensure the surrounding panel air temperature stays below the 55 deg C maximum envelope.

• Transistor Output Protection: Since transistor outputs exhibit a tiny residual leakage current (under 0.1 mA) when deactivated, ensure that low-power field relays or indicators do not falsely trigger. If driving highly sensitive electronic gates, wire a parallel bleeder resistor across the output terminal to safely dissipate the leakage current.
