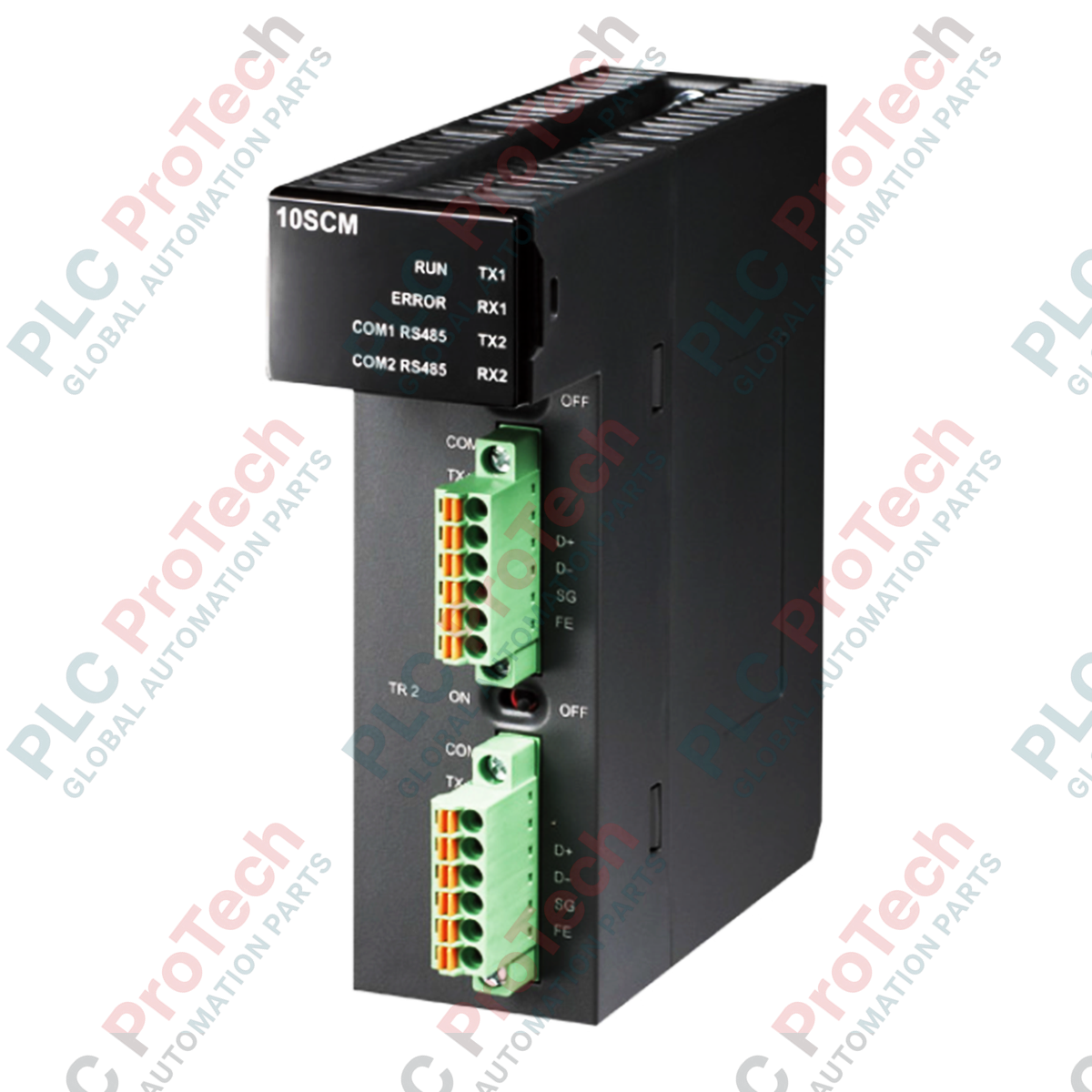

The AH10SCM-5A (AH10SCM5A) is a high-performance serial communication module designed for the Delta AH500 redundant rack-based PLC system. Engineered for complex multi-device networking, this module provides dual-channel RS-422/485 connectivity, enabling the PLC to act as a central coordinator in large-scale industrial architectures. With a focus on system resilience, the AH10SCM-5A features a full isolation design between power and signal circuits, ensuring that transient electrical noise from the field does not compromise the CPU's integrity. It is an essential component for applications requiring high-speed data exchange with Variable Frequency Drives (VFDs), sensors, and third-party instruments in sectors such as water treatment, HVAC (via BACnet), and smart manufacturing.
The AH10SCM-5A is a versatile Master/Slave communication hub supporting high-speed transmission up to 460.8 kbps. It is equipped with two independent serial ports that can be configured for various protocols, including Modbus RTU/ASCII and BACnet Slave. A key technical advantage is the "UD Link" (User Defined Link) capability, which allows engineers to customize communication formats for non-standard serial devices. Furthermore, the module supports hot-swapping, allowing for maintenance or replacement without shutting down the entire PLC rack, thereby maximizing system uptime in continuous processing environments.
| Attribute | Specification |
| Model | AH10SCM-5A |
| Brand | DELTA |
| Origin | Taiwan |
| Module Type | Serial Communication Module (RS-422 / RS-485) |
| Communication Ports | 2 Ports |
| Max Baud Rate | 460.8 kbps |
| Power Consumption | 1.2 W (Internal) |
| Protocols | Modbus RTU/ASCII, BACnet Slave, UD Link, PLC Link |
| Isolation | Full isolation (Power and Signal) |
| Operating Temp | -20 to 60 deg C |
| Special Features | Hot-swapping, Automatic Data Exchange |
| Weight | 0.5 kg (Shipping weight 2.0 kg) |
Can the AH10SCM-5A manage data exchange automatically without complex PLC ladder logic?
Yes. The module supports an "Automatic Data Exchange" function. Once the communication parameters and data addresses are configured in the software, the module handles the polling and data mapping between the PLC registers and the slave devices independently of the CPU scan cycle.
Is this module compatible with building automation systems?
Absolutely. The AH10SCM-5A supports the BACnet Slave function, making it compatible with building management systems (BMS). This allows the AH500 PLC to report status and receive commands from higher-level HVAC and lighting control networks.
What is the benefit of the full isolation design in this module?
The full isolation design prevents ground loops and protects the internal PLC backplane from high-voltage transients that may occur on long-distance RS-485 field wiring. This is critical for maintaining communication stability in environments with heavy electromagnetic interference.
Hot-Swapping Protocol: When utilizing the hot-swap feature, ensure the module's locking levers are fully released before extraction. The AH500 backplane will automatically detect the removal; however, ensure that the "Automatic Data Exchange" settings are backed up in the CPU to allow the replacement module to resume operation immediately upon insertion.
Termination Resistors: For long-distance RS-485 networks (exceeding 100 meters), ensure that a 120-ohm termination resistor is enabled at both physical ends of the communication line. This prevents signal reflection and ensures data integrity at the maximum 460.8 kbps baud rate.
Shielding and Grounding: Use shielded twisted-pair (STP) cables for all RS-422/485 connections. The shield should be grounded at a single point (typically at the PLC cabinet side) to prevent circulating currents while providing effective protection against RFI/EMI.
Global Express Shipping
Returns & Warranty
Manufacturer: Delta Electronics
Product No.: AH10SCM-5A
Country of origin:Taiwan
Product Type: Network Modules
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
