Product Overview

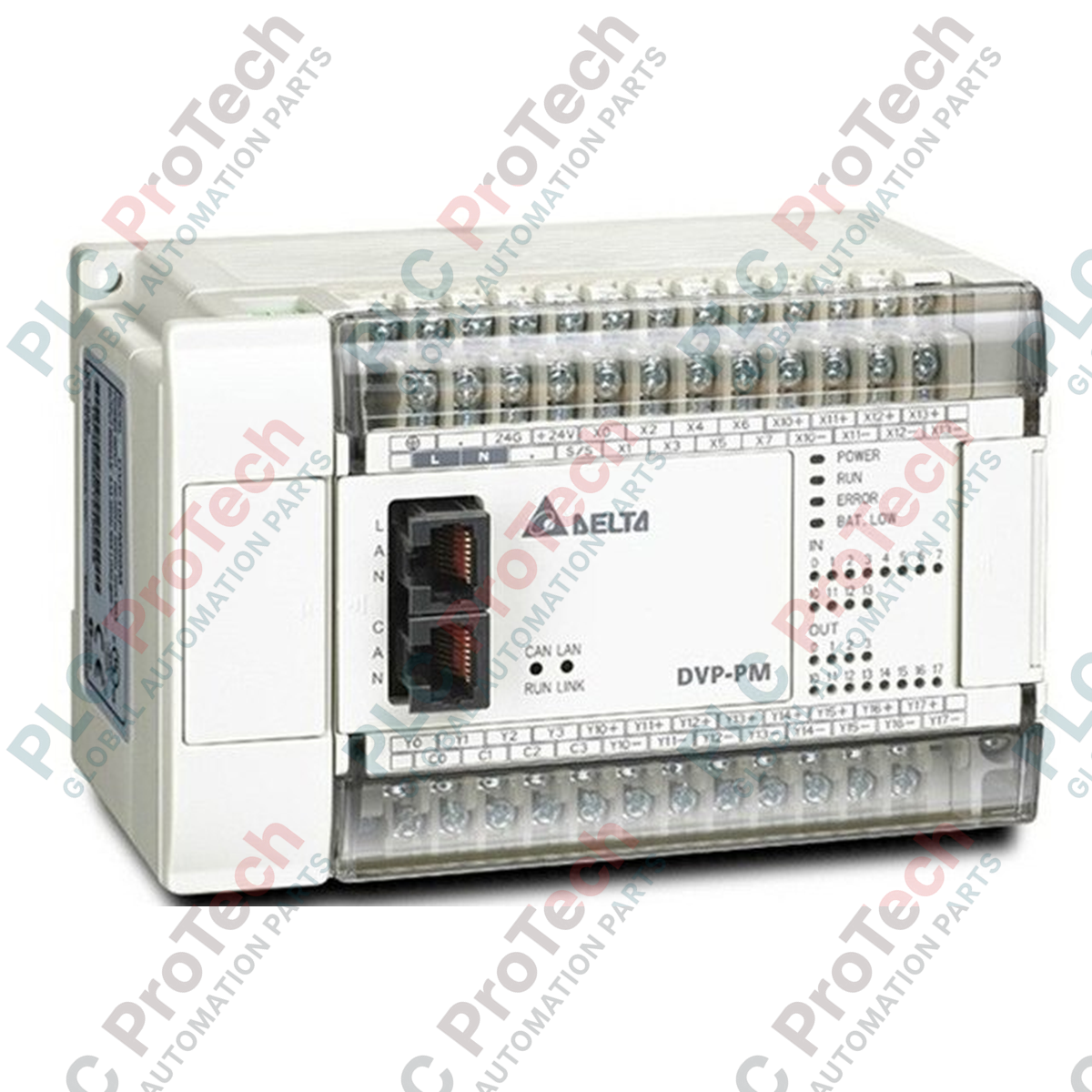

The DVP-10PM00M (DVP10PM00M) is a sophisticated, general-purpose motion controller from Delta, engineered to provide high-precision multi-axis control for complex industrial automation tasks. It is designed to bridge the gap between standard PLC logic and dedicated high-speed motion control. With its ability to handle up to 6-axis linear interpolation and integrated PWM/pulse output capabilities, this controller is ideal for applications requiring high synchronization, such as packaging machinery, labeling systems, and precision material feeding.

Technical Configuration

The DVP-10PM00M features a powerful processing engine that provides a significant performance boost over standard PLCs, with LD instruction execution speeds as fast as 0.13 µs. Its hardware is packed with specialized motion features, including 1 MHz high-speed pulse outputs and hardware-based digital filters for counting, which ensure precision even in environments with high electrical noise. The controller's support for MPG (Manual Pulse Generator) inputs and electronic gearing makes it highly adaptable for complex mechanical linkages, such as those found in bag-making machines and rotary cutting systems.

Technical Specifications

Frequently Asked Questions

What is the specific advantage of the "Mark/Mask" function?

The Mark/Mask function is a specialized motion feature for packaging and bag-making. It allows the controller to detect registration marks on packaging film and compensate for position variations in real-time, ensuring that cutting or sealing happens at the exact required location on the film.

How does the electronic gear function work?

The electronic gear function allows you to define a relationship between the input pulses from the controller and the actual physical movement of the motor (e.g., distance per pulse). This allows you to scale motion without needing to change mechanical gears, making the system highly flexible for different machine product formats.

Can this controller be integrated with standard PLCs?

Yes, it supports standard MODBUS ASCII/RTU protocols, allowing it to function seamlessly as a node in a larger automation network, often serving as the dedicated motion brain while a higher-level PLC manages overall plant logic.

Installation and Engineering Guidelines

• Signal Integrity: Given the high-speed 1 MHz pulse outputs, always use twisted-pair shielded cables for all pulse and counter inputs. Bond the cable shield to the ground terminal at the controller side to prevent electromagnetic interference (EMI) from corrupting the high-speed signals.
• Grounding Requirements: To ensure high-speed counter accuracy, connect the controller's ground terminal directly to the machine's central grounding bus using a large-gauge copper cable. This provides a low-impedance path that is essential for pulse signal clarity.
• MPG Wiring: When connecting an MPG (Manual Pulse Generator), ensure the input wiring is kept away from power-carrying cables (e.g., motor leads, AC power feeds). Even minor induced voltage spikes can cause the motion controller to perceive "phantom" pulses, leading to positioning errors.
